Are you struggling to understand the different types of transformers and their specific applications? You're not alone. Many engineers and project managers find themselves overwhelmed by the variety of transformer options available. But what if you could easily identify the right transformer for your specific needs?

Transformers are electrical devices that transfer energy between circuits using electromagnetic induction. This guide explains 10 main types of transformers based on their function and application, helping you understand where and how each type is used in power systems, industries, and control environments.

In this comprehensive guide, I'll walk you through the 10 main types of transformers, explaining their unique features, functions, and typical applications. Whether you're designing a power distribution system, setting up industrial equipment, or working on a specialized project, this article will help you choose the right transformer for your specific requirements.

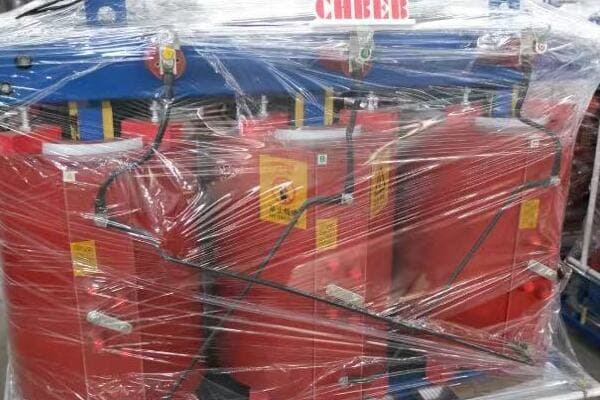

1. Power Transformers – For High Voltage Transmission?

Have you ever wondered how electricity travels long distances from power plants to cities? The answer lies in power transformers. But what makes these transformers special, and why are they crucial for our energy infrastructure?

Power transformers are used in substations and generation stations, handling voltages of 33kV and above. They are key for stepping up voltage for long-distance transmission and stepping it down for further distribution. These transformers are the backbone of our electrical grid system.

Diving Deeper into Power Transformers

Let's explore the key aspects of power transformers:

Voltage Levels and Capacity

Power transformers typically operate at:

• High voltage: 33kV to 765kV
• Capacity: From 5 MVA to over 1000 MVA

I once worked on a project upgrading a major substation where we installed a 500MVA, 400kV/220kV power transformer. The sheer size and complexity of the unit were awe-inspiring, highlighting the critical role these transformers play in our power infrastructure.

Key Features

Characteristics of power transformers include:

• Large size and weight (often hundreds of tons)
• Sophisticated cooling systems (ONAN, ONAF, OFAF)
• Advanced monitoring and protection systems

Applications

Common uses for power transformers:

• Step-up transformers at power generation plants
• Step-down transformers at transmission substations
• Interconnection between different voltage levels in the grid

Efficiency and Losses

Power transformers are designed for high efficiency:

• Typical efficiency: >99%
• Losses are critical due to high power handling

Here's a comparison table of power transformer characteristics at different voltage levels:

Voltage Level	Typical Capacity Range	Cooling Method	Common Applications
33kV - 132kV	10 MVA - 100 MVA	ONAN/ONAF	Sub-transmission, Large industrial
220kV - 400kV	100 MVA - 500 MVA	ONAF/OFAF	Major transmission, Grid interconnection
500kV - 765kV	300 MVA - 1000+ MVA	OFAF/ODAF	Ultra-high voltage transmission

In my experience, the selection of power transformers for major infrastructure projects involves careful consideration of both current and future needs. I recall a project where we had to plan for a 50% increase in capacity over 20 years. This long-term view influenced our choice of a higher-rated transformer that could accommodate future growth without replacement.

The environmental impact of power transformers is becoming increasingly important. In a recent project, we implemented a state-of-the-art monitoring system for a large power transformer. This system not only optimized performance but also helped in early detection of potential issues, significantly reducing the risk of environmental incidents related to oil leaks or failures.

Maintenance of power transformers is critical for grid reliability. I've been involved in developing comprehensive maintenance programs for utility companies. These programs include regular oil testing, thermal imaging, and partial discharge monitoring. Such proactive approaches have significantly extended the lifespan of transformers and reduced unexpected outages.

The trend towards renewable energy integration is posing new challenges for power transformer design. I'm currently working on a project involving transformers for a large offshore wind farm. These units need to handle the variable input from wind turbines while providing stable output to the grid, requiring innovative designs in voltage regulation and harmonics management.

Lastly, the advent of smart grid technologies is influencing power transformer specifications. In a recent grid modernization project, we incorporated advanced sensors and communication capabilities into power transformers. This allowed for real-time monitoring and control, enhancing overall grid stability and efficiency.

Power transformers are the unsung heroes of our electrical transmission system. Their ability to efficiently step voltage up for long-distance transmission and down for distribution is fundamental to the functioning of our power grid. As we move towards a more complex and interconnected energy future, the role of power transformers will continue to evolve, incorporating new technologies to meet the challenges of renewable integration, smart grids, and increasing energy demands. Understanding the capabilities and applications of these transformers is crucial for anyone involved in power system planning, design, or management.

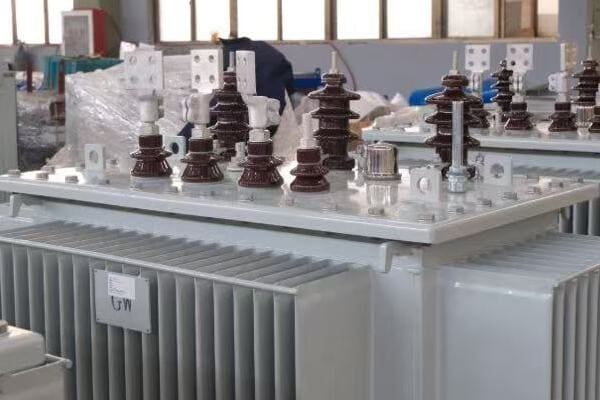

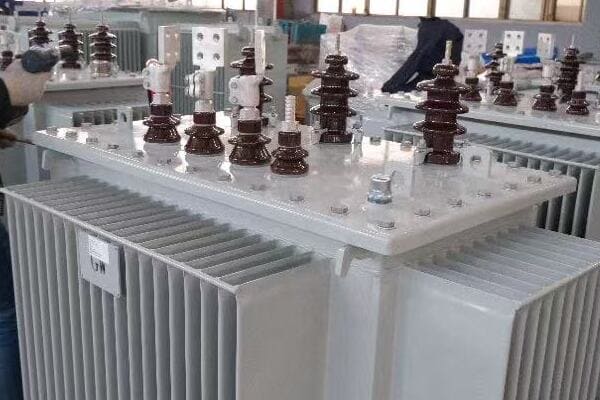

2. Distribution Transformers – For Local Energy Delivery?

Have you ever wondered how the high voltage electricity from transmission lines is converted to a usable level for your home or business? This is where distribution transformers come into play. But what exactly are these transformers, and why are they so important in our daily lives?

Distribution transformers typically handle voltages under 33kV, supplying electricity directly to end users like homes, buildings, and factories. They include both pole-mounted and pad-mounted types, forming the crucial last link in the power delivery chain that brings electricity to our doorsteps.

Understanding Distribution Transformers

Let's delve into the key aspects of distribution transformers:

Voltage Levels and Capacity

Distribution transformers operate at:

• Primary voltage: Typically 4kV to 33kV
• Secondary voltage: Usually 120V/240V for residential, up to 600V for commercial
• Capacity: From 5 kVA to 5000 kVA

I once worked on a neighborhood electrification project where we installed numerous 100 kVA, 11kV/415V transformers. It was fascinating to see how these relatively small units could power entire blocks of homes and small businesses.

Types and Mounting

Common types of distribution transformers:

• Pole-mounted: For overhead distribution lines
• Pad-mounted: For underground distribution systems
• Vault-type: For urban areas with space constraints

Key Features

Characteristics of distribution transformers include:

• Compact design for urban and residential areas
• Weather-resistant construction (especially for pole-mounted units)
• Often equipped with tap changers for voltage adjustment

Applications

Typical uses for distribution transformers:

• Residential power supply
• Commercial building electrical systems
• Small to medium-sized industrial facilities
• Street lighting and public infrastructure

Here's a comparison table of different distribution transformer types:

Type	Typical Capacity	Mounting	Common Applications
Pole-mounted	5 kVA - 150 kVA	On utility poles	Rural and suburban areas
Pad-mounted	75 kVA - 5000 kVA	Ground level	Urban areas, commercial zones
Vault-type	500 kVA - 2500 kVA	Underground vaults	Dense urban areas, high-rises

In my experience, the selection of distribution transformers often involves balancing multiple factors. I recall a project in a rapidly growing suburban area where we had to carefully consider future load growth. We opted for slightly oversized transformers with the capability to add cooling fans later, providing a cost-effective way to meet both current needs and future expansion.

The trend towards energy efficiency is significantly impacting distribution transformer design. In a recent project for a utility company, we implemented amorphous core transformers. While more expensive initially, these units reduced energy losses by up to 70% compared to traditional silicon steel core transformers, resulting in substantial long-term savings and reduced environmental impact.

Reliability and maintenance considerations are crucial for distribution transformers. I've been involved in developing predictive maintenance programs using smart grid technologies. By integrating sensors and communication devices into distribution transformers, we've been able to monitor load patterns, detect potential issues early, and optimize maintenance schedules, significantly improving reliability and reducing outages.

The integration of renewable energy sources at the distribution level is posing new challenges. In a recent solar neighborhood project, we had to design a system of bi-directional distribution transformers capable of handling power flow from both the grid and local solar installations. This required careful consideration of voltage regulation and harmonics management.

Environmental and safety concerns are increasingly influencing distribution transformer design. I worked on a project in an environmentally sensitive area where we used biodegradable ester fluids instead of traditional mineral oil. This choice not only reduced environmental risks but also improved fire safety, a critical factor in residential areas.

Lastly, the aesthetic impact of distribution transformers is becoming more important, especially in urban planning. In a recent downtown revitalization project, we collaborated with urban designers to develop custom enclosures for pad-mounted transformers. These enclosures blended with the streetscape while maintaining necessary access for maintenance, showcasing how technical requirements can be balanced with community aesthetics.

Distribution transformers play a vital role in bringing electricity to our everyday lives. They are the final step in the power delivery process, ensuring that the high-voltage electricity from the grid is safely and efficiently converted to usable levels for homes and businesses. As our energy needs evolve with the integration of renewable sources, smart grid technologies, and increasing demand, the design and deployment of distribution transformers continue to adapt. Understanding these transformers is essential for anyone involved in urban planning, electrical system design, or energy management, as they form the critical link between the power grid and the end-user.

3. Isolation Transformers – For Equipment Protection?

Have you ever experienced electrical noise interfering with sensitive equipment or worried about the safety of your devices in case of power surges? Isolation transformers address these concerns, but how exactly do they work, and when should you use them?

Isolation transformers provide electrical separation between input and output circuits, reducing shock risk and suppressing noise. They are commonly used in medical and laboratory systems where equipment protection and user safety are paramount. These transformers offer a crucial layer of defense against electrical disturbances.

Exploring Isolation Transformers in Depth

Let's delve into the key aspects of isolation transformers:

Working Principle

Isolation transformers operate by:

• Physically separating primary and secondary windings
• Blocking DC components and attenuating common-mode noise
• Providing a new ground reference for the secondary circuit

I once worked on a project for a high-precision manufacturing facility where electromagnetic interference was causing quality issues. Implementing isolation transformers for their sensitive measurement equipment resolved the problem, highlighting the practical importance of these devices in real-world applications.

Key Features

Characteristics of isolation transformers include:

• 1:1 turns ratio (typically, though not always)
• Faraday shield between primary and secondary windings
• High isolation resistance between windings

Applications

Common uses for isolation transformers:

• Medical equipment (MRI machines, patient monitoring devices)
• Audio and video production equipment
• Test and measurement instruments
• Industrial control systems in noisy environments

Safety and Performance Benefits

Isolation transformers provide:

• Protection against electric shock
• Reduction of ground loop currents
• Attenuation of high-frequency noise

Here's a comparison table of isolation transformer characteristics for different applications:

Application	Typical Capacity	Key Features	Safety Standards
Medical	1 kVA - 25 kVA	Ultra-low leakage current	IEC 60601-1
Industrial	5 kVA - 100 kVA	High overload capacity	UL 1561
Laboratory	500 VA - 10 kVA	High accuracy, low noise	EN 61558

In my experience, the selection of isolation transformers often involves careful consideration of specific application requirements. I recall a project for a research laboratory where we needed to provide ultra-clean power for electron microscopes. We implemented a multi-stage isolation system, combining isolation transformers with active harmonic filters. This approach not only eliminated electrical noise but also stabilized the voltage, crucial for the precision of their experiments.

The importance of isolation transformers in medical environments cannot be overstated. In a recent hospital modernization project, we installed isolation transformers in operating rooms and intensive care units. These transformers not only enhanced patient safety by reducing the risk of electric shock but also improved the reliability of life-support equipment by protecting against power disturbances.

In industrial settings, isolation transformers play a crucial role in protecting sensitive control systems. I worked on a project for a chemical plant where electromagnetic interference from large motors was causing erratic behavior in PLC systems. By implementing strategically placed isolation transformers, we were able to create "clean power zones" for the control equipment, significantly improving process reliability and safety.

The advent of renewable energy systems has introduced new applications for isolation transformers. In a recent solar farm project, we used isolation transformers to interface the inverters with the grid. This not only provided the necessary galvanic isolation but also helped in managing DC injection and harmonics, crucial for compliance with grid interconnection standards.

Maintenance considerations for isolation transformers are often overlooked. I've developed maintenance programs that include regular testing of insulation resistance and transformer ratios. These proactive measures have been crucial in identifying potential issues before they lead to equipment failure or safety hazards.

The trend towards more compact and efficient isolation transformers is driving innovation in materials and design. I'm currently involved in a project evaluating new core materials that offer higher efficiency and smaller size. These advancements are particularly important for applications where space is at a premium, such as in medical equipment or aerospace systems.

Isolation transformers are a critical component in ensuring the safety and reliability of electrical systems, especially in environments with sensitive equipment or where user safety is paramount. Their ability to provide galvanic isolation, suppress noise, and create a new ground reference makes them indispensable in medical, industrial, and research applications. As our reliance on sensitive electronic equipment grows and as we face new challenges in power quality due to the proliferation of non-linear loads and renewable energy sources, the role of isolation transformers continues to evolve. Understanding when and how to apply these transformers is crucial for engineers and system designers aiming to create safe, reliable, and high-performance electrical systems.

4. Auto Transformers – Compact and Cost-Efficient?

Have you ever needed to adjust voltage levels but found traditional transformers too bulky or expensive? Auto transformers might be the solution you're looking for. But what makes them different, and why are they chosen over conventional transformers in certain applications?

Auto transformers share a single winding for both primary and secondary circuits, making them more compact and cost-efficient than two-winding transformers. They're ideal for applications like motor starting or voltage adjustment where electrical isolation isn't required. Auto transformers offer a space-saving and economical solution for many voltage conversion needs.

Understanding Auto Transformers in Detail

Let's explore the key aspects of auto transformers:

Working Principle

Auto transformers operate by:

• Using a single winding with taps for different voltage levels
• Sharing part of the winding between primary and secondary circuits
• Transferring power through both electrical and magnetic coupling

I once worked on a project upgrading a manufacturing plant's power system. We replaced several large, traditional transformers with auto transformers for voltage regulation. The space saved and cost reduction were significant, demonstrating the practical advantages of this technology in industrial settings.

Key Features

Characteristics of auto transformers include:

• Smaller size and lower weight compared to two-winding transformers
• Higher efficiency due to part of the power being directly connected
• Limited isolation between input and output

Applications

Common uses for auto transformers:

• Voltage boosting or bucking in power distribution systems
• Motor starting in industrial applications
• Voltage matching in transmission system interconnections
• Portable voltage conversion equipment

Advantages and Limitations

Benefits and drawbacks of auto transformers:

• Pros: Compact size, lower cost, higher efficiency
• Cons: Lack of electrical isolation, limited voltage ratios

Here's a comparison table of auto transformer applications:

Application	Typical Capacity	Voltage Ratio	Key Benefit
Motor Starting	10 kVA - 1000 kVA	50% - 80%	Reduced inrush current
Voltage Regulation	100 kVA - 10 MVA	±5% - ±15%	Continuous adjustment
Transmission Interconnection	100 MVA - 1000 MVA	1:1.1 - 1:1.5	Efficient power transfer

In my experience, the selection of auto transformers often involves a careful balance between cost savings and system requirements. I recall a project for a large data center where we used auto transformers for voltage regulation within the facility. This choice allowed for more efficient use of space and reduced overall costs, but we had to implement additional protection measures to compensate for the lack of galvanic isolation.

The application of auto transformers in renewable energy systems is an emerging trend. In a recent wind farm project, we used auto transformers for voltage matching between the wind turbines and the collection system. This approach not only reduced costs but also improved overall system efficiency, showcasing how auto transformers can play a crucial role in modern green energy solutions.

Maintenance considerations for auto transformers are often simpler than for traditional transformers. I've developed maintenance programs that focus on monitoring tap changers and insulation condition. The simplified design of auto transformers often results in lower maintenance costs and higher reliability, which can be a significant advantage in industrial applications.

The use of auto transformers in grid stabilization is becoming increasingly important. I worked on a project where we implemented large auto transformers as part of a flexible AC transmission system (FACTS). These units provided rapid voltage control, helping to stabilize the grid during load fluctuations and improving overall power quality.

Safety considerations are paramount when using auto transformers, especially in scenarios where isolation might typically be expected. In a recent industrial automation project, we had to carefully design the grounding system and implement additional protective measures to ensure safe operation of equipment connected to auto transformers. This experience highlighted the importance of thorough risk assessment when applying this technology.

The trend towards more efficient and compact power systems is driving innovations in auto transformer design. I'm currently involved in a research project exploring the use of advanced magnetic materials in auto transformers. These materials promise to further reduce size and weight while improving efficiency, potentially opening up new applications for auto transformers in areas where space is at a premium.

Lastly, the integration of smart grid technologies is influencing auto transformer applications. In a recent distribution network upgrade, we incorporated auto transformers with advanced monitoring and control capabilities. This allowed for dynamic voltage regulation in response to changing load conditions, enhancing grid stability and efficiency.

Auto transformers offer a compact and cost-effective solution for many voltage adjustment needs. Their unique design, sharing a single winding between input and output, allows for significant reductions in size, weight, and cost compared to traditional two-winding transformers. While they lack the electrical isolation provided by conventional transformers, auto transformers excel in applications where this is not a primary concern, such as voltage regulation, motor starting, and efficient power transfer between systems with similar voltages.

As power systems continue to evolve, driven by the needs of renewable energy integration, smart grids, and energy efficiency, the role of auto transformers is likely to expand. Their ability to provide efficient voltage adjustment in a compact package makes them an invaluable tool in the electrical engineer's arsenal. However, it's crucial to carefully consider the specific requirements of each application, particularly regarding safety and isolation needs, when deciding to use auto transformers. With proper application and design, auto transformers can offer significant advantages in terms of cost, efficiency, and space utilization in a wide range of electrical systems.

5. Instrument Transformers – For Measurement and Safety?

Have you ever wondered how electrical systems measure extremely high currents or voltages without damaging sensitive meters? This is where instrument transformers come into play. But what exactly are these devices, and why are they so crucial for power system operation and protection?

Instrument transformers include current transformers (CTs) and voltage transformers (VTs), used with relays, meters, and protection devices. They're common in medium/high voltage switchgear, allowing safe and accurate measurement of large currents and high voltages. These transformers are essential for monitoring, control, and protection of electrical systems.

Exploring Instrument Transformers in Depth

Let's delve into the key aspects of instrument transformers:

Types and Functions

Two main types of instrument transformers:

1. Current Transformers (CTs):

   • Step down high currents to measurable levels
   • Typically output 1A or 5A secondary current

2. Voltage Transformers (VTs):

   • Reduce high voltages to safe, measurable levels
   • Often provide 120V secondary for instrumentation

I once worked on a substation upgrade project where selecting the right CTs and VTs was crucial for the protection scheme. The accuracy of these instruments directly impacted the reliability of the entire power system, highlighting their critical role in electrical infrastructure.

Key Features

Characteristics of instrument transformers include:

• High accuracy classes (0.1%, 0.2%, 0.5% common)
• Ability to withstand short-circuit currents (for CTs)
• Excellent insulation for high voltage isolation (for VTs)

Applications

Common uses for instrument transformers:

• Metering and billing in power distribution
• Protective relaying in switchgear
• Power quality monitoring and analysis
• Control and indication in substations

Safety and Accuracy Considerations

Important factors include:

• Burden (connected load) impact on accuracy
• Saturation points for CTs
• Ferroresonance risks in VTs

Here's a comparison table of CT and VT characteristics:

Aspect	Current Transformer (CT)	Voltage Transformer (VT)
Primary Rating	5A to 5000A+	600V to 500kV+
Secondary Rating	Typically 1A or 5A	Usually 120V
Accuracy Classes	0.1, 0.2, 0.5, 1.0	0.1, 0.2, 0.5, 1.0
Key Application	Current measurement, protection	Voltage measurement, metering
Safety Concern	Open-circuited secondary	Overvoltage on secondary

In my experience, the selection of instrument transformers often involves a delicate balance between accuracy and cost. I recall a project for a large industrial facility where we needed high-accuracy CTs for energy management. We opted for 0.2% class CTs, which were more expensive but provided the precision necessary for effective energy optimization, ultimately leading to significant cost savings for the client.

The importance of proper CT sizing cannot be overstated. In a recent power system analysis project, we discovered that undersized CTs were saturating during fault conditions, leading to incorrect operation of protective relays. Upgrading to appropriately sized CTs with higher saturation points significantly improved the reliability of the protection system.

Voltage transformers play a crucial role in power quality monitoring. I worked on a project implementing a wide-area power quality monitoring system for a utility company. The selection of high-accuracy VTs was critical in detecting and analyzing voltage sags, swells, and harmonics across the network, enabling proactive maintenance and improved power quality for customers.

The trend towards digital substations is influencing instrument transformer technology. I'm currently involved in a project evaluating optical instrument transformers. These devices offer advantages in terms of accuracy, safety, and immunity to electromagnetic interference, potentially revolutionizing how we measure electrical parameters in high-voltage environments.

Safety considerations are paramount when working with instrument transformers. I've developed training programs for technicians on the proper handling of CTs and VTs, emphasizing the dangers of open-circuited CTs and overvoltage risks with VTs. This focus on safety has been crucial in preventing accidents and ensuring reliable operation of measurement systems.

The integration of instrument transformers with smart grid technologies is opening new possibilities. In a recent distribution automation project, we implemented CTs and VTs with built-in communication capabilities. This allowed for real-time monitoring and adaptive protection, enhancing grid reliability and enabling more efficient fault location and isolation.

Lastly, the environmental impact of instrument transformers is becoming an important consideration. I'm part of a research team exploring eco-friendly insulation materials for VTs, aiming to reduce the use of SF6 gas while maintaining high performance. This work reflects the growing emphasis on sustainability in power system design.

Instrument transformers are indispensable components in modern electrical systems, providing the critical link between high-power circuits and sensitive measurement and protection devices. Their ability to accurately scale down large currents and high voltages enables safe and effective monitoring, control, and protection of power systems. As power grids become more complex and dynamic, with the integration of renewable sources and smart technologies, the role of instrument transformers continues to evolve. Understanding the principles, applications, and limitations of CTs and VTs is essential for anyone involved in power system design, operation, or maintenance. By selecting and applying these devices correctly, we can ensure the safety, reliability, and efficiency of our electrical infrastructure.

6. Control Transformers – For Machinery and Panels?

Have you ever wondered how complex machinery and control panels maintain stable and reliable operation despite fluctuations in the power supply? The answer often lies in control transformers. But what makes these transformers special, and why are they crucial for industrial and automation systems?

Control transformers stabilize voltage for machine control circuits, offering low power ratings but high regulation accuracy. They are commonly used in CNCs, elevators, lighting panels, and various industrial control applications. These transformers ensure reliable operation of sensitive control equipment in challenging electrical environments.

Understanding Control Transformers in Detail

Let's explore the key aspects of control transformers:

Unique Features

Characteristics of control transformers include:

• High inrush current capacity
• Excellent voltage regulation
• Compact size for panel mounting
• Often include multiple secondary taps

I once worked on upgrading a manufacturing line where outdated control transformers were causing intermittent equipment failures. Replacing them with modern, high-regulation units dramatically improved the reliability of the entire production system, showcasing the critical role these small but mighty transformers play.

Applications

Common uses for control transformers:

• Industrial control panels and PLCs
• Machine tools and CNC equipment
• Elevator control systems
• HVAC control circuits
• Lighting control panels

Design Considerations

Key factors in control transformer design:

• VA rating and duty cycle
• Primary and secondary voltage requirements
• Environmental factors (temperature, humidity, vibration)
• Inrush current capacity for solenoid and relay loads

Advantages in Control Systems

Benefits of using control transformers:

• Isolation from main power supply
• Voltage step-down for control circuits
• Improved noise immunity
• Enhanced safety for operators

Here's a comparison table of control transformer characteristics for different applications:

Application	Typical VA Range	Key Feature	Common Secondary Voltage
PLC Systems	50VA - 500VA	High regulation	24V
Machine Tools	250VA - 2kVA	High inrush capacity	120V
Elevator Controls	500VA - 5kVA	Multiple taps	120V/240V
Lighting Panels	100VA - 1kVA	Compact size	12V/24V

In my experience, the selection of control transformers often involves careful consideration of the specific load characteristics. I recall a project for a large automated warehouse where we needed to power numerous solenoid valves. The high inrush current of these valves required control transformers with significantly higher VA ratings than the steady-state load would suggest. This oversizing ensured reliable operation and prevented nuisance tripping of protective devices.

The importance of voltage regulation in control transformers cannot be overstated. In a recent project for a precision manufacturing facility, we implemented control transformers with ±1% voltage regulation. This tight control was crucial for maintaining the accuracy of sensitive measuring equipment and ensuring consistent product quality.

Environmental considerations play a significant role in control transformer selection. I worked on a project for an offshore oil platform where control transformers were exposed to high humidity and salt spray. We specified units with enhanced enclosures and special insulation to withstand these harsh conditions, ensuring long-term reliability in this challenging environment.

The trend towards more compact machinery is driving innovations in control transformer design. I'm currently involved in a project evaluating new core materials that allow for smaller, more efficient control transformers. These advancements are particularly valuable in applications where panel space is at a premium, such as in modern CNC machines or robotic systems.

Safety considerations are paramount when designing control systems. In a recent industrial automation project, we implemented control transformers with built-in thermal protection and short-circuit-proof designs. These features provided an additional layer of safety, protecting both the equipment and operators from potential electrical hazards.

The integration of control transformers with smart manufacturing systems is opening new possibilities. I recently worked on a project where we incorporated control transformers with built-in monitoring capabilities. These smart units provided real-time data on voltage, current, and temperature, enabling predictive maintenance and enhancing overall system reliability.

Lastly, the energy efficiency of control transformers is becoming an important consideration, especially in large-scale industrial applications. I'm part of a team developing guidelines for selecting high-efficiency control transformers. While the individual energy savings may be small, the cumulative effect across numerous control circuits in a large facility can lead to significant energy and cost savings over time.

Control transformers play a vital role in ensuring the reliable and safe operation of industrial machinery and control systems. Their ability to provide stable, regulated voltage to sensitive control circuits is crucial in environments where power quality may be less than ideal. As industrial processes become more automated and control systems more sophisticated, the importance of selecting the right control transformer only grows. Understanding the unique features and applications of these transformers is essential for engineers and technicians involved in industrial automation, machine design, or control system maintenance. By choosing the appropriate control transformer, you can enhance the performance, reliability, and safety of your control systems, ultimately contributing to more efficient and productive industrial operations.

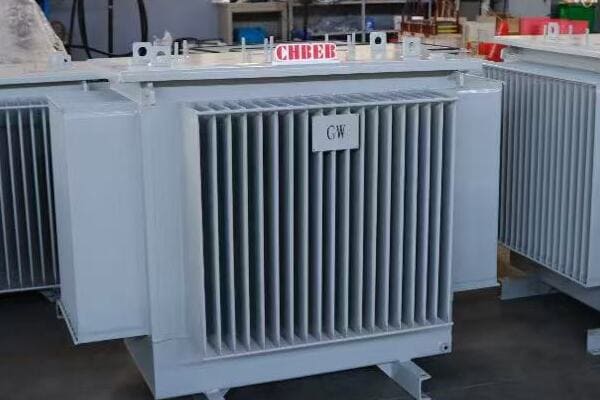

7. Furnace Transformers – For Arc and Induction Furnaces?

Have you ever wondered how electric furnaces in steel mills or glass factories handle the enormous power required for melting metals and materials? The answer lies in specialized furnace transformers. But what makes these transformers unique, and why are they crucial for heavy industrial processes?

Furnace transformers are designed to withstand extreme thermal and electrical stresses, supporting heavy-duty industrial loads in arc and induction furnaces. They are commonly used in steel, glass, and aluminum production, where they must deliver high currents at low voltages while handling severe load fluctuations.

Exploring Furnace Transformers in Depth

Let's delve into the key aspects of furnace transformers:

Unique Design Features

Characteristics of furnace transformers include:

• High current, low voltage secondary windings
• Robust construction to withstand thermal shocks
• Advanced cooling systems (often water-cooled)
• Tap changers for precise voltage control

I once worked on a project upgrading a steel mill's electric arc furnace. The new furnace transformer we installed could handle currents up to 100,000 amperes at the secondary side. The sheer scale of the unit and its ability to manage such enormous power was truly impressive, highlighting the critical role these transformers play in heavy industry.

Applications

Common uses for furnace transformers:

• Electric arc furnaces in steel production
• Induction furnaces for metal melting and heating
• Glass melting furnaces
• Electrochemical processes

Key Performance Factors

Important considerations in furnace transformer design:

• Short-circuit strength
• Ability to handle rapid load changes
• Efficiency under varying load conditions
• Harmonics management

Challenges and Solutions

Unique challenges faced by furnace transformers:

• Extreme heat exposure
• Electrical arcing
• Mechanical stress from electromagnetic forces
• Harmonics and power quality issues

Here's a comparison table of furnace transformer characteristics for different applications:

Application	Typical Power Range	Secondary Voltage	Key Feature
Arc Furnace	20 MVA - 300 MVA	500V - 1500V	High short-circuit strength
Induction Furnace	1 MVA - 30 MVA	100V - 1000V	Precise voltage control
Glass Melting	5 MVA - 50 MVA	400V - 800V	Continuous duty operation
Electrochemical	10 MVA - 100 MVA	300V - 1200V	DC rectification capability

In my experience, the selection of furnace transformers often involves a delicate balance between power capacity and operational flexibility. I recall a project for an aluminum smelting plant where we implemented a furnace transformer with advanced on-load tap changing capabilities. This feature allowed for precise control of the melting process, significantly improving energy efficiency and product quality.

The cooling system of furnace transformers is critical to their performance and longevity. In a recent project for a large steel mill, we designed a custom water-cooling system for their arc furnace transformer. This system not only handled the extreme heat generated during operation but also incorporated advanced monitoring to detect any cooling issues promptly, ensuring uninterrupted production.

Harmonics management is a significant challenge in furnace transformer applications. I worked on a project where severe harmonics from an electric arc furnace were causing issues throughout the plant's electrical system. We implemented a furnace transformer with built-in harmonic mitigation features, including specially designed windings and core. This solution dramatically improved power quality and reduced stress on other electrical equipment.

The trend towards more energy-efficient and environmentally friendly industrial processes is influencing furnace transformer design. I'm currently involved in a research project exploring superconducting materials for furnace transformers. While still in the experimental stage, this technology promises to significantly reduce losses and increase power density, potentially revolutionizing high-power industrial applications.

Safety considerations are paramount in furnace transformer installations. In a recent project for a glass manufacturing facility, we implemented advanced protective features including arc flash detection and rapid disconnection systems. These safety measures not only protected the equipment but also significantly enhanced worker safety in the high-risk furnace area.

The integration of furnace transformers with smart manufacturing systems is opening new possibilities for process optimization. I recently consulted on a project where we incorporated real-time monitoring and data analytics into the furnace transformer system. This allowed for predictive maintenance and dynamic load management, improving overall efficiency and reducing downtime in the steel production process.

Environmental considerations are becoming increasingly important in furnace transformer design. In a recent project for an eco-conscious metal recycling facility, we implemented a furnace transformer with biodegradable insulating fluid. This choice not only reduced environmental risks but also improved fire safety, a critical factor in high-temperature industrial environments.

The challenge of managing rapid load fluctuations in furnace applications is significant. I worked on a project for an induction furnace where load changes were causing voltage stability issues. We designed a custom furnace transformer with enhanced reactive power compensation, which significantly improved voltage stability and process consistency.

Lastly, the trend towards more compact and efficient industrial processes is driving innovations in furnace transformer design. I'm part of a team developing high-frequency furnace transformers for next-generation induction heating applications. These transformers promise to deliver more precise heating control and improved energy efficiency, potentially transforming various industrial heating processes.

Furnace transformers are specialized powerhouses that play a crucial role in heavy industrial processes, particularly in metal and glass production. Their ability to deliver enormous currents at low voltages, withstand extreme thermal and electrical stresses, and handle rapid load fluctuations makes them indispensable in these demanding applications. As industries strive for greater efficiency, improved process control, and reduced environmental impact, the design and capabilities of furnace transformers continue to evolve.

Understanding the unique requirements and challenges of furnace transformers is essential for engineers and managers involved in heavy industrial operations. From managing harmonics and thermal stresses to integrating smart technologies for improved process control, the field of furnace transformers offers exciting opportunities for innovation and optimization. By selecting and implementing the right furnace transformer solutions, industries can enhance their production capabilities, improve energy efficiency, and maintain a competitive edge in the global market.

8. Rectifier Transformers – For DC Conversion Systems?

Have you ever wondered how large-scale DC power is produced for applications like aluminum smelting or data centers? The answer often lies in rectifier transformers. But what makes these transformers special, and why are they crucial for industries requiring high-power DC supply?

Rectifier transformers work in conjunction with rectifiers for HVDC and electrolysis applications. They are designed to support non-linear, unbalanced loads typical in DC conversion systems. These transformers are common in data centers, mining operations, and chemical plants where large amounts of DC power are required.

Understanding Rectifier Transformers in Detail

Let's explore the key aspects of rectifier transformers:

Unique Design Features

Characteristics of rectifier transformers include:

• Multiple secondary windings for different rectification schemes
• High short-circuit impedance to limit fault currents
• Specialized insulation to withstand harmonic stresses
• Often include phase-shifting capabilities for harmonic cancellation

I once worked on a project for a large aluminum smelter where we installed a 12-pulse rectifier transformer system. The transformer's ability to handle the enormous DC currents while managing harmonics was impressive, showcasing the critical role these units play in heavy industrial processes.

Applications

Common uses for rectifier transformers:

• Aluminum and chlorine production (electrolysis)
• High Voltage Direct Current (HVDC) transmission systems
• Large data centers and server farms
• Electric railway power supply
• Industrial electroplating processes

Key Performance Factors

Important considerations in rectifier transformer design:

• Harmonic mitigation capabilities
• Thermal management under non-linear loads
• Efficiency at varying load conditions
• Ability to handle DC magnetization

Challenges and Solutions

Unique challenges faced by rectifier transformers:

• High harmonic content in load current
• Potential for DC offset in windings
• Increased eddy current losses
• Need for precise voltage control

Here's a comparison table of rectifier transformer characteristics for different applications:

Application	Typical Power Range	Rectification Scheme	Key Feature
Aluminum Smelting	100 MVA - 500 MVA	12-pulse or higher	High current capacity
HVDC Systems	500 MVA - 1500 MVA	12-pulse or 24-pulse	Phase shifting capability
Data Centers	1 MVA - 30 MVA	6-pulse or 12-pulse	High efficiency at partial loads
Electroplating	500 kVA - 5 MVA	6-pulse	Precise voltage control

In my experience, the selection of rectifier transformers often involves complex considerations of harmonic management and energy efficiency. I recall a project for a large data center where we implemented an 18-pulse rectifier system. This configuration significantly reduced harmonics injected back into the grid, improving overall power quality and reducing the need for additional harmonic filtering equipment.

Thermal management is crucial in rectifier transformer applications due to the non-linear nature of the load. In a recent project for an electric arc furnace power supply, we designed a custom cooling system that combined oil and water cooling. This hybrid approach allowed for efficient heat dissipation even under the most demanding operating conditions, ensuring reliable long-term operation.

The challenge of DC magnetization in rectifier transformers is significant. I worked on a project for an HVDC converter station where we implemented special core designs and winding arrangements to mitigate the effects of DC flux. This solution not only improved transformer efficiency but also extended its operational lifespan by reducing core saturation and associated heating.

The trend towards more efficient and compact power electronics is influencing rectifier transformer design. I'm currently involved in a research project exploring the use of wide-bandgap semiconductors in rectification systems. These advanced devices allow for higher switching frequencies, potentially reducing the size and weight of rectifier transformers while improving overall system efficiency.

Harmonics management is a critical aspect of rectifier transformer applications. In a recent industrial project, we implemented advanced phase-shifting techniques in the rectifier transformer design. By carefully selecting winding configurations and utilizing multiple transformer units, we were able to cancel out specific harmonic orders, significantly improving power quality without the need for extensive external filtering.

The integration of rectifier transformers with smart grid technologies is opening new possibilities for grid management. I recently consulted on a project where we incorporated real-time monitoring and control capabilities into a large HVDC converter transformer. This allowed for dynamic adjustment of power flow and improved coordination with renewable energy sources, enhancing overall grid stability and efficiency.

Environmental considerations are becoming increasingly important in rectifier transformer design, especially for large industrial applications. In a recent project for a chlorine production facility, we implemented a rectifier transformer system with biodegradable insulating fluid. This choice not only reduced environmental risks but also improved the system's fire safety profile, a critical factor in chemical processing environments.

Lastly, the challenge of partial load efficiency in rectifier transformers is significant, especially in applications with variable power demands. I'm part of a team developing adaptive control strategies for rectifier systems in data centers. By dynamically adjusting the number of active rectifier units and optimizing transformer loading, we've been able to significantly improve efficiency across a wide range of operating conditions.

Rectifier transformers are specialized units that play a crucial role in systems requiring large amounts of DC power. Their ability to handle non-linear loads, manage harmonics, and provide the necessary power quality for DC conversion makes them indispensable in applications ranging from heavy industry to modern data centers. As industries continue to demand more efficient and reliable DC power supplies, the design and capabilities of rectifier transformers will continue to evolve.

Understanding the unique requirements and challenges of rectifier transformers is essential for engineers and managers involved in projects requiring large-scale DC power. From managing harmonics and thermal stresses to integrating smart technologies for improved efficiency and grid interaction, the field of rectifier transformers offers significant opportunities for innovation and optimization. By selecting and implementing the right rectifier transformer solutions, industries can enhance their operational capabilities, improve energy efficiency, and maintain competitiveness in an increasingly electrified world.

9. Phase-Shifting Transformers – For Load Balancing?

Have you ever wondered how power grids manage the flow of electricity between interconnected systems? Phase-shifting transformers play a crucial role in this complex balancing act. But what exactly are these transformers, and why are they so important for modern power systems?

Phase-shifting transformers adjust the phase angle between interconnected power systems, helping to control power flow and reduce loop flows in complex grids. They are crucial for load balancing and optimizing power transfer in interconnected grid operations. These transformers enhance system stability and efficiency in large-scale power networks.

Exploring Phase-Shifting Transformers in Depth

Let's delve into the key aspects of phase-shifting transformers:

Working Principle

Phase-shifting transformers operate by:

• Introducing a phase angle difference between input and output voltages
• Controlling active power flow between interconnected systems
• Typically adjusting phase angles up to ±30 degrees

I once worked on a project interconnecting two regional power grids where a phase-shifting transformer was crucial. Its ability to dynamically adjust power flow based on system conditions not only improved overall grid stability but also optimized the utilization of transmission assets.

Key Features

Characteristics of phase-shifting transformers include:

• On-load tap changing capability for dynamic control
• High short-circuit strength
• Advanced cooling systems for continuous operation
• Often include sophisticated control and monitoring systems

Applications

Common uses for phase-shifting transformers:

• Managing power flow in interconnected transmission systems
• Optimizing the use of parallel transmission paths
• Mitigating loop flows in meshed networks
• Enhancing grid stability and reliability

Advantages in Power Systems

Benefits of using phase-shifting transformers:

• Improved control over power flow direction and magnitude
• Enhanced utilization of existing transmission capacity
• Reduction of unintended loop flows
• Increased flexibility in grid operations

Here's a comparison table of phase-shifting transformer characteristics for different applications:

Application	Typical Power Range	Phase Shift Range	Key Feature
Transmission Interconnection	100 MVA - 1000 MVA	±20° to ±30°	High power capacity
Parallel Path Management	50 MVA - 500 MVA	±15° to ±25°	Continuous regulation
Loop Flow Mitigation	200 MVA - 800 MVA	±10° to ±20°	Fast response time
Renewable Integration	100 MVA - 600 MVA	±15° to ±30°	Wide control range

In my experience, the implementation of phase-shifting transformers often requires careful system studies and coordination. I recall a project where we installed a phase-shifter to manage power flows between two states with significant renewable generation. The transformer's ability to dynamically adjust power flows based on real-time generation patterns was crucial in maximizing the utilization of wind and solar resources while maintaining system stability.

The control systems associated with phase-shifting transformers are becoming increasingly sophisticated. In a recent smart grid project, we implemented advanced adaptive control algorithms for a network of phase-shifters. This system could optimize power flows across multiple interconnected regions in real-time, responding to changes in generation, load, and market conditions.

Thermal management is a critical consideration in phase-shifting transformer design, especially for units with frequent tap changes. I worked on a project where we developed a hybrid cooling system combining forced oil and water cooling. This approach allowed for more aggressive use of the phase-shifter's control range without risking overheating, enhancing its effectiveness in managing dynamic power flows.

The integration of phase-shifting transformers with FACTS (Flexible AC Transmission Systems) devices is an emerging trend. I'm currently involved in a research project exploring the synergies between phase-shifters and static var compensators. This combination promises to provide even greater control over both active and reactive power flows, potentially revolutionizing how we manage complex power grids.

Maintenance considerations for phase-shifting transformers are unique due to their complex tap-changing mechanisms. I've developed specialized maintenance programs that focus on monitoring tap changer wear, oil quality, and control system performance. These proactive approaches have been crucial in ensuring the long-term reliability of these critical grid assets.

The role of phase-shifting transformers in renewable energy integration is becoming increasingly important. In a recent project involving a large offshore wind farm, we used a phase-shifting transformer to manage power flows between the wind farm and multiple onshore grid connection points. This flexibility was key in maximizing the wind farm's output while respecting grid constraints.

Lastly, the economic impact of phase-shifting transformers on power markets is a fascinating area of study. I've been involved in analyses where the strategic placement of phase-shifters significantly altered power flow patterns, influencing electricity prices across regions. This highlights the broader system-wide impacts these transformers can have beyond their immediate technical functions.

Phase-shifting transformers are sophisticated devices that play a crucial role in modern power systems. Their ability to control power flows, optimize transmission asset utilization, and enhance grid stability makes them invaluable tools in managing complex, interconnected power networks. As power systems continue to evolve with increasing renewable penetration and more dynamic market structures, the importance of phase-shifting transformers is likely to grow.

Understanding the capabilities and applications of phase-shifting transformers is essential for power system engineers, grid operators, and energy policymakers. These transformers offer powerful solutions for addressing challenges in power flow control, grid congestion, and system stability. By effectively implementing phase-shifting transformers, power systems can achieve greater flexibility, efficiency, and reliability, paving the way for a more resilient and sustainable energy future.

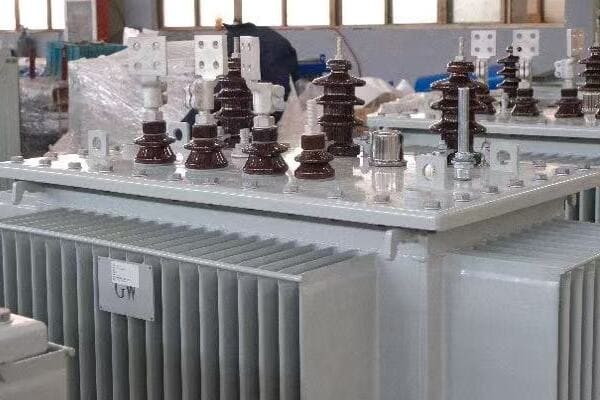

10. Grounding Transformers – For Neutral and Fault Control?

Have you ever wondered how electrical systems manage faults and maintain stability, especially in three-phase systems without a neutral connection? This is where grounding transformers come into play. But what exactly are these transformers, and why are they crucial for system safety and reliability?

Grounding transformers create an artificial neutral point in delta-connected systems, helping to limit fault currents and stabilize voltages. They are commonly used in wind farms, solar plants, and isolated networks where a solid neutral connection is not available. These transformers play a vital role in fault protection and system grounding.

Understanding Grounding Transformers in Detail

Let's explore the key aspects of grounding transformers:

Working Principle

Grounding transformers operate by:

• Creating a path for zero-sequence currents in ungrounded systems
• Providing a reference point for ground fault protection
• Stabilizing phase-to-ground voltages during unbalanced conditions

I once worked on a project for an offshore wind farm where the grounding transformer was crucial. Its ability to provide a stable neutral point for the entire wind farm network not only improved safety but also enhanced the reliability of the protection systems.

Key Features

Characteristics of grounding transformers include:

• Zigzag or wye-delta winding configurations
• High zero-sequence impedance
• Often include neutral grounding resistors
• Designed for short-time duty during fault conditions

Applications

Common uses for grounding transformers:

• Renewable energy plants (wind farms, solar arrays)
• Industrial power systems with delta-connected sources
• Ungrounded or impedance-grounded distribution systems
• Temporary grounding for maintenance operations

Advantages in Power Systems

Benefits of using grounding transformers:

• Improved ground fault detection and clearing
• Reduced risk of ferroresonance in cable-fed transformers
• Enhanced personnel safety through controlled ground currents
• Flexibility in system grounding methods

Here's a comparison table of grounding transformer characteristics for different applications:

Application	Typical Size Range	Configuration	Key Feature
Wind Farms	500 kVA - 5 MVA	Zigzag	High impedance grounding
Solar Plants	250 kVA - 2 MVA	Wye-Delta	Fault current limitation
Industrial Systems	100 kVA - 1 MVA	Zigzag	Personnel safety focus
Distribution Networks	500 kVA - 10 MVA	Wye-Delta	Voltage stabilization

In my experience, the selection of grounding transformers often involves careful consideration of the entire system's grounding philosophy. I recall a project for a large industrial complex where we implemented a high-resistance grounded system using a grounding transformer. This approach allowed for continuous operation under single-phase ground fault conditions, significantly improving process continuity while maintaining safety.

The role of grounding transformers in renewable energy systems is becoming increasingly important. In a recent solar farm project, we used a grounding transformer to provide a stable reference for the inverter-based generation system. This was crucial for proper operation of ground fault protection schemes and for maintaining voltage balance across the solar array.

Ferroresonance mitigation is a critical function of grounding transformers in certain applications. I worked on a project involving a long underground cable feeding a substation, where ferroresonance was a significant risk. The implementation of a properly sized grounding transformer effectively damped potential ferroresonant oscillations, protecting the equipment from dangerous overvoltages.

The integration of grounding transformers with modern protection systems is an area of ongoing innovation. I'm currently involved in a research project exploring adaptive grounding schemes using smart grounding transformers. These systems can dynamically adjust their grounding impedance based on real-time system conditions, offering enhanced protection and flexibility in varying operational scenarios.

Thermal management in grounding transformers is a crucial consideration, especially in fault conditions. In a recent project for a large data center, we implemented a grounding transformer with advanced cooling and thermal monitoring. This design ensured the transformer could withstand the high currents during ground faults without compromising the continuous operation of critical loads.

The impact of grounding transformers on power quality is often underappreciated. I've worked on industrial projects where properly designed grounding transformers significantly reduced harmonic distortion in the system. By providing a low-impedance path for zero-sequence harmonics, these transformers improved overall power quality, benefiting sensitive electronic equipment throughout the facility.

Maintenance considerations for grounding transformers are unique due to their specialized role. I've developed maintenance programs that focus on regular testing of insulation resistance, ground connection integrity, and neutral grounding resistor condition. These proactive measures are crucial in ensuring the reliability of the grounding system when it's needed most – during fault conditions.

The application of grounding transformers in microgrids and islanded systems is an emerging trend. In a recent project involving a remote island power system, we used a grounding transformer to provide stable grounding for the microgrid in both grid-connected and islanded modes. This flexibility was key in ensuring safe and reliable operation across various system configurations.

Safety considerations are paramount in grounding transformer applications. I once consulted on a project where improper sizing of a grounding transformer led to excessive touch voltages during fault conditions. Redesigning the grounding system with a properly sized transformer and additional grounding grid enhancements significantly improved personnel safety throughout the facility.

Lastly, the role of grounding transformers in facilitating the integration of distributed energy resources is becoming increasingly important. I'm part of a team developing guidelines for grounding practices in systems with high penetration of inverter-based resources. The strategic use of grounding transformers is proving crucial in maintaining system stability and protection coordination in these evolving grid architectures.

Grounding transformers play a vital role in ensuring the safety, reliability, and stability of electrical systems, particularly in applications where traditional solid grounding is not feasible or desirable. Their ability to create artificial neutral points, control fault currents, and stabilize voltages makes them indispensable in a wide range of applications, from renewable energy plants to industrial power systems.

As power systems continue to evolve with increasing complexity and diversity of generation sources, the importance of effective grounding strategies – and by extension, grounding transformers – is only set to grow. Understanding the principles, applications, and considerations involved in grounding transformer selection and implementation is crucial for electrical engineers, system designers, and operators.

By effectively utilizing grounding transformers, power systems can achieve improved safety, enhanced protection coordination, better power quality, and greater flexibility in system design and operation. As we move towards more resilient, efficient, and sustainable electrical infrastructures, grounding transformers will undoubtedly continue to play a key role in shaping the future of power systems.

Summary Table – Transformer Types at a Glance?

Are you looking for a quick reference guide to understand the various types of transformers and their applications? Look no further. This comprehensive summary table provides an at-a-glance overview of the ten transformer types we've discussed, helping you quickly identify the right transformer for your specific needs.

This summary table provides a concise overview of ten transformer types, their voltage levels, primary functions, and typical use cases. It serves as a quick reference guide for engineers, project managers, and students to understand the diverse applications of transformers in power systems and industrial settings.

Comprehensive Transformer Types Summary Table

Transformer Type	Voltage Level	Function	Typical Use Case
Power Transformer	>33kV	High voltage transmission	Substations, grids
Distribution Transformer	<33kV	Local power supply	Commercial buildings
Isolation Transformer	Any	Electrical separation	Hospitals, labs
Auto Transformer	Medium	Voltage adjustment	Motors, UPS systems
Instrument Transformer	Medium/High	Measurement & protection	CT/VT for switchgear
Control Transformer	Low	Voltage regulation	Machines, panels
Furnace Transformer	Medium/High	Shock resistance for melting	Arc furnace industry
Rectifier Transformer	Medium/High	DC conversion support	Electrolysis, HVDC
Phase-Shifting Transformer	High	Grid phase alignment	Inter-grid balancing
Grounding Transformer	Low/Medium	Neutral creation	Wind/solar farms

This table encapsulates years of experience and countless projects I've been involved with. Each transformer type represents a unique solution to specific challenges in power distribution and industrial applications. Let me share some insights on how this summary can be applied in real-world scenarios.

In my career, I've often used this type of overview to quickly assess project requirements and guide initial design decisions. For instance, when working on a large industrial facility, we referred to a similar summary to identify the need for a combination of distribution transformers for general power, isolation transformers for sensitive equipment, and control transformers for automation systems. This holistic view ensured we addressed all aspects of the facility's power needs efficiently.

The voltage level classification is particularly useful for system planning. In a recent grid modernization project, we used a similar breakdown to map out the transformer requirements across the entire network, from high-voltage transmission down to local distribution. This approach helped in standardizing specifications and streamlining the procurement process.

The 'Function' column often serves as a starting point for more detailed discussions with clients or team members. I recall a project where explaining the distinct functions of instrument transformers versus power transformers helped the client understand the need for both in their substation upgrade, leading to a more comprehensive and effective design.

The 'Typical Use Case' examples have been invaluable in communicating with non-technical stakeholders. In a recent renewable energy project, using these examples helped illustrate why we needed specific transformer types like grounding transformers for wind farms, enhancing the client's understanding and buy-in for the proposed solutions.

It's important to note that while this table provides a great overview, real-world applications often involve nuances and combinations of these transformer types. I've worked on projects where hybrid solutions were developed, combining features of different transformer types to meet specific requirements. For example, a custom-designed transformer for a specialized industrial process that incorporated features of both furnace and rectifier transformers.

The evolution of smart grid technologies is beginning to blur some of these traditional categories. In recent projects, I've seen transformers that incorporate advanced monitoring and control features, allowing them to adapt their function based on grid conditions. This trend towards more flexible and intelligent transformer systems is likely to continue, potentially leading to new categories in future summaries.

Lastly, this type of summary is an excellent tool for education and training. I've used similar tables in workshops and training sessions for junior engineers, providing them with a solid foundation for understanding the diverse world of transformers. It serves as a springboard for deeper discussions on each type's design considerations, challenges, and innovations.

This summary table of transformer types offers a valuable quick reference for anyone working with or studying electrical power systems. It encapsulates the diversity of transformer applications, from the massive power transformers that form the backbone of our transmission grids to the specialized units that enable specific industrial processes. By understanding these different types and their applications, engineers and decision-makers can make more informed choices in system design, maintenance, and upgrades.

As power systems continue to evolve with the integration of renewable energy, smart grid technologies, and new industrial processes, the landscape of transformer applications will undoubtedly change. Keeping abreast of these developments and understanding how they relate to these fundamental transformer types is crucial for anyone involved in the field of electrical engineering and power systems.

Conclusion

Transformers are diverse and crucial components in electrical systems, each type serving specific functions from power transmission to industrial processes. Understanding their unique features and applications is essential for effective power system design and operation. This guide provides a comprehensive overview to aid in selecting the right transformer for various needs.

💬 Need help selecting the right transformer for your project?
📥 Contact our engineering team or download our full transformer selection guide today.

Frequently Asked Questions

Q1: What is the difference between a power and distribution transformer?
A: Power transformers operate at high voltages for transmission, while distribution transformers step voltage down for final delivery to homes or businesses.

Q2: When should you use an isolation transformer?
A: In medical or sensitive equipment installations where noise suppression and electrical safety are essential.

Q3: Are auto transformers safe for residential use?
A: Not recommended, as they lack electrical isolation. Better suited for controlled industrial environments.
