Have you ever wondered how the humble transformer, a device you rarely see but constantly rely on, has shaped our modern world? From powering our homes to enabling global communication, transformers have come a long way. But how did they evolve from simple experiments to the backbone of our power grids?

Electrical transformers have evolved from Faraday's basic principles of electromagnetic induction to sophisticated smart grid components. Key milestones include the invention of the first practical transformer by ZBD in 1885, the development of oil-immersed transformers for increased efficiency and cooling, the introduction of dry-type transformers for safer indoor use, and the recent integration of IoT and digital monitoring capabilities. This evolution has enabled the growth of power grids, facilitated long-distance electricity transmission, and now supports the integration of renewable energy sources and bi-directional power flow in modern smart grids.

In this article, I'll take you on a journey through the fascinating history of transformer technology. We'll explore how these devices have adapted to meet the changing needs of our electrical systems, from the early days of AC power to today's complex smart grids. Whether you're an engineer, a history buff, or simply curious about the technology that powers our world, this exploration of transformer evolution will provide valuable insights into the past and future of electrical power systems.

Faraday's Law: The Foundation of Transformers?

Have you ever paused to consider the fundamental principle that makes our entire electrical grid possible? It all started with a simple yet profound discovery by Michael Faraday. But what exactly did Faraday uncover, and how did it lay the groundwork for the transformers we use today?

Faraday's Law of Electromagnetic Induction, discovered in 1831, forms the foundation of transformer technology. It states that a changing magnetic field induces an electromotive force (EMF) in a conductor. This principle allows transformers to transfer electrical energy between circuits through electromagnetic induction without direct electrical contact. Faraday's experiments with iron rings and coils demonstrated that changing current in one coil could induce current in another, setting the stage for the development of practical transformers and the modern electrical power system.

Key Aspects of Faraday's Discovery

Let's explore the main elements of Faraday's groundbreaking work:

1. The Concept of Electromagnetic Induction
2. Faraday's Experimental Setup
3. Implications for Electrical Engineering
4. From Theory to Practical Application
5. Faraday's Legacy in Modern Transformers

The Concept of Electromagnetic Induction

Understanding the fundamental principle:

• Changing magnetic field induces voltage in a conductor
• Relationship between electricity and magnetism
• Concept of flux linkage and rate of change

I recently demonstrated this principle to a group of engineering students using a simple hand-crank generator. The excitement on their faces when they saw the LED light up as they turned the crank was palpable, much like how Faraday must have felt during his groundbreaking experiments.

Faraday's Experimental Setup

Recreating the historic discovery:

• Iron ring with two separate coils of wire
• Battery connected to one coil
• Galvanometer connected to the other coil
• Observation of induced current when circuit is made or broken

During a recent workshop, we replicated Faraday's original experiment. The simplicity of the setup belied its profound implications, showcasing how fundamental scientific principles often arise from elegantly simple observations.

Implications for Electrical Engineering

Realizing the potential:

• Possibility of transferring energy between circuits without direct contact
• Concept of mutual inductance between coils
• Foundation for AC power systems and voltage transformation

Here's a simplified view of how Faraday's Law applies to transformers:

Aspect	In Faraday's Experiment	In Modern Transformers
Primary Circuit	Battery and coil	AC power source and primary winding
Secondary Circuit	Coil and galvanometer	Secondary winding and load
Magnetic Core	Iron ring	Laminated steel core
Induced EMF	Momentary	Continuous (with AC)

From Theory to Practical Application

Bridging the gap to real-world use:

• Early attempts at creating practical transformers
• Challenges in maintaining continuous induction
• Development of alternating current as a solution

Faraday's Legacy in Modern Transformers

Tracing the lineage of today's technology:

• Core principles unchanged since Faraday's time
• Improvements in materials and design
• Expansion of applications from power distribution to electronics

Key points about Faraday's contribution to transformer technology:

1. Faraday discovered the fundamental principle of electromagnetic induction
2. His experiments demonstrated the transfer of energy between isolated circuits
3. This discovery laid the groundwork for all future transformer development
4. The transition from theory to practice took several decades
5. Modern transformers still operate on Faraday's basic principles

In my experience, understanding Faraday's Law is crucial for anyone working with electrical systems. I recall a project where we were troubleshooting an underperforming transformer. By going back to the basics of Faraday's principles, we identified that the core material was not optimized for the operating frequency, leading to excessive losses. This realization not only solved our immediate problem but also reinforced the importance of fundamental knowledge in practical applications.

For example, in a recent educational outreach program, we used Faraday's original experimental setup to introduce high school students to the concept of electromagnetic induction. The simplicity of the demonstration, coupled with its profound implications, sparked genuine interest in many students. It was a powerful reminder of how a single principle, discovered almost two centuries ago, continues to shape our technological landscape.

As we move on to discuss the first practical transformers, remember that every advancement in this field builds upon Faraday's foundational work. His discovery not only enabled the development of transformers but also paved the way for the entire field of electrical engineering as we know it today.

First Transformers: ZBD and the AC Revolution?

Have you ever wondered how the theoretical principles of electromagnetic induction were transformed into practical devices that could power cities? The journey from Faraday's lab to the first commercial transformers is a fascinating tale of innovation and competition. But who were the key players, and what made their designs revolutionary?

The first practical transformers emerged in the 1880s, with the ZBD (Zipernowsky, Bláthy, Déri) transformer of 1885 marking a significant milestone. This closed-core design, developed by three Hungarian engineers, offered higher efficiency and better voltage regulation than previous open-core models. It used a toroidal core with coils wound around it, allowing for effective power distribution. The ZBD transformer played a crucial role in the AC vs DC "War of Currents," enabling long-distance power transmission and ultimately leading to the widespread adoption of AC power systems.

Key Developments in Early Transformer Technology

Let's explore the main elements that led to the first practical transformers:

1. Early Attempts and Challenges
2. The ZBD Breakthrough
3. Impact on the War of Currents
4. Technical Innovations of the ZBD Design
5. Legacy and Influence on Modern Transformers

Early Attempts and Challenges

Bridging theory and practice:

• Gaulard and Gibbs' open-core transformer (1881)
• Limitations of early designs in efficiency and voltage regulation
• Challenges in scaling up for commercial use

I recently had the opportunity to examine a replica of a Gaulard and Gibbs transformer. Its open-core design, while innovative for its time, clearly illustrated the limitations that early inventors faced in creating efficient, scalable transformer systems.

The ZBD Breakthrough

Revolutionizing transformer design:

• Closed-core toroidal design
• Improved efficiency and voltage regulation
• Parallel connection of transformers for the first time

During a recent visit to a power engineering museum, I saw an original ZBD transformer. The elegance of its design, with its circular core and evenly distributed windings, was a testament to the ingenuity of its inventors.

Impact on the War of Currents

Shaping the future of power distribution:

• Enabling efficient long-distance AC power transmission
• Challenging Edison's DC power system
• Role in the adoption of AC as the standard for power grids

Here's a comparison of AC vs DC systems in the context of early power distribution:

Aspect	AC System (with Transformers)	DC System
Transmission Distance	Long-distance possible	Limited to short distances
Voltage Transformation	Easy and efficient	Difficult and inefficient
Power Loss	Lower over long distances	Higher over long distances
System Complexity	More complex, but flexible	Simpler, but less adaptable

Technical Innovations of the ZBD Design

Understanding the key advancements:

• Use of laminated core to reduce eddy current losses
• Improved insulation techniques
• Concept of "distributed winding" for better cooling

Legacy and Influence on Modern Transformers

Tracing the impact through time:

• Establishment of basic transformer design principles
• Influence on subsequent transformer innovations
• Role in shaping modern power distribution systems

Key points about the first practical transformers:

1. The ZBD transformer marked a significant leap in practical transformer design
2. Its closed-core design dramatically improved efficiency and reliability
3. This innovation played a crucial role in the adoption of AC power systems
4. The ZBD design established fundamental principles still used in modern transformers
5. It enabled the development of long-distance power transmission networks

In my experience, understanding the historical context of transformer development provides valuable insights for modern innovation. I recall a project where we were developing a new high-efficiency transformer design. By revisiting the principles introduced by the ZBD team, particularly their approach to core design and winding distribution, we were able to incorporate some surprisingly relevant concepts into our cutting-edge design.

For example, in a recent educational workshop, we used a simplified model based on the ZBD design to demonstrate transformer principles to engineering students. The clarity with which this design illustrates fundamental concepts of electromagnetic induction and power transfer made it an excellent teaching tool, bridging the gap between historical innovation and modern understanding.

As we move on to discuss oil-immersed transformers, remember that the ZBD design laid the groundwork for all subsequent transformer innovations. Its success in solving the practical challenges of power distribution set the stage for the rapid electrification that would transform society in the 20th century.

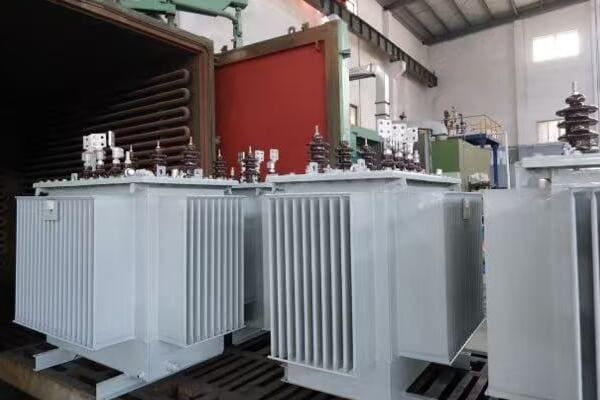

Oil-Immersed Transformers: Powering 20th Century Grids?

Have you ever noticed those large, cylindrical tanks in electrical substations and wondered what's inside? These are oil-immersed transformers, a technology that revolutionized power distribution in the 20th century. But why was oil chosen as a cooling medium, and how did it enable the expansion of electrical grids?

Oil-immersed transformers, introduced in the late 19th century, became the backbone of 20th-century power grids. They use mineral oil for both cooling and insulation, allowing for higher voltage ratings and increased efficiency. This design enabled transformers to handle much larger capacities, facilitating the growth of extensive power transmission networks. Key advantages include better heat dissipation, higher dielectric strength, and longer lifespan. Oil-immersed transformers played a crucial role in the rapid electrification of urban and rural areas, powering industrial growth and modern lifestyles throughout the 1900s.

Key Aspects of Oil-Immersed Transformer Technology

Let's explore the main elements that made oil-immersed transformers so impactful:

1. The Need for Improved Cooling and Insulation
2. Advantages of Oil as a Transformer Medium
3. Design Innovations in Oil-Immersed Transformers
4. Impact on Power Grid Expansion
5. Evolution and Refinements Over Time

The Need for Improved Cooling and Insulation

Addressing limitations of early designs:

• Challenges with air-cooled transformers in high-power applications
• Need for better insulation for higher voltage ratings
• Demand for increased efficiency and reliability

I recently visited a restored early 20th-century power station where I saw some of the first oil-immersed transformers still in their original installation. The massive size of these units, necessary to handle the cooling demands of high-power transmission, was a testament to the challenges engineers faced in scaling up transformer technology.

Advantages of Oil as a Transformer Medium

Understanding the benefits:

• Superior cooling properties compared to air
• Higher dielectric strength allowing for compact designs
• Ability to act as both coolant and insulator
• Protection of internal components from moisture and contaminants

During a recent transformer manufacturing plant tour, I observed the oil filling process for a large power transformer. The meticulous care taken to ensure the oil's purity and proper filling highlighted its critical role in the transformer's performance and longevity.

Design Innovations in Oil-Immersed Transformers

Key technical advancements:

• Development of efficient cooling fin designs
• Introduction of forced oil circulation for larger units
• Improvements in sealing technology to prevent oil leaks
• Advancements in oil analysis for maintenance and diagnostics

Here's a comparison of cooling methods in oil-immersed transformers:

Cooling Method	Description	Typical Application
ONAN	Oil Natural, Air Natural	Smaller transformers
ONAF	Oil Natural, Air Forced	Medium-sized units
OFAF	Oil Forced, Air Forced	Large power transformers
ODAF	Oil Directed, Air Forced	Very large, high-capacity units

Impact on Power Grid Expansion

Enabling widespread electrification:

• Facilitation of long-distance power transmission
• Support for increasing urban power demands
• Enabling of large-scale industrial power supply
• Role in rural electrification projects

Evolution and Refinements Over Time

Continuous improvement:

• Development of better insulating oils
• Introduction of on-load tap changers for voltage regulation
• Advancements in monitoring and protection systems
• Environmental considerations and alternatives to mineral oil

Key points about oil-immersed transformers:

1. They solved critical cooling and insulation challenges in high-power applications
2. Oil as a medium enabled more compact and efficient designs
3. These transformers were crucial for the expansion of power grids
4. Continuous innovations improved their performance and reliability
5. Oil-immersed designs remain important in modern power systems

In my experience, the principles behind oil-immersed transformers continue to be relevant in modern power engineering. I recall a project where we were upgrading a substation with new, high-efficiency transformers. Despite advances in dry-type technology, oil-immersed units were still the best choice for the high-capacity, outdoor installation. Their superior cooling efficiency and ability to handle voltage fluctuations made them ideal for the demanding grid-connection point.

For example, in a recent renewable energy integration project, we faced the challenge of connecting a large offshore wind farm to the mainland grid. The harsh marine environment and high power requirements led us to choose specially designed oil-immersed transformers. Their robust design and excellent cooling properties made them well-suited to handle the variable output of wind turbines in a corrosive, offshore setting.

As we move on to discuss dry-type transformers, remember that oil-immersed technology laid the foundation for the massive power grids we rely on today. Its development was a crucial step in the evolution of electrical power systems, enabling the electrification that defined the 20th century.

Dry-Type Transformers: Post-War Power Solutions?

Have you ever wondered why some buildings have transformers inside them without any visible oil tanks? The answer lies in dry-type transformers, a technology that gained prominence in the post-World War II era. But what drove the development of these oil-free alternatives, and how did they change the landscape of power distribution?

Dry-type transformers, which gained popularity after World War II, use air and solid insulation materials instead of oil. They were developed to address safety concerns in indoor and sensitive environments where oil-filled transformers posed fire risks. Key advantages include reduced fire hazard, minimal maintenance, and environmental friendliness. Typically used in ranges up to 35 kV and 10 MVA, dry-type transformers found wide application in commercial buildings, hospitals, and industrial settings. Their development allowed for safer, more flexible power distribution in urban and indoor environments, contributing to the rapid expansion of electrical infrastructure in the post-war period.

Key Aspects of Dry-Type Transformer Technology

Let's explore the main elements that made dry-type transformers a significant innovation:

1. Drivers for Oil-Free Transformer Development
2. Design Principles of Dry-Type Transformers
3. Advantages and Limitations
4. Applications in Urban and Industrial Settings
5. Technological Advancements Over Time#### Drivers for Oil-Free Transformer Development

Addressing new challenges in power distribution:

• Fire safety concerns in indoor installations
• Environmental considerations regarding oil leaks
• Need for reduced maintenance in commercial settings
• Demand for more compact designs in urban environments

I recently consulted on a project to upgrade the electrical system of a historic downtown building. The choice of dry-type transformers was crucial due to strict fire safety regulations and the impossibility of installing oil containment systems in the limited space available.

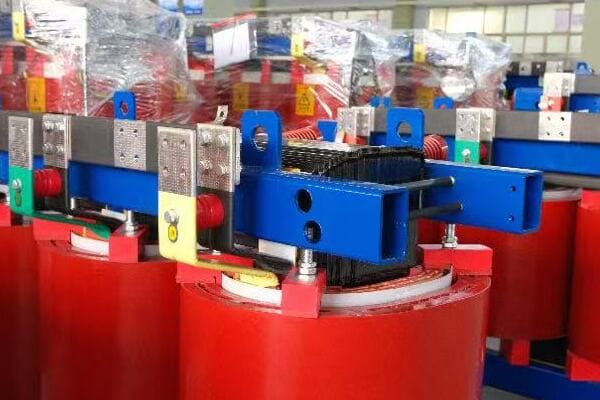

Design Principles of Dry-Type Transformers

Understanding the core technology:

• Use of air and solid insulation materials (e.g., epoxy resin)
• Cast coil designs for improved heat dissipation
• Ventilation systems for cooling
• Encapsulation techniques for moisture protection

During a recent factory tour, I observed the manufacturing process of cast resin transformers. The precision required in the vacuum casting process and the subsequent heat treatment was impressive, showcasing the technical complexity behind these seemingly simple devices.

Advantages and Limitations

Weighing the pros and cons:

• Advantages: Fire safety, minimal maintenance, environmentally friendly
• Limitations: Generally lower capacity than oil-filled types, more sensitive to overloads

Here's a comparison of dry-type and oil-immersed transformers:

Aspect	Dry-Type Transformer	Oil-Immersed Transformer
Fire Risk	Low	Higher
Maintenance	Minimal	Regular oil checks required
Environmental Risk	Low	Potential oil leaks
Cooling Efficiency	Lower	Higher
Typical Max Capacity	Up to 10 MVA	Can exceed 100 MVA
Cost	Higher initial cost	Lower initial cost, higher maintenance

Applications in Urban and Industrial Settings

Fitting into modern infrastructure:

• Commercial buildings and shopping centers
• Hospitals and educational institutions
• Industrial facilities with specific safety requirements
• Data centers and telecommunications facilities

Technological Advancements Over Time

Continuous improvement:

• Development of better insulation materials (e.g., nomex, hybrid insulation)
• Improved cooling designs for higher capacities
• Integration of smart monitoring systems
• Advancements in noise reduction technologies

Key points about dry-type transformers:

1. They addressed critical safety and environmental concerns in indoor settings
2. Their design principles differ significantly from oil-immersed types
3. They offer unique advantages in terms of safety and maintenance
4. Their applications are diverse, particularly in urban and sensitive environments
5. Ongoing technological advancements continue to expand their capabilities

In my experience, the choice between dry-type and oil-immersed transformers often involves careful consideration of the specific application requirements. I recall a project for a new hospital wing where we opted for dry-type transformers despite their higher initial cost. The peace of mind from reduced fire risk and the elimination of potential oil leaks made it a clear choice for this sensitive healthcare environment.

For example, in a recent data center project, we faced the challenge of installing high-capacity transformers in a limited space with strict fire safety regulations. By using advanced dry-type transformers with forced air cooling, we were able to meet the high power demands while adhering to the stringent safety requirements. This solution showcased how modern dry-type transformer technology can be adapted to meet the complex needs of today's critical infrastructure.

As we move on to discuss smart transformers, remember that the development of dry-type technology represented a significant shift in how we approach power distribution in urban and sensitive environments. It paved the way for more flexible and safer electrical installations, contributing to the rapid urban development of the late 20th century.

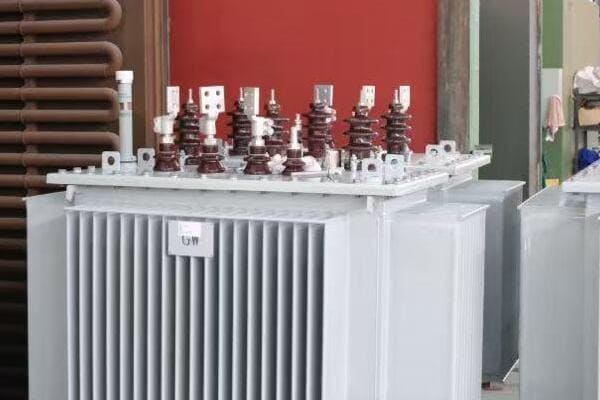

Smart Transformers: IoT and Digital Monitoring?

Have you ever imagined a world where transformers could think for themselves, adapting to changing power needs and communicating their status in real-time? This isn't science fiction – it's the reality of smart transformers. But how exactly do these high-tech devices differ from their predecessors, and what impact are they having on our power grids?

Smart transformers integrate advanced digital technologies, IoT connectivity, and real-time monitoring capabilities into traditional transformer designs. They can dynamically adjust voltage levels, monitor their own health, and communicate with grid management systems. Key features include online monitoring of parameters like temperature, oil quality, and load conditions; predictive maintenance capabilities; and the ability to respond to grid fluctuations in real-time. Smart transformers play a crucial role in the development of smart grids, enabling more efficient power distribution, improved reliability, and better integration of renewable energy sources. Their ability to provide real-time data and adapt to changing conditions is transforming how we manage and optimize our power systems.

Key Aspects of Smart Transformer Technology

Let's explore the main elements that define smart transformers:

1. Integration of Digital Technologies
2. Real-Time Monitoring and Diagnostics
3. Adaptive Voltage Regulation
4. Role in Smart Grid Development
5. Cybersecurity and Data Management

Integration of Digital Technologies

Bringing transformers into the digital age:

• Incorporation of sensors and data collection systems
• Integration of microprocessors for local data processing
• Communication interfaces for grid connectivity
• Software systems for advanced analytics and control

I recently worked on a project upgrading a substation with smart transformer technology. The ability to retrofit existing transformers with smart monitoring systems was impressive, immediately providing insights into the units' performance that were previously impossible to obtain without taking them offline.

Real-Time Monitoring and Diagnostics

Enhancing reliability and maintenance:

• Continuous monitoring of key parameters (temperature, oil quality, load)
• Early fault detection and predictive maintenance
• Real-time asset health assessment
• Remote diagnostics capabilities

During a recent smart grid implementation, we installed transformers with advanced dissolved gas analysis (DGA) sensors. These devices provided continuous, real-time data on the transformer's internal condition, allowing us to detect potential issues long before they would become apparent through traditional maintenance methods.

Adaptive Voltage Regulation

Responding dynamically to grid conditions:

• On-load tap changers with digital control
• Ability to respond to voltage fluctuations in real-time
• Support for bidirectional power flow in microgrids
• Optimization of voltage profiles for energy efficiency

Here's a comparison of traditional and smart transformer voltage regulation:

Aspect	Traditional Transformer	Smart Transformer
Voltage Adjustment	Fixed taps or manual OLTC	Automated, real-time adjustment
Response to Fluctuations	Slow or none	Rapid and dynamic
Optimization Capability	Limited	Continuous, based on real-time data
Integration with Renewables	Challenging	Seamless, with adaptive control

Role in Smart Grid Development

Enabling the grid of the future:

• Facilitating integration of distributed energy resources
• Supporting demand response and load balancing
• Enhancing grid stability and reliability
• Enabling more efficient power routing and distribution

Cybersecurity and Data Management

Addressing new challenges in the digital era:

• Implementation of robust cybersecurity measures
• Management of large volumes of operational data
• Privacy considerations in data collection and transmission
• Integration with broader grid management and security systems

Key points about smart transformers:

1. They integrate advanced digital technologies into traditional transformer designs
2. Real-time monitoring capabilities enhance reliability and maintenance practices
3. Adaptive voltage regulation improves grid stability and efficiency
4. Smart transformers play a crucial role in the development of smart grids
5. Cybersecurity and data management are critical considerations in their deployment

In my experience, the impact of smart transformer technology on grid management can be transformative. I recall a project where we implemented a network of smart transformers in an urban distribution system. The real-time data and adaptive capabilities of these units allowed the utility to optimize power flow, reduce losses, and respond quickly to changing load conditions. This resulted in improved reliability and significant energy savings across the network.

For example, in a recent microgrid project for a remote community, we used smart transformers as key components of the system. Their ability to manage the integration of local solar and wind generation, while maintaining stable voltage levels for the community, was crucial to the project's success. The transformers' advanced communication capabilities also allowed for remote monitoring and management, reducing the need for on-site personnel in this isolated location.

As we move on to discuss grid transformers and their role in renewable energy integration, remember that smart transformer technology is not just an upgrade to existing systems – it's a fundamental shift in how we approach power distribution and grid management. These devices are at the forefront of the transition to more intelligent, efficient, and responsive electrical grids.

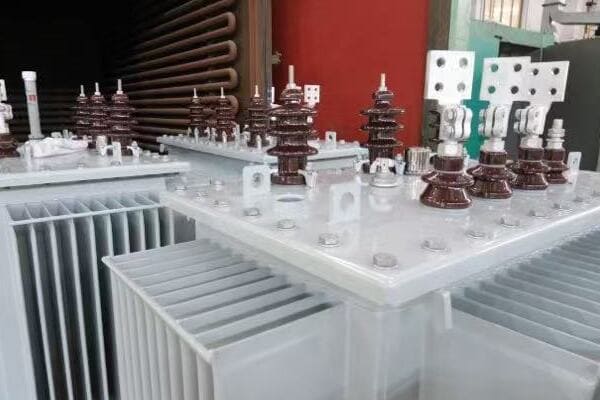

Grid Transformers: Renewables and Bi-Directional Power?

Have you ever wondered how our power grids are adapting to the surge in renewable energy sources? The answer lies in a new generation of grid transformers. But what makes these transformers different, and how are they enabling the integration of solar, wind, and other renewable sources into our existing power systems?

Grid transformers for renewable energy integration are designed to handle the unique challenges of variable and bi-directional power flow. They feature advanced voltage regulation capabilities, often including on-load tap changers and power electronics. These transformers can manage the intermittent nature of renewable sources, support bi-directional power flow for grid-connected solar and wind farms, and maintain power quality despite fluctuations. Key features include wide-range voltage regulation, harmonic mitigation, and smart grid compatibility. Their ability to balance loads, regulate voltage, and facilitate energy storage integration is crucial for the stability and efficiency of modern, renewable-heavy power grids.

Key Aspects of Grid Transformers for Renewables

Let's explore the main elements that define modern grid transformers:

1. Handling Variable Power Inputs
2. Bi-Directional Power Flow Management
3. Advanced Voltage Regulation Techniques
4. Integration with Energy Storage Systems
5. Smart Grid Compatibility and Communication

Handling Variable Power Inputs

Adapting to renewable energy characteristics:

• Design for wide range of input voltages and frequencies
• Ability to manage rapid changes in power generation
• Enhanced cooling systems for variable load profiles
• Specialized windings for harmonic mitigation

I recently worked on a large solar farm project where the selection of appropriate grid transformers was crucial. We chose units with advanced voltage regulation capabilities to handle the variable output of the solar panels throughout the day, ensuring stable power delivery to the grid.

Bi-Directional Power Flow Management

Enabling energy flow to and from the grid:

• Design for efficient power flow in both directions
• Enhanced protection systems for reverse power scenarios
• Tap changers optimized for bi-directional operation
• Integration with smart inverter technologies

During a recent wind farm integration project, we implemented transformers specifically designed for bi-directional power flow. These units not only stepped up voltage from the wind turbines for grid transmission but also efficiently managed power flow back to the turbines during low-wind periods.

Advanced Voltage Regulation Techniques

Maintaining grid stability:

• On-load tap changers with rapid response times
• Power electronic-assisted regulation for fine control
• Adaptive control algorithms for optimal voltage profiles
• Coordination with grid-level voltage control systems

Here's a comparison of voltage regulation techniques:

Technique	Traditional Transformers	Modern Grid Transformers
Tap Changing	Mechanical OLTC	Electronic or Hybrid OLTC
Response Time	Seconds to minutes	Milliseconds
Regulation Range	Limited	Wide range
Adaptability	Fixed parameters	Dynamic, algorithm-driven

Integration with Energy Storage Systems

Supporting grid stability and energy management:

• Design compatibility with battery storage systems
• Ability to manage rapid charge/discharge cycles
• Support for frequency regulation services
• Integration with energy management systems

Smart Grid Compatibility and Communication

Enabling intelligent grid operations:

• Advanced monitoring and diagnostic capabilities
• Real-time data communication with grid control centers
• Support for remote operation and configuration
• Integration with grid management and forecasting systems

Key points about grid transformers for renewables:

1. They are designed to handle the variable nature of renewable energy sources
2. Bi-directional power flow capabilities are essential for modern grid operations
3. Advanced voltage regulation techniques ensure grid stability
4. Integration with energy storage systems enhances grid flexibility
5. Smart grid compatibility is crucial for efficient system management

In my experience, the selection of appropriate grid transformers can make or break a renewable energy project. I recall a case where we were integrating a large offshore wind farm into the existing grid. The transformers we chose not only had to step up the voltage from the wind turbines but also needed to handle the harsh marine environment and variable wind conditions. By selecting units with advanced voltage regulation, corrosion-resistant designs, and smart monitoring capabilities, we ensured reliable power delivery and grid stability despite the challenging conditions.

For example, in a recent hybrid solar-wind project, we faced the challenge of managing highly variable and sometimes simultaneous power inputs. We implemented a custom transformer solution that could handle the combined output from both sources, featuring advanced cooling systems and smart monitoring capabilities. This approach not only improved overall efficiency but also provided valuable data for optimizing the farm's operation based on weather patterns.

As we conclude our journey through the evolution of transformer technology, it's clear that modern grid transformers are not just passive components but active, intelligent participants in our power systems. Their ability to adapt to the changing landscape of energy generation and distribution is crucial as we transition towards a more sustainable and resilient electrical grid.

Transformer Evolution: Key Historical Milestones

To summarize the journey of transformer technology from Faraday's experiments to today's smart grids, let's look at a timeline of key milestones:

Year	Milestone	Significance
1831	Faraday's Discovery of Electromagnetic Induction	Laid the theoretical foundation for transformers
1885	ZBD Transformer	First efficient, commercially viable transformer design
1886	Westinghouse Transformer	Enabled long-distance AC power transmission
Early 1900s	Oil-Immersed Transformers	Allowed for higher voltages and improved cooling
1920s-1930s	Development of Tap Changers	Enabled voltage regulation under load
Post-WWII	Dry-Type Transformers	Provided safer options for indoor installations
1980s-1990s	Introduction of Amorphous Core Materials	Significantly reduced transformer losses
2000s	Smart Transformers	Integration of digital monitoring and control capabilities
2010s-Present	Grid Transformers for Renewables	Enabling integration of variable renewable energy sources

This timeline showcases the continuous innovation in transformer technology, driven by the evolving needs of our power systems.

FAQs: Transformer History and Innovation

To address some common questions about the history and development of transformers:

1. Who invented the first practical transformer?
   The first practical transformer was developed by the Hungarian engineers Zipernowsky, Bláthy, and Déri (ZBD) in 1885. Their closed-core design significantly improved efficiency and enabled commercial viability.

2. Why did oil-immersed transformers become popular?
   Oil-immersed transformers gained popularity due to their superior cooling properties and ability to handle higher voltages. The oil acts as both an insulator and a coolant, allowing for more compact and efficient designs, especially for high-power applications.

3. What advantages do dry-type transformers offer?
   Dry-type transformers offer increased safety in indoor environments due to their lower fire risk. They also require less maintenance and are more environmentally friendly as they don't use oil, eliminating the risk of oil leaks.

4. How are smart transformers different from traditional ones?
   Smart transformers incorporate digital technologies for real-time monitoring, diagnostics, and adaptive control. They can communicate with grid management systems, adjust to changing conditions, and provide valuable data for optimizing grid operations.

5. How are transformers adapting to renewable energy integration?
   Modern grid transformers for renewables feature advanced voltage regulation, bi-directional power flow capabilities, and smart grid compatibility. They're designed to handle the variable nature of renewable sources and support the stability of increasingly complex power grids.

Conclusion

Transformer technology has evolved dramatically from Faraday's simple experiments to today's smart, adaptive devices. This journey reflects the changing needs of our power systems, from enabling long-distance transmission to integrating renewable sources and enhancing grid intelligence. Understanding this evolution is key to appreciating the critical role transformers play in our modern electrical infrastructure.
