How to Choose the Best Dry Type Transformer Types for Your Project?| CHBEB

Many project managers feel overwhelmed when choosing dry type transformer types: the wide range of models, environmental differences, and the balance between efficiency and cost can make the decision difficult. The wrong choice may lead to high energy consumption or even safety risks. This article breaks down the different types, compares performance, price, and lifespan, and provides a buyer-oriented guide to help you quickly identify the most suitable dry type transformer for your project.

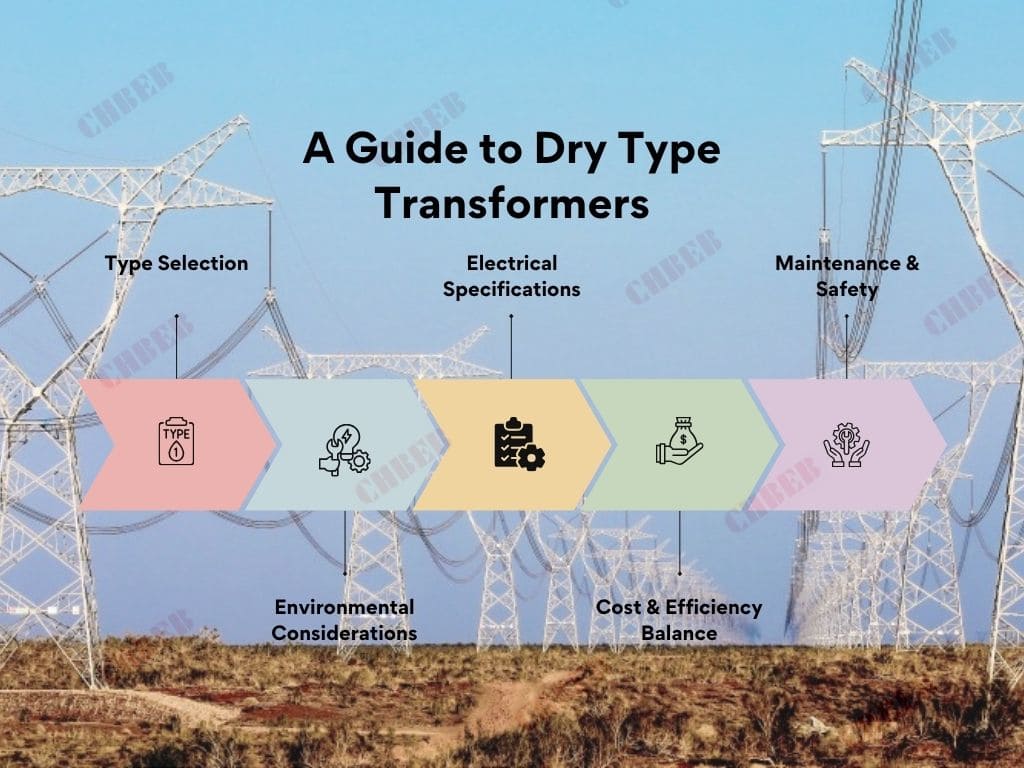

Choosing the best dry type transformer involves understanding various types, considering environmental factors, evaluating electrical specifications, assessing safety features, and balancing efficiency with cost. This comprehensive approach ensures optimal performance, safety, and long-term value for your specific project needs.

As someone who has spent years working with dry type transformers, I’ve seen firsthand how crucial it is to make the right choice. The wrong selection can lead to inefficiency, safety hazards, or even complete system failure. Let’s dive into the key factors you need to consider to make the best choice for your project.

What Are the Different Dry Type Transformer Types and Applications?

Have you ever felt overwhelmed by the sheer number of dry type transformer options? You’re not alone. Many of my clients initially find the variety confusing. But understanding these options is crucial for making the right choice.

Dry type transformers come in several varieties, including cast resin, vacuum pressure impregnated (VPI), and open wound types. Each has unique characteristics suited for different applications, from indoor installations to harsh environments, and from low to medium voltage requirements.

Types of Dry Transformers

I remember a project where a client initially chose the wrong type of dry transformer, leading to overheating issues. Let’s break down these varieties to help you avoid such mistakes.

Cast Resin Transformers: Why Choose for Harsh Environments?

Cast resin transformers are known for their durability:

1. Construction: Windings are encased in epoxy resin.
2. Applications: Ideal for harsh environments and indoor use.
3. Advantages: Excellent fire resistance and low maintenance.

I once recommended a cast resin transformer for a chemical plant. Its resistance to harsh chemicals and fire safety features made it the perfect choice for that environment.

VPI Transformers: Balancing Performance and Cost

VPI transformers offer a good middle ground:

1. Process: Windings are vacuum impregnated with varnish or resin.
2. Applications: Suitable for most indoor and some outdoor applications.
3. Benefits: Good balance of cost and performance.

For a recent office building project, we chose VPI transformers. They provided the necessary performance at a more budget-friendly price point compared to cast resin options.

Open Wound Transformers: When Simplicity Is Enough

Open wound transformers are the simplest type:

1. Design: Windings are exposed, with minimal enclosure.
2. Use Cases: Best for clean, dry environments with low risk of contamination.
3. Advantages: Lower cost and easier cooling.

Type	Environmental Resistance	Cost	Best For
Cast Resin	High	High	Harsh environments, critical applications
VPI	Medium	Medium	General purpose, indoor/outdoor
Open Wound	1. Mechanical Strength: Windings designed to withstand electromagnetic forces.

2. Bracing Systems: Additional support structures for windings.
3. Testing: Rigorous short-circuit testing to ensure durability.

I once worked on upgrading transformers in a facility with frequent voltage fluctuations. We chose units with enhanced short-circuit strength, which proved crucial during several grid disturbances.

How Do Cooling Systems Improve Transformer Performance?

Efficient cooling is essential for safety and longevity:

1. Natural Air Cooling: Suitable for smaller transformers in clean environments.
2. Forced Air Cooling: Uses fans to enhance air circulation for better cooling.
3. Advanced Cooling Designs: Some transformers use heat pipes or other innovative cooling methods.

During a recent data center project, we implemented a hybrid cooling system combining forced air with heat pipe technology. This allowed the transformers to handle higher loads without overheating, crucial for the center’s demanding environment.

Why Does Ease of Inspection Save Time and Cost?

Regular inspections are key to maintaining safety:

1. Visible Windings: Some designs allow for easy visual inspection of windings.
2. Accessible Connections: Ensure terminals and tap changers can be easily checked.
3. Monitoring Ports: Look for designs that allow for easy connection of diagnostic equipment.

I recently advised a client to choose a transformer design with easily accessible inspection points. This feature has made their maintenance routines more efficient and effective, catching potential issues early.

What Safety Standards Must a Dry Type Transformer Meet?

Adherence to safety standards is non-negotiable:

1. UL Listing: Ensures compliance with Underwriters Laboratories safety standards.
2. IEEE/ANSI Standards¹: Provide guidelines for design, testing, and performance.
3. IEC Standards: International standards for electrical equipment.

In every project I work on, I insist on transformers that meet or exceed relevant safety standards. It’s not just about compliance; it’s about ensuring the highest level of safety for personnel and equipment.

How Do Maintenance Requirements Differ Among Transformer Types?

Different transformer types have varying maintenance needs:

1. Cast Resin Transformers: Generally require minimal maintenance.
2. VPI Transformers: May need periodic inspections and cleaning.
3. Open Wound Transformers: Require more frequent maintenance and environmental protection.

Transformer Type	Maintenance Frequency	Typical Maintenance Tasks
Cast Resin	Annually	Visual inspection, connection checks
VPI	Semi-annually	Cleaning, insulation tests
Open Wound	Quarterly	Thorough cleaning, detailed inspections

For a client with limited maintenance resources, we opted for cast resin transformers. Their low maintenance requirements aligned perfectly with the client’s capabilities while ensuring reliable operation.

How Can Environmental Protection Extend Transformer Lifespan?

Consider the installation environment:

1. Enclosure Ratings: Choose appropriate IP ratings for the environment.
2. Corrosion Resistance: Important in coastal or industrial areas.
3. UV Protection: Necessary for outdoor installations.

In a coastal installation project, we selected transformers with enhanced corrosion protection and UV-resistant enclosures. These features have significantly extended the transformers’ lifespan in the harsh seaside environment.

What Noise Control Solutions Keep Transformers Quiet?

Transformer noise can be a significant issue in some settings:

1. Noise Levels: Consider the acoustic environment of the installation site.
2. Sound Enclosures: May be necessary in noise-sensitive areas.
3. Low-Noise Designs: Some transformers are specifically designed for quieter operation.

For a transformer installation near residential areas, we chose low-noise models and implemented additional sound barriers. This approach ensured compliance with local noise ordinances and maintained good relations with nearby residents.

Evaluating safety features and maintenance requirements is crucial when selecting a dry type transformer. It’s not just about meeting basic electrical specifications; it’s about ensuring long-term safety, reliability, and ease of maintenance. By carefully considering these factors, you can select a transformer that not only meets your power needs but also aligns with your safety standards and maintenance capabilities.

Remember, a transformer that’s safe and easy to maintain is more likely to provide reliable service throughout its lifespan. In my years of experience, I’ve found that investing in better safety features and considering maintenance needs upfront often leads to lower total costs and fewer headaches down the line. Choose wisely, and your transformer will be a reliable asset for years to come.

What Role Do Efficiency and Cost Considerations Play in Selecting the Optimal Dry Type Transformer?

Have you ever been tempted to buy the cheapest option, only to regret it later? When it comes to dry type transformers, the lowest price tag doesn’t always mean the best value. But how do you strike the right balance between efficiency and cost?

Efficiency and cost considerations play a crucial role in selecting the optimal dry type transformer. While high-efficiency transformers may have higher upfront costs, they often provide better long-term value through energy savings. The total cost of ownership, including initial price, operational costs, and expected lifespan, should guide the selection process.

Efficiency vs Cost

I once had a client who chose the cheapest transformer option available. Within three years, they spent more on energy losses than they would have on a higher-efficiency unit. Let’s explore how to avoid such costly mistakes.

How to Calculate Initial Cost vs. Total Cost of Ownership (TCO)?

Looking beyond the price tag is crucial:

1. Purchase Price: The upfront cost of the transformer.
2. Energy Costs: Calculated based on efficiency and expected load.
3. Maintenance Costs: Regular upkeep and potential repairs.
4. Expected Lifespan: Longer-lasting transformers can offset higher initial costs.

In a recent industrial project, we compared two transformers:

Aspect	Standard Model	High-Efficiency Model
Initial Cost	$50,000	$65,000
Annual Energy Cost	$10,000	$7,000
Annual Maintenance	$2,000	$1,500
Expected Lifespan	20 years	25 years

Despite the higher upfront cost, the high-efficiency model was projected to save over $100,000 over its lifetime.

What Efficiency Standards Should You Pay Attention To?

Understanding efficiency ratings is key:

1. DOE Efficiency Standards: Specify minimum efficiency levels for distribution transformers.
2. NEMA Premium Efficiency: Exceeds DOE standards for even greater energy savings.
3. European Eco-design Requirements: Stringent efficiency standards for the EU market.

I recently helped a client upgrade their old transformers to models meeting NEMA Premium efficiency² standards. The energy savings paid for the new transformers in just over four years, with substantial savings continuing thereafter.

Why Does Load Factor Greatly Affect Transformer Efficiency?

Efficiency varies with load:

1. Peak Efficiency Point: Typically occurs at 40-50% of rated load.
2. Load Profile Analysis: Understanding your typical load helps choose the right transformer.
3. No-Load Losses: Important for transformers that are energized but lightly loaded for long periods.

For a university campus project, we analyzed the load profile across different seasons and times of day. This led us to select transformers with peak efficiency points that matched the campus’s average load, resulting in significant energy savings.

How Do Environmental Regulations Impact Future Costs?

Environmental considerations can affect long-term costs:

1. Energy Efficiency Regulations: Stricter standards may require future upgrades.
2. Carbon Footprint: More efficient transformers can reduce overall emissions.
3. End-of-Life Disposal: Consider the costs and environmental impact of disposal.

In a recent project for an environmentally conscious client, we chose ultra-high efficiency transformers. While more expensive initially, they aligned with the company’s sustainability goals and helped them meet stringent environmental regulations.

What Installation and Space Considerations Should You Plan For?

Don’t forget about installation:

1. Size and Weight: More efficient transformers may be larger and heavier.
2. Installation Requirements: Consider any special mounting or cooling needs.
3. Space Constraints: In some cases, a more compact, less efficient unit might be necessary.

For a retrofit project in a cramped urban substation, we had to balance efficiency with size constraints. We opted for a slightly less efficient but more compact model that fit the available space without requiring costly building modifications.

Why Does Reliability and Downtime Cost Matter?

Consider the cost of potential failures:

1. Build Quality: Higher-quality transformers may have better reliability.
2. Downtime Costs: Assess the financial impact of potential outages.
3. Warranty and Support: Factor in the value of better warranty terms and manufacturer support.

I once advised a manufacturing client to invest in a premium transformer with an extended warranty. This decision paid off when a minor issue was quickly resolved under warranty, avoiding costly downtime.

How to Future-Proof Your Transformer Investment?

Think about future needs:

1. Load Growth: Consider transformers that can handle potential increases in power demand.
2. Technology Advancements: Some designs may be more adaptable to future smart grid technologies.
3. Regulatory Changes: Anticipate potential changes in efficiency standards.

For a growing tech company, we selected a modular transformer system with high efficiency ratings. This choice allowed for easy expansion as the company grew and ensured compliance with expected future efficiency standards.

Balancing efficiency and cost in dry type transformer selection is not just about finding the cheapest option; it’s about finding the best value for your specific needs. While high-efficiency transformers may have higher upfront costs, they often provide better long-term value through energy savings, reduced maintenance, and longer service life.

When making your decision, consider the following steps:

1. Calculate the Total Cost of Ownership over the expected life of the transformer.
2. Analyze your load profile to choose a transformer with the right efficiency characteristics.
3. Consider future growth and potential regulatory changes.
4. Factor in installation costs and space constraints.
5. Evaluate the potential costs of downtime and the value of reliability.

Remember, the right choice balances immediate budget constraints with long-term operational benefits. By carefully weighing these factors, you can select a transformer that not only fits your current budget but also provides optimal performance and value throughout its entire lifespan.

From Selection Challenges to Reliable Solutions — How CHBEB Helps You Choose the Right Dry Type Transformer

Many project managers and engineers face the same challenges when selecting a dry type transformer: balancing safety, efficiency, and cost while navigating complex installation environments. Recent industry studies show that the true pain points often lie beyond the initial purchase — in Total Cost of Ownership (TCO), environmental adaptation, and long-term reliability management.

At CHBEB, we understand these challenges not just from theory, but from decades of manufacturing and project experience. With over 60 years of transformer production expertise and three advanced factories in Wenzhou and Nanjing, our engineering team works closely with clients worldwide to design solutions that directly address the technical, environmental, and financial pain points identified in the dry type transformer market.

How CHBEB Solves Real-World Pain Points

• 1. Technical Clarity — Simplifying VPI vs. Cast Resin Choices
  Choosing between VPI and Cast Resin transformers shouldn’t be a gamble. CHBEB provides detailed thermal, load, and environmental simulations, helping you visualize the performance trade-offs before purchase. Our engineers can also customize winding protection, cooling design, and resin formulation to match your exact operating conditions.
• 2. Environmental Reliability — Built for Harsh or Confined Spaces
  Our dry type transformers are tested under high humidity, dust, and temperature stress conditions to ensure consistent performance. For coastal or industrial installations, we offer enhanced anti-corrosion coatings, sealed enclosures (IP54/IP65), and forced-air or hybrid cooling systems that maintain stability even in limited ventilation environments.
• 3. TCO Optimization — Lower Lifetime Cost, Not Just Lower Price
  Instead of focusing solely on initial CAPEX, CHBEB helps clients model long-term energy savings, load efficiency, and maintenance intervals. Our high-efficiency core materials and optimized coil designs reduce energy loss by up to 20%, cutting total operational costs while meeting or exceeding IEC, DOE, and NEMA Premium Efficiency standards.
• 4. Service & Diagnostics — Making Maintenance Simple and Predictable
  Each CHBEB transformer integrates accessible inspection points, embedded temperature sensors, and optional digital monitoring interfaces that allow predictive maintenance and early fault detection. This minimizes downtime and aligns with the industry’s shift toward condition-based maintenance instead of fixed-cycle servicing.

Why CHBEB Is the Partner for Your Next Project

• Certified by ISO 9001 / ISO 14001 / ISO 45001 and compliant with IEC & GB standards.
• End-to-end testing, including routine, type, and special tests before shipment.
• Flexible customization for voltage levels, cooling systems, enclosure ratings, and winding materials.
• Global supply experience in renewable energy, utilities, EPC projects, and industrial facilities.

Plan with Confidence

Whether you’re managing a data center, utility substation, or industrial plant, CHBEB engineers can help you evaluate the optimal dry type transformer configuration for your budget, efficiency goals, and environmental conditions. Start your project with confidence — we don’t just sell transformers; we deliver total reliability solutions.

Contact CHBEB for a Technical Consultation

Conclusion: How to Select the Best Dry Type Transformer for Your Project?

Selecting the best dry type transformer involves carefully considering various types, environmental factors, electrical specifications, safety features, maintenance requirements, efficiency, and cost. By evaluating these aspects comprehensively, you can choose a transformer that offers optimal performance, safety, and long-term value for your specific project needs.
