Have you ever considered the devastating consequences of a transformer failure? From costly downtime to potential safety hazards, the risks are significant. But how can you effectively protect these critical assets?

Transformer protection methods include relay-based systems for detecting electrical faults, surge arresters for lightning and switching transients, and temperature monitoring systems to prevent overheating. Key components also include Buchholz relays for internal fault detection, oil level alarms, and pressure relief valves. These protection devices work together to safeguard transformers against short circuits, overloads, insulation breakdown, and other potential failures. Proper selection and implementation of these protection methods are crucial for ensuring transformer reliability, longevity, and overall power system stability.

In this comprehensive guide, I'll walk you through the essential protection methods for transformers, explaining how each system works and why it's crucial for your power infrastructure. Whether you're an engineer designing a new substation, a utility manager overseeing grid operations, or a procurement specialist selecting equipment, this article will provide you with the knowledge to make informed decisions about transformer protection.

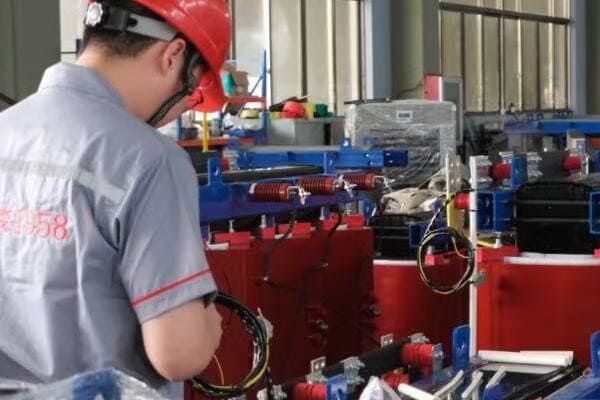

Why Transformer Protection Systems Are Essential?

Have you ever witnessed the aftermath of a transformer failure? The sight of a damaged transformer, with its potential for fire, environmental hazards, and extended power outages, is a stark reminder of the importance of protection systems. But why exactly are these systems so critical, and what risks do they mitigate?

Transformer protection systems are essential because they safeguard against catastrophic failures that can result in extended power outages, equipment damage, fire hazards, and environmental risks. These systems detect and respond to various fault conditions such as internal short circuits, overloading, insulation breakdown, and external threats like lightning strikes. By quickly isolating faults or taking preventive actions, protection systems minimize damage, enhance safety, reduce downtime, and extend the operational life of transformers. Proper protection is crucial for maintaining grid stability, ensuring continuous power supply, and protecting substantial investments in transformer assets.

Key Aspects of Transformer Protection Importance

Let's explore the main reasons why transformer protection systems are indispensable:

1. Preventing Catastrophic Failures
2. Ensuring Continuous Power Supply
3. Protecting Substantial Investments
4. Enhancing Safety for Personnel and Environment
5. Complying with Regulatory Requirements

Preventing Catastrophic Failures

Mitigating major risks:

• Detection and isolation of internal faults before they escalate
• Protection against external threats like lightning and switching surges
• Prevention of insulation breakdown due to overheating or oil degradation

I recently consulted on a project where a utility company had experienced a major transformer failure due to inadequate protection. The resulting outage affected thousands of customers and cost millions in repairs. This incident underscored the critical importance of comprehensive protection systems.

Ensuring Continuous Power Supply

Maintaining grid stability:

• Rapid fault clearance to minimize outage duration
• Selective tripping to isolate faults without widespread disruption
• Load shedding capabilities to prevent cascading failures

During a recent grid modernization project, we implemented advanced protection schemes that significantly improved the utility's ability to maintain power supply during fault conditions. The new systems' ability to quickly isolate faults while keeping unaffected areas energized was particularly impressive.

Protecting Substantial Investments

Safeguarding valuable assets:

• Extension of transformer operational life
• Reduction in repair and replacement costs
• Minimization of collateral damage to connected equipment

Here's a quick overview of potential costs mitigated by protection systems:

Scenario	Potential Cost Without Protection	Cost with Proper Protection
Minor Internal Fault	$100,000 - $500,000 (Repair)	$10,000 - $50,000 (Maintenance)
Major Failure	$1 - $5 Million (Replacement)	$100,000 - $500,000 (Repair)
Extended Outage	$100,000+/hour (Revenue Loss)	Minimal (Quick Isolation)

Enhancing Safety for Personnel and Environment

Mitigating risks beyond equipment:

• Prevention of oil fires and explosions
• Containment of potential oil spills
• Reduction of arc flash hazards for maintenance personnel

Complying with Regulatory Requirements

Meeting industry standards and legal obligations:

• Adherence to grid codes and utility regulations
• Compliance with safety and environmental standards
• Fulfillment of insurance requirements for critical infrastructure

Key points about the importance of transformer protection:

1. It prevents catastrophic failures that can lead to extensive damage and outages
2. Protection systems are crucial for maintaining continuous power supply
3. They safeguard substantial investments in transformer assets
4. Proper protection enhances safety for personnel and the environment
5. Protection systems help meet regulatory and compliance requirements

In my experience, the value of robust transformer protection often becomes most apparent in crisis situations that are narrowly averted. I recall a case where a newly installed differential protection system detected a developing internal fault in a large substation transformer. The system's rapid response isolated the transformer before the fault could escalate, preventing what could have been a catastrophic failure. This incident not only saved millions in potential damages but also prevented a widespread outage that would have affected critical infrastructure.

For example, during a recent project involving the integration of a large solar farm into the grid, we faced unique challenges in protecting the interconnecting transformers. The variable nature of solar generation required us to implement adaptive protection schemes that could adjust their settings based on power flow directions and magnitudes. This innovative approach not only protected the transformers but also enhanced the overall stability of the grid, showcasing how modern protection systems can adapt to the changing landscape of power generation.

As we move on to discuss specific protection methods, remember that each component of a transformer protection system plays a crucial role in safeguarding these vital assets. Understanding these methods is key to designing resilient and reliable power systems.

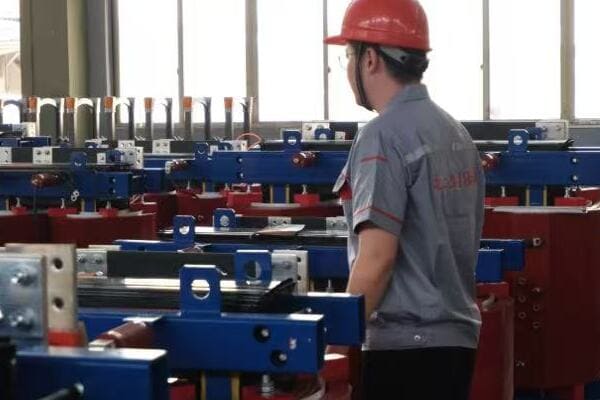

Relay-Based Protection: Detecting Electrical Faults in Time?

Have you ever wondered how power systems can detect and respond to faults in mere milliseconds? The answer lies in relay-based protection systems. But how do these relays work, and why are they so crucial for transformer protection?

Relay-based protection systems are the primary defense against electrical faults in transformers. They use various types of relays, including differential, overcurrent, and earth fault relays, to detect abnormal conditions and initiate protective actions. Differential relays compare currents entering and leaving the transformer to detect internal faults. Overcurrent relays protect against overloads and external short circuits. Earth fault relays detect ground faults. These systems can detect faults within milliseconds and trigger circuit breakers to isolate the transformer, preventing catastrophic damage and ensuring power system stability.

Key Aspects of Relay-Based Transformer Protection

Let's explore the main types of relays and their roles in transformer protection:

1. Differential Protection
2. Overcurrent Protection
3. Earth Fault Protection
4. Thermal Overload Protection
5. Integration and Coordination of Relay Systems

Differential Protection

The primary defense against internal faults:

• Compares currents entering and leaving the transformer
• Detects internal faults with high sensitivity and speed
• Provides protection against turn-to-turn faults and phase-to-phase shorts

I recently oversaw the installation of a new differential protection system for a critical substation transformer. The relay's ability to detect even minor internal faults within milliseconds was impressive, providing a level of security that was previously unattainable with older protection schemes.

Overcurrent Protection

Safeguarding against overloads and external faults:

• Protects against prolonged overloads and through-faults
• Uses time-delayed and instantaneous elements for flexible protection
• Coordinates with other protective devices in the power system

During a recent grid upgrade project, we implemented advanced overcurrent relays with adaptive settings. These relays could adjust their trip characteristics based on system conditions, providing optimal protection under various load scenarios.

Earth Fault Protection

Detecting ground faults:

• Protects against insulation failures to ground
• Uses sensitive earth fault relays for detection of high-impedance faults
• Coordinates with system grounding methods for effective protection

Here's a quick overview of common relay types and their applications:

Relay Type	Primary Function	Typical Application
Differential	Internal fault detection	Large power transformers
Overcurrent	Overload and external fault protection	Distribution transformers
Earth Fault	Ground fault detection	All transformer types
Thermal Overload	Temperature-based protection	Oil-immersed transformers

Thermal Overload Protection

Preventing damage from excessive heating:

• Uses temperature sensors or thermal models to detect overheating
• Provides alarms and tripping functions based on temperature thresholds
• Coordinates with cooling systems for efficient temperature management

Integration and Coordination of Relay Systems

Ensuring comprehensive and selective protection:

• Proper coordination of different relay types for optimal protection
• Integration with SCADA systems for remote monitoring and control
• Use of communication-based protection schemes for enhanced reliability

Key points about relay-based transformer protection:

1. Differential protection is highly effective for detecting internal faults
2. Overcurrent protection safeguards against overloads and external faults
3. Earth fault protection is crucial for detecting ground faults
4. Thermal overload protection prevents damage from excessive heating
5. Proper integration and coordination of relays ensure comprehensive protection

In my experience, the effectiveness of relay-based protection becomes most apparent in real-world fault scenarios. I recall a case where a differential relay detected an incipient fault in a large power transformer's windings. The relay's rapid response isolated the transformer before the fault could develop into a catastrophic failure. This not only prevented millions in equipment damage but also averted a potential widespread outage.

For example, in a recent project involving the protection of a transformer connecting a wind farm to the grid, we faced unique challenges due to the variable nature of wind power generation. We implemented an adaptive overcurrent protection scheme that could adjust its settings based on the power flow. This innovative approach ensured effective protection under all generation scenarios, showcasing how modern relay systems can adapt to the changing landscape of power generation.

As we move on to discuss surge arresters, remember that relay-based protection forms the core of any transformer protection scheme. Its ability to detect and respond to faults in milliseconds is crucial for maintaining the integrity and reliability of our power systems.

Surge Arresters: Preventing Lightning and Switching Damage?

Have you ever considered how transformers withstand the immense energy of a lightning strike? Or how they cope with the sudden voltage spikes from switching operations? The answer lies in surge arresters. But what exactly are these devices, and how do they protect our critical transformer assets?

Surge arresters are crucial devices that protect transformers from overvoltages caused by lightning strikes and switching operations. They work by diverting excess current to ground when voltage exceeds a certain threshold, thus limiting the voltage stress on the transformer insulation. Modern surge arresters typically use metal oxide varistors (MOVs) which provide fast response times and high energy absorption capabilities. Proper selection and placement of surge arresters are essential for effective transformer protection, considering factors like voltage rating, energy handling capacity, and protective level. These devices play a vital role in preventing insulation breakdown and extending transformer lifespan.

Key Aspects of Surge Arrester Protection

Let's explore the main elements of surge arrester protection for transformers:

1. Operating Principles of Surge Arresters
2. Types of Surge Arresters
3. Selection Criteria for Transformer Protection
4. Placement and Installation Considerations
5. Maintenance and Testing of Surge Arresters

Operating Principles of Surge Arresters

Understanding the basics:

• Voltage-dependent resistance characteristics
• Current diversion to ground during overvoltage events
• Rapid response to both lightning and switching surges

I recently conducted a workshop where we demonstrated the operation of surge arresters using a high-voltage impulse generator. The ability of these devices to clamp voltage spikes within microseconds was truly impressive, showcasing their critical role in transformer protection.

Types of Surge Arresters

Exploring different technologies:

• Metal Oxide Varistor (MOV) arresters
• Gapped silicon carbide arresters (older technology)
• Polymer-housed vs. porcelain-housed arresters

During a recent substation upgrade project, we replaced older gapped arresters with modern MOV units. The improved protection level and reduced maintenance requirements of the new arresters significantly enhanced the overall reliability of the transformer protection system.

Selection Criteria for Transformer Protection

Choosing the right arrester:

• Voltage rating and protective level
• Energy handling capacity
• Temporary overvoltage (TOV) capability
• Pollution performance for outdoor installations

Here's a quick guide for surge arrester selection:

Criteria	Consideration	Impact on Protection
Voltage Rating	Must be above maximum continuous operating voltage	Ensures arrester doesn't conduct during normal operation
Energy Handling	Based on system fault level and arrester location	Determines ability to withstand multiple surge events
Protective Level	Should be below transformer BIL (Basic Insulation Level)	Ensures effective insulation coordination
TOV Capability	Must withstand system temporary overvoltages	Prevents arrester failure during system disturbances

Placement and Installation Considerations

Optimizing protection effectiveness:

• Proximity to protected equipment
• Grounding and lead length considerations
• Coordination with other protective devices

Maintenance and Testing of Surge Arresters

Ensuring long-term reliability:

• Regular visual inspections for damage
• Thermal imaging to detect hot spots
• Periodic testing of leakage current and varistor characteristics

Key points about surge arrester protection:

1. Surge arresters are crucial for protecting against lightning and switching surges
2. Modern MOV arresters offer superior performance and reliability
3. Proper selection is critical for effective transformer protection
4. Correct placement and installation are essential for optimal performance
5. Regular maintenance and testing ensure long-term protection effectiveness

In my experience, the value of properly selected and installed surge arresters often becomes apparent during severe weather events. I recall a case where a substation equipped with high-performance surge arresters weathered a direct lightning strike with minimal damage. The arresters successfully diverted the massive surge current, protecting not only the transformers but also other sensitive equipment in the substation.

For example, in a recent project involving the protection of a coastal substation, we faced unique challenges due to the high pollution environment and frequent lightning activity. We implemented a comprehensive surge protection scheme using polymer-housed MOV arresters with enhanced pollution performance. This approach not only provided excellent lightning protection but also ensured reliable operation in the harsh coastal environment, demonstrating how modern surge arresters can be tailored to specific environmental challenges.

As we move on to discuss temperature monitoring systems, remember that surge arresters form a critical first line of defense against transient overvoltages. Their role in preserving transformer insulation and extending equipment life cannot be overstated.

Temperature Monitoring Systems: Keeping Transformers Cool and Safe?

Have you ever touched a transformer after it's been running under heavy load? The heat can be intense. But how do we ensure that this heat doesn't become a threat to the transformer's life and performance? This is where temperature monitoring systems come into play. But what exactly do these systems do, and why are they so crucial for transformer safety and longevity?

Temperature monitoring systems are essential for preventing thermal damage in transformers. They use sensors like RTDs (Resistance Temperature Detectors) or fiber optic systems to continuously measure winding and oil temperatures. These systems provide real-time data, trigger alarms at preset thresholds, and can initiate cooling systems or load reduction. Advanced monitoring includes hot-spot temperature calculation and thermal modeling. By preventing overheating, these systems extend transformer life, maintain efficiency, and reduce the risk of catastrophic failures due to insulation breakdown. Proper implementation of temperature monitoring is crucial for optimizing transformer performance and reliability.

Key Aspects of Transformer Temperature Monitoring

Let's explore the main components and functions of temperature monitoring systems:

1. Temperature Sensing Technologies
2. Monitoring Parameters and Thresholds
3. Integration with Cooling Systems
4. Advanced Thermal Modeling and Prediction
5. Alarm and Control Functions

Temperature Sensing Technologies

Exploring different measurement methods:

• Resistance Temperature Detectors (RTDs) for oil and winding temperature
• Fiber optic sensors for direct winding temperature measurement
• Infrared cameras for external hot spot detection

I recently oversaw the installation of a fiber optic temperature monitoring system in a large power transformer. The ability to measure winding temperatures directly, without the lag associated with traditional methods, provided unprecedented insight into the transformer's thermal behavior under varying load conditions.

Monitoring Parameters and Thresholds

Understanding critical temperature indicators:

• Top oil temperature
• Winding hot spot temperature
• Ambient temperature for reference
• Setting appropriate alarm and trip thresholds

During a recent transformer overhaul project, we implemented a comprehensive temperature monitoring system with multiple sensing points.This approach allowed us to create a detailed thermal profile of the transformer, enabling more precise control of cooling systems and better prediction of potential hot spots.

Here's a quick guide to typical temperature thresholds for transformers:

Parameter	Alarm Level	Trip Level	Impact
Top Oil Temperature	90°C	105°C	Indicates overall thermal stress
Winding Hot Spot	110°C	130°C	Critical for insulation life
Rate of Temperature Rise	1.5°C/min	3°C/min	Indicates rapid overloading

Integration with Cooling Systems

Optimizing thermal management:

• Automatic activation of cooling fans or pumps based on temperature
• Staged cooling control for energy efficiency
• Feedback loops for adaptive cooling management

Advanced Thermal Modeling and Prediction

Leveraging data for proactive management:

• Real-time calculation of winding hot spot temperatures
• Predictive models for temperature rise under different load scenarios
• Integration with load management systems for optimized operation

Alarm and Control Functions

Ensuring timely response to thermal issues:

• Multi-level alarms for early warning and critical conditions
• Automatic load reduction or disconnection in extreme cases
• Integration with SCADA systems for remote monitoring and control

Key points about transformer temperature monitoring:

1. It's crucial for preventing thermal damage and extending transformer life
2. Various sensing technologies offer different levels of accuracy and response time
3. Proper setting of monitoring parameters and thresholds is essential
4. Integration with cooling systems enables efficient thermal management
5. Advanced modeling allows for predictive maintenance and optimized operation

In my experience, effective temperature monitoring can significantly extend transformer life and prevent catastrophic failures. I recall a case where a newly installed monitoring system detected an abnormal temperature rise in a critical transformer's windings. This early warning allowed the maintenance team to identify and address a developing cooling system issue before it could cause any damage to the transformer's insulation.

For example, in a recent project for a data center, we implemented an advanced temperature monitoring system with fiber optic sensors and real-time thermal modeling. This system not only provided precise temperature data but also enabled dynamic load management. During peak demand periods, the system's predictive capabilities allowed operators to maximize the transformer's capacity without risking overheating, effectively balancing performance and longevity.

As we move on to discuss additional protection devices, remember that temperature monitoring is not just about preventing immediate failures. It's a powerful tool for optimizing transformer performance, extending equipment life, and making informed decisions about maintenance and operation.

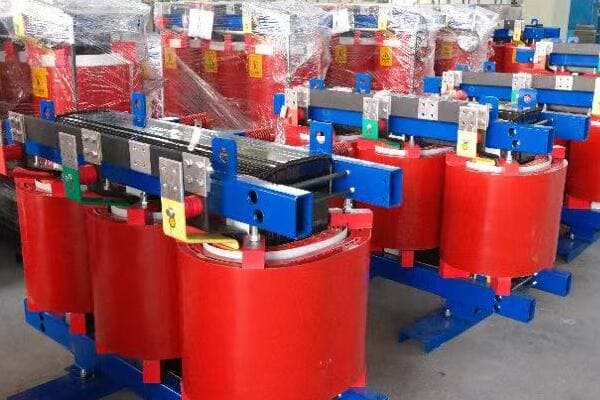

Additional Protection Devices: Buchholz Relays, Oil Level Alarms, and Pressure Valves?

Have you ever wondered how we detect internal faults in oil-filled transformers before they escalate into major failures? Or how we monitor oil levels to prevent insulation breakdown? This is where specialized protection devices like Buchholz relays, oil level alarms, and pressure relief valves come into play. But what exactly do these devices do, and why are they crucial for transformer protection?

Additional protection devices for oil-filled transformers include Buchholz relays for detecting internal faults, oil level alarms for monitoring insulation integrity, and pressure relief valves for preventing tank rupture. Buchholz relays detect gas accumulation and oil surges caused by internal faults. Oil level alarms warn of leaks or extreme temperature changes. Pressure relief valves automatically release excessive pressure to prevent explosions. These devices provide early warning of developing issues, allowing for timely intervention and preventing catastrophic failures. Their proper selection, installation, and maintenance are essential for comprehensive transformer protection.

Key Aspects of Additional Transformer Protection Devices

Let's explore the main components and functions of these specialized protection devices:

1. Buchholz Relay Operation and Applications
2. Oil Level Monitoring Systems
3. Pressure Relief Valves and Rapid Pressure Rise Relays
4. Integration with Other Protection Systems
5. Maintenance and Testing Requirements

Buchholz Relay Operation and Applications

Understanding this crucial fault detection device:

• Detection of gas accumulation from oil decomposition
• Sensing of oil surges due to internal arcing
• Two-stage alarm and trip functionality

I recently investigated a case where a Buchholz relay detected a developing fault in a large power transformer. The relay's early warning allowed for a controlled shutdown and inspection, revealing a minor winding issue that could have escalated into a major failure if left undetected.

Oil Level Monitoring Systems

Ensuring proper insulation and cooling:

• Continuous monitoring of oil levels in the main tank and conservator
• Alarms for low oil levels indicating potential leaks
• Detection of extreme oil level changes due to overheating or cooling issues

During a recent substation upgrade, we implemented an advanced oil level monitoring system with remote sensing capabilities. This system provided real-time data on oil levels, enabling proactive maintenance and reducing the risk of insulation failures due to low oil levels.

Pressure Relief Valves and Rapid Pressure Rise Relays

Protecting against explosive failures:

• Automatic release of excessive pressure to prevent tank rupture
• Rapid pressure rise detection for fast-developing faults
• Integration with tripping mechanisms for immediate transformer isolation

Here's a quick overview of these additional protection devices:

Device	Primary Function	Typical Application
Buchholz Relay	Internal fault detection	Oil-filled transformers
Oil Level Alarm	Insulation integrity monitoring	All oil-filled units
Pressure Relief Valve	Overpressure protection	Large power transformers
Rapid Pressure Rise Relay	Fast fault detection	Critical transformers

Integration with Other Protection Systems

Ensuring comprehensive protection:

• Coordination with electrical protection relays
• Integration into SCADA systems for remote monitoring
• Incorporation into overall transformer health monitoring strategies

Maintenance and Testing Requirements

Ensuring long-term reliability:

• Regular inspection and testing of Buchholz relays
• Calibration of oil level sensors and alarms
• Periodic testing of pressure relief valve operation

Key points about additional transformer protection devices:

1. Buchholz relays are crucial for early detection of internal faults
2. Oil level monitoring is essential for maintaining insulation integrity
3. Pressure relief devices prevent catastrophic tank ruptures
4. Integration with other systems provides comprehensive protection
5. Regular maintenance and testing are vital for reliable operation

In my experience, these additional protection devices often serve as the last line of defense against catastrophic transformer failures. I recall a case where a rapid pressure rise relay detected a sudden fault in a critical substation transformer. The relay's instantaneous response triggered an immediate shutdown, preventing what could have been a severe explosion and potential oil fire.

For example, in a recent project involving the refurbishment of an aging transformer fleet, we upgraded all units with modern Buchholz relays and advanced oil level monitoring systems. Within months of implementation, these devices detected early signs of insulation degradation in two transformers, allowing for scheduled repairs and avoiding unexpected outages. This proactive approach not only prevented potential failures but also significantly reduced maintenance costs and improved overall grid reliability.

As we conclude our discussion on transformer protection methods, remember that while electrical protection systems form the core of transformer safety, these additional mechanical and fluid-based protection devices play a crucial role in providing comprehensive safeguarding against a wide range of potential faults and failures.

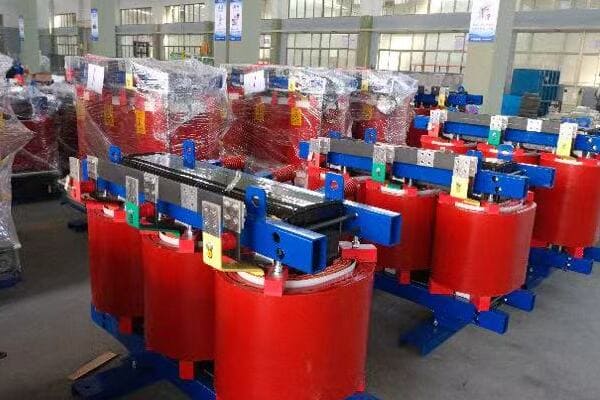

How to Select the Right Protection Scheme for Your Transformer?

Are you faced with the challenge of choosing a protection scheme for a new transformer installation? Or perhaps you're upgrading an existing system and wondering what level of protection is truly necessary? Selecting the right protection scheme is crucial, but with so many options available, how do you make the best choice for your specific needs?

Selecting the right protection scheme for a transformer involves considering factors such as transformer size, voltage class, application, and criticality. For small distribution transformers, basic overcurrent and earth fault protection may suffice. Larger power transformers typically require differential protection, along with backup overcurrent and earth fault relays. Critical transformers may need additional features like restricted earth fault protection and advanced temperature monitoring. Surge arresters are essential for all outdoor installations. The protection scheme should also consider the transformer's environment, load profile, and integration with the broader power system. Proper selection ensures optimal protection while balancing cost and complexity.

Key Considerations for Selecting Transformer Protection Schemes

Let's explore the main factors to consider when choosing a protection scheme:

1. Transformer Size and Voltage Class
2. Application and Criticality
3. Environmental Factors
4. Integration with Existing Systems
5. Cost-Benefit Analysis

Transformer Size and Voltage Class

Matching protection to transformer characteristics:

• Small distribution transformers (< 1 MVA): Basic overcurrent protection
• Medium power transformers (1-10 MVA): Differential protection, overcurrent backup
• Large power transformers (> 10 MVA): Comprehensive schemes with multiple protection layers

I recently consulted on a project where we were upgrading protection for a 50 MVA substation transformer. We implemented a multi-layered approach including differential protection, restricted earth fault protection, and advanced thermal monitoring. This comprehensive scheme provided the high level of security necessary for such a critical asset.

Application and Criticality

Tailoring protection to operational importance:

• Non-critical distribution: Basic protection sufficient
• Industrial applications: Enhanced protection with rapid fault clearance
• Grid interconnection points: Highest level of protection with redundancy

During a recent industrial plant expansion, we designed a protection scheme for their new 20 MVA transformer. Given the critical nature of the plant's operations, we included differential protection, advanced thermal monitoring, and fast-acting breakers to minimize potential downtime from faults.

Environmental Factors

Adapting to installation conditions:

• Outdoor installations: Surge arresters essential
• High pollution areas: Special consideration for insulator protection
• Seismic zones: Additional mechanical protection measures

Here's a quick guide for protection selection based on transformer characteristics:

Transformer Type	Basic Protection	Enhanced Protection	Advanced Protection
Distribution (< 1 MVA)	Fuses, Overcurrent	+ Earth Fault	+ Buchholz Relay
Medium Power (1-10 MVA)	Overcurrent, Earth Fault	+ Differential, Buchholz	+ Restricted Earth Fault, Temperature Monitoring
Large Power (> 10 MVA)	Differential, Overcurrent	+ Restricted Earth Fault, Buchholz	+ Advanced Thermal Modeling, Gas Analysis

Integration with Existing Systems

Ensuring compatibility and coordination:

• Coordination with upstream and downstream protection
• Integration with SCADA and energy management systems
• Consideration of future grid modernization plans

Cost-Benefit Analysis

Balancing protection and investment:

• Evaluation of protection costs against potential failure impacts
• Consideration of lifecycle costs including maintenance and upgrades
• Assessment of insurance and regulatory requirements

Key points for selecting transformer protection schemes:

1. Protection requirements increase with transformer size and voltage class
2. Application criticality significantly influences protection complexity
3. Environmental factors play a crucial role in protection selection
4. Integration with existing systems is essential for effective protection
5. Cost-benefit analysis helps in justifying protection investments

In my experience, the process of selecting the right protection scheme often involves balancing technical requirements with economic considerations. I recall a project for a renewable energy plant where we had to design protection for their grid-connection transformer. The challenge was to provide comprehensive protection while keeping costs manageable for the relatively small-scale operation. We achieved this by carefully prioritizing protection features, focusing on those most critical for their specific application and grid requirements.

For example, in a recent smart grid project, we faced the challenge of upgrading protection for a network of diverse transformers ranging from small distribution units to large substation transformers. We developed a tiered protection strategy, where the level of protection increased with the size and criticality of each transformer. This approach allowed for optimal resource allocation, ensuring that each transformer had the appropriate level of protection without over-engineering smaller units or under-protecting critical assets.

As we conclude our discussion on transformer protection methods, remember that selecting the right protection scheme is not just about applying a standard set of devices. It's about understanding your specific needs, assessing risks, and designing a tailored solution that provides optimal protection for your transformer assets.

Top Manufacturers Offering Transformer Protection Devices

When it comes to sourcing high-quality transformer protection devices, several manufacturers stand out for their innovative products and reliable performance. Here's an overview of some leading companies in this field:

Brand	Specialization	Key Products	Strengths
CHBEB	Comprehensive protection solutions	Differential relays, Buchholz relays, Temperature monitors	Strong R&D, customization capabilities
CHINT	Distribution transformer protection	Overcurrent relays, Fuse cutouts, Surge arresters	Cost-effective, wide distribution network
TBEA	High-voltage transformer protection	Advanced differential relays, Online DGA systems	Expertise in large power transformers
ABB	Full range of protection devices	Transformer protection IEDs, Surge arresters	Global presence, advanced technology
Siemens	Integrated protection systems	SIPROTEC relay series, IoT-enabled monitors	Smart grid compatibility, high reliability

These manufacturers offer a range of products suitable for various transformer sizes and applications. When selecting a supplier, consider factors such as technical specifications, after-sales support, compatibility with existing systems, and long-term reliability.

FAQs: Common Questions About Transformer Protection Systems

To address some frequently asked questions about transformer protection:

1. What are the main protection devices used for transformers?
   The main protection devices for transformers include differential relays, overcurrent relays, Buchholz relays, temperature monitoring systems, and surge arresters. The specific combination depends on the transformer's size, voltage class, and application.

2. How do surge arresters protect transformers?
   Surge arresters protect transformers by diverting excess current to ground when voltage exceeds a certain threshold. This limits the voltage stress on the transformer's insulation during lightning strikes or switching surges.

3. What causes overheating in transformers?
   Overheating in transformers can be caused by overloading, cooling system failures, internal faults, or high ambient temperatures. Proper temperature monitoring and cooling systems are essential to prevent overheating.

4. How often should protection devices be tested?
   Protection devices should be tested regularly, typically annually or bi-annually, depending on the device and its criticality. Some utilities perform more frequent checks on critical assets. Always follow manufacturer recommendations and industry standards for testing frequencies.

5. Can transformer protection systems be retrofitted to older units?
   Yes, many protection systems can be retrofitted to older transformers. This often involves adding new sensors, relays, or monitoring devices. However, the feasibility and cost-effectiveness depend on the transformer's age, condition, and the desired level of protection.

Conclusion

Effective transformer protection is crucial for ensuring the reliability, longevity, and safety of power systems. By implementing a comprehensive protection scheme that includes relay-based systems, surge arresters, temperature monitoring, and specialized devices like Buchholz relays, you can significantly reduce the risk of transformer failures and associated outages. Remember, the key to optimal protection lies in selecting the right combination of devices tailored to your specific transformer characteristics and operational needs.
