Are you struggling to understand the world of standard transformers? You're not alone. Many engineers and project managers find themselves confused by the variety of transformer types and their applications. But what if you had a clear, comprehensive guide that breaks down everything you need to know about standard transformers?

A standard transformer is a pre-designed electrical device used to transfer electrical energy between circuits at defined voltage and power levels. Unlike custom transformers, standard models follow widely accepted industry specifications, making them ideal for fast deployment, mass production, and easy integration into power systems. These transformers are commonly available in fixed ratings—such as 100kVA, 250kVA, and 1000kVA—and are used across residential, industrial, and utility-scale applications.

In this comprehensive guide, I'll walk you through the world of standard transformers. We'll explore what they are, the common types you'll encounter, typical ratings and voltage classes, and their applications in power systems. Whether you're a seasoned engineer or new to the field, this article will provide valuable insights to help you make informed decisions about standard transformer selection and use.

What Is a Standard Transformer?

Have you ever wondered why some transformers are called "standard" while others are "custom"? The answer lies in their design and manufacturing process. But what exactly makes a transformer "standard," and why is this distinction important in the power industry?

A standard transformer is a mass-produced electrical device designed to meet common power distribution needs. These transformers are built to predetermined specifications, including standardized voltage ratings, power capacities, and physical dimensions. Unlike custom transformers, standard models are not tailored for specific applications but are designed to meet a wide range of general power transformation requirements. They are widely used in residential, commercial, and industrial settings due to their reliability, cost-effectiveness, and quick availability.

Understanding Standard Transformers

Let's break down the key aspects of standard transformers:

1. Definition and Characteristics
2. Design Standardization
3. Manufacturing Process
4. Advantages Over Custom Units
5. Common Applications

Definition and Characteristics

A standard transformer is:

• Designed for general-purpose use
• Built to predetermined specifications
• Available in fixed ratings and sizes

I recently worked on a project upgrading a residential area's power distribution. We chose standard transformers because their pre-defined ratings perfectly matched the neighborhood's power needs without requiring custom designs.

Design Standardization

Key aspects of standardization:

• Voltage ratings follow industry norms (e.g., 480V, 4160V, 13.8kV)
• Power ratings in standard increments (e.g., 100kVA, 500kVA, 1000kVA)
• Cooling methods and insulation types are standardized

During a recent factory tour, I observed how standardization allows for efficient production lines, with multiple units of the same design being manufactured simultaneously.

Manufacturing Process

Mass production benefits:

• Economies of scale reduce costs
• Consistent quality control
• Faster production and delivery times

Here's a simplified view of the standard transformer manufacturing process:

Stage	Description	Benefit of Standardization
Design	Use of pre-approved designs	Reduced engineering time
Core Assembly	Automated stacking of laminations	Consistent core quality
Winding	Machine-wound coils	Uniform winding tension
Assembly	Standardized assembly procedures	Consistent build quality
Testing	Automated test sequences	Reliable performance verification

Advantages Over Custom Units

Benefits of choosing standard transformers:

• Lower cost due to mass production
• Shorter lead times
• Easier maintenance and part replacement
• Widely available technical support

Common Applications

Where you'll find standard transformers:

• Residential power distribution
• Commercial buildings
• Industrial facilities
• Utility substations

Key points about standard transformers:

1. They are designed for general-purpose use in common applications
2. Standardization allows for efficient manufacturing and lower costs
3. Fixed ratings and sizes cover most typical power needs
4. They offer quicker delivery and easier maintenance than custom units
5. Widely used across various sectors due to their versatility

In my experience, the value of standard transformers becomes particularly evident in large-scale projects. I recall a case where we needed to upgrade the power distribution for an entire industrial park. By using standard transformers, we were able to quickly source and install units that met the diverse needs of different businesses within the park, all while keeping costs manageable and maintenance simple.

As we move on to discuss common types of standard transformers, keep in mind that these standardized designs form the backbone of our power distribution systems. Understanding their characteristics and applications is crucial for anyone involved in electrical engineering or power system management.

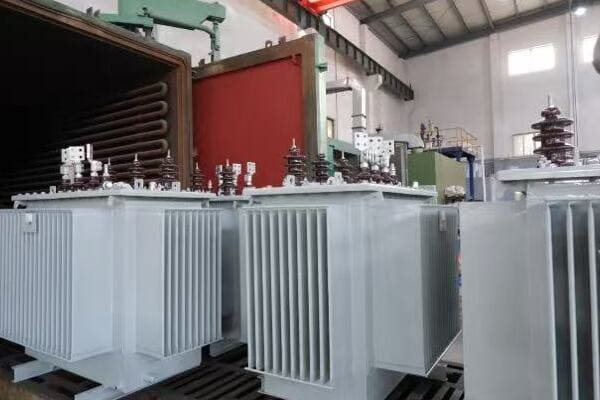

Common Types of Standard Transformers?

Have you ever wondered about the different types of transformers you see in various electrical installations? From utility poles to industrial complexes, transformers come in various shapes and sizes. But what are the most common types of standard transformers, and how do they differ in their applications?

Common types of standard transformers include distribution transformers, power transformers, isolation transformers, and instrument transformers. Distribution transformers are used to step down voltage for final power distribution. Power transformers handle high voltages in transmission systems. Isolation transformers provide electrical separation between circuits. Instrument transformers, including current (CT) and potential (PT) transformers, are used for measurement and protection in electrical systems. Each type serves specific functions in power distribution and control.

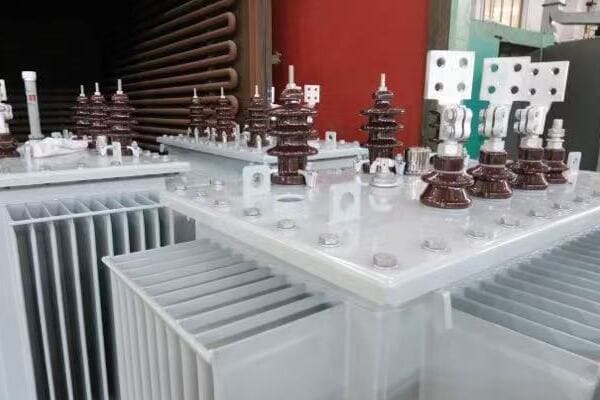

Exploring Standard Transformer Types

Let's examine the main types of standard transformers:

1. Distribution Transformers
2. Power Transformers
3. Isolation Transformers
4. Instrument Transformers
5. Auto-Transformers

Distribution Transformers

The workhorses of local power delivery:

• Step down voltage for end-user consumption
• Typically range from 5 kVA to 5000 kVA
• Common in residential and commercial areas

I recently oversaw the installation of several pad-mounted distribution transformers in a new suburban development. These units efficiently stepped down the 13.8kV primary voltage to 240/120V for residential use.

Power Transformers

Handling high voltages in transmission:

• Used in substations and power plants
• Typically above 5 MVA capacity
• Handle voltages from 69 kV to 765 kV

During a recent substation upgrade project, we installed a 100 MVA power transformer to step down transmission voltage from 230 kV to 69 kV, showcasing the critical role these units play in power transmission.

Isolation Transformers

Providing electrical separation:

• Used for noise reduction and safety
• Common in sensitive electronic equipment
• Typically 1:1 voltage ratio

Here's a quick comparison of transformer types:

Type	Primary Use	Typical Capacity Range	Key Feature
Distribution	Local power delivery	5 kVA - 5000 kVA	Voltage step-down
Power	Transmission systems	> 5 MVA	High voltage handling
Isolation	Circuit separation	1 VA - 1000 kVA	Noise reduction
Instrument (CT/PT)	Measurement & Protection	N/A	High accuracy

Instrument Transformers

Precision measurement and protection:

• Current Transformers (CT): Measure high currents
• Potential Transformers (PT): Measure high voltages
• Used in metering and protective relaying

Auto-Transformers

Efficient voltage adjustment:

• Single winding shared by primary and secondary
• Used for small voltage changes
• Common in voltage regulators

Key points about common standard transformer types:

1. Distribution transformers are crucial for local power delivery
2. Power transformers handle high voltages in transmission systems
3. Isolation transformers provide electrical separation for safety and noise reduction
4. Instrument transformers are essential for accurate measurement and protection
5. Auto-transformers offer efficient solutions for small voltage adjustments

In my experience, understanding these different types of standard transformers is crucial for effective power system design. I recall a project where we had to integrate a new industrial facility into an existing power grid. By carefully selecting the right combination of power and distribution transformers, we were able to efficiently step down the incoming high voltage to various levels required by different parts of the facility.

For example, in a recent smart grid implementation project, we used a combination of standard power transformers for the main substation and multiple distribution transformers equipped with smart monitoring capabilities throughout the network. This approach allowed for efficient power distribution while providing real-time data for grid management.

As we move on to discuss typical ratings and voltage classes, keep these transformer types in mind. Understanding their characteristics and applications will help you appreciate how their ratings are determined and applied in various power system scenarios.

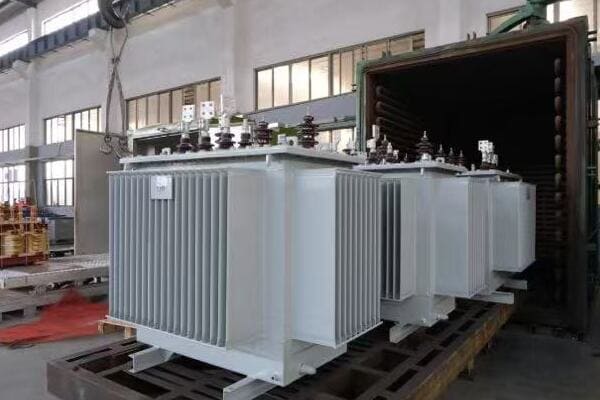

Typical Ratings and Voltage Classes?

Are you finding it challenging to navigate the world of transformer ratings and voltage classes? You're not alone. Many professionals in the power industry struggle to understand the standardized ratings and how they apply to different applications. But what exactly are these ratings, and how do they impact transformer selection and use?

Standard transformers come in a range of typical ratings and voltage classes to meet various power distribution needs. Common power ratings include 100 kVA, 250 kVA, 500 kVA, 1000 kVA, and 2500 kVA. Voltage classes typically range from low voltage (below 1 kV) to medium voltage (1 kV to 35 kV) for distribution transformers, and high voltage (above 35 kV) for power transformers. These standardized ratings ensure compatibility, ease of replacement, and efficient power system design across different applications and regions.

Understanding Transformer Ratings and Voltage Classes

Let's break down the key aspects:

1. Power Ratings (kVA)
2. Voltage Classes
3. Insulation Levels
4. Temperature Rise Ratings
5. Regional Standards and Differences

Power Ratings (kVA)

Common capacity ratings:

• Distribution transformers: 25, 50, 100, 250, 500, 1000 kVA
• Power transformers: 5, 10, 20, 40 MVA and above

I recently worked on a project where we needed to upgrade a commercial building's power supply. We chose a 500 kVA transformer, which provided ample capacity for current needs and future expansion.

Voltage Classes

Standard voltage levels:

• Low Voltage (LV): Below 1 kV (e.g., 240/120V, 480V)
• Medium Voltage (MV): 1 kV to 35 kV (e.g., 4.16 kV, 13.8 kV)
• High Voltage (HV): Above 35 kV (e.g., 69 kV, 138 kV, 230 kV)

During a recent grid modernization project, we had to carefully select transformers that could handle the transition from 69 kV transmission lines to 13.8 kV distribution circuits, and finally to 480V for industrial use.

Insulation Levels

Standardized insulation classes:

• Class A: 105°C
• Class B: 130°C
• Class F: 155°C
• Class H: 180°C

Here's a quick overview of voltage classes and typical applications:

Voltage Class	Range	Common Applications
Low Voltage	< 1 kV	Residential, Small Commercial
Medium Voltage	1 kV - 35 kV	Industrial, Large Commercial
High Voltage	> 35 kV	Transmission, Substations

Temperature Rise Ratings

Standard temperature rise ratings:

• 55°C rise (65°C average winding temperature rise)
• 65°C rise (80°C average winding temperature rise)
• 80°C rise (95°C average winding temperature rise)

Regional Standards and Differences

Variations in global standards:

• ANSI/IEEE (North America): 60 Hz, emphasis on 480V
• IEC (International): 50 Hz, emphasis on 400V
• Specific country standards (e.g., GB in China, IS in India)

Key points about transformer ratings and voltage classes:

1. Power ratings are standardized for easy selection and replacement
2. Voltage classes correspond to different levels of power distribution
3. Insulation classes determine temperature handling capabilities
4. Temperature rise ratings affect efficiency and lifespan
5. Regional standards can impact specific ratings and designs

In my experience, understanding these ratings is crucial for effective transformer selection. I recall a project where we were upgrading a manufacturing facility's power system. By carefully analyzing the load requirements and future growth plans, we were able to select a 2500 kVA, 13.8 kV/480V transformer with a 65°C rise rating. This choice not only met the current power needs but also provided headroom for future expansion while ensuring efficient operation in the facility's demanding environment.

For example, in a recent international project, we had to navigate the differences between ANSI and IEC standards. We chose transformers that could handle both 50 Hz and 60 Hz frequencies, with voltage taps that allowed for adjustment between 400V and 480V on the secondary side. This flexibility ensured that the transformers could be used effectively across different global locations.

As we move on to discuss applications of standard transformers in power systems, keep these ratings and classes in mind. They play a crucial role in determining which transformers are suitable for specific applications and how they integrate into the broader power distribution network.

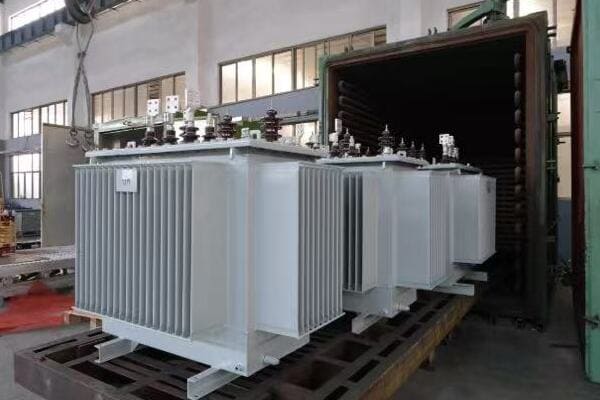

Applications of Standard Transformers in Power Systems?

Have you ever wondered how electricity gets from power plants to your home or office? Standard transformers play a crucial role in this journey, but where exactly are they used, and why are they so important in our power systems? Understanding the applications of standard transformers can help you appreciate the complexity of our electrical infrastructure.

Standard transformers are widely used across various sectors of power systems. In utility applications, they step down high transmission voltages to distribution levels. In industrial settings, they provide appropriate voltages for machinery and equipment. Commercial and residential areas use them for final voltage reduction for end-user consumption. Renewable energy systems, like solar and wind farms, use standard transformers to integrate power into the grid. These transformers are essential for maintaining voltage levels, isolating circuits, and ensuring efficient power distribution throughout the electrical network.

Exploring Applications of Standard Transformers

Let's examine the main areas where standard transformers are used:

1. Utility Power Distribution
2. Industrial Applications
3. Commercial and Residential Use
4. Renewable Energy Integration
5. Special Applications

Utility Power Distribution

The backbone of the power grid:

• Substation transformers for voltage step-down
• Pole-mounted transformers in residential areas
• Pad-mounted transformers in urban settings

I recently worked on a project upgrading a suburban power network. We installed several 500 kVA pad-mounted transformers to step down 13.8 kV to 240/120V, significantly improving the reliability of power delivery to homes.

Industrial Applications

Powering manufacturing and processing:

• Large power transformers for factory main supplies
• Distribution transformers for various voltage levels within facilities
• Specialized transformers for industrial processes (e.g., arc furnaces)

During a recent factory automation project, we used a combination of 2500 kVA and 1000 kVA transformers to efficiently distribute power to different production lines, each with unique voltage requirements.

Commercial and Residential Use

Bringing power to everyday life:

• Small to medium-sized transformers in office buildings
• Residential distribution transformers
• Lighting transformers for outdoor and public spaces

Here's a quick overview of transformer applications in different sectors:

Sector	Typical Transformer Types	Common Ratings
Utility	Power, Distribution	5 MVA - 100 MVA
Industrial	Power, Distribution	500 kVA - 10 MVA
Commercial	Distribution	75 kVA - 2500 kVA
Residential	Distribution	25 kVA - 167 kVA

Renewable Energy Integration

Supporting green power:

• Step-up transformers at wind farms
• Solar inverter transformers
• Grid connection transformers for renewable plants

Special Applications

Unique uses of standard transformers:

• Isolation transformers in sensitive electronic equipment
• Voltage regulators in long distribution lines
• Mobile substations for temporary power needs

Key points about standard transformer applications:

1. They are crucial in stepping down voltages from transmission to distribution levels
2. Industrial applications require a range of transformer sizes and types
3. Commercial and residential use typically involves smaller distribution transformers
4. Renewable energy systems rely on transformers for grid integration
5. Special applications showcase the versatility of standard transformers

In my experience, the versatility of standard transformers becomes particularly evident in complex projects. I recall a case where we were designing the power distribution system for a new mixed-use development that included residential, commercial, and light industrial areas. By carefully selecting a range of standard transformers - from large substation units to smaller pad-mounted distributors - we were able to create an efficient, reliable power network that met the diverse needs of all users.

For example, in a recent smart city project, we implemented a hierarchical transformer system. We used large standard power transformers at the main substations, medium-sized units for district distribution, and smaller transformers with smart monitoring capabilities at the neighborhood level. This approach not only ensured efficient power distribution but also allowed for better load management and fault detection across the entire city grid.

As we move on to discuss the advantages of using standard transformers, keep in mind how their widespread applications contribute to their benefits in terms of cost, availability, and ease of maintenance.

Advantages of Using Standard Transformers?

Have you ever wondered why standard transformers are so widely used in power systems? The answer lies in their numerous advantages. But what specific benefits do these transformers offer, and how do they impact project timelines, costs, and overall system reliability?

Standard transformers offer several key advantages including cost-effectiveness, quick availability, ease of replacement, and simplified maintenance. Their mass production leads to lower unit costs and shorter lead times compared to custom units. Standardized designs ensure compatibility across different manufacturers, making replacements and upgrades easier. Additionally, standard transformers often come with extensive performance data and are compliant with widely recognized industry standards, simplifying the design and approval processes for power system projects.

Key Advantages of Standard Transformers

Let's explore the main benefits:

1. Cost-Effectiveness
2. Quick Availability and Shorter Lead Times
3. Ease of Replacement and Maintenance
4. Reliability and Performance Data
5. Compliance with Industry Standards

Cost-Effectiveness

Economical benefits of standardization:

• Lower manufacturing costs due to mass production
• Reduced engineering and design costs
• Economies of scale in material procurement

I recently managed a project upgrading a large industrial complex's power distribution system. By opting for standard transformers, we achieved a 20% cost saving compared to custom units, without compromising on performance.

Quick Availability and Shorter Lead Times

Advantages in procurement:

• Often available from stock or with short lead times
• Faster project completion and commissioning
• Reduced downtime in case of replacements

During an emergency replacement at a critical facility, we were able to source and install a standard 1000 kVA transformer within 48 hours, minimizing disruption to operations.

Ease of Replacement and Maintenance

Simplified logistics and operations:

• Interchangeability between different manufacturers
• Readily available spare parts
• Technicians familiar with standard designs

Here's a comparison of maintenance aspects:

Aspect	Standard Transformers	Custom Transformers
Spare Parts	Readily available	Often require special orders
Technician Familiarity	High	May require specialized training
Replacement Time	Typically shorter	Can be significantly longer
Documentation	Standardized, easily accessible	Often unique to each unit

Reliability and Performance Data

Proven track record:

• Extensive field data on performance and reliability
• Well-understood failure modes and maintenance needs
• Easier to predict lifecycle costs

Compliance with Industry Standards

Meeting regulatory requirements:

• Designed to comply with widely recognized standards (e.g., IEEE, IEC)
• Simplifies approval processes in different jurisdictions
• Ensures compatibility with existing infrastructure

Key advantages of using standard transformers:

1. They offer significant cost savings through mass production
2. Quick availability reduces project timelines and downtime
3. Standardization simplifies replacement and maintenance procedures
4. Extensive performance data aids in system design and planning
5. Compliance with industry standards ensures broad applicability

In my experience, these advantages often make standard transformers the go-to choice for many projects. I recall a large-scale grid modernization project where we needed to replace hundreds of aging transformers across a wide urban area. By choosing standard units, we were able to streamline the procurement process, ensure consistent quality across all installations, and significantly reduce the overall project timeline.

For instance, in a recent renewable energy project involving multiple solar farms, we used standard transformers for both the inverter stations and the grid connection points. This decision not only reduced costs but also allowed for a modular approach to the farm's design, making future expansions much easier to plan and implement.

As we move on to compare standard and custom transformers, keep these advantages in mind. They play a crucial role in decision-making processes for power system design and management, especially when balancing performance needs with budget and time constraints.

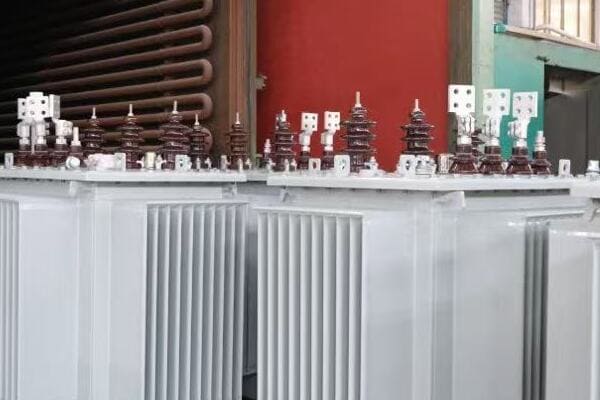

Standard vs Custom Transformers: Which One Do You Need?

Are you torn between choosing a standard transformer or investing in a custom solution? This decision can significantly impact your project's success, efficiency, and long-term costs. But how do you know which option is right for your specific needs?

Choosing between standard and custom transformers depends on your specific requirements, budget, and timeline. Standard transformers are typically less expensive, readily available, and suitable for common applications. They're ideal for projects with typical voltage and power requirements, standard environmental conditions, and where quick deployment is crucial. Custom transformers, while more costly and time-consuming to produce, offer optimized performance for unique or demanding applications. They're necessary when standard units can't meet specific voltage, size, environmental, or regulatory requirements.

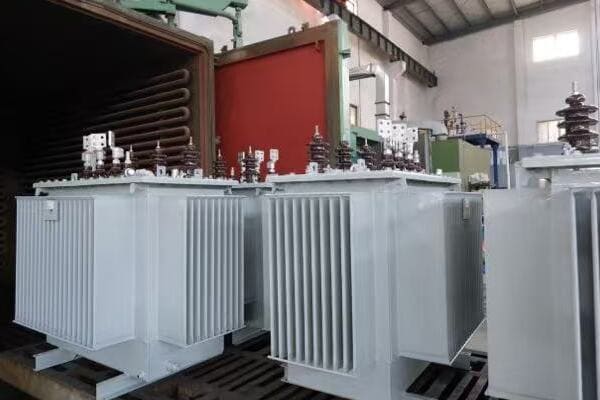

Comparing Standard and Custom Transformers

Let's break down the key factors to consider:

1. Application Requirements
2. Cost Considerations
3. Lead Time and Availability
4. Performance and Efficiency
5. Flexibility and Future-Proofing

Application Requirements

Matching transformer to needs:

• Standard: Suitable for common voltage and power ratings
• Custom: Necessary for unique specifications or environments

I recently worked on a project for a data center where we initially considered custom transformers. However, after careful analysis, we found that standard units met all our requirements, saving both time and money.

Cost Considerations

Balancing budget and performance:

• Standard: Lower upfront costs due to mass production
• Custom: Higher initial investment, potentially lower long-term costs for specific applications

During a recent industrial upgrade, we found that while the custom transformer cost 40% more upfront, its improved efficiency for the specific load profile resulted in a positive ROI within 3 years.

Lead Time and Availability

Timing your project needs:

• Standard: Readily available, shorter lead times
• Custom: Longer production time, typically 12-24 weeks or more

Here's a simplified comparison of lead times and costs:

Aspect	Standard Transformers	Custom Transformers
Lead Time	1-8 weeks	12-24+ weeks
Initial Cost	Lower	Higher
Availability	Often in stock	Built to order
Design Flexibility	Limited	High

Performance and Efficiency

Meeting specific operational needs:

• Standard: Designed for average conditions, may have compromises
• Custom: Optimized for specific operating conditions, potentially higher efficiency

Flexibility and Future-Proofing

Adapting to changing needs:

• Standard: Limited options, may require future replacements
• Custom: Can be designed with future expansion in mind

Key points in choosing between standard and custom transformers:

1. Standard transformers are ideal for common, straightforward applications
2. Custom units are necessary for unique or demanding requirements
3. Cost and lead time heavily favor standard transformers
4. Performance optimization may justify custom designs in some cases
5. Long-term flexibility can be a deciding factor for growing operations

In my experience, the choice between standard and custom transformers often comes down to a careful analysis of both immediate needs and long-term goals. I recall a project for a specialized manufacturing facility where we initially leaned towards custom transformers due to some unique voltage requirements. However, after consulting with several manufacturers, we discovered that a combination of standard transformers with minor modifications could meet our needs at a fraction of the cost and lead time of fully custom units.

For example, in a recent renewable energy project, we faced the challenge of integrating a large wind farm into an existing grid with fluctuating voltage levels. While custom transformers seemed necessary at first, we ultimately designed a solution using standard transformers with advanced on-load tap changers. This approach provided the necessary voltage regulation while maintaining the benefits of standard units in terms of cost and availability.

Remember, the choice between standard and custom transformers isn't always clear-cut. It requires a thorough understanding of your current needs, future plans, and the specific constraints of your project. Careful consideration of these factors, along with consultation with experienced professionals, will help ensure you make the best decision for your unique situation.

Conclusion

Standard transformers are essential components in power systems, offering reliability, cost-effectiveness, and quick availability for a wide range of applications. They come in various types and ratings to meet common power distribution needs across utility, industrial, commercial, and residential sectors. While custom transformers have their place in specialized applications, standard units are often the go-to choice for efficient and economical power system design and management.
Remember, at chbeb-ele, we're not just sharing information – we're empowering you to be part of the solution in creating a secure, clean, and efficient energy future. Let's continue this journey together.
