Have you ever wondered how large buildings or industrial complexes receive their power? The answer lies in a crucial device that often goes unnoticed. But what exactly is this unsung hero of our power distribution system?

A three phase distribution transformer is an electrical device that steps down medium-voltage three-phase power (typically 6kV to 33kV) to lower voltages (400V or 415V) for industrial, commercial, and large residential use. It consists of a three-legged core with primary and secondary windings on each leg, allowing for efficient power transfer. These transformers are crucial in the power distribution chain, offering improved efficiency, lower transmission losses, and more balanced load handling compared to single-phase systems.

In this comprehensive guide, I'll take you through the structure, operation, and voltage regulation mechanisms of three phase distribution transformers. Whether you're an engineer, project manager, or simply curious about power systems, this article will provide valuable insights into these essential components of our electrical infrastructure.

What Is a Three Phase Distribution Transformer?

Have you ever seen those large, cylindrical devices in industrial areas or near commercial complexes and wondered about their purpose? These are often three phase distribution transformers, but what exactly are they, and why are they so important for our power distribution system?

A three phase distribution transformer is a specialized electrical device designed to convert medium-voltage three-phase power (typically 6kV to 33kV) into lower voltage levels (usually 400V or 415V) suitable for industrial, commercial, and large residential applications. It uses electromagnetic induction to step down voltage while maintaining the three-phase nature of the power supply. These transformers are crucial for efficient power distribution in high-load scenarios, offering better voltage stability, higher power capacity, and improved energy efficiency compared to single-phase systems.

Key Aspects of Three Phase Distribution Transformers

Let's break down the main features:

1. Purpose and Function
2. Three-Phase vs. Single-Phase Comparison
3. Voltage and Capacity Ranges
4. Applications
5. Advantages and Considerations

Purpose and Function

The primary role in power distribution:

• Step down medium voltage to low voltage for end-user consumption
• Maintain three-phase power characteristics throughout transformation
• Provide efficient power distribution for high-load applications

I recently visited a new industrial park where three phase distribution transformers were being installed. It was fascinating to see how these devices could handle the massive power requirements of multiple factories while maintaining stable voltage levels.

Three-Phase vs. Single-Phase Comparison

Understanding the key differences:

• Three-phase systems offer higher power capacity
• More efficient for large loads and motor-driven equipment
• Better voltage stability and load balancing

During a recent project, we had to decide between multiple single-phase transformers and a three-phase unit for a commercial complex. The three-phase option ultimately provided better efficiency and simplified installation.

Voltage and Capacity Ranges

Meeting diverse power needs:

• Primary voltages: Typically 6kV, 11kV, 22kV, or 33kV
• Secondary voltages: Usually 400V or 415V (line-to-line)
• Capacity ranges from 100 kVA to 2500 kVA for most distribution applications

Here's a quick overview of common ratings:

Primary Voltage	Secondary Voltage	Typical Capacities
11kV	400V	250, 500, 1000 kVA
22kV	400V	500, 1000, 1500 kVA
33kV	415V	1000, 1500, 2000 kVA

Applications

Versatile use in various settings:

• Industrial facilities and factories
• Commercial complexes and shopping centers
• Large residential developments and high-rise buildings
• Hospitals and data centers
• Renewable energy integration (wind farms, solar plants)

Advantages and Considerations

Understanding the pros and potential challenges:

• Advantages: Higher efficiency, better load balancing, suitable for motor loads
• Considerations: Higher initial cost, more complex installation, requires balanced loads

Key points about three phase distribution transformers:

1. They are crucial for stepping down voltage in three-phase power systems
2. Offer higher efficiency and capacity compared to single-phase systems
3. Commonly used in industrial and large commercial applications
4. Come in various voltage and capacity ratings to suit different needs
5. Provide better performance for motor loads and balanced power distribution

In my experience, understanding these basic aspects of three phase transformers is crucial for effective power system planning. I recall a project where we initially underestimated the growth potential of an industrial area. By choosing a three phase transformer with slightly higher capacity, we were able to accommodate the rapid expansion of several factories without major infrastructure changes.

For example, in a recent data center project, we used a large three phase transformer to power the entire facility. Its ability to handle the massive, constant load while maintaining voltage stability was crucial for the center's 24/7 operation.

As we move on to discuss the internal structure of these transformers, keep these basic characteristics in mind. Understanding how the external design relates to the internal components will give you a more comprehensive view of how these essential devices function in our power distribution systems.

Internal Structure: Core Types, Windings, and Cooling?

Have you ever wondered what's inside those large three phase transformers? The internal structure of these devices is a marvel of electrical engineering. But what are the key components that make up this structure, and how do different designs affect performance?

The internal structure of a three phase distribution transformer consists of three main components: the core, windings, and cooling system. The core, typically made of laminated silicon steel, can be either shell-type or core-type. Windings are arranged in primary and secondary coils, usually in Delta or Wye configurations. Cooling systems can be oil-based (ONAN/ONAF) or dry-type (AN/AF). The choice of core type, winding configuration, and cooling method significantly impacts the transformer's efficiency, size, and suitability for different applications.

Key Internal Components of Three Phase Transformers

Let's examine the main internal elements:

1. Core Types and Structures
2. Winding Configurations
3. Cooling Systems
4. Insulation Materials
5. Structural Components and Tank

Core Types and Structures

The magnetic heart of the transformer:

• Shell-type core: Windings surrounded by core material
• Core-type: Core legs pass through the center of windings
• Three-legged or five-legged designs for different applications

I recently had the opportunity to compare shell-type and core-type transformers during a factory tour. The difference in magnetic flux paths and their impact on efficiency was fascinating to observe in real-world applications.

Winding Configurations

Arranging the electrical coils:

• Delta (Δ) configuration: Better for handling unbalanced loads
• Wye (Y) configuration: Provides a neutral point, useful for grounding
• Various combinations (e.g., Delta-Wye, Wye-Wye) for different needs

During a recent project, we had to carefully consider the winding configuration to match the specific needs of an industrial client with a mix of three-phase and single-phase loads.

Cooling Systems

Managing heat for optimal performance:

• Oil-immersed: ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced)
• Dry-type: AN (Air Natural) or AF (Air Forced)
• Hybrid systems for special applications

Here's a quick comparison of cooling methods:

Cooling Method	Advantages	Typical Applications
ONAN	Simple, reliable	Outdoor installations
ONAF	Higher capacity in compact size	Industrial settings
Dry-type AN	Environmentally friendly, fire-resistant	Indoor, commercial buildings
Dry-type AF	High capacity in non-oil design	Data centers, hospitals

Insulation Materials

Ensuring electrical isolation and safety:

• Oil-paper insulation for oil-immersed transformers
• Epoxy resin or similar materials for dry-type units
• Special materials for high-temperature applications

Structural Components and Tank

Housing and supporting the internal elements:

• Tank design for oil containment and heat dissipation
• Core clamping structures to minimize vibration
• Bushings for external connections
• Tap changer mechanisms for voltage adjustment

Key points about the internal structure:

1. Core type affects the transformer's size, efficiency, and magnetic characteristics
2. Winding configurations determine voltage relationships and load handling capabilities
3. Cooling systems are crucial for maintaining optimal operating temperatures
4. Insulation materials play a vital role in safety and long-term reliability
5. Structural components must withstand electrical and mechanical stresses

In my experience, understanding the internal structure is crucial for selecting the right transformer for specific applications. I recall a case where a client initially wanted a standard oil-filled transformer for a new shopping mall. After considering the fire safety requirements and maintenance concerns, we opted for a dry-type unit with forced air cooling. This choice not only met the technical requirements but also simplified the installation process and reduced long-term maintenance needs.

For example, in a recent project for a large manufacturing plant, we specified a transformer with a five-legged core design. This choice provided better handling of unbalanced loads and harmonic currents, which were common in the facility's power system due to various motor drives and welding equipment.

As we move on to discuss how three phase transformers work, keep these internal components in mind. Understanding their interactions is key to grasping the overall function and efficiency of these essential devices in our power distribution systems.

How a Three Phase Transformer Works: Electromagnetic Induction in Three Legs?

Have you ever wondered how a three phase transformer manages to handle three separate phases of electricity simultaneously? The process might seem complex, but it's based on fundamental principles of electromagnetism. But how exactly does this principle apply to the three-legged structure of these transformers?

A three phase transformer works on the principle of electromagnetic induction, with each leg of the core handling one phase of the three-phase power. When alternating current flows through the primary windings, it creates a changing magnetic field in each leg of the transformer's core. This changing magnetic field induces a voltage in the secondary windings of each leg. The 120-degree phase difference between the three phases is maintained throughout the transformation process. The three-legged core structure provides a closed magnetic circuit, allowing efficient energy transfer from the primary to the secondary side while maintaining the phase relationships.

Key Aspects of Three Phase Transformer Operation

Let's break down how these transformers function:

1. Electromagnetic Induction in Three Phases
2. Core and Magnetic Flux Paths
3. Phase Relationships and Balanced Operation
4. Load Handling and Efficiency
5. Harmonics and Special Considerations

Electromagnetic Induction in Three Phases

The fundamental principle at work:

• Each leg of the core handles one phase of the three-phase power
• Changing current in primary windings creates a changing magnetic field
• Magnetic field induces voltage in secondary windings
• Process occurs simultaneously in all three legs

I recently used a small-scale model to demonstrate this principle during a training session. Seeing the synchronized operation of all three phases really helped clarify the concept for the participants.

Core and Magnetic Flux Paths

Understanding the magnetic circuit:

• Three-legged core provides a closed path for magnetic flux
• Flux in each leg is 120 degrees out of phase with the others
• Core design minimizes magnetic losses and improves efficiency

During a recent project, we used advanced simulation software to visualize the magnetic flux paths in different core designs. This analysis was crucial in selecting the most efficient transformer for a critical industrial application.

Phase Relationships and Balanced Operation

Maintaining three-phase characteristics:

• 120-degree phase difference maintained between phases
• Balanced operation crucial for optimal performance
• Winding configurations (Delta or Wye) affect phase relationships

Here's a simplified view of phase relationships:

Phase	Angle	Typical Color Code
A	0°	Red
B	120°	Yellow
C	240°	Blue

Load Handling and Efficiency

Adapting to varying power demands:

• Ability to handle balanced and slightly unbalanced loads
• Higher efficiency compared to three single-phase transformers
• Load sharing between phases for optimal performance

Harmonics and Special Considerations

Dealing with power quality issues:

• Impact of harmonic currents on transformer operation
• Special designs for handling non-linear loads
• Importance of proper sizing and selection for harmonic-rich environments

Key points about three phase transformer operation:

1. Electromagnetic induction occurs simultaneously in all three legs
2. Core design is crucial for efficient magnetic flux paths
3. Phase relationships are maintained throughout the transformation
4. Balanced operation is key to optimal efficiency
5. Special considerations are needed for harmonic-rich environments

In my experience, understanding these operational principles is crucial for effective transformer management and troubleshooting. I recall a case where a transformer was experiencing excessive heating in one leg. By analyzing the phase currents and harmonic content, we discovered that a large number of single-phase, non-linear loads were connected to one phase, causing unbalance and harmonic distortion. This insight led to a redistribution of loads and the installation of harmonic filters, resolving the issue.

For example, in a recent project involving a large data center, we implemented three phase transformers specifically designed to handle the high harmonic content typical in such environments. These units featured oversized neutrals and special core designs to manage the harmonic currents effectively, ensuring reliable operation in this critical facility.

As we move on to discuss voltage regulation in distribution transformers, keep these operational principles in mind. Understanding how three phase transformers handle power flow and maintain phase relationships is key to appreciating the complexities of voltage regulation in these essential devices.

Voltage Regulation in Distribution Transformers: Tap Changers and Load Response?

Have you ever wondered how distribution transformers maintain stable output voltage despite fluctuations in input voltage or load? This crucial aspect of transformer operation ensures reliable power delivery to end-users. But how exactly do transformers achieve this voltage regulation, and what mechanisms are involved?

Voltage regulation in distribution transformers is primarily achieved through tap changers and the transformer's inherent response to load changes. Tap changers adjust the turns ratio of the transformer by changing the number of active turns in the winding, allowing for voltage adjustment. There are two main types: No-Load Tap Changers (NLTC) for offline adjustments and On-Load Tap Changers (OLTC) for real-time voltage control. Additionally, transformers have a natural voltage drop under load, which is considered in their design. The combination of tap changing and load response characteristics allows transformers to maintain output voltage within acceptable limits despite input voltage fluctuations and varying load conditions.

Key Aspects of Voltage Regulation in Distribution Transformers

Let's examine the main elements of voltage regulation:

1. Tap Changers: Types and Operation
2. Load Response and Voltage Drop
3. Automatic Voltage Regulation Systems
4. Factors Affecting Voltage Regulation
5. Importance in Power Quality Management

Tap Changers: Types and Operation

Adjusting transformer turns ratio:

• No-Load Tap Changers (NLTC): Manual adjustment when de-energized
• On-Load Tap Changers (OLTC): Automatic adjustment while energized
• Typical range of ±5% in 2.5% steps

I recently oversaw the installation of a transformer with an OLTC in a critical industrial facility. The ability to make real-time voltage adjustments proved invaluable in maintaining stable power supply during significant load variations.

Load Response and Voltage Drop

Natural transformer behavior under load:

• Voltage drop occurs as load increases
• Impedance voltage: measure of transformer's internal voltage drop
• Careful design to balance efficiency and voltage regulation

During a recent project, we had to carefully consider the expected load profile to select a transformer with appropriate impedance characteristics, ensuring good voltage regulation across various operating conditions.

Automatic Voltage Regulation Systems

Enhancing regulation capabilities:

• Voltage sensors and control circuits
• Automatic tap changing based on output voltage
• Integration with smart grid systems for optimized operation

Here's a simplified view of automatic voltage regulation:

Input Voltage Change	Load Change	Tap Changer Response
Increase	-	Decrease turns ratio
Decrease	-	Increase turns ratio
-	Increase	Increase turns ratio
-	Decrease	Decrease turns ratio

Factors Affecting Voltage Regulation

Understanding influences on regulation performance:

• Power factor of the load
• Transformer impedance
• Line voltage drop
• Harmonic content in the load current

Importance in Power Quality Management

Ensuring reliable and stable power supply:

• Maintaining voltage within acceptable limits for end-user equipment
• Reducing stress on electrical systems
• Supporting power factor correction and harmonic mitigation efforts

Key points about voltage regulation in distribution transformers:

1. Tap changers are primary mechanisms for voltage adjustment
2. Load response characteristics influence natural voltage regulation
3. Automatic systems enhance regulation capabilities
4. Multiple factors affect regulation performance
5. Proper regulation is crucial for overall power quality

In my experience, effective voltage regulation is critical for maintaining power quality and equipment longevity. I recall a project where a manufacturing plant was experiencing frequent equipment malfunctions. Upon investigation, we discovered that the existing transformer's voltage regulation was inadequate for the highly variable load profile. By upgrading to a transformer with an OLTC and implementing an automatic voltage regulation system, we significantly improved power quality and reduced equipment failures.

For example, in a recent smart grid project, we integrated advanced voltage regulation systems into distribution transformers. These systems not only maintained stable voltage but also communicated with other grid components to optimize overall power flow and efficiency. This approach demonstrated how modern voltage regulation techniques can contribute to broader power system optimization.

As we conclude our discussion on voltage regulation, it's clear that this aspect of transformer operation is crucial for reliable power distribution. Whether you're designing a new power system or troubleshooting existing issues, understanding these voltage regulation mechanisms is key to ensuring stable and efficient electrical supply.

Applications of Three Phase Distribution Transformers in Power Systems?

Have you ever wondered where three phase distribution transformers are typically used and why they're chosen over single-phase alternatives? These versatile devices play a crucial role in various power distribution scenarios, but their applications might be more diverse than you think. So, in what situations are three phase distribution transformers most commonly deployed, and what benefits do they offer?

Three phase distribution transformers are widely used in industrial facilities, commercial complexes, large residential developments, and renewable energy installations. They're essential for powering heavy machinery in factories, supplying consistent power to office buildings and shopping centers, and distributing electricity in high-rise apartments. In renewable energy, they help integrate wind farms and solar plants into the grid. Three phase transformers are chosen for their higher efficiency, better load balancing, and ability to handle large power capacities. They're particularly beneficial for motor loads and in applications requiring stable, three-phase power supply.

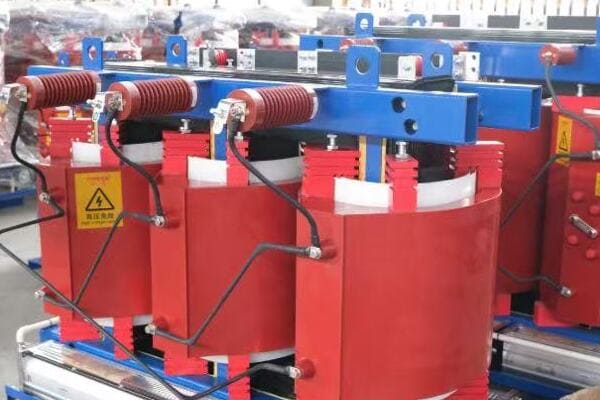

Key Application Areas for Three Phase Distribution Transformers

Let's explore the main uses:

1. Industrial Power Distribution
2. Commercial and Institutional Buildings
3. Large Residential Complexes
4. Renewable Energy Integration
5. Specialized Applications

Industrial Power Distribution

Powering manufacturing and processing facilities:

• Factories and production lines
• Chemical plants and refineries
• Mining operations and heavy industry

I recently worked on a project to upgrade the power distribution system in a large automotive manufacturing plant. The use of high-capacity three phase transformers was crucial in handling the diverse and heavy loads of welding equipment, robotic assembly lines, and HVAC systems.

Commercial and Institutional Buildings

Supplying reliable power to large structures:

• Office buildings and corporate campuses
• Shopping malls and retail centers
• Hospitals and healthcare facilities
• Educational institutions

During a recent renovation of a major shopping center, we installed multiple three phase transformers to handle the complex power needs of hundreds of stores, food courts, and climate control systems. The ability to balance loads across phases was key to efficient power distribution.

Large Residential Complexes

Meeting the power needs of high-density housing:

• High-rise apartment buildings
• Gated communities and large housing developments
• Mixed-use residential and commercial complexes

Here's a quick overview of typical transformer sizes for different residential applications:

Application	Typical Transformer Size	Key Considerations
Small Apartment Building	100-250 kVA	Balanced load distribution
High-Rise Residential	500-1000 kVA	Vertical power distribution
Large Housing Complex	1000-2500 kVA	Multiple distribution points

Renewable Energy Integration

Supporting green energy initiatives:

• Wind farms: Stepping up voltage from turbine generators
• Solar power plants: Integrating large-scale photovoltaic systems
• Hydroelectric installations: Connecting to the grid

Specialized Applications

Addressing unique power distribution challenges:

• Data centers and server farms
• Transportation hubs (airports, train stations)
• Water treatment and pumping stations
• Temporary power for large events or construction sites

Key points about three phase transformer applications:

1. They are crucial in industrial settings for powering heavy machinery
2. Commercial and institutional buildings rely on them for stable power supply
3. Large residential complexes benefit from their efficient power distribution
4. Renewable energy projects often require them for grid integration
5. Specialized applications showcase their versatility in various sectors

In my experience, the choice of three phase transformers in these applications often leads to significant improvements in power quality and efficiency. I recall a project for a new data center where the decision to use high-efficiency three phase transformers not only met the immediate power needs but also provided the flexibility to accommodate future expansion. The balanced power distribution was crucial for the sensitive server equipment.

For example, in a recent wind farm project, we used a series of three phase transformers to step up the voltage from individual turbines and then again at the substation level for grid connection. This multi-stage approach using three phase units allowed for efficient power collection and transmission, maximizing the farm's output to the grid.

As we conclude our exploration of three phase distribution transformer applications, it's clear that these devices play a vital role in our modern power infrastructure. Whether powering industrial processes, ensuring comfort in commercial spaces, or enabling the integration of renewable energy, three phase transformers are essential components in efficient and reliable power distribution systems.

Top 10 Chinese Manufacturers of Three Phase Distribution Transformers?

Are you looking for reliable suppliers of three phase distribution transformers for your international projects? With China being a major player in the global electrical equipment market, it's worth exploring the top manufacturers from this region. But which Chinese companies stand out in producing high-quality, export-ready three phase transformers?

Leading Chinese manufacturers of three phase distribution transformers include CHBEB, CHINT, TBEA, XD Group, and Sieyuan Electric. These companies offer transformers with voltage ratings from 6kV to 66kV and capacities from 100kVA to 5000kVA. They are known for their adherence to international standards like IEC and ANSI, competitive pricing, and strong export capabilities. Many of these manufacturers provide customization options, comprehensive documentation, and after-sales support, making them popular choices for international projects in regions like Africa, Southeast Asia, and along the Belt and Road initiative countries.

Overview of Top Chinese Three Phase Transformer Manufacturers

Let's examine the key players and their offerings:

1. CHBEB (China Bei Er Bian)
2. CHINT
3. TBEA
4. XD Group
5. Sieyuan Electric

CHBEB (China Bei Er Bian)

Specializing in customized solutions:

• kVA Range: 100-2500 kVA
• Voltage Range: 6-33kV
• Key Features: Supports copper/aluminum windings, with/without tap changers, strong OEM capabilities
• Export Markets: Middle East, Africa

I recently visited CHBEB's manufacturing facility and was impressed by their rigorous testing procedures for export-grade transformers. Their ability to customize units for specific environmental conditions, like high-temperature or high-humidity areas, sets them apart in the international market.

CHINT

Known for cost-effective solutions:

• kVA Range: 100-2000 kVA
• Voltage Range: 10-22kV
• Key Features: Comprehensive product line, fast delivery, competitive pricing
• Export Markets: Asia, Africa

During a recent project in Southeast Asia, we sourced transformers from CHINT. Their ability to deliver a large quantity of standardized units quickly was crucial for meeting our tight project timeline.

TBEA

High-end transformer solutions:

• kVA Range: 250-3150 kVA
• Voltage Range: 6-66kV
• Key Features: Experience in national grid projects, support for ultra-high voltage products
• Export Markets: Central Asia, Belt & Road countries

Here's a comparison of these top manufacturers:

Manufacturer	kVA Range	Voltage Range	Key Strength	Main Export Regions
CHBEB	100-2500 kVA	6-33kV	Customization	Middle East, Africa
CHINT	100-2000 kVA	10-22kV	Cost-effective	Asia, Africa
TBEA	250-3150 kVA	6-66kV	High-end solutions	Central Asia, Belt & Road
XD Group	400-5000 kVA	20-110kV	EPC projects	Latin America, Africa
Sieyuan	250-2500 kVA	10-33kV	GIS integration	Southeast Asia, LATAM

XD Group

Comprehensive power equipment manufacturer:

• kVA Range: 400-5000 kVA
• Voltage Range: 20-110kV
• Key Features: Complete system for substation and distribution transformers, suitable for rail transit and power plant projects
• Export Markets: Latin America, Africa

Sieyuan Electric

Integrated power solutions provider:

• kVA Range: 250-2500 kVA
• Voltage Range: 10-33kV
• Key Features: Strong GIS system integration capabilities, compatible with remote monitoring systems
• Export Markets: Southeast Asia, Latin America

Key points about Chinese three phase transformer manufacturers:

1. They offer a wide range of voltage and capacity options
2. Many provide customization capabilities for specific project needs
3. Strong focus on international standards compliance for export markets
4. Competitive pricing combined with reliable quality
5. Extensive experience in various global markets

In my experience, these Chinese manufacturers have consistently demonstrated their ability to meet diverse project requirements. I recall a large-scale industrial park development where we sourced transformers from multiple Chinese manufacturers on this list. By leveraging the specific strengths of each company – such as CHBEB's customization capabilities for harsh environments and CHINT's cost-effective standard units for widespread deployment – we were able to optimize the overall power distribution system while managing costs effectively.

For example, in a recent project in a remote area with unstable grid voltage, we utilized TBEA's transformers known for their robust design and voltage regulation capabilities. This choice significantly improved power quality and reliability in the challenging operating environment.

When considering Chinese manufacturers for your three phase transformer needs, it's crucial to evaluate not just the technical specifications and pricing, but also factors like after-sales support, documentation quality, and the manufacturer's experience in your specific application area. This comprehensive approach will help ensure you select the right partner for your power distribution projects.

FAQs: Common Questions About Three Phase Transformers?

Are you still puzzled by some aspects of three phase transformers? You're not alone. Many professionals and curious individuals have questions about these essential components of our power distribution system. Let's address some of the most frequently asked questions to deepen your understanding.

FAQs about three phase transformers often cover their function, differences from single-phase units, common configurations, and installation considerations. Three phase transformers primarily function to step voltage up or down while maintaining three-phase power characteristics. They differ from single-phase transformers in their ability to handle higher loads more efficiently. Common configurations include Delta-Wye and Wye-Wye connections. Installation typically requires consideration of factors like load balancing, cooling requirements, and proper grounding. Understanding these aspects is crucial for proper selection, installation, and maintenance of three phase transformers.

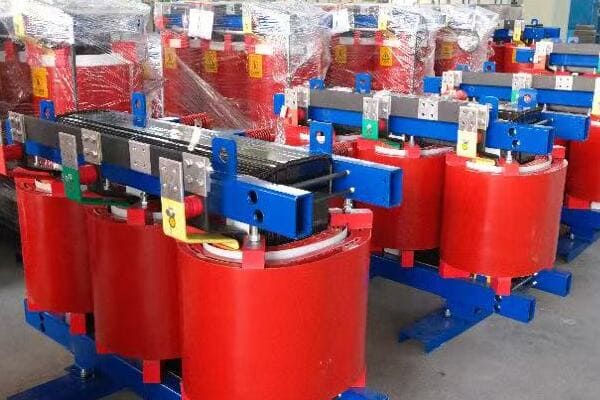

Frequently Asked Questions About Three Phase Transformers

Let's address some common queries:

1. Function and Purpose
2. Three-Phase vs. Single-Phase Differences
3. Common Configurations and Connections
4. Installation and Maintenance Considerations
5. Efficiency and Load Handling

Function and Purpose

Q: What is the main function of a three phase transformer?
A: The primary function of a three phase transformer is to step voltage up or down in a three-phase power system while maintaining the phase relationships. It allows for efficient power transmission and distribution in industrial, commercial, and large-scale residential applications.

I often use an analogy to explain this: think of a three phase transformer as a traffic interchange that not only changes the "speed" (voltage) of the electricity but also manages three "lanes" (phases) of power flow simultaneously, ensuring smooth and efficient "traffic" (power) movement.

Three-Phase vs. Single-Phase Differences

Q: How does a three phase transformer differ from a single-phase transformer?
A: The main differences include:

• Power Capacity: Three phase units can handle higher loads more efficiently
• Core Structure: Typically uses a three-legged core design
• Winding Arrangement: Has three sets of primary and secondary windings
• Load Balancing: Better suited for balanced three-phase loads
• Efficiency: Generally more efficient for large power applications

During a recent educational workshop, we compared small single-phase and three phase transformers side by side. The structural differences, especially in the core and winding arrangements, were striking and helped participants understand the distinct capabilities of each type.

Common Configurations and Connections

Q: What are the typical configurations for three phase transformers?
A: Common configurations include:

• Delta-Wye (Δ-Y): Most common for step-down distribution
• Wye-Wye (Y-Y): Used when a neutral is required on both sides
• Delta-Delta (Δ-Δ): Less common, used in some industrial applications

Here's a quick overview of these configurations:

Configuration	Primary	Secondary	Common Use
Delta-Wye	Delta	Wye	General distribution
Wye-Wye	Wye	Wye	When neutral is needed on both sides
Delta-Delta	Delta	Delta	Some industrial applications

Installation and Maintenance Considerations

Q: What are key factors in installing and maintaining three phase transformers?
A: Important considerations include:

• Proper foundation and clearances
• Cooling system requirements (oil or air)
• Load balancing across all three phases
• Regular oil testing and insulation checks
• Monitoring of temperature and load conditions

I recently oversaw the installation of several three phase transformers in a new industrial complex. The precision required in positioning, connecting, and balancing loads across all three phases was crucial for optimal performance.

Efficiency and Load Handling

Q: How efficient are three phase transformers and how do they handle varying loads?
A: Three phase transformers are generally very efficient, often exceeding 98% efficiency at full load. They handle varying loads well, especially when the load is balanced across all three phases. Key points include:

• Better efficiency compared to equivalent single-phase units
• Ability to handle large motor loads effectively
• Importance of load balancing for optimal performance

Key points from these FAQs:

1. Three phase transformers maintain phase relationships while changing voltage levels
2. They offer significant advantages over single-phase units for large power applications
3. Various configurations are used to suit different system requirements
4. Proper installation and maintenance are crucial for long-term performance
5. They provide high efficiency, especially with balanced loads

In my experience, understanding these fundamental aspects is crucial for anyone involved in power distribution projects. I recall a situation where a maintenance team's thorough understanding of three phase transformer characteristics helped them quickly diagnose and resolve a phase imbalance issue, minimizing downtime for an entire manufacturing facility.

For example, during a recent upgrade of a commercial building's power system, we used these FAQs as a basis for educating the facility management team. This knowledge empowered them to better monitor and maintain their new three phase transformer, ensuring optimal performance and longevity.

Remember, while these FAQs provide a good overview, always consult manufacturer specifications and local regulations for detailed information specific to your situation. Continuous learning and staying updated on the latest developments in transformer technology are key to effectively managing and maintaining these crucial components of our power infrastructure.

Conclusion

Three phase distribution transformers are vital components in modern power systems, efficiently stepping down medium voltage to usable levels for industrial, commercial, and large-scale residential applications. Understanding their structure, operation, and voltage regulation mechanisms is crucial for effective power system design and management. From their internal core and winding configurations to their applications in various sectors, these transformers play a key role in delivering reliable, balanced three-phase power. As technology advances, three phase transformers continue to evolve, adapting to new challenges in our ever-growing and changing power needs.
