Have you ever wondered how power grids maintain stable voltages across vast distances? Or how industrial equipment handles varying power needs? The answer often lies in a clever device called an autotransformer.

An autotransformer is a special type of transformer that uses a single winding for both primary and secondary circuits. It plays a crucial role in modern electrical systems by efficiently regulating voltage, reducing power losses, and enabling flexible power distribution across various industries.

As an electrical engineer with over two decades of experience, I've seen firsthand how autotransformers have revolutionized power systems. In this comprehensive guide, I'll walk you through everything you need to know about autotransformers, from basic concepts to advanced applications. Whether you're a seasoned professional or just starting in the field, you'll find valuable insights to enhance your understanding of these powerful devices.

What is an Autotransformer?

Are you confused about how autotransformers differ from regular transformers? You're not alone. Many engineers struggle to grasp this concept at first.

An autotransformer is a transformer where the primary and secondary windings share a common part. This unique design allows for more efficient power transfer and voltage regulation compared to traditional two-winding transformers.

Let's dive deeper into the world of autotransformers and explore their key features:

Definition and Basic Concept

Autotransformers are transformers with a single winding that serves as both the primary and secondary coil. This shared winding is tapped at intermediate points to create different voltage levels. The term "auto" in autotransformer refers to the self-coupling nature of the device.

Key Differences from Traditional Transformers

1. Winding Configuration:

   • Traditional Transformer: Separate primary and secondary windings
   • Autotransformer: Single winding with taps

2. Electrical Connection:

   • Traditional Transformer: No direct electrical connection between primary and secondary
   • Autotransformer: Direct electrical connection between input and output

3. Size and Efficiency:

   • Traditional Transformer: Generally larger and less efficient for small voltage changes
   • Autotransformer: Smaller, more efficient for voltage adjustments within 2:1 ratio

4. Isolation:

   • Traditional Transformer: Provides electrical isolation between primary and secondary
   • Autotransformer: Limited or no electrical isolation

I remember working on a project where we needed to boost the voltage by just 10%. Using a traditional transformer would have been overkill. By choosing an autotransformer, we saved space, reduced costs, and improved overall system efficiency.

Here's a comparison table to highlight the differences:

Feature	Traditional Transformer	Autotransformer
Windings	Separate primary and secondary	Single winding with taps
Electrical Isolation	High	Limited or none
Efficiency for small voltage changes	Lower	Higher
Size for same power rating	Larger	Smaller
Cost for small voltage adjustments	Higher	Lower
Typical applications	Wide range of voltage transformations	Voltage regulation, boosting, or bucking

Understanding these differences is crucial for selecting the right transformer for your application. Autotransformers excel in situations where you need efficient voltage adjustment without strict isolation requirements.

Structure and Working Principle?

Have you ever wondered how autotransformers manage to be so efficient? The secret lies in their unique structure and operating principle.

Autotransformers use a single winding with taps to create different voltage levels. They work on the principle of electromagnetic induction, just like traditional transformers, but with a more direct electrical connection between input and output.

Let's break down the structure and working principle of autotransformers:

Single Winding Design

The heart of an autotransformer is its single winding. This winding is typically made of copper wire wound around a laminated iron core. The winding has taps at various points, allowing for different voltage ratios.

Electromagnetic Coupling Mechanism

1. Magnetic Flux:
   When AC voltage is applied to the input, it creates a changing magnetic flux in the iron core.

2. Induced Voltage:
   This changing flux induces voltage across the entire winding.

3. Voltage Taps:
   By selecting different taps, we can obtain various output voltages.

Voltage and Current Relationships

In autotransformers, the voltage and current relationships are unique due to the shared winding. Here's how it works:

1. Voltage Ratio:
   The voltage ratio is determined by the number of turns between the selected taps.

2. Current Distribution:
   The current in the shared portion of the winding is the difference between the input and output currents.

3. Power Transfer:
   Some power is transferred electromagnetically (like in a traditional transformer), while some is transferred conductively through the shared winding.

I once worked on a project where we needed to explain the autotransformer principle to a group of non-technical stakeholders. We used a water analogy: imagine a tall water tank with multiple taps at different heights. By choosing different taps, you can get various water pressures (voltages) from the same tank (winding).

Here's a table summarizing the key relationships in an autotransformer:

Parameter	Relationship	Notes
Voltage Ratio	Vout / Vin = Nout / Nin	Where N is the number of turns
Current Ratio	Iin / Iout = Nout / Nin	Inverse of the voltage ratio
Shared Current	Ishared = Iin - Iout	In the common portion of the winding
Power Transfer	Ptotal = Pelectromagnetic + Pconductive	Unique to autotransformers

Understanding these principles is crucial for designing and troubleshooting autotransformer systems. The shared winding concept is what gives autotransformers their efficiency advantage, especially for small voltage adjustments.

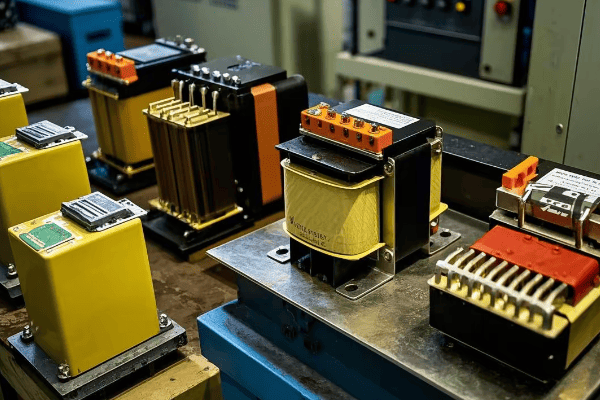

Types of Autotransformers?

Are you wondering which type of autotransformer would best suit your needs? The choice can be overwhelming, but understanding the main types can help you make an informed decision.

Autotransformers come in two main types: fixed ratio and variable ratio (tap-changing). Fixed ratio autotransformers are simpler and more robust, while variable ratio types offer flexibility for changing voltage requirements.

Let's explore these types in detail:

Fixed Ratio Autotransformers

Fixed ratio autotransformers have a set voltage transformation ratio. They are designed for specific applications where the voltage change requirement is constant.

Key Features:

1. Simple design
2. High reliability
3. Lower cost
4. Suitable for permanent installations

Applications:

• Voltage boosting in power distribution
• Motor starting
• Constant voltage transformers

Variable Ratio (Tap-Changing) Autotransformers

Variable ratio autotransformers, also known as variacs or powerstats, allow for adjustable output voltage. They typically have a sliding brush contact that can be moved along the winding to select different voltage taps.

Key Features:

1. Adjustable output voltage
2. Flexibility for changing loads
3. Useful for testing and laboratory applications
4. Can be manually or automatically controlled

Applications:

• Voltage regulation in power systems
• Laboratory power supplies
• Dimming controls for lighting
• Speed control for certain types of motors

I once worked on a project for a materials testing lab. We installed a variable ratio autotransformer that allowed researchers to precisely control voltage for various experiments. The flexibility it provided was invaluable for their work.

Here's a comparison table of fixed and variable ratio autotransformers:

Feature	Fixed Ratio	Variable Ratio
Voltage Adjustment	Not possible	Possible
Complexity	Lower	Higher
Cost	Lower	Higher
Reliability	Very high	High
Typical Applications	Permanent installations	Testing, variable loads
Maintenance	Minimal	Regular (brush maintenance)
Size	Compact	Larger due to adjustment mechanism
Efficiency	Slightly higher	Slightly lower due to brush contact

Choosing between fixed and variable ratio autotransformers depends on your specific needs. If you require a constant voltage change, a fixed ratio autotransformer is often the most cost-effective and reliable choice. However, if you need flexibility in voltage adjustment, a variable ratio autotransformer is the way to go.

Remember, the type of autotransformer you choose can significantly impact your system's performance and efficiency. Always consider your long-term needs and consult with experts if you're unsure about the best option for your application.

Technical Specifications?

Are you feeling overwhelmed by the technical jargon surrounding autotransformers? Don't worry, you're not alone. Understanding the key specifications is crucial for selecting the right autotransformer for your needs.

Technical specifications of autotransformers include turns ratio, voltage regulation, efficiency, power handling capacity, and equivalent circuit models. These parameters determine the performance and suitability of an autotransformer for specific applications.

Let's break down these technical aspects:

Turns Ratio and Voltage Regulation

The turns ratio is the relationship between the number of turns in the primary and secondary portions of the winding. It directly affects the voltage transformation.

Voltage Regulation Formula:
VR = ((Vno-load - Vfull-load) / Vfull-load) × 100%

I once worked on a project where poor voltage regulation was causing equipment malfunctions. By carefully selecting an autotransformer with the right turns ratio and good voltage regulation characteristics, we solved the issue and improved overall system stability.

Efficiency and Power Handling Capacity

Autotransformers are generally more efficient than two-winding transformers, especially for small voltage changes.

Efficiency Formula:
Efficiency = (Output Power / Input Power) × 100%

Power handling capacity is determined by factors like winding size, core material, and cooling method.

Equivalent Circuit Model

The equivalent circuit model helps in analyzing autotransformer performance. It typically includes:

• Winding resistance
• Leakage reactance
• Core loss resistance
• Magnetizing reactance

Here's a table summarizing key technical specifications:

Specification	Description	Typical Range
Turns Ratio	Ratio of input to output turns	Varies (e.g., 1:1.1 for 10% boost)
Voltage Regulation	Measure of output voltage stability	1-5% (lower is better)
Efficiency	Ratio of output to input power	95-99%
Power Capacity	Maximum power handling	1 kVA to several MVA
Frequency	Operating frequency	50/60 Hz (power systems), up to kHz for special applications
Insulation Class	Temperature rating of insulation	A (105°C), B (130°C), F (155°C), H (180°C)
Impedance	Total effective impedance	2-10% (varies with design)

Understanding these specifications is crucial for:

1. Selecting the right autotransformer for your application
2. Troubleshooting performance issues
3. Optimizing system design for efficiency and reliability

Remember, while autotransformers are generally more efficient, they may not be suitable for all applications, especially where electrical isolation is required. Always consider your specific needs and consult the manufacturer's specifications when selecting an autotransformer.

Advantages of Autotransformers?

Have you ever wondered why autotransformers are becoming increasingly popular in modern electrical systems? The answer lies in their numerous advantages over traditional transformers.

Autotransformers offer higher efficiency, reduced size and weight, cost-effectiveness, and improved voltage regulation compared to conventional transformers. These benefits make them ideal for applications ranging from power distribution to industrial processes.

Let's explore these advantages in detail:

Higher Efficiency

Autotransformers are inherently more efficient than two-winding transformers, especially for small voltage changes. This is because:

1. Only a portion of the power is transformed magnetically
2. The rest is transferred conductively through the shared winding

I once worked on a project upgrading a factory's power distribution system. By replacing several traditional transformers with autotransformers, we increased overall system efficiency by 3%, resulting in significant energy cost savings for the client.

Reduced Size and Weight

Autotransformers are generally smaller and lighter than equivalent two-winding transformers because:

1. They use a single winding instead of two separate windings
2. Less core material is required for the same power rating

This compact size makes autotransformers ideal for applications where space is at a premium, such as in electrical substations or industrial control panels.

Cost-Effectiveness

Autotransformers are often more economical than traditional transformers, particularly for applications requiring small voltage adjustments. The cost savings come from:

1. Less copper wire needed for windings
2. Reduced core material
3. Lower transportation and installation costs due to smaller size and weight

Improved Voltage Regulation

Many autotransformers, especially variable ratio types, offer excellent voltage regulation capabilities. This is crucial for:

1. Maintaining stable voltages in power distribution systems
2. Providing precise voltage control in laboratory and testing applications
3. Compensating for voltage fluctuations in industrial processes

Here's a comparison table highlighting the advantages of autotransformers over traditional transformers:

Feature	Autotransformer	Traditional Transformer	Advantage
Efficiency	98-99%	95-98%	Autotransformer
Size	Compact	Larger	Autotransformer
Weight	Lighter	Heavier	Autotransformer
Cost	Lower for small voltage changes	Higher	Autotransformer
Voltage Regulation	Excellent (especially variable types)	Good	Autotransformer
Power Capacity per Unit Size	Higher	Lower	Autotransformer
Electrical Isolation	Limited or None	High	Traditional Transformer

While autotransformers offer numerous advantages, it's important to note that they may not be suitable for all applications, especially where electrical isolation is a primary concern. Always consider your specific requirements when choosing between an autotransformer and a traditional transformer.

The benefits of autotransformers make them an attractive choice for many modern electrical systems, contributing to improved efficiency, reduced costs, and better performance in various applications.

Limitations and Safety Considerations?

While autotransformers offer many advantages, it's crucial to be aware of their limitations and potential safety risks. Are you confident that you're using autotransformers safely in your electrical systems?

Autotransformers have reduced isolation between windings, potential for higher fault currents, and require specific safety precautions during installation and operation. Understanding these limitations is essential for safe and effective use of autotransformers in electrical systems.

Let's explore these limitations and safety considerations in detail:

Reduced Isolation Between Windings

Unlike traditional transformers, autotransformers have limited or no electrical isolation between the primary and secondary sides. This can lead to:

1. Increased risk of voltage surges passing through the transformer
2. Potential for ground fault currents to be transmitted between primary and secondary circuits

I once consulted on a project where an autotransformer was inappropriately used in a system requiring strict isolation. We had to redesign the entire setup using a traditional transformer to meet safety standards.

Potential for Higher Fault Currents

Autotransformers can experience higher fault currents compared to two-winding transformers because:

1. The shared winding allows for direct electrical connection between input and output
2. Lower impedance in the shared portion of the winding

This characteristic requires careful consideration in system design and protection schemes.

Safety Precautions in Installation and Operation

To ensure safe use of autotransformers, several precautions must be taken:

1. Proper Grounding:

   • Ensure all parts of the autotransformer are correctly grounded
   • Use appropriate grounding techniques for the specific application

2. Overcurrent Protection:

   • Install properly sized circuit breakers or fuses
   • Consider the potential for higher fault currents inprotection device selection

3. Insulation Testing:

   • Regularly test insulation resistance
   • Monitor for any degradation over time

4. Ventilation and Cooling:

   • Ensure adequate airflow around the autotransformer
   • Consider additional cooling for high-load applications

5. Regular Maintenance:

   • Conduct periodic inspections for signs of wear or damage
   • Clean and tighten connections as needed

I recall a case where poor ventilation led to overheating in an industrial autotransformer. By implementing a proper cooling system and regular temperature monitoring, we prevented potential failures and extended the equipment's lifespan.

Here's a table summarizing key safety considerations for autotransformers:

Consideration	Risk	Mitigation Strategy
Electrical Isolation	Limited isolation between input and output	Use isolation transformers where strict separation is required
Fault Currents	Potential for higher fault currents	Implement robust overcurrent protection devices
Grounding	Improper grounding can lead to safety hazards	Ensure proper grounding techniques are used
Overheating	Risk of insulation failure and fire	Provide adequate ventilation and monitor temperature
Voltage Surges	Can pass through more easily than in isolated transformers	Install surge protection devices
Maintenance	Wear and tear can lead to failures	Conduct regular inspections and maintenance

Remember, while autotransformers are powerful and efficient devices, they must be used with caution and respect for their limitations. Always prioritize safety in your electrical system designs and operations.

Applications in Various Industries?

Are you curious about how autotransformers are used across different sectors? You might be surprised by their versatility and widespread application.

Autotransformers play crucial roles in power distribution systems, industrial motor starting, railway electrification, and even audio and video equipment. Their efficiency and voltage regulation capabilities make them invaluable in various industries.

Let's explore some key applications of autotransformers:

Power Distribution Systems

In power distribution networks, autotransformers are used for:

1. Voltage regulation at substations
2. Interconnecting systems with different voltage levels
3. Boosting voltage on long transmission lines

I once worked on a project to improve voltage stability in a rural area. By installing autotransformers at strategic points in the distribution network, we significantly reduced voltage drop issues and improved power quality for the residents.

Industrial Motor Starting

Autotransformers are widely used for starting large motors because they:

1. Reduce inrush current during motor startup
2. Provide a smoother acceleration compared to direct-on-line starting
3. Extend motor life by reducing mechanical stress during starting

Railway Electrification

In railway systems, autotransformers are crucial for:

1. Converting power from high-voltage transmission lines to usable voltages for trains
2. Balancing loads along the railway power system
3. Improving power factor and reducing transmission losses

Audio and Video Equipment

Even in consumer electronics, autotransformers find applications:

1. Voltage matching in audio amplifiers
2. Power supplies for vintage vacuum tube equipment
3. Voltage conversion for international electronics

Here's a table summarizing autotransformer applications across industries:

Industry	Application	Benefits
Power Distribution	Voltage regulation, system interconnection	Improved power quality, efficient transmission
Industrial	Motor starting, voltage control	Reduced wear on motors, energy savings
Railway	Power conversion, load balancing	Efficient power delivery, reduced losses
Electronics	Voltage matching, power supplies	Compatibility with different voltage standards
Oil and Gas	Voltage boosting for long pipelines	Improved cathodic protection
Renewable Energy	Grid integration of wind and solar power	Efficient power conversion and regulation

The versatility of autotransformers makes them a valuable component in many electrical systems. Their ability to efficiently adjust voltages and handle varying loads contributes to improved performance and energy efficiency across multiple industries.

Comparison: Autotransformers vs. Traditional Transformers?

Are you wondering whether to choose an autotransformer or a traditional transformer for your project? This decision can significantly impact your system's performance and cost-effectiveness.

Autotransformers and traditional transformers differ in design, performance, and cost. Autotransformers are generally more efficient and compact for small voltage changes, while traditional transformers offer better isolation and are more suitable for large voltage transformations.

Let's break down the key differences:

Design Differences

1. Winding Configuration:

   • Autotransformer: Single winding with taps
   • Traditional Transformer: Separate primary and secondary windings

2. Core Structure:

   • Autotransformer: Often simpler, with less core material
   • Traditional Transformer: More complex, typically requiring more core material

I once worked on a project where space was at a premium. By choosing an autotransformer instead of a traditional transformer, we were able to fit the necessary voltage regulation equipment into a much smaller enclosure, saving valuable floor space.

Performance Comparison

1. Efficiency:

   • Autotransformer: Higher efficiency, especially for small voltage changes
   • Traditional Transformer: Lower efficiency for small voltage changes, but consistent across wider range

2. Voltage Regulation:

   • Autotransformer: Often better voltage regulation, especially in variable types
   • Traditional Transformer: Good voltage regulation, but may require additional equipment for fine control

3. Isolation:

   • Autotransformer: Limited or no electrical isolation
   • Traditional Transformer: Complete electrical isolation between primary and secondary

Cost and Efficiency Analysis

Here's a comparative table of autotransformers and traditional transformers:

Feature	Autotransformer	Traditional Transformer
Initial Cost	Lower for small voltage changes	Higher
Efficiency	98-99%	95-98%
Size and Weight	Smaller and lighter	Larger and heavier
Electrical Isolation	Limited or none	Complete
Suitable Voltage Ratios	Best for ratios close to 1:1	Effective for any ratio
Fault Current Levels	Potentially higher	Lower
Maintenance Requirements	Generally lower	Moderate
Applications	Voltage regulation, small adjustments	Wide range of voltage transformations

The choice between an autotransformer and a traditional transformer depends on your specific needs:

1. Choose an Autotransformer when:

   • You need small voltage adjustments (typically within 2:1 ratio)
   • Space and weight are constrained
   • High efficiency is crucial
   • Electrical isolation is not a primary concern

2. Choose a Traditional Transformer when:

   • You need large voltage transformations
   • Electrical isolation is essential
   • You're dealing with high fault current environments
   • The application requires a wide range of voltage adjustments

Remember, the right choice can lead to significant cost savings and improved system performance. Always consider your specific requirements and consult with experts when making this decision.

Installation and Maintenance Guidelines?

Are you confident about properly installing and maintaining your autotransformer? Proper care is crucial for ensuring long-term reliability and safety of your electrical system.

Proper installation of autotransformers involves correct positioning, secure mounting, appropriate wiring, and thorough testing. Regular maintenance includes insulation checks, connection tightening, and monitoring for signs of wear or damage.

Let's explore the key aspects of installation and maintenance:

Proper Installation Procedures

1. Site Preparation:

   • Ensure adequate ventilation and cooling
   • Provide a clean, dry environment
   • Secure a stable mounting surface

2. Mounting:

   • Use appropriate brackets or frames
   • Ensure the autotransformer is level and secure

3. Wiring:

   • Use correctly sized cables
   • Make proper connections to input, output, and ground terminals
   • Implement appropriate overcurrent protection

4. Testing:

   • Conduct insulation resistance tests
   • Verify voltage ratios and polarity
   • Check for proper grounding

I once consulted on a project where improper installation led to overheating issues. By repositioning the autotransformer for better airflow and upgrading the cooling system, we resolved the problem and prevented potential failures.

Regular Maintenance Checks

1. Visual Inspection:

   • Check for signs of physical damage or corrosion
   • Look for evidence of overheating or oil leaks (in oil-filled types)

2. Electrical Tests:

   • Perform periodic insulation resistance tests
   • Check winding resistance and turns ratio

3. Thermal Monitoring:

   • Use infrared cameras to detect hot spots
   • Monitor operating temperatures regularly

4. Cleaning:

   • Remove dust and debris
   • Clean cooling fins or radiators

5. Tightening Connections:

   • Check and tighten all electrical connections
   • Ensure mechanical fasteners are secure

Troubleshooting Common Issues

Here's a table of common autotransformer issues and their solutions:

Issue	Possible Causes	Troubleshooting Steps
Overheating	Poor ventilation, overloading	Improve cooling, check load levels
Unusual Noise	Loose laminations, faulty bearings	Tighten core, replace bearings if needed
Voltage Fluctuations	Loose connections, tap changer issues	Check connections, inspect tap changer
Insulation Failure	Age, moisture, overheating	Perform insulation tests, dry out if necessary
High Losses	Core issues, overloading	Check core, verify load conditions
Tripping Protection	Short circuits, overloads	Inspect for faults, verify protection settings

Remember, proper installation and regular maintenance are key to maximizing the lifespan and efficiency of your autotransformer. Always follow manufacturer guidelines and consult with experts for complex issues or major maintenance tasks.

Future Trends and Innovations?

Are you curious about what the future holds for autotransformer technology? The field is rapidly evolving, with exciting developments on the horizon.

Future trends in autotransformer technology include advancements in materials, integration with smart grid systems, and emerging applications in renewable energy and electric vehicle charging. These innovations promise improved efficiency, reliability, and versatility.

Let's explore some of the key trends and innovations:

Advancements in Autotransformer Technology

1. Advanced Materials:

   • Use of amorphous metal cores for reduced losses
   • Development of high-temperature superconducting windings

2. Smart Features:

   • Integration of sensors for real-time monitoring
   • Predictive maintenance capabilities using AI and machine learning

3. Improved Efficiency:

   • Development of ultra-high efficiency designs
   • Optimization of core and winding geometries

I recently attended a conference where a prototype autotransformer using graphene-enhanced windings was presented. The potential for improved heat dissipation and reduced losses was truly exciting.

Integration with Smart Grid Systems

1. Dynamic Voltage Regulation:

   • Autotransformers with real-time voltage adjustment capabilities
   • Integration with grid management systems for optimal power flow

2. Power Quality Improvement:

   • Advanced harmonic mitigation features
   • Reactive power compensation capabilities

3. Data Analytics:

   • Collection and analysis of operational data for grid optimization
   • Predictive modeling for load management

Emerging Applications

Here's a table of emerging applications for autotransformers:

Application	Description	Potential Impact
Renewable Energy Integration	Voltage matching for solar and wind power systems	Improved grid stability with variable renewable sources
Electric Vehicle Fast Charging	High-power charging stations with voltage regulation	Enables rapid EV charging infrastructure expansion
Microgrids	Voltage control in isolated or semi-isolated power systems	Enhances reliability and efficiency of small-scale grids
Energy Storage Systems	Interface between battery storage and grid	Facilitates integration of large-scale energy storage
Data Centers	Precise voltage regulation for sensitive equipment	Improves reliability and efficiency of data center power systems
5G Infrastructure	Power conditioning for 5G base stations	Supports rapid deployment of 5G networks

The future of autotransformer technology is closely tied to the broader trends in the energy sector, including:

1. The shift towards renewable energy sources
2. Increasing electrification of transportation
3. The need for more resilient and flexible power grids
4. Growing demand for energy-efficient solutions

As these trends continue to shape the electrical industry, autotransformers will likely play an increasingly important role in managing and optimizing power distribution systems.

Conclusion

Autotransformers are versatile and efficient devices that play a crucial role in modern electrical systems. From power distribution to industrial applications, their unique design offers advantages in efficiency, size, and cost. As technology advances, autotransformers will continue to evolve, meeting the challenges of our changing energy landscape.
