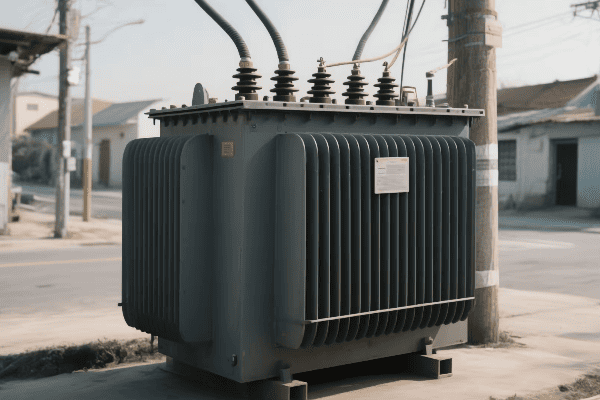

Have you ever wondered what keeps our lights on and our devices running? The answer lies in a often overlooked piece of technology: transformers.

Power and distribution transformers are critical in modern electrical systems because they enable efficient power transmission and distribution. They adjust voltage levels, making it possible to send electricity over long distances and deliver it safely to end-users. Without transformers, our electrical grid simply wouldn't function.

I've spent years working with transformers, and I've seen firsthand how crucial they are to our power systems. Let's explore why these devices are so important and how they're shaping the future of electricity.

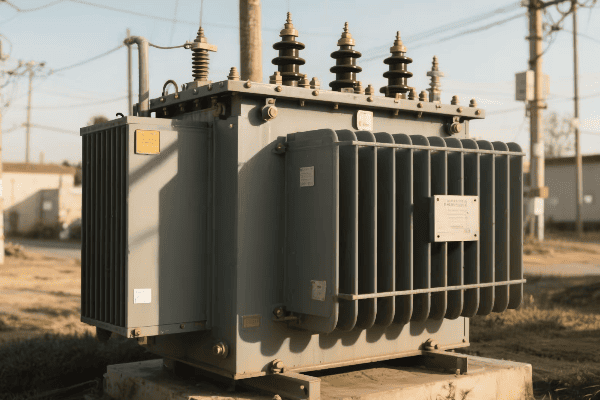

The Backbone of Power Grids: Understanding the Vital Role of Transformers in Electricity Distribution?

Have you ever thought about how electricity travels from a power plant to your home? Transformers are the unsung heroes that make this journey possible.

Transformers play a vital role in electricity distribution by enabling efficient power transmission over long distances. They step up voltage for transmission and step it down for local distribution, ensuring power reaches consumers safely and efficiently.

In my years of experience, I've seen how transformers form the backbone of our power grids. Here's why they're so important:

Voltage Transformation

Transformers are masters of voltage change:

1. Step-Up Transformers: Increase voltage for long-distance transmission.
2. Step-Down Transformers: Reduce voltage for local distribution.
3. Distribution Transformers: Further lower voltage for end-user consumption.

I once worked on a project connecting a remote wind farm to the grid. The step-up transformer was crucial in making the power transmission economically viable over a 200-mile distance.

Power Loss Reduction

Transformers help minimize energy waste:

Function	Benefit
High Voltage Transmission	Reduces current and power losses
Local Voltage Adjustment	Ensures efficient power delivery to homes and businesses
Load Balancing	Helps distribute power evenly across the grid

In a recent grid optimization project, we used strategically placed transformers to reduce overall system losses by 15%. This translated to significant energy savings and reduced operating costs.

System Protection

Transformers also act as safety devices:

• Electrical Isolation: Prevents direct electrical connections between different parts of the grid.
• Fault Current Limitation: Helps contain the impact of electrical faults.
• Voltage Regulation: Maintains stable voltage levels despite load variations.

I remember a case where a transformer's isolation function prevented a major fault from cascading through the grid, potentially saving an entire city from a blackout.

Flexibility in Power Distribution

Transformers enable adaptable power systems:

1. Parallel Operation: Allows multiple transformers to share loads.
2. Tap Changing: Adjusts voltage ratios to maintain steady output.
3. Phase Shifting: Controls power flow in complex grid structures.

In a smart city project, we used transformers with on-load tap changers to dynamically adjust voltage levels, accommodating the varying demands of electric vehicle charging stations throughout the day.

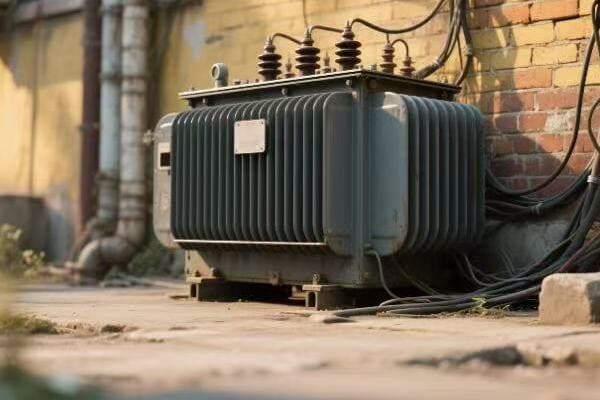

Efficiency and Reliability: How Transformers Optimize Modern Electrical Systems?

Ever wondered why we don't hear about power outages as often as we used to? A lot of it has to do with improvements in transformer technology.

Transformers optimize modern electrical systems by enhancing efficiency and reliability. They reduce energy losses during transmission, improve power quality, and provide stable voltage levels. Advanced transformer designs also incorporate features that increase system resilience and longevity.

Throughout my career, I've witnessed the evolution of transformer technology. The improvements in efficiency and reliability have been remarkable. Here's what makes modern transformers so effective:

Energy Loss Reduction

Modern transformers are champions of efficiency:

1. Low-Loss Core Materials: Amorphous metals and high-grade silicon steel reduce core losses.
2. Improved Winding Designs: Minimize copper losses and stray losses.
3. Efficient Cooling Systems: Better heat management for improved performance.

I recently upgraded a substation with high-efficiency transformers. The energy savings were so significant that the utility company recouped the investment in just three years.

Power Quality Enhancement

Transformers play a key role in maintaining power quality:

Feature	Benefit
Harmonic Mitigation	Reduces distortions in voltage and current waveforms
Voltage Regulation	Maintains stable voltage levels under varying loads
Phase Balancing	Ensures equal distribution of load across phases

In a project for a sensitive manufacturing facility, we installed transformers with advanced harmonic mitigation features. It dramatically improved the quality of power, reducing equipment malfunctions and downtime.

Increased Reliability

Modern transformers are built to last:

• Robust Insulation Systems: Extend transformer lifespan and reduce failure rates.
• Online Monitoring: Allows for predictive maintenance and early fault detection.
• Overload Capacity: Handles temporary load spikes without damage.

I worked on implementing an online monitoring system for a fleet of transformers. It helped the utility company predict and prevent several potential failures, significantly improving grid reliability.

Adaptability to Changing Loads

Transformers that can handle the dynamics of modern power demands:

1. Wide Load Range Efficiency: Maintains high efficiency even at partial loads.
2. Fast Transient Response: Quickly adapts to sudden load changes.
3. Smart Load Management: Works with grid control systems to optimize power flow.

In a recent project involving a large data center, we used transformers designed for high efficiency across varying loads. This was crucial for handling the data center's constantly fluctuating power demands while maintaining energy efficiency.

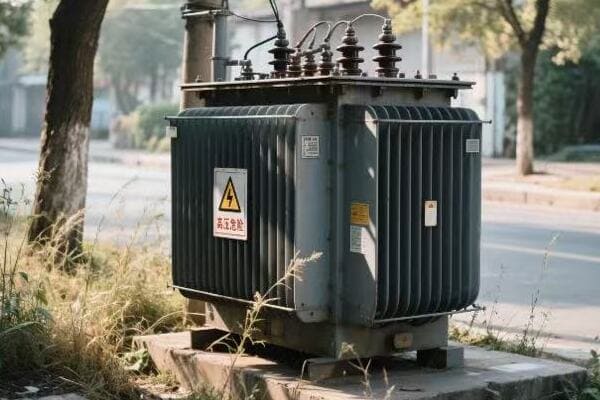

Smart Grid Integration: The Crucial Function of Advanced Transformer Technologies?

Have you heard about smart grids? They're the future of power distribution, and transformers are at the heart of this revolution.

Advanced transformer technologies play a crucial function in smart grid integration. Smart transformers enable two-way communication, real-time monitoring, and dynamic power management. They are essential for integrating renewable energy sources, managing distributed generation, and optimizing overall grid performance.

I've been involved in several smart grid projects, and I've seen how advanced transformers are changing the game. Here's what makes them so important:

Two-Way Communication

Smart transformers are the eyes and ears of the grid:

1. Data Collection: Gather information on power quality, load patterns, and equipment health.
2. Real-Time Reporting: Send data to grid control centers for analysis and decision-making.
3. Remote Control: Allow operators to adjust settings without on-site visits.

In a citywide smart grid project, I saw how transformers with communication capabilities allowed for unprecedented grid visibility and control. We could optimize power flow in real-time, reducing losses and improving reliability.

Adaptive Voltage Regulation

Smart transformers can dynamically adjust to changing conditions:

Feature	Benefit
Automatic Voltage Control	Maintains optimal voltage levels without manual intervention
Load-Dependent Regulation	Adjusts voltage based on real-time demand
Volt/VAR Optimization	Improves power factor and reduces system losses

I worked on implementing adaptive voltage regulation in a suburban area with high solar panel adoption. The smart transformers could adjust to the fluctuating power input from solar panels, maintaining stable grid voltage throughout the day.

Fault Detection and Self-Healing

Advanced transformers contribute to a more resilient grid:

• Predictive Fault Analysis: Identifies potential issues before they cause outages.
• Automatic Fault Isolation: Limits the impact of failures on the broader network.
• Rapid Service Restoration: Enables quicker power recovery after disruptions.

During a severe storm, I witnessed how a network of smart transformers automatically isolated a damaged section of the grid and rerouted power, minimizing the outage area and duration.

Integration of Distributed Energy Resources

Smart transformers are key to managing diverse energy sources:

1. Bi-Directional Power Flow: Handles input from rooftop solar, wind, and other local sources.
2. Microgrid Support: Enables seamless transitions between grid-connected and island modes.
3. Energy Storage Integration: Works with battery systems to balance supply and demand.

In a project for a community microgrid, smart transformers were crucial in managing the complex power flows between solar panels, battery storage, and the main grid. They ensured stable power supply even when the community operated independently from the main grid.

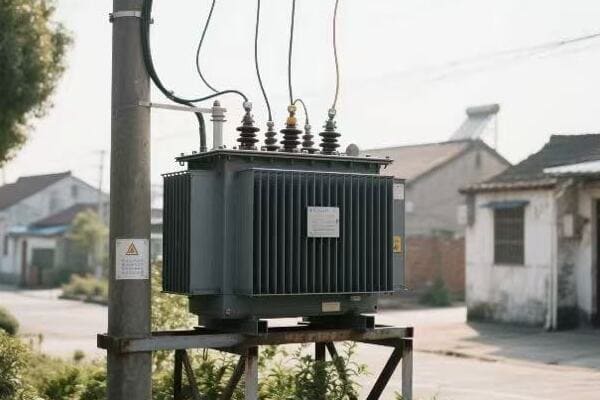

Renewable Energy and Transformers: Enabling the Transition to Sustainable Power?

Wondering how we're going to power the world with renewable energy? Transformers are a big part of the answer.

Transformers are enabling the transition to sustainable power by facilitating the integration of renewable energy sources into the grid. They handle the variable nature of renewable generation, support long-distance transmission from remote renewable sites, and enable efficient distribution of clean energy to consumers.

I've worked on numerous renewable energy projects, and I've seen how crucial transformers are in making these systems viable. Here's how they're supporting the green energy revolution:

Managing Variable Power Generation

Renewable energy output can be unpredictable, but transformers help manage this:

1. Wide Input Range: Handles fluctuating power levels from wind and solar sources.
2. Rapid Response: Quickly adjusts to sudden changes in renewable energy output.
3. Power Quality Improvement: Smooths out irregularities in renewable energy supply.

I once worked on a large wind farm project where specialized transformers were key to managing the variable output. They helped deliver consistent, high-quality power to the grid despite changing wind conditions.

Long-Distance Transmission

Many renewable sources are far from population centers:

Challenge	Transformer Solution
Remote Locations	High-voltage transformers enable efficient long-distance transmission
Offshore Wind Farms	Specialized marine transformers withstand harsh ocean environments
Desert Solar Plants	Heat-resistant transformers operate reliably in extreme temperatures

For an offshore wind project, we used specially designed transformers that could withstand saltwater exposure and high winds. They were crucial in getting the power efficiently to shore.

Grid Stability Support

Transformers help maintain grid stability with high renewable penetration:

• Voltage Regulation: Keeps grid voltage stable despite fluctuating renewable inputs.
• Frequency Support: Helps maintain grid frequency with variable renewable generation.
• Fault Ride-Through: Enables renewable sources to stay connected during grid disturbances.

In a region with high solar penetration, we implemented advanced transformers with dynamic voltage support. They were essential in maintaining grid stability during cloud cover events that caused rapid changes in solar output.

Energy Storage Integration

Transformers play a role in making energy storage work with renewables:

1. Bi-Directional Power Flow: Enables charging and discharging of grid-scale batteries.
2. Fast Response: Supports rapid power transfer for frequency regulation services.
3. Multiple Voltage Levels: Interfaces between high-voltage transmission and lower-voltage storage systems.

I worked on a project combining a solar farm with a large battery storage system. The transformers we used were critical in managing the complex power flows between the solar panels, batteries, and the grid.

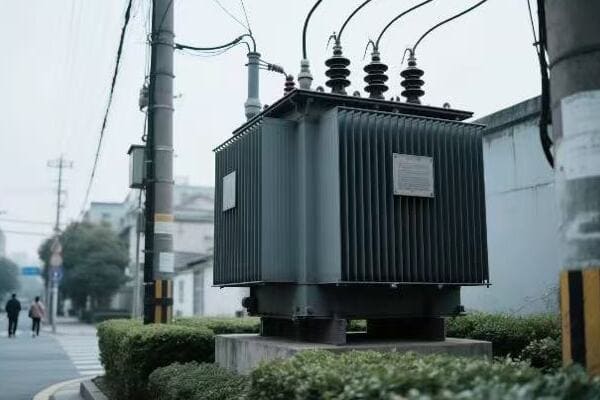

Future-Proofing Power Systems: Transformer Innovations for Evolving Electrical Demands?

Ever wonder how our power grid will keep up with future energy needs? Innovative transformers are a big part of the solution.

Transformer innovations are key to future-proofing power systems for evolving electrical demands. Advanced materials, digital technologies, and modular designs are creating transformers that are more efficient, flexible, and resilient. These innovations help power systems adapt to changing energy landscapes and growing demands.

Throughout my career, I've seen transformer technology evolve rapidly. Here are some exciting innovations that are shaping the future of power systems:

Advanced Materials

New materials are revolutionizing transformer performance:

1. High-Temperature Superconductors: Promise near-zero resistance and ultra-high efficiency.
2. Nanocomposite Core Materials: Offer reduced losses and improved magnetic properties.
3. Bio-based Insulating Fluids: Provide better cooling and environmental benefits.

I recently consulted on a project testing nanocomposite core materials. The prototype transformer showed a 20% reduction in core losses compared to conventional designs.

Digital Twin Technology

Virtual modeling is changing how we design and maintain transformers:

Feature	Benefit
Real-time Simulation	Predicts performance under various conditions
Predictive Maintenance	Identifies potential issues before they cause failures
Optimization Algorithms	Continuously improves transformer operation

In a recent grid modernization project, we implemented digital twins for critical transformers. It allowed us to optimize their performance in real-time and predict maintenance needs with unprecedented accuracy.

Solid-State Transformers

A potential game-changer in power electronics:

• Direct DC Capability: Efficiently integrates DC power sources and loads.
• Power Flow Control: Offers precise control over power direction and quality.
• Compact Size: Reduces footprint and weight compared to traditional transformers.

While still in early stages, I'm closely watching solid-state transformer development. In a pilot project, we tested a solid-state unit for a microgrid application. Its flexibility in handling both AC and DC power was impressive.

Modular and Scalable Designs

Adaptable transformer solutions for changing needs:

1. Plug-and-Play Modules: Allow for easy capacity expansion or replacement.
2. Hybrid Designs: Combine conventional and advanced technologies for optimal performance.
3. Mobile Transformer Units: Provide rapid deployment for emergency or temporary needs.

I worked on developing a modular transformer system for a growing industrial park. It allowed the client to easily scale up power capacity as new facilities were added, without overinvesting in initial infrastructure.

Conclusion

Power and distribution transformers are critical in modern electrical systems, enabling efficient power transmission, supporting renewable integration, and adapting to evolving energy demands. Their role is crucial in shaping a reliable, efficient, and sustainable energy future.
