Have you ever wondered how electricity travels from power plants to your home? Or how your phone charger converts high voltage to a safe level? The answer lies in transformers. But where exactly are these devices used, and why are they so crucial in our modern world?

Transformers are used across the power grid and in everyday life to adjust voltage levels, ensure safe energy delivery, and protect sensitive equipment. From power plants and substations to hospitals and consumer devices, transformers are essential to modern electricity systems.

In this comprehensive guide, I'll walk you through 10 real-world applications of transformers. We'll explore their uses from massive power plants down to the tiniest electronic devices. Whether you're an engineer, a student, or simply curious about how our electrical world works, this article will give you a clear understanding of where and why transformers are used in various settings.

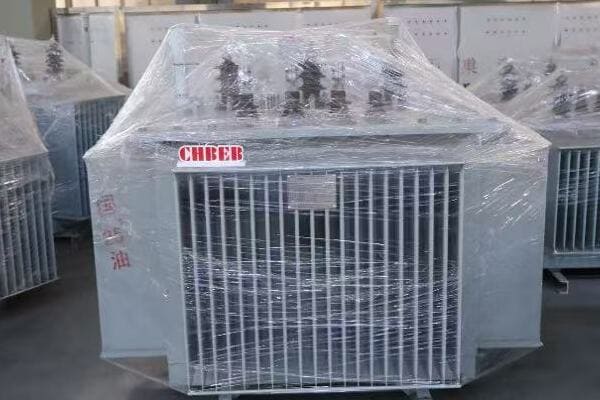

1. Power Plants – Stepping Up Voltage for Transmission?

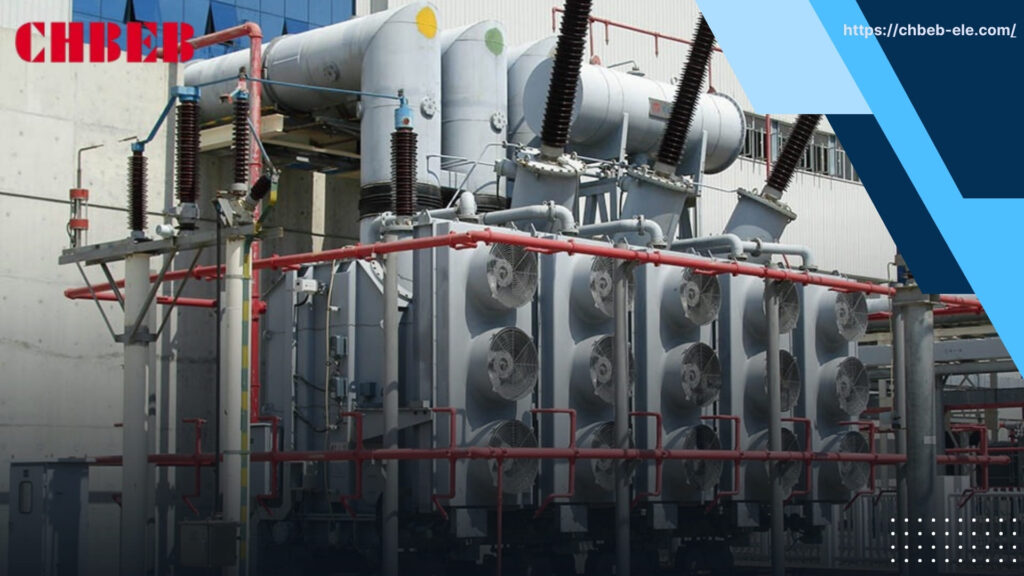

Have you ever seen those enormous transformers at power plants and wondered what they do? These giants play a crucial role in getting electricity from the plant to your home. But how exactly do they work, and why are they so important?

Step-up transformers in power plants raise generator voltage from around 11kV to 110kV or higher for efficient long-distance transmission. They're common in thermal, hydro, and nuclear plants, forming the first critical link in the power distribution chain.

Diving Deeper into Power Plant Transformers

Let's explore the key aspects of transformers in power generation:

Function and Importance

Power plant transformers serve to:

• Increase voltage for efficient long-distance transmission
• Reduce current, minimizing power losses in transmission lines
• Interface generators with the high-voltage grid

I once worked on a project upgrading a coal-fired power plant's main transformer. The sheer size of the 500MVA unit was awe-inspiring – it was as big as a house! This experience really drove home the critical role these transformers play in our power infrastructure.

Types and Characteristics

Common features of power plant transformers:

• Oil-immersed design for efficient cooling
• Ratings from 100MVA to over 1000MVA
• Primary voltages typically 11kV-25kV (generator output)
• Secondary voltages of 110kV, 220kV, 400kV, or higher

Challenges and Considerations

Key factors in power plant transformer design:

• Ability to handle full plant output continuously
• Robust construction to withstand system faults
• Advanced cooling systems (OFAF, ODAF) for large units
• Integration with plant control and protection systems

Here's a comparison table of transformer characteristics for different power plant types:

Plant Type	Typical Transformer Size	Secondary Voltage	Special Features
Coal/Gas	200-800 MVA	220-400 kV	High overload capacity
Nuclear	1000-1500 MVA	400-765 kV	Enhanced safety features
Hydro	100-500 MVA	110-220 kV	Compact design for underground stations
Wind Farm	100-300 MVA	110-220 kV	Handles variable input

In my experience, the selection of power plant transformers involves a delicate balance of efficiency, reliability, and cost. I recall a project for a combined cycle plant where we had to carefully consider the transformer's ability to handle rapid load changes. We opted for a unit with advanced on-load tap changing capabilities, which proved crucial in maintaining grid stability during plant output fluctuations.

The cooling system of these transformers is a critical design aspect. In a recent nuclear plant project, we implemented a sophisticated forced oil and forced air (OFAF) cooling system with redundant pumps and fans. This design ensured the transformer could handle the plant's massive output even in extreme ambient conditions, a crucial factor for the plant's reliability and safety.

Environmental considerations are becoming increasingly important in power plant transformer design. I worked on a hydro plant upgrade where we replaced an old oil-filled transformer with a more environmentally friendly ester-filled unit. While more expensive initially, this choice significantly reduced environmental risks and simplified compliance with stringent regulations near water bodies.

The integration of power plant transformers with smart grid technologies is an emerging trend. In a recent project, we incorporated advanced monitoring systems into the main step-up transformer. This allowed for real-time condition monitoring and predictive maintenance, enhancing the overall reliability of the power evacuation system.

Lastly, the challenge of harmonics in power plant transformers is growing, especially with the increasing use of power electronics in generation systems. I'm currently involved in a research project exploring advanced core designs and winding configurations to mitigate harmonic effects in large generators. This work promises to improve transformer efficiency and lifespan in modern power plants.

Power plant transformers are the unsung heroes of our electrical grid, forming the critical link between generation and transmission. Their ability to efficiently step up voltage is fundamental to the feasibility of our long-distance power transmission systems. As power generation evolves with more renewable sources and smart technologies, the design and capabilities of these transformers continue to advance. Understanding their role and challenges is crucial for anyone involved in power system engineering or interested in how our electrical infrastructure works.

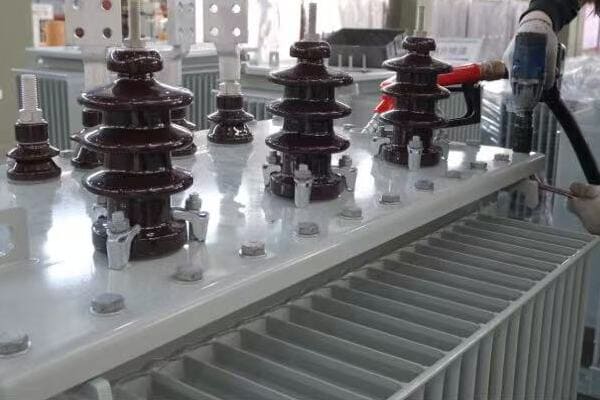

2. Substations – Voltage Control and Distribution?

Have you ever noticed those fenced-off areas filled with electrical equipment in your neighborhood? These are substations, and at their heart are transformers that play a crucial role in getting power to your home. But what exactly do these transformers do, and why are they so important in our power distribution system?

Substations use step-down transformers to reduce high transmission voltages to levels suitable for local distribution. These transformers, both oil-immersed and dry-type, form the backbone of our power distribution network, ensuring safe and efficient electricity delivery to homes and businesses.

Exploring Substation Transformers in Depth

Let's delve into the key aspects of transformers in substations:

Functions and Types

Substation transformers serve to:

• Step down voltage from transmission to distribution levels
• Provide voltage regulation for the local grid
• Enable power flow control and system protection

I once worked on a project upgrading an urban substation. The challenge of fitting modern, higher-capacity transformers into the existing space while maintaining service was immense. It really highlighted the critical role these transformers play in our daily lives.

Characteristics and Ratings

Common features of substation transformers:

• Ratings from 5MVA to 100MVA for distribution substations
• Primary voltages typically 33kV, 66kV, or 132kV
• Secondary voltages of 11kV or 33kV for further distribution
• Often equipped with on-load tap changers for voltage regulation

Design Considerations

Key factors in substation transformer design:

• Reliability and long service life (often 30+ years)
• Efficiency to minimize losses in the distribution system
• Noise reduction for urban installations
• Integration with substation automation systems

Here's a comparison table of transformer types commonly found in substations:

Transformer Type	Typical Size Range	Cooling Method	Application
Oil-immersed	10-100 MVA	ONAN/ONAF	Main step-down
Dry-type	5-40 MVA	AN/AF	Indoor substations
Pad-mounted	500 kVA - 5 MVA	ONAN	Urban distribution
Mobile substation	5-20 MVA	ONAN/ONAF	Emergency/temporary use

In my experience, the selection of substation transformers often involves balancing multiple factors. I recall a project in a densely populated area where noise and fire safety were major concerns. We opted for a dry-type transformer despite its higher cost. This choice not only addressed the safety concerns but also simplified the substation design by eliminating the need for oil containment systems.

The role of on-load tap changers (OLTC) in substation transformers is crucial for voltage regulation. In a recent smart grid project, we implemented advanced control algorithms for OLTCs. This allowed for more dynamic voltage regulation, accommodating the fluctuations caused by distributed renewable generation in the local grid.

Environmental considerations are increasingly influencing substation transformer design. I worked on a project where we replaced old oil-filled units with modern, biodegradable ester-filled transformers. This not only reduced environmental risks but also improved the substation's fire safety profile, a critical factor in urban areas.

The integration of substation transformers with digital monitoring and control systems is a growing trend. In a recent modernization project, we equipped transformers with advanced sensors and communication interfaces. This enabled real-time condition monitoring and integration with the utility's asset management system, enhancing reliability and optimizing maintenance schedules.

Energy efficiency is becoming a major focus in substation transformer selection. I'm currently involved in a research project evaluating amorphous core transformers for distribution substations. While more expensive initially, these units offer significantly lower no-load losses, promising substantial energy savings over the transformer's lifetime.

Lastly, the challenge of harmonics in distribution systems is growing due to the proliferation of non-linear loads. In a recent project, we implemented transformers with specialized winding designs to mitigate harmonic effects. This approach not only improved power quality for sensitive loads but also extended the transformer's operational life.

Substation transformers are the workhorses of our power distribution system, playing a vital role in stepping down voltage to levels suitable for local use. Their reliability, efficiency, and adaptability are crucial for maintaining a stable and safe power supply to homes and businesses. As our power systems evolve with more distributed generation, smart grid technologies, and changing load profiles, the design and capabilities of substation transformers continue to advance. Understanding their functions and challenges is essential for anyone involved in power system engineering or interested in the intricacies of our electrical infrastructure.

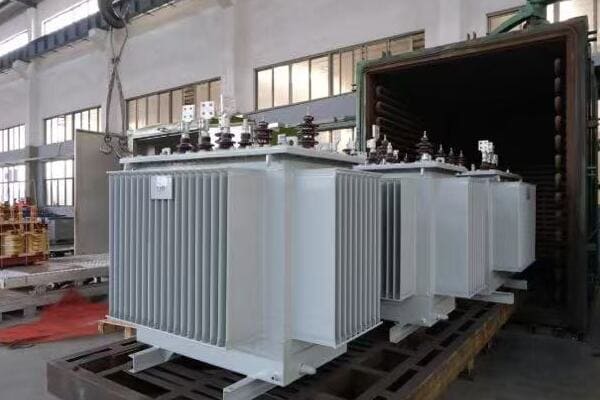

3. Industrial Facilities – Powering Heavy Machinery?

Have you ever wondered how massive industrial machines in factories and plants receive the right amount of power? The answer lies in specialized transformers. But what makes these transformers different, and why are they crucial for industrial operations?

Industrial facilities use a variety of transformers including control, furnace, and rectifier types to power heavy machinery. These transformers handle large, fluctuating, or non-linear loads common in steel mills, mining operations, and chemical plants. They're designed to withstand harsh environments and provide reliable power for critical industrial processes.

Diving into Industrial Transformer Applications

Let's explore the key aspects of transformers in industrial settings:

Types and Functions

Common industrial transformer types include:

• Power distribution transformers for general facility power
• Furnace transformers for electric arc furnaces in steel mills
• Rectifier transformers for electrochemical processes
• Control transformers for machinery and automation systems

I once worked on a project for a large aluminum smelter. The rectifier transformers we installed were massive units capable of delivering over 100,000 amperes at low voltage. It was fascinating to see how these specialized transformers enabled the entire electrochemical process.

Characteristics and Challenges

Key features of industrial transformers:

• High short-circuit strength to withstand frequent load changes
• Ability to handle non-linear loads and harmonics
• Robust construction for harsh industrial environments
• Often include advanced cooling systems for continuous operation

Application-Specific Considerations

Factors influencing industrial transformer design:

• Load profile (steady, cyclical, or highly variable)
• Environmental conditions (temperature, dust, corrosive atmospheres)
• Space constraints in existing facilities
• Energy efficiency and loss reduction

Here's a comparison table of transformer types for different industrial applications:

Industry	Transformer Type	Key Feature	Typical Size Range
Steel Mills	Furnace Transformer	High current output	20-100 MVA
Chemical Plants	Rectifier Transformer	DC output capability	10-50 MVA
Mining	Dry-type Distribution	Dust resistance	1-10 MVA
Automotive	Control Transformer	Precision voltage regulation	10-500 kVA

In my experience, the selection of industrial transformers often involves unique challenges. I recall a project for a paper mill where we needed to design a transformer system that could handle both the high power demands of the paper machines and the sensitive control requirements of the process automation. We ended up implementing a hybrid system with separate transformers for power and control circuits, ensuring both reliability and precision.

The impact of harmonics in industrial power systems cannot be overstated. In a recent project for a large data center, we had to carefully consider the harmonic loads generated by the numerous uninterruptible power supplies (UPS) and servers. We implemented transformers with specialized winding designs and K-factor ratings to mitigate these harmonic effects, ensuring clean power delivery and prolonging the life of the electrical system.

Energy efficiency is becoming a major focus in industrial transformer applications. I worked on an energy optimization project for a manufacturing plant where we replaced several older transformers with high-efficiency units. The energy savings were substantial, with the new transformers paying for themselves in just a few years through reduced losses.

The integration of industrial transformers with plant-wide energy management systems is a growing trend. In a recent smart factory project, we implemented transformers with advanced monitoring capabilities. These units provided real-time data on power consumption and quality, enabling more efficient energy use and predictive maintenance strategies.

Environmental considerations are increasingly influencing industrial transformer design. I'm currently involved in a project exploring the use of biodegradable insulating fluids in large industrial transformers. This approach not only reduces environmental risks but also improves fire safety, a critical factor in many industrial settings.

Lastly, the challenge of retrofitting modern transformers into existing industrial facilities is significant. I've worked on several brownfield projects where space constraints were a major issue. In one case, we designed a custom transformer with a unique form factor to fit into a tight space, demonstrating the importance of flexibility in industrial transformer design.

Industrial transformers play a vital role in powering the machinery and processes that drive our manufacturing and production sectors. Their ability to handle heavy loads, withstand harsh conditions, and provide reliable power is crucial for industrial operations. As industries evolve with more automation, energy efficiency demands, and complex power quality requirements, the design and capabilities of industrial transformers continue to advance. Understanding their applications and challenges is essential for engineers, plant managers, and anyone involved in industrial power systems. By selecting and implementing the right transformer solutions, industries can enhance their operational efficiency, reliability, and energy performance.

4. Commercial Buildings – Indoor Safe Power Distribution?

Have you ever wondered how large office buildings, shopping malls, or hotels manage their electrical systems safely and efficiently? The answer often lies in specialized indoor transformers. But what makes these transformers different from those used in other settings, and why are they crucial for commercial spaces?

Commercial buildings use dry-type transformers for fire-safe, low-noise power distribution. These transformers are often placed in basements or dedicated electrical rooms, providing a reliable and safe power supply for lighting, HVAC systems, elevators, and other building services. Their design focuses on fire safety, noise reduction, and compact size to meet the unique needs of indoor commercial environments.

Exploring Transformers in Commercial Buildings

Let's delve into the key aspects of transformers used in commercial settings:

Types and Characteristics

Common features of commercial building transformers:

• Dry-type design for enhanced fire safety
• Low noise operation for occupant comfort
• Compact size to fit in limited spaces
• Often include multiple voltage taps for flexibility

I once worked on a retrofit project for a high-rise office building in a busy urban center. The challenge of upgrading the power distribution system without disrupting daily operations was immense. We used modular dry-type transformers that could be easily transported and installed in the building's tight electrical rooms. This experience highlighted the importance of compact, safe design in commercial transformer applications.

Applications and Placement

Typical uses in commercial buildings:

• Main power distribution from utility supply
• Voltage step-down for various building systems
• Isolation for sensitive electronic equipment
• Power quality improvement (harmonics mitigation)

Design Considerations

Key factors in commercial transformer selection:

• Fire safety ratings (often Class H insulation)
• Noise levels (especially important for transformers near occupied areas)
• Energy efficiency to reduce operating costs
• Integration with building management systems

Here's a comparison table of transformer types commonly used in commercial buildings:

Type	Typical Size Range	Key Feature	Common Application
General Purpose Dry-Type	15-2000 kVA	Fire-resistant	Main distribution
K-Factor Dry-Type	15-500 kVA	Harmonic mitigation	Computer loads
Low Noise Dry-Type	25-1000 kVA	Ultra-quiet operation	Near occupied spaces
Cast Coil	500-5000 kVA	Moisture resistant	Basement installations

In my experience, the selection of transformers for commercial buildings often involves balancing multiple factors. I recall a project for a luxury hotel where noise was a critical concern. We implemented ultra-low noise transformers with special vibration dampening mounts. The result was a power distribution system that was virtually inaudible, even in nearby guest rooms, showcasing how specialized transformer designs can meet the unique needs of commercial spaces.

Energy efficiency is becoming increasingly important in commercial building transformers. In a recent green building project, we utilized high-efficiency transformers with amorphous metal cores. While more expensive initially, these units significantly reduced energy losses, contributing to the building's LEED certification and providing long-term cost savings.

The challenge of harmonics in commercial power systems is growing due to the proliferation of non-linear loads like computers and LED lighting. I worked on a project for a large shopping mall where we implemented K-factor rated transformers specifically designed to handle harmonic loads. This approach not only improved power quality but also extended the life of the electrical system components.

Space constraints are often a significant factor in commercial transformer installations. In a recent office tower project, we designed a custom transformer room layout using 3D modeling to maximize space efficiency. By carefully arranging multiple dry-type units and optimizing ventilation paths, we were able to meet the building's power needs within a very limited footprint.

The integration of transformers with building management systems is a growing trend. I'm currently involved in a smart building project where we're implementing transformers with built-in monitoring capabilities. These units provide real-time data on power consumption and quality, enabling more efficient energy management and predictive maintenance strategies.

Fire safety considerations are paramount in commercial transformer applications. In a recent project for a multi-use commercial complex, we utilized cast resin transformers with F1 fire safety class. This choice not only met stringent fire code requirements but also allowed for placement of transformers closer to occupied areas, simplifying the overall electrical distribution design.

Lastly, the challenge of retrofitting modern transformers into existing commercial buildings is significant. I've worked on several renovation projects where we had to replace old oil-filled units with modern dry-type transformers. In one particularly challenging case, we had to use a crane to remove the old transformer through the roof and lower the new units in sections. This experience highlighted the importance of considering installation logistics in transformer selection and design for commercial spaces.

Transformers in commercial buildings play a crucial role in ensuring safe, efficient, and reliable power distribution. Their design must balance multiple factors including fire safety, noise reduction, energy efficiency, and space constraints. As commercial spaces become more technologically advanced and energy-conscious, the demands on these transformers continue to evolve.

Understanding the unique requirements and challenges of commercial building transformers is essential for electrical engineers, building managers, and anyone involved in commercial construction or renovation. By selecting the right transformer solutions, commercial buildings can enhance their safety, improve energy efficiency, and provide a more comfortable environment for occupants. As we move towards smarter, more sustainable buildings, the role of these specialized transformers in shaping our urban landscapes and workspaces will only grow in importance.

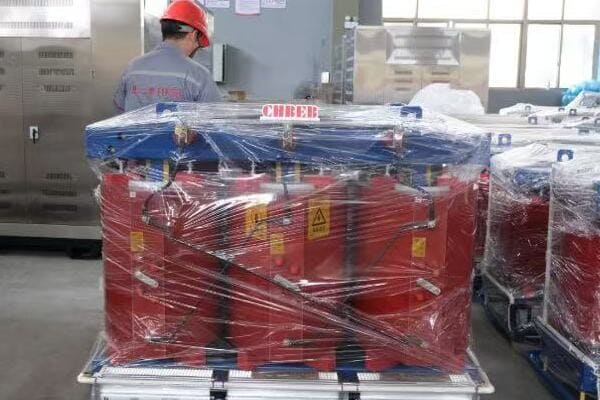

5. Hospitals – Clean, Reliable, Isolated Power Supply?

Have you ever wondered how hospitals maintain a constant, clean power supply for life-saving equipment? The answer lies in specialized medical-grade transformers. But what makes these transformers different, and why are they so crucial in healthcare settings?

Hospitals use isolation transformers and backup distribution systems to protect medical devices from power disturbances. These specialized transformers provide a clean, reliable power supply crucial for sensitive medical equipment. They play a vital role in ensuring patient safety and uninterrupted healthcare services.

Exploring Transformers in Hospital Settings

Let's delve into the key aspects of transformers used in healthcare facilities:

Types and Functions

Common transformer types in hospitals include:

• Isolation transformers for sensitive medical equipment
• K-rated transformers for handling non-linear loads
• Ultra-isolation transformers for operating rooms
• Backup power transformers for emergency systems

I once worked on a project upgrading the power system for a major hospital's intensive care unit. The precision required in selecting and installing medical-grade isolation transformers was incredible. It really drove home how critical these devices are in protecting both sensitive equipment and patient lives.

Key Characteristics

Features of hospital-grade transformers:

• High isolation between primary and secondary windings
• Low leakage current for patient safety
• Ability to handle high inrush currents from medical imaging equipment
• Often include power conditioning capabilities

Design Considerations

Factors influencing hospital transformer design:

• Compliance with medical safety standards (e.g., IEC 60601-1)
• Electromagnetic compatibility (EMC) requirements
• Reliability and redundancy for critical care areas
• Integration with hospital's power management system

Here's a comparison table of transformer types commonly used in hospitals:

Type	Typical Size Range	Key Feature	Common Application
Medical Isolation	3-50 kVA	Ultra-low leakage current	Patient care areas
K-rated Distribution	15-500 kVA	Harmonic mitigation	General hospital power
Ultra-isolation	5-30 kVA	Highest safety standards	Operating rooms
Emergency Backup	50-1000 kVA	Rapid switchover capability	Critical care systems

In my experience, the selection of transformers for hospitals often involves a delicate balance between safety, reliability, and performance. I recall a project for a new cardiac care wing where we implemented a multi-layer approach. We used ultra-isolation transformers for the operating rooms, backed by a sophisticated uninterruptible power supply (UPS) system. This setup ensured not just clean power, but also continuous operation even during main power failures.

The challenge of managing electromagnetic interference (EMI) in hospital environments is significant. In a recent project involving a new MRI installation, we had to design a custom shielded transformer room. The transformer not only provided the necessary power for the MRI machine but also incorporated advanced EMI shielding to prevent interference with the sensitive imaging equipment and nearby patient monitoring devices.

Energy efficiency is becoming increasingly important in hospital transformer applications, balancing with the critical need for reliability. I worked on an energy optimization project for a large teaching hospital where we replaced several older transformers with high-efficiency units. The energy savings were substantial, but more importantly, the new units provided better voltage regulation and power quality, enhancing the performance of medical equipment throughout the facility.

The integration of hospital transformers with facility-wide power management systems is a growing trend. In a recent smart hospital project, we implemented transformers with advanced monitoring capabilities. These units provided real-time data on power quality and consumption, enabling more efficient energy use and predictive maintenance strategies. This system was particularly valuable in managing the diverse power needs across different hospital departments.

Redundancy and rapid switchover capabilities are crucial in hospital power systems. I'm currently involved in a project designing a new emergency power system for a trauma center. We're implementing a dual transformer setup with automatic transfer switches, ensuring that critical care areas have uninterrupted power even in the event of a transformer failure. This level of redundancy is essential in facilities where even momentary power loss can have serious consequences.

Lastly, the challenge of retrofitting modern medical-grade transformers into existing hospitals is significant. I've worked on several renovation projects where space constraints were a major issue. In one case, we designed a custom transformer with a unique form factor to fit into a tight space in an older building. This experience highlighted the importance of flexibility and custom solutions in hospital electrical upgrades.

Transformers in hospitals play a vital role in ensuring the safety and reliability of medical services. Their ability to provide clean, stable, and isolated power is crucial for the operation of sensitive medical equipment and the overall functioning of healthcare facilities. As medical technology advances and hospitals become more reliant on sophisticated electronic systems, the demands on these specialized transformers continue to grow.

Understanding the unique requirements and challenges of hospital transformers is essential for electrical engineers, hospital administrators, and anyone involved in healthcare facility planning or management. By implementing the right transformer solutions, hospitals can enhance patient safety, improve equipment reliability, and ensure continuous operation in critical care scenarios. As we move towards more advanced and interconnected healthcare systems, the role of these specialized transformers in supporting medical services and saving lives will only become more crucial.

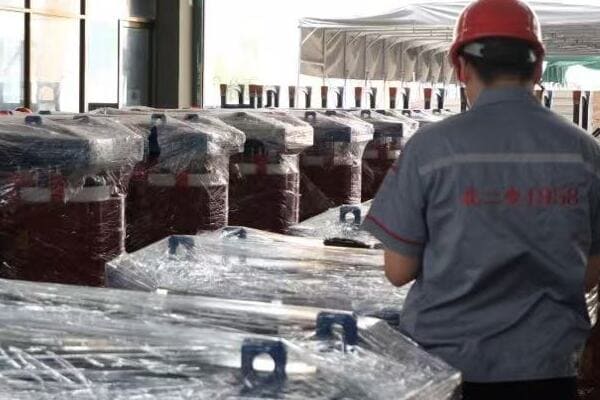

6. Renewable Energy Systems – Solar, Wind, and Storage?

Have you ever wondered how the power generated by solar panels or wind turbines is integrated into the electrical grid? The answer lies in specialized transformers designed for renewable energy systems. But what makes these transformers unique, and why are they crucial for the growing green energy sector?

Renewable energy systems use transformers for voltage matching and grid connection. These transformers, often pole-mounted or pad-mounted for outdoor use, play a vital role in integrating solar farms, wind turbines, and energy storage systems with the power grid. They handle variable inputs and bidirectional power flow, crucial for modern renewable energy infrastructure.

Exploring Transformers in Renewable Energy Applications

Let's delve into the key aspects of transformers used in renewable energy systems:

Types and Functions

Common transformer applications in renewables:

• Step-up transformers for solar farms and wind turbines
• Inverter transformers for DC to AC conversion
• Grid interface transformers for power export
• Storage system transformers for battery integration

I once worked on a large offshore wind farm project where the transformer design was critical. We had to develop a compact, corrosion-resistant transformer that could handle the variable output of wind turbines while withstanding harsh marine conditions. It was a fascinating challenge that showcased the unique demands of renewable energy systems.

Key Characteristics

Features of renewable energy transformers:

• Ability to handle variable and intermittent power inputs
• Often designed for outdoor, remote installations
• May include tap changers for voltage regulation
• Bidirectional power flow capability for grid support

Design Considerations

Factors influencing renewable transformer design:

• Environmental conditions (temperature extremes, humidity, salt spray)
• Harmonics management from inverter-based generation
• Integration with smart grid and energy management systems
• Scalability for expanding renewable installations

Here's a comparison table of transformer types used in different renewable energy applications:

Application	Transformer Type	Key Feature	Typical Size Range
Solar Farm	Inverter Transformer	Harmonics mitigation	500 kVA - 10 MVA
Wind Turbine	Step-up Transformer	Compact, high reliability	2 - 5 MVA
Energy Storage	Bidirectional Transformer	Four-quadrant operation	250 kVA - 2 MVA
Microgrid	Multi-winding Transformer	Multiple voltage outputs	100 kVA - 1 MVA

In my experience, the selection of transformers for renewable energy projects often involves unique challenges. I recall a project for a large solar farm in a desert environment. The extreme heat and dust posed significant cooling and insulation challenges. We implemented a custom-designed transformer with advanced cooling systems and special insulation to withstand the harsh conditions, ensuring reliable operation and long service life.

The integration of energy storage systems with renewable sources is a growing trend that impacts transformer design. In a recent project, we developed a hybrid solar-plus-storage system that required a specialized transformer capable of handling bidirectional power flow. This transformer not only managed the solar farm's output but also facilitated energy storage charging and discharging, providing crucial grid support during peak demand periods.

Harmonics management is a critical consideration in renewable energy transformers, especially with the prevalence of inverter-based generation. I worked on a wind farm project where we implemented transformers with advanced harmonic mitigation features. These units effectively managed the harmonic distortion from the wind turbine inverters, ensuring clean power delivery to the grid and compliance with stringent power quality standards.

The trend towards smart grids is influencing renewable energy transformer design. I'm currently involved in a project developing intelligent transformers for a large-scale renewable energy park. These transformers incorporate advanced monitoring and communication capabilities, allowing for real-time adjustment of power flow and seamless integration with the grid operator's management systems.

Scalability and modularity are becoming increasingly important in renewable energy transformer applications. In a recent solar farm project, we implemented a modular transformer system that could be easily expanded as the solar farm grew. This approach not only provided flexibility for future expansion but also improved reliability through redundancy.

Lastly, the environmental impact of transformers themselves is a growing consideration in renewable energy projects. I've been working on developing eco-friendly transformer designs using biodegradable insulating fluids and recyclable materials. These green transformers align with the overall sustainability goals of renewable energy projects, reducing the environmental footprint of the entire system.

Transformers play a crucial role in the renewable energy sector, serving as the vital link between green power generation and the electrical grid. Their ability to handle variable inputs, manage power quality, and facilitate grid integration is essential for the growth and reliability of renewable energy systems. As the renewable sector continues to expand and evolve, with increasing focus on energy storage and smart grid technologies, the demands on these specialized transformers will only grow.

Understanding the unique requirements and challenges of renewable energy transformers is essential for engineers, project developers, and anyone involved in the green energy sector. By implementing the right transformer solutions, renewable energy projects can enhance their efficiency, reliability, and grid compatibility. As we move towards a more sustainable energy future, the role of these specialized transformers in enabling the widespread adoption of renewable energy sources will become increasingly critical.

7. Railways and Transport – Traction and Auxiliary Systems?

Have you ever wondered how electric trains and metros get their power, or how railway stations manage their electrical needs? The answer lies in specialized transformers designed for railway applications. But what makes these transformers unique, and why are they crucial for modern transportation systems?

Railways use traction transformers for electric trains, metros, and trams, designed to withstand high mechanical stress and thermal shock. These transformers, along with auxiliary power units, are crucial for both vehicle propulsion and supporting infrastructure like signaling and station facilities. They're built to handle the unique demands of railway environments.

Exploring Transformers in Railway and Transport Applications

Let's delve into the key aspects of transformers used in railway systems:

Types and Functions

Common transformer applications in railways:

• Traction transformers for powering electric locomotives and multiple units
• Trackside transformers for power distribution along the railway
• Auxiliary transformers for station facilities and signaling systems
• Converter transformers for AC to DC conversion in electrified systems

I once worked on a project upgrading the power system for a major urban metro network. The challenge of designing compact, high-power traction transformers that could fit within the limited space of a metro car while handling the extreme duty cycles was fascinating. It really highlighted the specialized nature of railway transformer design.

Key Characteristics

Features of railway transformers:

• High mechanical strength to withstand vibrations and shocks
• Ability to handle frequent and rapid load changes
• Compact design, especially for on-board applications
• Often oil-filled for better cooling in high-power applications

Design Considerations

Factors influencing railway transformer design:

• Compliance with railway standards (e.g., EN 50329 for traction transformers)
• Weight constraints, particularly for on-board units
• Extreme temperature variations and environmental conditions
• Integration with railway control and safety systems

Here's a comparison table of transformer types used in different railway applications:

Application	Transformer Type	Key Feature	Typical Power Range
Electric Locomotive	Traction Transformer	High power density	5 - 10 MW
Metro System	On-board Auxiliary	Compact, low weight	100 - 500 kVA
Railway Substation	Trackside Power	High short-circuit strength	10 - 60 MVA
Signaling System	Signaling Transformer	High reliability	5 - 50 kVA

In my experience, the design of railway transformers often involves unique challenges. I recall a project for a high-speed rail line where we had to develop a traction transformer that could handle both the high power requirements and the extreme speed-induced stresses. We implemented an advanced cooling system and reinforced mechanical design to ensure reliable operation at speeds over 300 km/h.

The integration of energy-efficient technologies in railway transformers is a growing trend. In a recent project upgrading a suburban rail network, we implemented high-efficiency traction transformers with amorphous metal cores. While more expensive initially, these units significantly reduced energy losses, contributing to the overall efficiency of the rail system and providing long-term cost savings.

Harmonics management is a critical consideration in railway power systems, especially with the increasing use of power electronics in modern traction systems. I worked on a project where we designed custom transformers with specialized winding configurations to mitigate harmonic distortion. This approach not only improved power quality but also enhanced the reliability of both the traction system and trackside equipment.

The trend towards regenerative braking in electric trains is influencing transformer design. I'm currently involved in a project developing bidirectional traction transformers that can handle both power consumption during acceleration and power regeneration during braking. These transformers play a crucial role in energy recovery systems, significantly improving the overall energy efficiency of the railway.

Weight reduction is a constant challenge in on-board railway transformer design. In a recent light rail project, we utilized advanced materials and optimized cooling designs to reduce the weight of the traction transformers by nearly 20% compared to conventional designs. This weight saving translated into improved energy efficiency and reduced wear on the rail infrastructure.

Lastly, the integration of smart monitoring systems in railway transformers is becoming increasingly important. I've been working on implementing IoT-enabled sensors and diagnostics in trackside transformers for a major rail network. These smart systems provide real-time data on transformer health and performance, enabling predictive maintenance and reducing downtime. This approach has significantly improved the reliability of the power supply system across the entire network.

The environmental impact of railway transformers is also a growing consideration. In a recent project for an underground metro system, we implemented dry-type transformers instead of traditional oil-filled units. This choice not only eliminated the risk of oil leaks in the sensitive underground environment but also improved fire safety, a critical factor in tunnel installations.

Voltage regulation is another crucial aspect of railway transformer design, especially for long-distance lines. I worked on a project where we implemented on-load tap changers in trackside transformers to maintain stable voltage along the entire route. This solution ensured consistent power quality for trains, regardless of their position on the line or the varying load conditions.

The challenge of space constraints in urban railway systems often leads to innovative transformer designs. In a recent metro station upgrade project, we developed a custom, low-profile transformer that could be installed in the limited space between the platform and the tunnel ceiling. This compact design allowed for improved power distribution without requiring extensive structural modifications to the station.

Electromagnetic compatibility (EMC) is a critical consideration in railway transformer design, particularly for signaling and communication systems. I've been involved in developing specialized shielding techniques for trackside transformers to minimize electromagnetic interference with sensitive railway control systems. This work has been crucial in ensuring the safe and reliable operation of modern, highly automated rail networks.

Lastly, the trend towards electrification of previously diesel-powered rail lines is creating new demands for railway transformers. I'm currently advising on a large-scale rail electrification project where we're designing a network of trackside substations with high-power transformers. These units need to handle the high power demands of electric locomotives while also being resilient to the harsh outdoor conditions along the rail corridor.

Transformers play a vital role in modern railway and transport systems, powering everything from high-speed trains to metro stations and signaling equipment. Their ability to withstand harsh operating conditions, handle high power loads, and fit into constrained spaces makes them indispensable components of rail infrastructure. As railway technology continues to advance, with trends towards higher speeds, greater energy efficiency, and increased automation, the demands on these specialized transformers will only grow.

Understanding the unique requirements and challenges of railway transformers is essential for engineers, railway planners, and anyone involved in transportation infrastructure. By implementing the right transformer solutions, railway systems can enhance their performance, improve energy efficiency, and ensure reliable operation. As we move towards more sustainable and efficient transportation networks, the role of these specialized transformers in enabling the electrification and modernization of rail systems will become increasingly critical.

8. Data Centers – Stable and Filtered Power Supply?

Have you ever wondered how data centers, the backbone of our digital world, maintain a constant and clean power supply for their vast arrays of servers and networking equipment? The answer lies in specialized transformers designed for the unique needs of data center environments. But what makes these transformers different, and why are they so crucial for the reliability of our digital infrastructure?

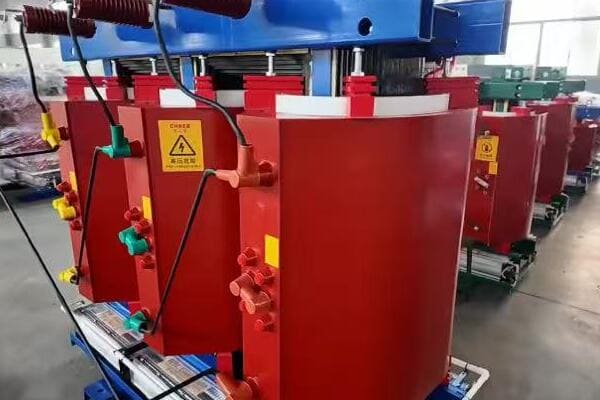

Data centers use dry-type or isolation transformers to protect servers and UPS systems, maintaining voltage quality and providing EMI shielding. These transformers are crucial for ensuring a stable, clean power supply in environments where even momentary disruptions or power quality issues can have significant consequences.

Exploring Transformers in Data Center Applications

Let's delve into the key aspects of transformers used in data center environments:

Types and Functions

Common transformer applications in data centers:

• Main input transformers for power distribution
• Isolation transformers for sensitive equipment protection
• K-rated transformers for handling non-linear loads
• PDU (Power Distribution Unit) transformers

I once worked on a project for a hyperscale data center where the transformer design was critical to the facility's reliability. We implemented a multi-level transformer system that not only provided the necessary power capacity but also incorporated advanced harmonic mitigation and voltage regulation features. This experience highlighted the complex power quality demands of modern data centers.

Key Characteristics

Features of data center transformers:

• High efficiency to reduce heat generation and energy costs
• Excellent voltage regulation for stable power supply
• Harmonic mitigation capabilities
• Often include electrostatic shielding for EMI reduction

Design Considerations

Factors influencing data center transformer design:

• Reliability and redundancy requirements
• Energy efficiency and heat management
• Integration with UPS systems and backup generators
• Scalability for expanding data center needs

Here's a comparison table of transformer types commonly used in data centers:

Type	Typical Size Range	Key Feature	Common Application
Main Input	750 kVA - 3000 kVA	High efficiency	Facility power entry
Isolation	100 kVA - 1000 kVA	EMI reduction	Server cluster protection
K-rated	150 kVA - 2000 kVA	Harmonic handling	UPS and IT loads
PDU	15 kVA - 300 kVA	Precise voltage control	Rack-level distribution

In my experience, the selection of transformers for data centers often involves a delicate balance between reliability, efficiency, and power quality. I recall a project for a financial services data center where we implemented a redundant transformer system with N+1 configuration. Each transformer was equipped with advanced monitoring capabilities, allowing for real-time load balancing and predictive maintenance. This setup ensured uninterrupted operation even during maintenance or in the event of a transformer failure.

Energy efficiency is a major focus in data center transformer design, given the 24/7 operation of these facilities. In a recent project, we utilized ultra-efficient amorphous core transformers for the main power distribution. While more expensive initially, these units significantly reduced energy losses, contributing to lower operational costs and improved PUE (Power Usage Effectiveness) for the data center.

Harmonic management is a critical consideration in data center power systems due to the prevalence of non-linear loads from servers and networking equipment. I worked on a project where we implemented K-factor rated transformers with specialized winding designs to mitigate harmonic distortion. This approach not only improved overall power quality but also extended the life expectancy of both the transformers and the connected IT equipment.

The integration of transformers with data center infrastructure management (DCIM) systems is a growing trend. In a recent smart data center project, we implemented transformers with advanced monitoring and communication capabilities. These units provided real-time data on power consumption, temperature, and load characteristics, enabling more efficient capacity planning and energy management strategies.

Cooling and heat management are crucial aspects of data center transformer design. I'm currently involved in a project exploring innovative cooling solutions for high-density data center transformers. We're evaluating the use of liquid-immersed transformers with biodegradable fluids, which offer superior cooling efficiency and fire safety compared to traditional dry-type units, particularly for high-capacity applications.

The challenge of space constraints in urban data centers often leads to creative transformer installations. In a recent edge data center project, we designed a compact transformer room that utilized vertical space efficiently. By stacking smaller, modular transformer units and implementing advanced ventilation systems, we were able to maximize power capacity in a limited footprint.

Lastly, the trend towards renewable energy integration in data centers is influencing transformer requirements. I've been working on a project where the data center's power system includes on-site solar generation and energy storage. This setup required specialized transformers capable of handling bidirectional power flow and rapid load changes, showcasing the evolving demands on data center power infrastructure.

Transformers play a crucial role in ensuring the reliable and efficient operation of data centers, which are the backbone of our digital economy. Their ability to provide stable, clean power and handle the unique load characteristics of IT equipment is essential for maintaining the uptime and performance of these critical facilities. As data centers continue to grow in size and complexity, with increasing focus on energy efficiency and sustainability, the demands on these specialized transformers will only intensify.

Understanding the unique requirements and challenges of data center transformers is essential for electrical engineers, data center designers, and IT infrastructure managers. By implementing the right transformer solutions, data centers can enhance their reliability, improve energy efficiency, and ensure the seamless operation of the digital services we rely on every day. As we move towards more advanced and sustainable data center designs, the role of these specialized transformers in powering our digital future will become increasingly critical.

9. Consumer Electronics – Built-In Voltage Adaptation?

Have you ever wondered how your phone charger converts high voltage from the wall outlet to the low voltage your device needs? Or how your TV safely operates on household power? The answer lies in small, built-in transformers. But what makes these miniature transformers special, and why are they crucial for the safety and functionality of our everyday devices?

Consumer electronics use small transformers in chargers, TVs, appliances, and audio systems to convert AC to safe voltage levels for device circuits. These miniature transformers play a vital role in voltage adaptation and electrical isolation, ensuring the safe and efficient operation of our everyday electronic devices.

Exploring Transformers in Consumer Electronics

Let's delve into the key aspects of transformers used in everyday devices:

Types and Functions

Common transformer applications in consumer electronics:

• Switch-mode power supply transformers in chargers and adapters
• Isolation transformers in audio equipment
• Flyback transformers in CRT displays and some LED TVs
• Low-voltage transformers in doorbells and security systems

I once worked on a project developing a universal travel adapter. The challenge of designing a compact, efficient transformer that could handle various input voltages and provide safe, stable output was fascinating. It really highlighted the importance of these small but crucial components in our increasingly connected world.

Key Characteristics

Features of consumer electronics transformers:

• Compact size and lightweight design
• High efficiency to minimize heat generation
• Safety features like short-circuit protection
• Often designed for specific voltage and current requirements

Design Considerations

Factors influencing consumer electronics transformer design:

• Safety standards compliance (e.g., UL, CE marking)
• Energy efficiency regulations
• Heat dissipation in confined spaces
• Cost-effectiveness for mass production

Here's a comparison table of transformer types commonly used in consumer electronics:

Device Type	Transformer Type	Key Feature	Typical Power Range
Phone Charger	Flyback	Compact size	5 - 20 W
Laptop Adapter	Switch-mode	High efficiency	45 - 100 W
Audio Amplifier	Isolation	Low noise	10 - 500 W
LED TV	SMPS	Multiple outputs	50 - 300 W

In my experience, the design of transformers for consumer electronics often involves unique challenges. I recall a project developing a high-end audio amplifier where transformer noise was a critical concern. We implemented a specially designed toroidal transformer with advanced shielding techniques. The result was an ultra-low noise power supply that contributed to the amplifier's exceptional audio performance.

Energy efficiency is a major focus in consumer electronics transformer design, driven by both regulations and consumer demand. In a recent project for a smart home device, we utilized a high-frequency switch-mode transformer that achieved over 90% efficiency. This not only reduced energy consumption but also allowed for a smaller, cooler-running device, enhancing both portability and reliability.

Safety is paramount in consumer electronics transformers. I worked on a project developing a range of USB chargers where we implemented multiple layers of protection, including over-voltage, over-current, and thermal shutdown features. These safety measures were crucial in ensuring the chargers could handle the varied and sometimes unpredictable charging needs of different devices without risking damage or safety hazards.

The trend towards miniaturization in consumer electronics is pushing the boundaries of transformer design. I'm currently involved in a research project exploring the use of new magnetic materials and winding techniques to create ultra-compact transformers for wearable devices. These innovations promise to enable smaller, more energy-efficient devices with longer battery life.

Electromagnetic interference (EMI) management is a critical consideration in consumer electronics transformers, especially with the increasing density of wireless devices in our homes. In a recent project for a smart TV, we implemented advanced EMI shielding techniques in the power supply transformer. This not only ensured compliance with stringent EMC regulations but also improved the TV's overall performance by reducing interference with its internal wireless components.

The integration of transformers with smart charging technologies is an emerging trend. I've been working on developing intelligent power adapters that can communicate with devices to optimize charging rates and efficiency. These smart transformers adjust their output based on the device's needs and battery condition, enhancing both charging speed and battery longevity.

Lastly, environmental considerations are becoming increasingly important in consumer electronics transformer design. I'm part of a team exploring the use of biodegradable materials in transformer construction. While still in the early stages, this research aims to reduce the environmental impact of electronic waste, a growing concern in our gadget-driven world.

Transformers in consumer electronics, though often unseen, play a crucial role in the functionality and safety of the devices we use every day. Their ability to efficiently convert voltage levels, provide electrical isolation, and fit into increasingly compact designs is essential for the operation of everything from our smartphones to our smart home systems. As consumer electronics continue to evolve, with trends towards higher efficiency, smaller sizes, and smarter functionality, the demands on these miniature transformers will only grow.

Understanding the complexities and challenges of designing transformers for consumer electronics is crucial for electrical engineers, product designers, and anyone involved in the development of electronic devices. By implementing innovative transformer solutions, manufacturers can create safer, more efficient, and more reliable products. As we move towards an increasingly electrified and connected world, the role of these small but mighty transformers in shaping our everyday technology will become ever more significant.

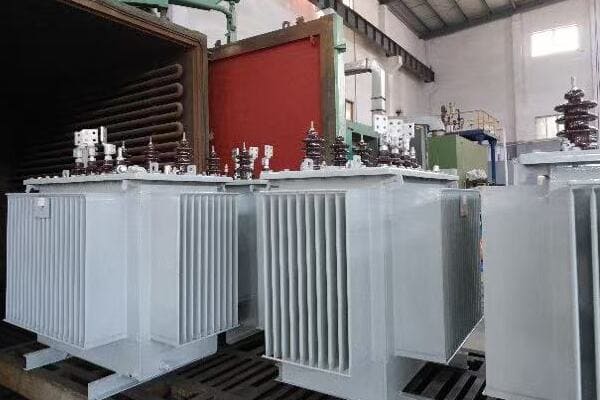

10. Agricultural and Rural Grids – Reliable Off-Grid Access?

Have you ever wondered how farms and remote rural areas get reliable electricity, especially in places far from the main power grid? The answer often lies in specialized transformers designed for agricultural and rural applications. But what makes these transformers unique, and why are they crucial for supporting rural livelihoods and development?

Agricultural and rural grids use pole-mounted transformers to bring power to farms and remote buildings. These transformers support irrigation pumps, lighting, and machinery, often in challenging environments. They're designed for reliability and efficiency, playing a vital role in rural electrification and agricultural productivity.

Exploring Transformers in Agricultural and Rural Applications

Let's delve into the key aspects of transformers used in rural and agricultural settings:

Types and Functions

Common transformer applications in rural areas:

• Pole-mounted distribution transformers for local power delivery
• Pad-mounted transformers for larger agricultural operations
• Step-up transformers for connecting local renewable energy sources
• Isolation transformers for sensitive agricultural equipment

I once worked on a rural electrification project in a developing country. The challenge of designing robust, low-maintenance transformers that could withstand harsh environmental conditions while providing reliable power to remote villages was immense. It really highlighted the critical role these transformers play in rural development and improving quality of life.

Key Characteristics

Features of rural and agricultural transformers:

• Weather-resistant design for outdoor installation
• Ability to handle varying loads (e.g., seasonal agricultural equipment)
• Often include surge protection for lightning strikes
• Designed for easy maintenance in remote locations

Design Considerations

Factors influencing rural transformer design:

• Environmental resilience (heat, cold, humidity, dust)
• Voltage regulation over long distribution lines
• Integration with off-grid and microgrid systems
• Cost-effectiveness for widespread rural deployment

Here's a comparison table of transformer types commonly used in agricultural and rural settings:

Application	Transformer Type	Key Feature	Typical Size Range
Village Distribution	Pole-mounted	Weather-resistant	10 - 100 kVA
Large Farm	Pad-mounted	High capacity	100 - 500 kVA
Irrigation System	Submersible	Waterproof	5 - 50 kVA
Rural Microgrid	Multi-winding	Renewable integration	25 - 250 kVA

In my experience, the design of transformers for rural and agricultural applications often involves unique challenges. I recall a project in an arid region where dust accumulation on transformers was a major issue. We developed a custom enclosure design with enhanced cooling and dust resistance, significantly improving reliability and reducing maintenance needs in these remote locations.

Voltage regulation is a critical concern in rural power distribution due to long feeder lines. In a recent project, we implemented transformers with on-load tap changers in strategic locations across a rural network. This solution provided dynamic voltage control, ensuring stable power quality even at the furthest points of the distribution system.

The integration of renewable energy sources in rural areas is influencing transformer requirements. I worked on a project where we designed a hybrid system combining solar power with the existing grid connection for a farming community. This required specialized transformers capable of handling bidirectional power flow and rapid load changes, showcasing the evolving demands on rural power infrastructure.

Lightning protection is a crucial aspect of rural transformer design, especially in areas prone to frequent storms. In a project for a remote agricultural region, we implemented advanced surge protection systems integrated with the transformers. This approach significantly reduced equipment damage from lightning strikes, improving the overall reliability of the power supply.

Energy efficiency is becoming increasingly important in rural transformer applications, particularly in areas with limited power generation capacity. I'm currently involved in a project evaluating amorphous core transformers for rural distribution. These high-efficiency units, while more expensive initially, offer significant reductions in energy losses, which is particularly valuable in areas where every kilowatt-hour counts.

The challenge of maintenance in remote locations is driving innovations in transformer design and monitoring. In a recent rural electrification project, we implemented smart transformers with built-in diagnostic capabilities. These units can report issues remotely, allowing for proactive maintenance and reducing the need for frequent on-site inspections in hard-to-reach areas.

Load management is another critical consideration in agricultural transformer applications. I worked on a project for a large dairy farm where we designed a smart power distribution system using transformers with load-sensing capabilities. This system could prioritize power to critical equipment during peak usage times, ensuring uninterrupted operation of essential processes like milking and milk cooling.

The trend towards precision agriculture is creating new demands for power quality in rural areas. In a recent project, we designed a specialized power conditioning system, including custom transformers, to support a network of automated irrigation and sensor systems across several farms. This setup provided the stable, clean power necessary for sensitive electronic equipment in an otherwise rugged agricultural environment.

Environmental considerations are increasingly important in rural transformer design. I'm part of a team exploring the use of biodegradable transformer oils in rural distribution systems. This innovation not only reduces the environmental risk in case of leaks but also aligns with the growing focus on sustainable farming practices.

Lastly, the role of transformers in supporting rural microgrids is an exciting area of development. I'm currently advising on a project to create self-sustaining energy communities in remote areas. These microgrids use a combination of renewable sources and energy storage, with specialized transformers playing a crucial role in balancing loads and maintaining grid stability. This approach is opening up new possibilities for reliable, sustainable power in areas previously thought too remote for electrification.

Transformers in agricultural and rural settings play a vital role in bringing reliable power to remote areas, supporting both livelihoods and quality of life. Their ability to withstand harsh environments, handle variable loads, and integrate with both traditional and renewable energy sources makes them indispensable components of rural infrastructure. As rural areas continue to develop and modernize, with increasing adoption of technology in agriculture and growing energy needs, the demands on these specialized transformers will only increase.

Understanding the unique requirements and challenges of rural and agricultural transformers is essential for electrical engineers, rural development planners, and policymakers involved in electrification projects. By implementing the right transformer solutions, rural areas can enhance their productivity, improve living standards, and bridge the energy gap with urban centers. As we move towards more sustainable and resilient rural communities, the role of these transformers in powering rural development and supporting agricultural innovation will become increasingly critical.

Frequently Asked Questions

Q1: Where are dry-type transformers commonly used?
A: Dry-type transformers are commonly used in indoor environments like commercial buildings, hospitals, and data centers due to their fire safety and low maintenance.

Q2: Can transformers be used in solar energy systems?
A: Yes, transformers are essential in solar systems to step up inverter output voltage and connect it to the distribution grid.

Q3: Are there transformers inside household electronics?
A: Absolutely. Devices like phone chargers, TVs, and audio systems contain miniature transformers for voltage adaptation and safety isolation.

Conclusion

Transformers play a vital role across diverse applications, from powering entire cities to charging our smartphones. Their ability to adapt voltage levels, ensure safety, and improve efficiency makes them indispensable in modern electrical systems. Understanding these varied uses helps appreciate the complexity and importance of our power infrastructure.

⚡ Need help selecting the right transformer for your application?
📥 Contact our technical team for a free consultation or download our comprehensive transformer selection guide today.
