Choosing the wrong transformer causes project failures and high costs. Understanding their core differences is key to making the right choice for your power system’s

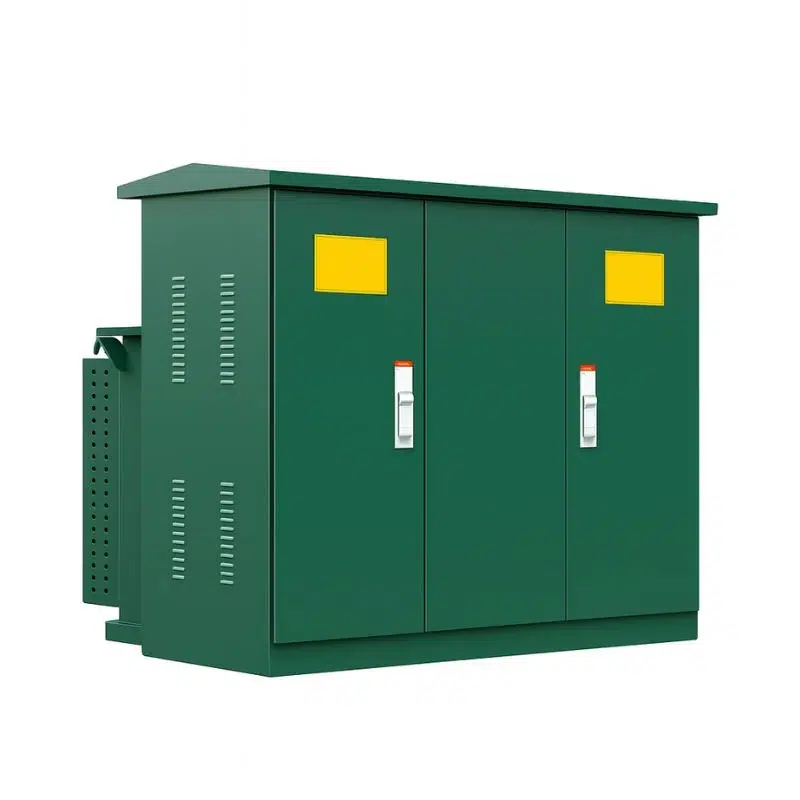

Pad Mounted Transformer
What Makes Our Pad Mounted Transformers Stand Out?
Designed for ground-level outdoor use, with a neat enclosed structure that fits modern project sites.
The enclosed design helps improve safety in places where people and equipment are close by.
A reliable choice for commercial, residential, and utility distribution where stable daily power matters.
Flexible configurations make it easier to match local standards, site layout, and cable connection needs.
2026 Pad Mounted Transformer Supply
1000 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.8kV
Secondary Voltage
480Y/277V
Application
Industrial / Infrastructure Distribution
112.5 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.2kV
Secondary Voltage
480Y/277V
Application
Commercial / Utility Distribution
150 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.2kV
Secondary Voltage
480Y/277V
Application
Commercial / Industrial Distribution
1500 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.8kV
Secondary Voltage
480Y/277V
Application
Large Commercial / Utility Projects
225 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.2kV
Secondary Voltage
480Y/277V
Application → Building
Utility Distribution
2500 kVA Three Phase Pad Mounted Transformer
Primary Voltage
24.94kV / 34.5kV
Secondary Voltage
480Y/277V
Application
Heavy Industrial / Utility Distribution
300 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.2kV
Secondary Voltage
480Y/277V
Application
Infrastructure / Commercial Projects
33–35kV Class Pad-Mounted Transformers
Rated Voltage
6～35/0.4kv
Coil Material
copper/aluminium
750 kVA Three Phase Pad Mounted Transformer
Primary Voltage
13.8kV
Secondary Voltage
480Y/277V
Application
Industrial / Utility Power Supply
Pad Mounted Transformer Installations
Pad mounted transformer solutions are widely used in places where clean layout, safe operation, and practical ground-level installation matter. From residential neighborhoods and commercial properties to schools, hospitals, and public facilities, they help support stable power distribution in a way that fits modern project environments.
Commercial Properties
A good fit for shopping areas, office parks, and other commercial sites that need neat and reliable power distribution.
Residential Neighborhoods
Well suited for community power distribution where safety, appearance, and daily reliability all matter.
Schools & Hospitals
A practical choice for public-use sites that need enclosed equipment and dependable daily power.
Urban Infrastructure
Built for modern distribution projects where underground cable systems and ground-level installation are preferred.
Pad Mounted Transformer Ordering Guide
A good pad mounted transformer should fit more than just the electrical rating. It should also match the way the site is built, how the cables are connected, and how the equipment will be used every day. That is why we offer flexible options to help you choose a solution that is practical to install, safe to use, and better suited to modern outdoor distribution projects.
Voltage & Taps
Matched to your grid, load demand, and project scale from the beginning.
Enclosure & Protection
Selected to suit outdoor use, site conditions, and the level of protection your project requires.
Loop / Radial Feed
Configured to match the way power is distributed and connected on your site.
Cable Entry Layout
Designed to fit underground cable routing and make on-site installation more practical.
Low-Loss Design
Helps reduce operating cost over time while supporting reliable daily power use.
Copper or aluminum
Choose the winding material that best fits your budget, lead time, and project goals.
Advantages of Pole Mounted Transformers
Pad mounted transformers are widely used in residential developments, commercial areas, schools, industrial parks, and urban cable distribution networks because they offer a safer enclosed design, a cleaner appearance, and a more standardized installation approach. They are also well suited to projects that require easier maintenance, stronger environmental integration, and support for future smart grid upgrades.
Enclosed Design for Better Safety
With live parts fully enclosed inside a locked metal cabinet, pad mounted transformers provide a higher level of protection in areas where public safety matters most. This makes them a practical choice for residential neighborhoods, commercial zones, schools, hospitals, and other locations with frequent pedestrian activity.
Cleaner Appearance for Urban Environments
Pad mounted transformers have a compact ground-level layout that is easier to integrate into modern developments. Compared with pole-mounted or open outdoor arrangements, they offer a neater visual profile and are better suited to projects where appearance, planning, and surrounding environment all matter.
Easier Maintenance and Smarter Upgrades
Because the equipment is installed at ground level, routine inspection, operation, and maintenance are generally more convenient than elevated equipment. Pad mounted transformers also provide a strong foundation for adding monitoring functions such as load, voltage, temperature, alarm, and communication features for modern distribution management.
Easier Expansion, Maintenance, and Smart Upgrades
Pole mounted transformers are convenient for staged capacity expansion, relocation, and routine inspection. They also work well with modern monitoring devices such as load, voltage, oil temperature, and fault alarm sensors, making them a practical choice for digital distribution networks.
Pad Mounted Transformer FAQs
What is a Pad Mounted Transformer?
A Pad Mounted Transformer is a ground-installed distribution transformer mounted on a concrete pad or foundation, usually in a locked metal enclosure for outdoor service.
Is a Pad Mounted Transformer a type of Distribution Transformer?
Yes. In practical engineering terms, a Pad Mounted Transformer is one installation form of a Distribution Transformer, just like pole mounted, ground mounted, or indoor-installed units.
Where is a Pad Mounted Transformer commonly used?
It is commonly used in:
- residential developments
- commercial buildings
- schools and hospitals
- industrial parks
- urban utility networks
- cable-based distribution systems
- public infrastructure areas
Why choose a Pad Mounted Transformer instead of a Pole Mounted Transformer?
A Pad Mounted Transformer is generally preferred when the project needs:
- ground-level enclosed installation
- better public safety separation
- better appearance in urban environments
- compatibility with underground cable systems
- easier access for inspection without pole work
This is also consistent with the library-backed distinction that pad mounted solutions are more common in dense urban or cable-network environments than pole mounted units.
What are the main advantages of a Pad Mounted Transformer?
Its main advantages are:
- enclosed and compact outdoor installation
- good suitability for underground cable networks
- better appearance than overhead-mounted solutions
- strong suitability for urban and public areas
- practical maintenance access at ground level
- close-to-load installation for better voltage performance
What is the biggest selling point of a Pad Mounted Transformer?
The biggest selling point is usually this:
It provides a compact, enclosed, ground-level distribution solution that is especially well suited for underground cable networks, public areas, and urban power distribution.
