Are you tired of worrying about oil leaks and fire hazards in your electrical system? There’s a solution that might put your mind at ease.

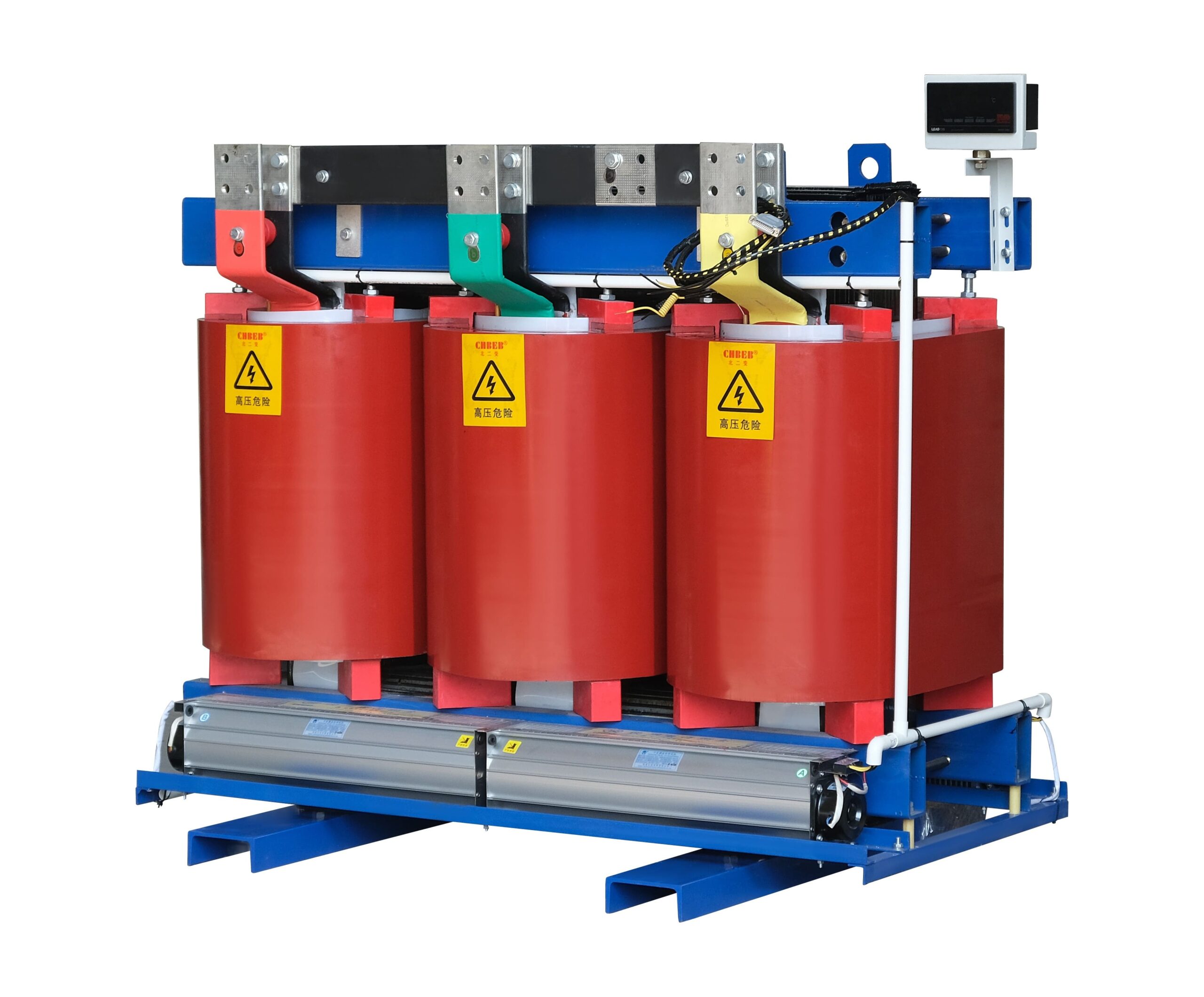

A dry type transformer is an electrical transformer that uses air as its cooling medium instead of oil. It’s designed for indoor use, offering enhanced safety, reduced maintenance, and environmental benefits compared to traditional oil-filled transformers.

Let’s dive deeper into the world of dry type transformers and discover why they might be the perfect fit for your electrical needs.

What is a dry type transformer used for?

Have you ever wondered how large buildings manage their complex electrical systems safely? The answer often lies in dry type transformers.

Dry type transformers are used in various applications where safety, reliability, and environmental concerns are paramount. They’re commonly found in commercial buildings, industrial facilities, renewable energy systems, and areas where fire safety is critical.

Common Applications

In my years of experience with transformer installations, I’ve seen dry type transformers used in numerous settings:

1. Commercial Buildings: Office complexes, shopping malls, and hotels often use dry type transformers due to their safety features and low maintenance requirements.
2. Healthcare Facilities: Hospitals and clinics prefer dry type transformers for their reliability and reduced fire risk.
3. Educational Institutions: Schools and universities use them to ensure a safe environment for students and staff.
4. Industrial Plants: Many factories and processing plants choose dry type transformers for their durability and ability to withstand harsh environments.

Specific Use Cases

Let’s break down some specific scenarios where dry type transformers shine:

Application	Reason for Use
Data Centers	Low fire risk, high reliability
Offshore Platforms	Compact size, no risk of oil spills
Renewable Energy	Used in wind turbines and solar installations
Underground Facilities	No oil leakage concerns

Technical Advantages

Dry type transformers offer several technical benefits that make them suitable for these applications:

1. Voltage Regulation: They provide excellent voltage regulation, which is crucial for sensitive electronic equipment.
2. Overload Capacity: Many dry type transformers can handle short-term overloads without significant degradation.
3. Noise Reduction: They generally operate more quietly than oil-filled transformers, making them ideal for indoor use.
4. Customization: Dry type transformers can be easily customized for specific voltage requirements and installation constraints.

Environmental Considerations

The environmental benefits of dry type transformers are significant:

1. No Oil: There’s no risk of oil leaks or spills, which can be environmentally damaging.
2. Recyclability: At the end of their life, dry type transformers are easier to recycle than oil-filled ones.
3. Energy Efficiency: Many modern dry type transformers are designed for high energy efficiency, reducing overall power consumption.

What is the life expectancy of a dry type transformer?

Are you wondering if investing in a dry type transformer is worth it in the long run? Let’s talk about their durability and longevity.

The life expectancy of a dry type transformer typically ranges from 20 to 30 years, with some well-maintained units lasting even longer. This longevity depends on factors such as operating conditions, maintenance practices, and environmental factors.

Factors Affecting Lifespan

From my experience, several key factors influence the life expectancy of dry type transformers:

1. Operating Temperature: Excessive heat can degrade insulation materials over time.
2. Load Profile: Consistent overloading can shorten the transformer’s life.
3. Environmental Conditions: Humidity, dust, and chemical contaminants can affect performance and longevity.
4. Maintenance Practices: Regular inspections and proper care can significantly extend a transformer’s life.

Lifespan Comparison

Let’s compare the lifespan of dry type transformers with other types:

Transformer Type	Average Lifespan	Factors Influencing Lifespan
Dry Type	20-30 years	Temperature, load, environment
Oil-Filled	30-40 years	Oil quality, maintenance
Cast Resin	25-35 years	Environmental conditions

Maintenance for Longevity

To maximize the life of a dry type transformer, I recommend the following maintenance practices:

1. Regular Inspections: Conduct visual inspections at least annually.
2. Cleaning: Remove dust and debris that can impede cooling.
3. Temperature Monitoring: Install temperature sensors to prevent overheating.
4. Load Management: Avoid prolonged overloading situations.
5. Environmental Control: Ensure proper ventilation and humidity control in the installation area.

Signs of Aging

It’s important to recognize signs that a dry type transformer is nearing the end of its life:

1. Increased Noise: Unusual buzzing or humming can indicate deteriorating insulation.
2. Higher Operating Temperatures: If the transformer runs hotter than usual, it may be losing efficiency.
3. Visible Damage: Cracks or discoloration on insulation materials are red flags.
4. Decreased Performance: If voltage regulation becomes poor, it might be time for replacement.

Economic Considerations

When considering the lifespan of a dry type transformer, it’s crucial to think about the total cost of ownership:

1. Initial Investment: Dry type transformers may have a higher upfront cost.
2. Operational Costs: They often have lower losses, reducing energy costs over time.
3. Maintenance Expenses: Generally lower than oil-filled transformers due to simpler maintenance requirements.
4. Replacement Planning: Factor in the cost of replacement when the transformer reaches the end of its life.

Why are dry type transformers more popular?

Are you curious about the growing trend in electrical systems? Dry type transformers are gaining ground, and for good reasons.

Dry type transformers are becoming more popular due to their safety features, environmental benefits, low maintenance requirements, and suitability for indoor installations. They offer a compelling combination of reliability, efficiency, and reduced fire risk.

Safety Advantages

Safety is a top priority in any electrical system, and dry type transformers excel in this area:

1. Fire Resistance: With no oil, the risk of fire is significantly reduced.
2. No Leakage Risk: There’s no chance of oil leaks, which can be hazardous and environmentally damaging.
3. Indoor Use: They can be safely installed close to the load center, even in populated areas.

Environmental Benefits

In today’s eco-conscious world, the environmental advantages of dry type transformers are hard to ignore:

Aspect	Benefit
No Oil	Eliminates risk of soil and water contamination
Recyclability	Easier to recycle at end of life
Energy Efficiency	Many models offer high efficiency, reducing energy consumption

Maintenance Simplicity

As someone who has worked with various transformer types, I can attest to the maintenance benefits of dry type transformers:

1. No Oil Checks: There’s no need for regular oil testing or replacement.
2. Simpler Inspections: Visual inspections are straightforward and don’t require specialized equipment.
3. Reduced Downtime: Maintenance can often be performed without taking the transformer offline.

Space Efficiency

Dry type transformers offer significant advantages in terms of space utilization:

1. Compact Design: They often have a smaller footprint than equivalent oil-filled transformers.
2. Flexible Installation: Can be installed in various orientations, including vertically.
3. No Fire Walls: In many cases, expensive fire walls are not required, saving space and cost.

Regulatory Compliance

The increasing popularity of dry type transformers is partly driven by regulatory factors:

1. Stricter Fire Codes: Many jurisdictions have tightened fire safety regulations, favoring dry type transformers.
2. Environmental Regulations: Concerns about oil spills have led to preferences for oil-free alternatives.
3. Energy Efficiency Standards: Some dry type transformers meet or exceed new efficiency standards more easily.

Cost Considerations

While the initial cost may be higher, dry type transformers often prove economical in the long run:

1. Lower Installation Costs: No need for oil containment systems or extensive fire suppression.
2. Reduced Insurance Premiums: The lower fire risk can lead to savings on insurance.
3. Energy Savings: Higher efficiency models can significantly reduce energy costs over time.

Technological Advancements

Recent improvements have made dry type transformers even more attractive:

1. Enhanced Cooling Systems: Better heat dissipation allows for higher power ratings.
2. Improved Insulation Materials: Modern materials offer better performance and longevity.
3. Smart Monitoring: Integration with digital monitoring systems for predictive maintenance.

Conclusion

Dry type transformers offer a safe, efficient, and environmentally friendly solution for modern electrical systems. Their growing popularity is driven by safety benefits, low maintenance needs, and suitability for diverse applications, making them a smart choice for many installations.

Are you worried about the safety and efficiency of your power distribution system? The answer might be right under your feet.

Grounding a power transformer is a critical safety measure that protects equipment, personnel, and ensures proper system operation. It provides a path for fault currents, stabilizes voltage levels, and helps in detecting and clearing faults quickly.

Let’s dig deeper into the world of transformer grounding and uncover why it’s so important for your electrical systems.

What happens if a transformer is not grounded?

Imagine a ticking time bomb in your electrical system. That’s what an ungrounded transformer can be.

An ungrounded transformer can lead to dangerous voltage spikes, increased risk of electrical shock, difficulty in fault detection, and potential equipment damage. It can also cause system instability and compromise the overall safety of the electrical installation.

Safety Risks

In my years of experience with transformer installations, I’ve seen firsthand the dangers of ungrounded systems:

1. Electrical Shock Hazard: Without a proper ground, the transformer’s metal parts can become energized, posing a serious risk to anyone who comes in contact with them.
2. Arc Flash Risk: Ungrounded systems are more prone to arc flash incidents, which can cause severe burns and equipment damage.
3. Fire Hazard: Undetected faults in ungrounded systems can lead to overheating and potentially start fires.

Operational Issues

Ungrounded transformers can also cause several operational problems:

Issue	Description
Voltage Instability	Lack of a reference point can lead to unpredictable voltage fluctuations
Fault Detection Difficulty	Without a ground path, it’s harder to detect and locate faults in the system
Overvoltage Stress	Transient overvoltages can stress insulation and lead to premature equipment failure

System Reliability

The reliability of your entire electrical system can be compromised when transformers are not properly grounded:

1. Intermittent Faults: Ungrounded systems may allow intermittent faults to persist, leading to mysterious outages and hard-to-diagnose problems.
2. Equipment Lifespan: The stress on insulation and components in an ungrounded system can shorten the lifespan of expensive electrical equipment.
3. Power Quality Issues: Ungrounded systems are more susceptible to power quality problems like harmonics and voltage distortions.

Why do we ground neutral in power transformers?

Have you ever wondered why that extra wire is so important? The neutral grounding in power transformers is more than just an afterthought.

We ground the neutral in power transformers to establish a reference point for voltage measurements, provide a return path for unbalanced loads, limit overvoltages, and facilitate fault detection and clearing. It’s a crucial aspect of system safety and stability.

Voltage Stabilization

Grounding the neutral helps stabilize the voltage in the system:

1. Reference Point: It provides a zero-voltage reference point for the system.
2. Phase Balance: It helps maintain balance between phase voltages.
3. Overvoltage Protection: It limits the voltage rise on healthy phases during ground faults.

Fault Management

In my experience, neutral grounding significantly improves fault management:

Aspect	Benefit
Fault Detection	Makes it easier to detect ground faults
Fault Clearing	Provides a path for fault current, enabling protective devices to operate
System Protection	Helps in limiting fault currents to manageable levels

Load Balancing

Neutral grounding also plays a role in load management:

1. Unbalanced Loads: It provides a return path for current in systems with unbalanced loads.
2. Harmonic Currents: It can help in managing harmonic currents in the system.
3. Single-Phase Loads: It allows for the connection of single-phase loads in a three-phase system.

Safety Enhancement

The safety benefits of neutral grounding cannot be overstated:

1. Touch Voltage Reduction: It helps limit the voltage that a person might contact during a fault.
2. Equipment Protection: It provides a path for surge currents, protecting equipment from damage.
3. Consistent Operation: It ensures consistent and predictable system behavior, which is crucial for safety planning.

Do you ground both sides of a transformer?

Is double grounding necessary, or is it overkill? Let’s explore the grounding requirements for transformers.

In most cases, both the primary and secondary sides of a transformer should be grounded. However, the specific grounding requirements can vary depending on the transformer type, system configuration, and local electrical codes.

Primary Side Grounding

Grounding the primary side of a transformer is crucial:

1. System Grounding: It’s often part of the overall power system grounding scheme.
2. Fault Protection: It provides a path for primary-side fault currents.
3. Overvoltage Protection: It helps protect against lightning strikes and switching surges.

Secondary Side Grounding

The secondary side grounding is equally important:

Reason	Explanation
Safety	Ensures that the secondary voltage is referenced to ground
Fault Clearing	Enables proper operation of overcurrent protection devices
Code Compliance	Often required by electrical codes for certain voltage levels

Special Cases

In my years of working with transformers, I’ve encountered several special cases:

1. Isolation Transformers: These may have an ungrounded secondary to provide isolation.
2. Auto-transformers: They typically have a common grounding point for both primary and secondary.
3. Delta-Wye Transformers: The Wye side is usually grounded, while the Delta side may remain ungrounded.

Grounding Considerations

When deciding on grounding both sides, consider:

1. System Voltage: Higher voltage systems often require more comprehensive grounding.
2. Transformer Size: Larger transformers may have more complex grounding requirements.
3. Application: The specific use of the transformer can influence grounding needs.
4. Local Regulations: Always comply with local electrical codes and standards.

How to ground a power transformer?

Are you ready to ensure your transformer is safely grounded? Let’s walk through the process step by step.

Grounding a power transformer involves connecting the transformer’s neutral point or tank to the earth. This is typically done using a low-resistance connection to a grounding electrode system, following specific procedures and standards to ensure safety and effectiveness.

Grounding Components

To properly ground a transformer, you’ll need:

1. Grounding Electrode: Usually a copper rod driven into the earth.
2. Grounding Conductor: A copper wire connecting the transformer to the electrode.
3. Grounding Clamps: To secure connections between components.
4. Ground Test Meter: To verify the quality of the ground connection.

Step-by-Step Process

Here’s a basic process I follow when grounding a transformer:

Step	Description
1. Site Preparation	Clear the area and identify the best location for the ground rod
2. Install Ground Rod	Drive the grounding electrode into the earth to the required depth
3. Connect Grounding Wire	Attach the grounding conductor to the transformer’s grounding point
4. Secure Connections	Use appropriate clamps to ensure solid connections
5. Test the Ground	Measure the ground resistance to ensure it meets standards

Safety Precautions

Safety is paramount when grounding transformers:

1. De-energize: Always work on de-energized equipment.
2. Personal Protective Equipment: Wear appropriate PPE, including insulated gloves and safety glasses.
3. Proper Tools: Use insulated tools rated for the voltage level of the transformer.
4. Verify: Double-check all connections before re-energizing the transformer.

Compliance and Standards

It’s crucial to follow relevant standards and regulations:

1. National Electrical Code (NEC): In the U.S., follow NEC guidelines for grounding.
2. IEEE Standards: Adhere to IEEE recommendations for power system grounding.
3. Local Codes: Always comply with local electrical codes and utility requirements.
4. Manufacturer Guidelines: Follow the transformer manufacturer’s specific grounding instructions.

Maintenance and Inspection

Grounding systems require ongoing attention:

1. Regular Inspections: Visually inspect grounding connections periodically.
2. Resistance Testing: Conduct annual ground resistance tests.
3. Corrosion Prevention: Apply anti-corrosion compounds to exposed connections.
4. Documentation: Keep records of all grounding work and test results.

Conclusion

Proper grounding of power transformers is crucial for safety, system stability, and efficient operation. By understanding and implementing correct grounding practices, we can ensure reliable and safe power distribution systems.

Are you tired of high energy bills and inefficient power distribution? The solution might be closer than you think.

An amorphous alloy transformer is a highly efficient electrical device that uses cores made from amorphous metal alloys instead of traditional crystalline materials. It offers significant energy savings and improved performance in power distribution systems.

Let’s dive deeper into this innovative technology and explore how it’s changing the landscape of power distribution.

What is the amorphous transformer?

Have you ever wondered how we could make our power systems more efficient? The answer might lie in amorphous transformers.

An amorphous transformer is a type of electrical transformer that uses a core made of amorphous metal alloys. These transformers are known for their high efficiency and low energy losses compared to traditional transformers.

Key Features of Amorphous Transformers

Amorphous transformers have several unique features that set them apart from conventional transformers:

1. Core Material: The core is made of amorphous metal alloys, which have a disordered atomic structure.
2. Energy Efficiency: They have 40-70% lower core losses compared to traditional silicon steel transformers.
3. Magnetic Properties: Amorphous alloys have excellent magnetic properties, particularly low hysteresis and eddy current losses.

Applications of Amorphous Transformers

Amorphous transformers are widely used in various applications:

Application	Benefit
Distribution Transformers	Reduced energy losses in power distribution networks
Power Transformers	Improved efficiency in power transmission
Current Transformers	Enhanced accuracy in current measurement

Advantages Over Traditional Transformers

In my experience working with various transformer types, I’ve found that amorphous transformers offer several advantages:

1. Energy Savings: The reduced core losses translate to significant energy savings over the transformer’s lifetime.
2. Environmental Impact: Lower energy consumption means reduced carbon emissions.
3. Noise Reduction: Amorphous cores typically produce less noise during operation.
4. Compact Size: Despite their high efficiency, these transformers can be designed to be more compact.

What is amorphous alloy?

Have you ever heard of a metal that’s not quite solid and not quite liquid? That’s the fascinating world of amorphous alloys.

An amorphous alloy is a metallic material with a disordered atomic-scale structure. Unlike crystalline alloys, amorphous alloys don’t have a regular, repeating arrangement of atoms, giving them unique properties.

Structure of Amorphous Alloys

To understand amorphous alloys, we need to look at their structure:

1. Atomic Arrangement: In amorphous alloys, atoms are arranged randomly, similar to the structure of glass.
2. Rapid Cooling: They are formed by rapidly cooling molten metal, preventing the atoms from arranging into a crystalline structure.
3. Metastable State: Amorphous alloys are in a metastable state, meaning they can crystallize under certain conditions.

Properties of Amorphous Alloys

Amorphous alloys have several unique properties that make them valuable in various applications:

Property	Description
Magnetic Properties	Low coercivity and high permeability
Mechanical Strength	High strength and hardness
Corrosion Resistance	Excellent resistance to chemical corrosion
Electrical Properties	High electrical resistivity

Applications of Amorphous Alloys

In my work with electrical equipment, I’ve seen amorphous alloys used in various applications:

1. Transformer Cores: As we’ve discussed, they’re excellent for reducing energy losses.
2. Magnetic Sensors: Their unique magnetic properties make them ideal for sensitive magnetic sensors.
3. Sporting Goods: Some high-end golf club heads use amorphous alloys for their strength and elasticity.
4. Electronic Devices: They’re used in some electronic components for their magnetic and electrical properties.

What are the downsides of using amorphous metal?

While amorphous metals offer many benefits, it’s important to consider their limitations. Are they truly a perfect solution?

Despite their advantages, amorphous metals have some drawbacks. These include higher production costs, limitations in size and shape, potential for crystallization over time, and challenges in machining and joining.

Production Challenges

From my experience in the transformer industry, I’ve observed several challenges in working with amorphous metals:

1. Cost: The production process for amorphous metals is more complex and expensive than for traditional crystalline metals.
2. Size Limitations: It’s difficult to produce large pieces of amorphous metal, which can limit their applications.
3. Shape Restrictions: The rapid cooling required to form amorphous metals limits the shapes that can be produced.

Material Properties Concerns

While amorphous metals have many beneficial properties, they also have some drawbacks:

Property	Concern
Thermal Stability	May crystallize at high temperatures
Brittleness	Can be more brittle than crystalline counterparts
Magnetic Saturation	Lower magnetic saturation than some crystalline materials

Processing Difficulties

Working with amorphous metals presents several challenges:

1. Machining: Amorphous metals are often harder and more brittle than crystalline metals, making them difficult to machine.
2. Joining: Traditional welding techniques can cause crystallization, so special joining methods are often required.
3. Heat Treatment: Heat treatment, often used to modify the properties of crystalline metals, can cause amorphous metals to crystallize.

Economic Considerations

In my dealings with clients, I’ve found that the economic aspects of amorphous metals can be a significant concern:

1. Initial Cost: The higher production cost of amorphous metals often translates to a higher initial cost for equipment like transformers.
2. Long-term Savings: While the initial cost is higher, the energy savings over time can offset this. However, this requires a long-term perspective that not all customers have.
3. Market Acceptance: Despite their benefits, some industries are slow to adopt new technologies, preferring tried-and-tested crystalline materials.

What alloy is used in transformers?

When it comes to transformers, the choice of alloy can make a big difference in performance. So, what’s the best option?

Transformers typically use silicon steel (also known as electrical steel) for their cores. However, amorphous metal alloys, usually iron-based with additions of elements like boron, silicon, and phosphorus, are increasingly used for their superior magnetic properties.

Traditional Transformer Alloys

In my years of experience in the transformer industry, I’ve worked with various alloys:

1. Silicon Steel: This is the most common alloy used in transformer cores. It’s an iron alloy with silicon content typically ranging from 3% to 6.5%.
2. Grain-Oriented Silicon Steel: This is a specialized type of silicon steel with grains aligned in the rolling direction, offering better magnetic properties in that direction.
3. Non-Oriented Silicon Steel: This type has more uniform magnetic properties in all directions, making it suitable for rotating electrical machines.

Amorphous Alloys for Transformers

More recently, I’ve seen a shift towards amorphous alloys in transformer cores:

Alloy Composition	Advantages
Fe-B-Si	High magnetic permeability, low core losses
Fe-B-Si-C	Improved thermal stability
Fe-B-P	Enhanced glass-forming ability

Comparison of Transformer Alloys

Let’s compare the properties of traditional and amorphous alloys:

1. Core Losses: Amorphous alloys typically have 70-80% lower core losses than conventional silicon steel.
2. Saturation Induction: Silicon steel generally has higher saturation induction, allowing for smaller core sizes.
3. Cost: Amorphous alloys are more expensive to produce but can lead to energy savings over time.
4. Manufacturability: Silicon steel is easier to work with in terms of cutting, stacking, and assembling transformer cores.

Future Trends in Transformer Alloys

Based on my observations of industry trends, I believe we’ll see:

1. Continued Development: Ongoing research into new amorphous alloy compositions with even better magnetic properties.
2. Hybrid Designs: Some manufacturers are exploring cores that combine amorphous and nanocrystalline materials to optimize performance.
3. Improved Manufacturing: Advancements in production techniques for amorphous alloys, potentially reducing costs and expanding their use.

Conclusion

Amorphous alloy transformers represent a significant advancement in energy efficiency. While they face some challenges, their benefits in energy savings and environmental impact make them a promising technology for the future of power distribution.
