Are you worried about the environmental risks associated with oil-immersed transformers in your power projects? You're not alone. Many engineers and project managers struggle with balancing performance needs against environmental safety concerns. But what if you could ensure both efficiency and eco-friendliness in your transformer installations?

Oil-immersed transformers pose environmental risks such as fire hazards and oil leakage. Understanding these risks and applying eco-friendly materials and design measures helps ensure regulatory compliance and safer long-term operation in industrial, utility, and renewable energy projects.

In this comprehensive guide, I'll walk you through the key environmental considerations for oil-immersed transformers. We'll explore fire risks, oil spillage concerns, and eco-friendly alternatives. Whether you're designing a new substation or upgrading existing infrastructure, this article will help you make informed decisions that balance performance with environmental responsibility.

Why Environmental Safety Matters for Oil-Immersed Transformers?

Have you ever considered the potential environmental impact of a transformer failure? The consequences can be severe, ranging from localized contamination to widespread ecological damage. But why exactly are these risks so significant, and how do they affect your projects and operations?

Environmental safety is crucial for oil-immersed transformers due to the potential for oil fires and spills. These incidents can lead to soil and water contamination, violate environmental regulations, and result in costly cleanups and legal issues. Prioritizing environmental safety ensures regulatory compliance, reduces operational risks, and protects both the environment and public safety.

Understanding the Environmental Impact of Transformers

Let's delve deeper into why environmental safety is so important:

1. Ecological Consequences

Oil spills can:

• Contaminate soil and groundwater
• Harm local flora and fauna
• Disrupt ecosystems for years

I once worked on a project where a minor transformer leak went unnoticed for months. The resulting soil contamination required extensive remediation, costing the company millions and damaging their reputation in the community.

2. Regulatory Compliance

Environmental safety measures ensure:

• Adherence to local and international regulations
• Avoidance of hefty fines and penalties
• Maintenance of operating licenses

3. Public Safety

Proper environmental safeguards:

• Reduce fire risks in populated areas
• Prevent contamination of water sources
• Protect public health and safety

4. Corporate Responsibility

Prioritizing environmental safety:

• Enhances company reputation
• Aligns with sustainability goals
• Demonstrates commitment to community welfare

Here's a table summarizing the key aspects of environmental safety for transformers:

Aspect	Risks	Mitigation Measures	Benefits
Oil Spills	Soil/water contamination	Containment systems, leak detection	Environmental protection, regulatory compliance
Fire Hazards	Property damage, air pollution	Fire-resistant fluids, suppression systems	Enhanced safety, reduced insurance costs
Noise Pollution	Community disturbance	Sound-absorbing enclosures	Better community relations, compliance with noise regulations
End-of-Life Disposal	Hazardous waste issues	Recyclable materials, proper disposal planning	Reduced environmental impact, compliance with waste regulations

In my experience, the importance of environmental safety in transformer design and operation cannot be overstated. I recall a project for a utility company where we implemented advanced oil containment and fire suppression systems. Initially seen as an unnecessary expense, these measures proved invaluable when a transformer failed due to a manufacturing defect. The containment system prevented any oil from escaping, avoiding what could have been a significant environmental incident.

The choice of insulating fluid can have far-reaching environmental implications. In a recent substation upgrade project, we opted for biodegradable natural ester fluids instead of traditional mineral oil. While more expensive initially, this decision significantly reduced the environmental risks associated with potential leaks and simplified the emergency response procedures.

Noise pollution is an often-overlooked environmental concern with transformers. I worked on an urban substation project where strict noise regulations were in place. We had to implement advanced sound-absorbing enclosures and vibration dampening systems. This not only ensured compliance but also improved relations with the local community, demonstrating how environmental considerations can have broader positive impacts.

The end-of-life disposal of transformers is becoming an increasingly important environmental consideration. In a recent large-scale grid modernization project, we factored in the recyclability and disposal of materials from the design phase. This forward-thinking approach not only ensured compliance with waste regulations but also aligned with the utility's sustainability goals.

Climate change is influencing how we approach environmental safety for transformers. I'm currently involved in a project designing transformers for a coastal substation where rising sea levels and increased storm intensity are concerns. We're implementing enhanced sealing and elevated designs to protect against potential flooding, showcasing how environmental safety measures must adapt to changing climate conditions.

The integration of smart monitoring systems is revolutionizing environmental safety management for transformers. In a recent deployment, we installed advanced sensors and IoT-enabled monitoring devices on a fleet of transformers. These systems provide real-time data on oil levels, temperature, and gas composition, allowing for predictive maintenance and early detection of potential environmental risks.

Lastly, the importance of employee training in environmental safety cannot be overstated. I've developed comprehensive training programs for maintenance teams, focusing on early detection of leaks, proper handling of insulating fluids, and emergency response procedures. This human element is crucial in ensuring that the technical safety measures are effectively implemented and maintained.

Understanding and prioritizing environmental safety for oil-immersed transformers is not just about compliance or risk mitigation. It's a fundamental aspect of responsible engineering and sustainable operations. By considering environmental impacts from design through to end-of-life disposal, we can create transformer systems that are not only efficient and reliable but also environmentally sound. This holistic approach benefits the ecosystem, enhances public safety, ensures regulatory compliance, and ultimately contributes to the long-term sustainability of our power infrastructure.

Understanding Fire Hazards Associated with Transformer Oil?

Have you ever wondered why transformer fires, though rare, can be so catastrophic when they occur? The combination of high voltages and flammable oil creates a unique fire risk that demands our attention. But what exactly makes these fires so dangerous, and how can we effectively mitigate this risk?

**Key factors contributing to fire risk:

• Low flash point of mineral oil
• Overload and overheating of windings
• Internal arcing or short circuits
• Poor ventilation in enclosed spaces
• Lack of flame-retardant enclosure or fire suppression system

Prevention strategies:

• Use of high-flash-point or less flammable fluids
• Thermal sensors and protection relays
• Fire barriers and safe setback distances
• Automatic extinguishing systems (e.g., water spray, inert gas)
• Regular inspection and preventive maintenance**

Diving Deeper into Transformer Fire Hazards

Let's explore the complexities of transformer fire risks and prevention:

1. Understanding Oil Flammability

Mineral oil characteristics:

• Flash point typically around 140-150°C
• Can ignite at temperatures reached during severe faults
• Produces dense smoke and toxic gases when burning

I once investigated a transformer fire where the mineral oil ignited due to an internal arc. The rapid spread of the fire and the intense smoke generation were eye-opening, reinforcing the importance of proper fire prevention measures.

2. Overload and Overheating Risks

Factors leading to overheating:

• Exceeding rated load capacity
• Cooling system failures
• Accumulation of sludge reducing heat dissipation

3. Internal Faults and Arcing

Common causes of internal faults:

• Insulation breakdown due to aging or contamination
• Loose connections or mechanical damage
• Transient overvoltages from lightning or switching operations

4. Environmental and Design Factors

Considerations for fire risk reduction:

• Proper ventilation in indoor installations
• Adequate spacing between transformers
• Use of fire-resistant barriers and enclosures

Here's a table comparing different transformer fluids and their fire safety characteristics:

Fluid Type	Flash Point	Fire Point	Biodegradability	Relative Cost
Mineral Oil	~140-150°C	~170-180°C	Low	Low
Silicone Fluid	>300°C	>350°C	Very Low	High
Natural Ester	>300°C	>350°C	High	Medium
Synthetic Ester	>250°C	>300°C	Medium	High

In my experience, the choice of insulating fluid can significantly impact fire safety. I worked on a project upgrading transformers in a densely populated urban area where fire risk was a major concern. We opted for natural ester fluids despite their higher cost. The substantially higher flash and fire points provided an extra layer of safety that was crucial for gaining regulatory approval and community acceptance.

The importance of proper maintenance in fire prevention cannot be overstated. I recall a case where a transformer fire was traced back to a gradual buildup of contaminants in the oil, which led to reduced cooling efficiency and eventual overheating. This incident led us to implement more rigorous oil testing and filtration schedules across all our managed transformers.

Advanced monitoring systems play a crucial role in fire prevention. In a recent large-scale deployment, we installed online dissolved gas analysis (DGA) systems on critical transformers. These systems can detect the early signs of internal faults by analyzing gases dissolved in the oil, allowing for intervention before a fault escalates to a fire risk.

The design of transformer installations is key to minimizing fire spread. I worked on a substation redesign project where we implemented fire barriers between transformers and increased the spacing beyond minimum requirements. While this increased the footprint of the substation, it significantly reduced the risk of fire propagation between units.

Climate change is introducing new challenges in transformer fire safety. In regions experiencing more frequent and severe heatwaves, we're having to reassess cooling system designs and load ratings. I'm currently involved in a project developing adaptive loading algorithms that adjust transformer capacity based on real-time environmental conditions, helping to prevent overheating in extreme weather.

The human factor in fire safety is often underestimated. I've developed comprehensive training programs for substation operators, focusing on early detection of potential fire risks and proper emergency response procedures. This training has proven invaluable in several near-miss incidents where early intervention prevented potential fires.

Lastly, the integration of smart fire detection and suppression systems is revolutionizing transformer fire safety. In a recent project, we implemented a system that combines thermal imaging, acoustic sensors, and fast-acting suppression using environmentally friendly agents. This multi-layered approach provides rapid detection and response, significantly reducing the risk of catastrophic fires.

Understanding and mitigating fire hazards associated with transformer oil is crucial for ensuring the safety and reliability of power systems. By considering factors such as oil type, monitoring systems, installation design, and maintenance practices, we can significantly reduce the risk of transformer fires. As technology advances and environmental concerns grow, the trend towards safer, less flammable insulating fluids and smarter monitoring systems will likely continue, further enhancing the safety of oil-immersed transformers. Remember, while the risk can never be completely eliminated, proper design, maintenance, and preparedness can go a long way in preventing and mitigating transformer fires.

Oil Leakage and Ground Contamination: Risks and Regulations?

Are you concerned about the potential environmental impact of oil leaks from your transformers? You're right to be worried. Oil leakage can lead to serious ground contamination, regulatory violations, and costly cleanups. But what exactly are the risks involved, and how do regulations address this issue?

**Common causes of oil spillage:

• Tank corrosion or mechanical damage
• Faulty gaskets and seals
• Overfilled conservator tanks
• Poor transport handling

Environmental impact of oil leakage:

• Soil and groundwater contamination
• Non-compliance with local environmental regulations
• High cleanup and legal costs

Containment measures:

• Secondary oil containment bunds
• Leak detection sensors
• Double-walled tank design
• Scheduled oil integrity testing**

Exploring Oil Leakage Risks and Regulatory Landscape

Let's delve deeper into the complexities of oil leakage and related regulations:

1. Understanding Oil Leakage Risks

Potential sources of leaks:

• Aging equipment and material degradation
• Improper maintenance or handling
• Environmental factors (e.g., extreme temperatures, flooding)

I once investigated a significant oil leak at a substation caused by a hairline crack in an old transformer tank. The slow leak had gone unnoticed for months, resulting in extensive soil contamination. This experience highlighted the importance of regular inspections and modern leak detection systems.

2. Environmental Impact of Oil Spills

Consequences of oil contamination:

• Long-term soil and water pollution
• Harm to local ecosystems and wildlife
• Potential impact on human health through contaminated groundwater

3. Regulatory Framework

Key regulations and standards:

• EPA Spill Prevention, Control, and Countermeasure (SPCC) rules
• IEC 60076-11 for transformer containment systems
• Local environmental protection laws and guidelines

4. Containment and Prevention Strategies

Essential measures include:

• Properly designed and maintained oil containment systems
• Regular oil level monitoring and integrity checks
• Emergency response plans for spill management

Here's a table summarizing common oil containment methods:

Method	Description	Advantages	Limitations
Bunding	Impermeable barrier around transformer	Simple, effective for large spills	Requires regular maintenance
Double-walled tanks	Two-layer tank construction	Integrated protection, space-efficient	Higher cost, complex repairs
Oil-water separators	System to separate oil from water runoff	Effective for small, continuous leaks	Requires regular cleaning
Absorption systems	Materials that absorb spilled oil	Quick deployment for emergencies	Limited capacity, disposal issues

In my experience, the effectiveness of oil containment systems can vary greatly depending on their design and maintenance. I worked on a project retrofitting older substations with modern containment systems. We found that while many had basic bunding, they often lacked proper drainage or were compromised by vegetation growth. Upgrading to sealed, properly sloped containment areas with oil-water separators significantly improved their effectiveness.

The importance of proper sizing in oil containment cannot be overstated. I recall a case where a containment system was undersized due to a calculation error. During a major leak, the system overflowed, leading to widespread contamination and hefty fines. Now, I always recommend designing containment systems to hold at least 110% of the total oil volume, plus allowance for rainwater in outdoor installations.

Leak detection technology has advanced significantly in recent years. In a recent large-scale deployment, we installed fiber optic sensors in the containment areas of critical transformers. These systems can detect even minute oil leaks quickly, allowing for rapid response and minimizing environmental impact. The initial investment was justified by the reduced risk of major spills and associated cleanup costs.

Climate change is introducing new challenges in oil containment design. I'm currently involved in a project reassessing containment systems in flood-prone areas. We're implementing elevated designs and improved water management systems to ensure containment integrity even during extreme weather events.

The regulatory landscape for oil containment is constantly evolving. I've seen cases where companies faced significant fines due to non-compliance with updated regulations they were unaware of. To address this, we've developed a regulatory tracking system for our clients, ensuring their containment systems remain compliant with the latest standards.

Employee training plays a crucial role in preventing and managing oil leaks. I've developed comprehensive training programs covering everything from routine inspections to emergency spill response. In one instance, quick action by well-trained staff contained a potentially major spill to a small area, demonstrating the value of preparedness.

Lastly, the trend towards eco-friendly transformer fluids is changing the landscape of oil containment. While working on a project using natural ester fluids, we found that containment requirements could be less stringent due to the fluid's biodegradability. However, we still implemented robust containment as a best practice, recognizing that prevention is always better than cure.

Understanding and addressing the risks of oil leakage and ground contamination is crucial for responsible transformer operation. By implementing effective containment systems, regular monitoring, and staying abreast of regulatory requirements, we can significantly reduce the risk of environmental damage. As technology advances and regulations evolve, the focus on preventing and mitigating oil leaks will likely intensify. Remember, investing in proper containment and prevention measures is not just about regulatory compliance – it's about protecting our environment and ensuring sustainable operations for the long term.

How to Reduce Environmental Risks: Design, Materials, and Installation Best Practices?

Are you looking for ways to minimize the environmental impact of your transformer installations? You're not alone. Many engineers and project managers are seeking effective strategies to reduce environmental risks without compromising performance. But what are the best practices in design, materials, and installation that can make a real difference?

**To reduce environmental risks in transformer installations:

1. Design with containment in mind (e.g., bunding, double-walled tanks)
2. Use eco-friendly insulating fluids (natural esters, synthetic esters)
3. Implement advanced monitoring systems for early leak detection
4. Choose corrosion-resistant materials for tanks and fittings
5. Install proper ventilation and fire suppression systems
6. Ensure adequate spacing and fire barriers between units
7. Develop comprehensive maintenance and emergency response plans**

Best Practices for Environmentally Safe Transformer Installations

Let's explore these strategies in more detail:

1. Containment-Focused Design

Key design elements:

• Impermeable bunding with 110%+ capacity
• Sloped floors for easy oil collection
• Oil-water separators for runoff management

I once worked on a substation upgrade where we retrofitted existing transformers with modern containment systems. The new design included a polymer-coated concrete bund with a capacity of 120% of the transformer's oil volume. This upgrade significantly reduced the risk of soil contamination in case of a leak.

2. Eco-Friendly Insulating Fluids

Options to consider:

• Natural ester fluids (vegetable-based oils)
• Synthetic esters
• Silicone fluids

3. Advanced Monitoring Systems

Implement:

• Online dissolved gas analysis (DGA)
• Fiber optic temperature sensors
• Acoustic partial discharge detection

4. Corrosion-Resistant Materials

Use:

• Stainless steel or galvanized steel for tanks
• High-quality gaskets and seals
• Protective coatings for exposed parts

Here's a comparison table of materials for transformer components:

Component	Traditional Material	Eco-Friendly Alternative	Benefits
Tank	Carbon Steel	Stainless Steel	Corrosion resistance, longer lifespan
Insulating Fluid	Mineral Oil	Natural Ester	Biodegradable, higher flash point
Gaskets	Rubber	Fluoroelastomer	Better sealing, chemical resistance
Radiators	Aluminum	Copper	Better heat dissipation, recyclable

In my experience, the choice of materials can significantly impact a transformer's environmental footprint. I recall a project where we replaced old mineral oil-filled transformers with units using natural ester fluid. Not only did this reduce the fire risk, but it also simplified the environmental compliance process due to the fluid's biodegradability.

Proper installation practices are crucial for environmental safety. In a recent substation project, we implemented a comprehensive checklist for installers, covering everything from proper handling of fluids to the correct setup of containment systems. This approach significantly reduced the risk of installation-related leaks and spills.

Ventilation and fire suppression systems play a critical role in environmental safety. I worked on a project for an indoor substation where we designed a state-of-the-art ventilation system coupled with an environmentally friendly fire suppression system using clean agents. This setup not only enhanced safety but also minimized the potential environmental impact in case of a fire.

The importance of spacing and fire barriers cannot be overstated. In a large transformer farm project, we increased the standard spacing between units and installed fire-resistant barriers. While this increased the overall footprint, it significantly reduced the risk of fire spread, potentially preventing a catastrophic environmental incident.

Maintenance planning is a key aspect of environmental risk reduction. I've developed comprehensive maintenance programs that include regular oil testing, infrared scanning for hotspots, and periodic review of containment system integrity. In one case, this proactive approach helped us identify and address a developing leak before it could cause any environmental damage.

Emergency response planning is crucial. I once consulted on a project where we simulated various spill scenarios to test and refine the response procedures. This exercise revealed several gaps in the existing plan, leading to improvements that proved invaluable when a real incident occurred months later.

The integration of smart monitoring technologies is revolutionizing environmental risk management. In a recent large-scale deployment, we installed IoT-enabled sensors that provide real-time data on oil levels, temperature, and gas composition. This system allows for predictive maintenance and early detection of potential environmental risks, significantly enhancing our ability to prevent incidents before they occur.

Climate change considerations are increasingly influencing transformer design and installation. I'm currently working on a project to develop climate-resilient transformer installations for coastal areas. This involves elevated designs, enhanced waterproofing, and the use of materials that can withstand increased corrosion from rising sea levels and more frequent storm surges.

Lastly, the trend towards circular economy principles is impacting transformer lifecycle management. In a recent project, we incorporated easily recyclable materials and designed for easy disassembly at end-of-life. This approach not only reduces the environmental impact of disposal but also aligns with growing regulatory pressures for sustainable product lifecycles.

Implementing best practices in design, materials, and installation is crucial for reducing the environmental risks associated with transformer operations. By focusing on containment, using eco-friendly materials, implementing advanced monitoring systems, and developing comprehensive maintenance and emergency response plans, we can significantly enhance the environmental safety of transformer installations. As technology advances and environmental regulations become more stringent, these best practices will continue to evolve. Staying informed and proactive in adopting these practices not only ensures regulatory compliance but also demonstrates a commitment to environmental stewardship and sustainable operations.

Eco-Friendly Alternatives: Natural Esters, Silicon Fluids, and Dry-Type Options?

Are you exploring greener options for your transformer projects? You're not alone. Many engineers and project managers are turning to eco-friendly alternatives to traditional mineral oil. But what are these options, and how do they compare in terms of performance, cost, and environmental impact?

**Eco-friendly alternatives to traditional transformer oils include:

1. Natural esters (vegetable oils): Biodegradable, high flash point
2. Synthetic esters: Good performance, less environmental impact
3. Silicon fluids: Non-flammable, stable, but not biodegradable
4. Dry-type transformers: No liquid insulation, ideal for indoor use

Each option offers unique benefits in terms of safety, environmental protection, and performance characteristics.**

Comparing Eco-Friendly Transformer Options

Let's dive deeper into these alternatives:

Feature	Mineral Oil	Natural Ester (Vegetable Oil)	Dry-Type Transformer
Flash Point	~155°C	>300°C	Not applicable
Biodegradability	Low	High	N/A
Fire Resistance	Moderate	High	Very High
Cooling Efficiency	High	Moderate	Lower
Environmental Impact	Potentially harmful	Eco-safe	Minimal
Maintenance Complexity	Low	Moderate	Low
Cost	Low	Higher	Higher
Typical Applications	Utility, industrial	Substations, green buildings	Indoor, public areas

1. Natural Esters (Vegetable Oils)

Advantages:

• Highly biodegradable
• High flash and fire points (>300°C)
• Renewable resource

Considerations:

• Higher viscosity may affect cooling efficiency
• More expensive than mineral oil
• May require design modifications for optimal performance

I once worked on a project replacing mineral oil transformers with natural ester units in an environmentally sensitive area. The higher cost was justified by the reduced environmental risk and improved fire safety, which was crucial for obtaining local permits.

2. Synthetic Esters

Key features:

• Good balance of performance and environmental properties
• Better oxidation stability than natural esters
• Lower pour point, suitable for cold climates

Limitations:

• Higher cost than mineral oil and natural esters
• Not as biodegradable as natural esters

3. Silicon Fluids

Advantages:

• Non-flammable (K-class fluid)
• Excellent thermal stability
• Long service life

Drawbacks:

• Not biodegradable
• Higher cost
• Special handling required for maintenance

4. Dry-Type Transformers

Benefits:

• No risk of oil leaks or fires
• Minimal maintenance required
• Ideal for indoor and sensitive environments

Limitations:

• Lower overload capacity
• Generally limited to lower voltage and power ratings
• Higher initial cost for equivalent ratings

In my experience, the choice of eco-friendly alternatives often depends on specific project requirements and local regulations. I recall a project for a data center where we opted for silicon fluid-filled transformers. The non-flammable nature of the fluid was crucial for fire safety, while the long service life and stability aligned well with the facility's 24/7 operational needs.

The performance of natural esters in extreme conditions is an area of ongoing research and development. I'm currently involved in a project testing natural ester-filled transformers in arctic conditions. We're finding that with proper formulation and design adjustments, these eco-friendly fluids can perform reliably even in extremely cold environments.

Maintenance considerations vary significantly between these alternatives. In a comparative study I conducted, we found that while dry-type transformers required less routine maintenance, natural ester-filled units needed more frequent oil quality checks due to their higher moisture absorption tendency. This highlights the importance of considering lifecycle maintenance in the selection process.

The regulatory landscape is increasingly favoring eco-friendly alternatives. I've seen cases where utilities received incentives for adopting biodegradable transformer fluids as part of broader environmental initiatives. This trend is likely to continue, potentially offsetting the higher initial costs of these alternatives in the long run.

Retrofitting existing transformers with eco-friendly fluids is an emerging practice. I recently consulted on a project where we replaced mineral oil with natural esters in several large power transformers. While challenging, this retrofit significantly extended the transformers' operational life while improving their environmental and safety profile.

The choice of eco-friendly alternatives can impact transformer design. In a recent project using natural esters, we had to modify the cooling system design to account for the fluid's higher viscosity. This involved larger radiators and more powerful pumps, but the end result was a transformer that met both performance and environmental goals.

Lastly, the trend towards smart grids is influencing the adoption of eco-friendly transformer options. I'm seeing increased interest in combining natural ester-filled transformers with advanced monitoring systems. This combination offers both environmental benefits and the ability to optimize performance and predict maintenance needs, aligning well with smart grid initiatives.

Choosing eco-friendly alternatives for transformers involves carefully balancing environmental benefits, performance requirements, and economic considerations. While options like natural esters, synthetic fluids, and dry-type transformers offer significant environmental advantages, they also come with their own set of challenges and considerations. As technology advances and environmental regulations become more stringent, these eco-friendly alternatives are likely to become increasingly prevalent in the power industry. By understanding the pros and cons of each option, engineers and project managers can make informed decisions that align with both operational needs and environmental responsibilities.

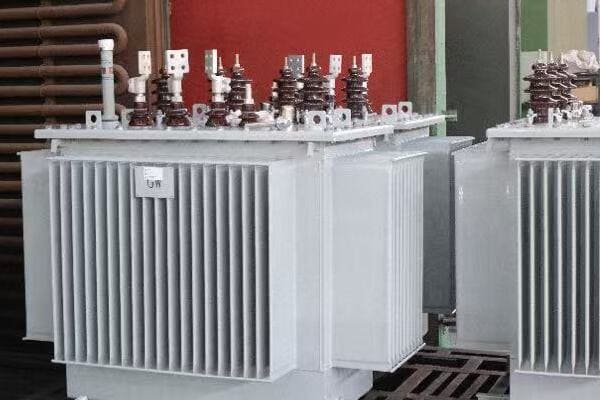

Global Standards and Environmental Compliance for Transformer Projects?

Are you finding it challenging to navigate the complex world of global standards and environmental compliance for transformer projects? You're not alone. Many professionals struggle to keep up with the ever-evolving regulations across different regions. But what are the key standards you need to know, and how can you ensure your projects meet global environmental requirements?

**Key global standards and environmental compliance considerations for transformer projects include:

1. IEC 60076 series for transformer design and testing
2. IEEE C57 standards widely used in North America
3. EU Ecodesign Directive for energy efficiency
4. REACH and RoHS regulations for hazardous substances
5. ISO 14001 for environmental management systems
6. Local environmental protection laws and regulations
7. Specific utility and industry standards for performance and safety**

Navigating Global Standards and Environmental Compliance

Let's explore these standards and compliance requirements in more detail:

1. International Electrotechnical Commission (IEC) Standards

Key IEC standards include:

• IEC 60076-1: General requirements for power transformers
• IEC 60076-2: Temperature rise for liquid-immersed transformers
• IEC 60076-11: Dry-type transformers
• IEC 60076-14: Liquid-immersed power transformers using high-temperature insulation materials

I once worked on a project exporting transformers to multiple countries. Ensuring compliance with IEC standards was crucial for gaining acceptance in diverse markets. We had to carefully review and test against each relevant IEC standard to ensure global compatibility.

2. IEEE Standards

Important IEEE standards:

• IEEE C57.12.00: General requirements for liquid-immersed distribution, power, and regulating transformers
• IEEE C57.12.01: General requirements for dry-type distribution and power transformers

3. Energy Efficiency Regulations

Key efficiency standards:

• EU Ecodesign Directive (Regulation 548/2014)
• US Department of Energy (DOE) efficiency standards
• China Energy Label (CEL) requirements

4. Environmental Protection Regulations

Critical environmental standards:

• REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)
• RoHS (Restriction of Hazardous Substances)
• Various national environmental protection laws

Here's a comparison table of key global standards:

Standard	Region	Focus	Key Requirements
IEC 60076	Global	Design & Testing	Comprehensive transformer specifications
IEEE C57	North America	Design & Performance	Detailed requirements for various transformer types
EU Ecodesign	Europe	Energy Efficiency	Minimum efficiency levels for transformers
REACH	Europe	Chemical Safety	Registration and restriction of hazardous substances
ISO 14001	Global	Environmental Management	Framework for effective environmental management system

In my experience, navigating these global standards requires a comprehensive approach. I recall a project where we were designing transformers for a multinational corporation with installations across three continents. We had to create a compliance matrix that cross-referenced IEC, IEEE, and local standards to ensure our designs met all relevant requirements in each region.

Energy efficiency standards are becoming increasingly stringent globally. In a recent project upgrading a utility's transformer fleet, we had to balance the EU Ecodesign Directive's efficiency requirements with local grid stability needs. This involved careful selection of core materials and winding designs to meet both efficiency targets and performance requirements.

Environmental regulations like REACH and RoHS have significant implications for transformer design and material selection. I worked on a project where we had to completely redesign our insulation system to eliminate certain restricted substances. While challenging, this process led to the development of a more environmentally friendly transformer that actually performed better in several key areas.

The implementation of ISO 14001 environmental management systems is becoming more common in transformer manufacturing. I consulted for a manufacturer implementing ISO 14001, and we found that it not only improved their environmental performance but also opened up new market opportunities where this certification was valued or required.

Local environmental regulations can vary significantly and often go beyond global standards. In a project for a transformer installation in a sensitive ecological area, we had to navigate complex local regulations regarding oil containment and noise levels. This required close collaboration with local authorities and environmental experts to develop a compliant and environmentally responsible design.

The trend towards smart grids is influencing compliance requirements. I'm currently involved in a project developing transformers with advanced monitoring capabilities to meet emerging smart grid standards. These units need to comply not only with traditional transformer standards but also with new requirements for data communication and cybersecurity.

Climate change considerations are increasingly being incorporated into standards and compliance requirements. In a recent coastal substation project, we had to design to enhanced standards for flood resistance and corrosion protection due to rising sea levels and increased storm intensity. This showcases how environmental compliance is evolving to address long-term climate risks.

Lastly, the push for circular economy principles is beginning to impact transformer standards. I'm seeing growing interest in standards that address the entire lifecycle of transformers, including recyclability and end-of-life management. This holistic approach to environmental compliance is likely to become more prevalent in the coming years.

Navigating global standards and environmental compliance for transformer projects is a complex but crucial task. It requires a thorough understanding of international standards like IEC and IEEE, as well as regional regulations on energy efficiency and environmental protection. By staying informed about these standards and proactively addressing compliance requirements, engineers and project managers can ensure their transformer projects meet global environmental standards while also optimizing performance and reliability. As regulations continue to evolve, particularly in response to climate change and sustainability concerns, maintaining up-to-date knowledge and adaptable design practices will be key to successful and compliant transformer projects worldwide.

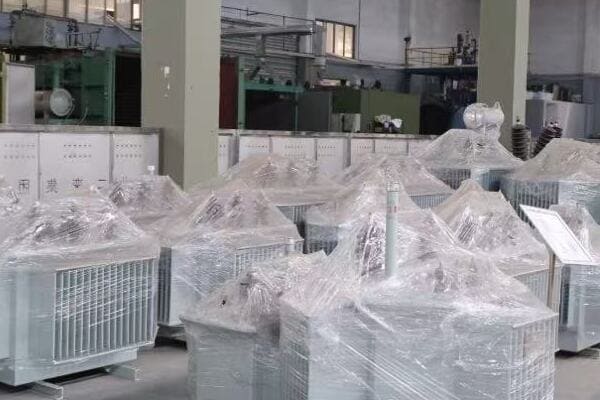

Real-World Practices: How Utilities Manage Transformer Environmental Impact?

Are you curious about how major utilities tackle the environmental challenges posed by their transformer fleets? You're not alone. Many in the industry are looking to learn from real-world practices. But what strategies are leading utilities employing to minimize their transformers' environmental footprint while maintaining reliable operations?

**Utilities manage transformer environmental impact through:

1. Implementing robust oil containment systems
2. Adopting eco-friendly insulating fluids
3. Regular monitoring and predictive maintenance
4. Efficient disposal and recycling programs
5. Investing in energy-efficient transformer designs
6. Developing comprehensive emergency response plans
7. Training staff in environmental best practices
8. Integrating environmental considerations into procurement processes**

Exploring Utility Practices in Transformer Environmental Management

Let's delve into how utilities are addressing these environmental challenges:

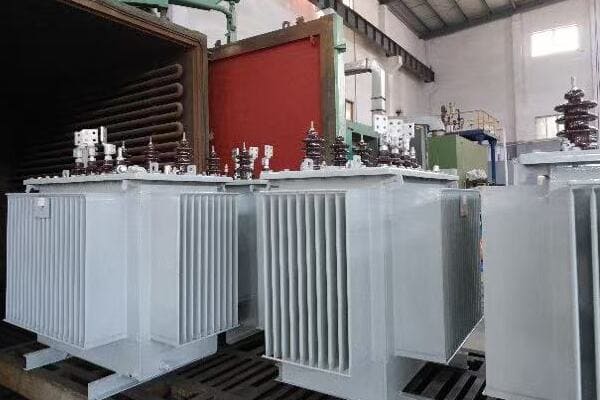

1. Oil Containment Systems

Best practices include:

• Secondary containment bunds with 110%+ capacity
• Impermeable surfaces and proper drainage
• Regular inspection and maintenance of containment structures

I once consulted for a large utility upgrading their substation containment systems. We implemented a modular bunding solution that could be easily adapted to different transformer sizes and site conditions. This approach not only improved environmental protection but also reduced installation time and costs across their network.

2. Eco-Friendly Insulating Fluids

Trends in fluid selection:

• Gradual transition to natural and synthetic esters
• Use of high fire point fluids in high-risk areas
• Retrofilling existing transformers with biodegradable fluids

3. Monitoring and Maintenance

Advanced practices:

• Online dissolved gas analysis (DGA) for early fault detection
• Infrared scanning for hotspot identification
• Regular oil quality testing and filtration

4. Disposal and Recycling

Responsible end-of-life management:

• Partnering with certified recycling facilities
• Proper handling and disposal of PCB-contaminated oils
• Recycling of core and winding materials

Here's a table summarizing key environmental management practices:

Practice	Description	Environmental Benefit	Implementation Challenge
Oil Containment	Secondary bunding, leak detection	Prevents soil/water contamination	Retrofitting existing installations
Eco-Friendly Fluids	Natural esters, synthetic esters	Biodegradability, fire safety	Higher cost, design modifications
Advanced Monitoring	Online DGA, IoT sensors	Early detection of issues	Initial investment, data management
Efficient Recycling	Partnering with certified recyclers	Reduces waste, recovers materials	Logistics, finding qualified partners
Energy-Efficient Designs	Low-loss cores, better cooling	Reduces energy consumption	Higher upfront costs

In my experience, the most effective utility practices combine multiple approaches. I worked with a utility that implemented a comprehensive environmental management program for their transformers. This included upgrading to ester fluids in sensitive areas, installing advanced monitoring systems across their fleet, and developing a network-wide oil containment upgrade plan. The holistic approach significantly reduced their environmental risks and improved overall system reliability.

The adoption of eco-friendly fluids is gaining momentum among utilities. In a recent large-scale project, we helped a utility transition their entire urban substation network to natural ester-filled transformers. While the initial cost was higher, the improved fire safety and reduced environmental risk justified the investment, particularly in densely populated areas.

Predictive maintenance based on advanced monitoring is revolutionizing how utilities manage environmental risks. I consulted on the implementation of an IoT-based monitoring system for a major utility. By analyzing real-time data on oil condition, temperature, and dissolved gases, they can now predict and prevent potential failures that could lead to environmental incidents.

Efficient disposal and recycling practices are becoming increasingly important. I worked with a utility to develop a comprehensive end-of-life management program for their transformers. This included partnerships with certified recycling facilities and a tracking system to ensure proper handling of all materials. The program not only ensured regulatory compliance but also recovered valuable materials, offsetting some of the disposal costs.

Climate change adaptation is influencing utility practices. In a recent coastal substation project, we had to redesign the transformer installations to account for potential sea-level rise and increased storm intensity. This included elevated platforms, enhanced waterproofing, and more robust containment systems, showcasing how utilities are future-proofing their infrastructure against environmental changes.

Staff training plays a crucial role in environmental management. I developed a comprehensive training program for a utility's maintenance teams, covering everything from proper oil handling to emergency spill response. This investment in human capital significantly reduced the incidence of small spills and improved overall environmental performance.

The integration of environmental considerations into procurement processes is a growing trend. I advised a utility on developing an environmentally-focused procurement policy for transformers. This included lifecycle environmental impact assessments as part of the tender evaluation process, encouraging manufacturers to innovate in eco-friendly designs.

Lastly, the trend towards distributed energy resources is changing how utilities manage transformer environmental impacts. In a recent project, we worked on integrating small, eco-friendly transformers into a utility's renewable energy microgrids. This decentralized approach not only improved system resilience but also reduced the environmental risks associated with large, centralized transformer installations.

Real-world practices in managing transformer environmental impact among utilities are evolving rapidly. Leading utilities are adopting a multi-faceted approach that combines advanced containment systems, eco-friendly materials, smart monitoring technologies, and responsible lifecycle management. These practices not only ensure regulatory compliance but also contribute to overall system reliability and sustainability. As environmental concerns continue to grow, utilities that proactively address these issues are likely to see benefits in terms of regulatory compliance, public perception, and long-term operational efficiency. The key to success lies in viewing environmental management not as a burden, but as an opportunity for innovation and improvement in transformer operations.

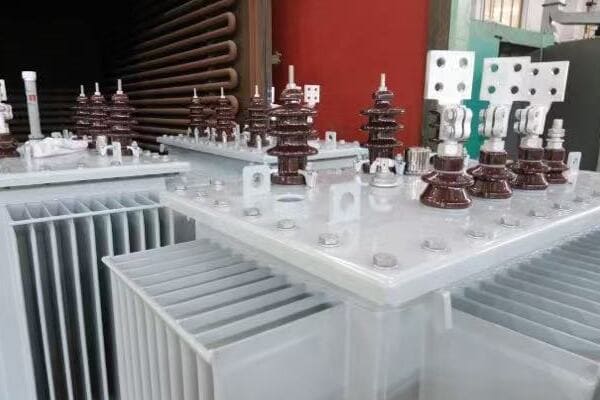

Summary: Environmentally Safe Transformer Deployment Checklist?

Are you preparing for a transformer installation and want to ensure you've covered all the environmental bases? You're not alone. Many engineers and project managers seek a comprehensive checklist to guide their environmentally safe transformer deployments. But what are the key points you absolutely must consider to protect both your project and the environment?

Environmental Safety Checklist for Transformer Deployment:
✅ Select insulating fluids with high flash point or low toxicity
✅ Design with oil containment bunds or sealed tank systems
✅ Confirm compliance with IEC, EPA, and local EHS standards
✅ Assess installation location: indoor, outdoor, high-risk area
✅ Consider dry-type or natural ester alternatives where feasible
✅ Plan regular inspection, maintenance, and emergency response

Comprehensive Checklist for Environmentally Safe Transformer Deployment

Let's break down each point in detail:

1. Insulating Fluid Selection

Consider:

• Natural or synthetic esters for biodegradability
• High flash point fluids for fire safety
• Low toxicity options for reduced environmental impact

I once worked on a project where selecting the right insulating fluid was crucial. We opted for a natural ester in a substation near a water source. This choice significantly reduced the potential environmental impact in case of a leak, and it also improved the project's standing with local environmental authorities.

2. Oil Containment Design

Key elements:

• Secondary containment with 110%+ capacity
• Impermeable surfaces and proper drainage
• Leak detection systems

3. Regulatory Compliance

Ensure adherence to:

• IEC 60076 series for design and testing
• EPA regulations for oil spill prevention
• Local environmental health and safety standards

4. Location Assessment

Factors to consider:

• Indoor vs. outdoor installation requirements
• Proximity to sensitive environmental areas
• Climate and weather considerations

5. Alternative Technologies

Explore options like:

• Dry-type transformers for indoor applications
• Gas-insulated transformers for specific environments
• Amorphous core designs for improved efficiency

6. Maintenance and Emergency Planning

Develop plans for:

• Regular inspections and oil testing
• Predictive maintenance using monitoring data
• Spill response and containment procedures

Here's a detailed checklist table:

Category	Item	Completed	Notes
Fluid Selection	High flash point fluid chosen	☐
	Biodegradability assessed	☐
Containment	Secondary containment designed	☐
	Leak detection system planned	☐
Compliance	IEC standards reviewed	☐
	Local regulations checked	☐
Location	Environmental risk assessment done	☐
	Climate considerations addressed	☐
Technology	Alternative designs considered	☐
	Efficiency ratings compared	☐
Maintenance	Inspection schedule created	☐
	Emergency response plan developed	☐

In my experience, this checklist has been invaluable in ensuring comprehensive environmental consideration in transformer deployments. I recall a complex project where we used a similar checklist for a large substation upgrade. It helped us identify and address several potential environmental issues early in the design phase, saving significant time and resources later.

The importance of location assessment cannot be overstated. In a recent coastal project, our thorough location assessment led us to implement enhanced corrosion protection and elevated designs to account for potential sea-level rise. This foresight not only ensured environmental safety but also extended the expected lifespan of the installation.

Regulatory compliance can be complex, especially for international projects. I worked on a transformer deployment that spanned multiple countries. We created a compliance matrix that cross-referenced IEC standards with local regulations in each country. This approach ensured we met all necessary environmental requirements while maintaining a consistent design approach.

The choice between traditional and alternative technologies often involves balancing multiple factors. In an urban substation project, we carefully weighed the pros and cons of dry-type vs. oil-filled transformers. While dry-type offered clear environmental advantages for the indoor setting, we had to ensure it could meet the required capacity and overload capabilities. The checklist prompted a thorough analysis that led to an optimal solution.

Maintenance and emergency planning are crucial for long-term environmental safety. I helped develop a comprehensive maintenance program for a utility's transformer fleet. This included not just regular inspections and tests, but also integration with their asset management system to predict and prevent potential environmental incidents. The program significantly reduced the risk of oil leaks and improved overall environmental performance.

The trend towards smart monitoring is influencing how we approach environmental safety. In a recent large-scale deployment, we incorporated IoT sensors and real-time monitoring systems into the transformers. This allowed for early detection of potential issues and more efficient maintenance, further enhancing environmental safety.

Lastly, end-of-life considerations are becoming an integral part of environmentally safe deployments. I'm currently working on a project where we're designing transformers with easier recyclability and using materials with lower environmental impact. This lifecycle approach is increasingly important as regulations around product stewardship become more stringent.

This environmentally safe transformer deployment checklist serves as a comprehensive guide to ensure all critical aspects are considered. By methodically working through each point, you can significantly reduce environmental risks, ensure regulatory compliance, and optimize the long-term sustainability of your transformer installations. Remember, environmental safety is not just about meeting current standards – it's about future-proofing your installations and demonstrating responsible environmental stewardship. As you use this checklist, consider it a living document that can be adapted and expanded based on your specific project needs and evolving environmental best practices.

Conclusion

Environmental considerations are crucial in oil-immersed transformer projects. By implementing proper containment, using eco-friendly materials, and following global standards, we can significantly reduce environmental risks. Regular maintenance, emergency preparedness, and adoption of new technologies further enhance environmental safety in transformer operations.
📩 Contact our engineering team for customized eco-friendly transformer solutions or request a quote today.

Frequently Asked Questions

Q1: Are natural esters better than mineral oil in transformers?
A: Yes. Natural esters have a higher flash point, are biodegradable, and offer superior fire safety. They are ideal for environmentally sensitive or indoor installations, though they are more expensive and may require design modifications.

Q2: Do oil-immersed transformers comply with international environmental standards?
A: They can, if equipped with bunding, leak prevention systems, and if using certified eco-friendly fluids. Standards like IEC 61039, REACH, and EPA oil containment rules provide guidance.

Q3: Can dry-type transformers fully replace oil-filled ones?
A: Not in all cases. While dry-type transformers are fire-safe and eco-friendly, their size and cooling limitations make them less suitable for high-power or outdoor applications.
