Are you struggling to choose the correct single phase pole mounted transformer for your project? You're not alone. Many engineers and project managers find this selection process challenging. But what if you could confidently select the perfect transformer, avoiding costly mistakes and ensuring optimal performance?

Selecting the right single phase pole mounted distribution transformer involves considering key factors such as voltage ratings (typically 11kV or 22kV primary, 230V secondary), kVA capacity (ranging from 10kVA to 167kVA), and load profile. The ideal transformer should match the input voltage of your distribution network, have sufficient capacity for current and future loads, and be suitable for the specific installation environment. Factors like cooling method (usually ONAN), protection features (fuses, surge arresters), and insulation class also play crucial roles in the selection process.

In this comprehensive guide, I'll walk you through the essential factors to consider when selecting a single phase pole mounted transformer. We'll explore voltage and capacity considerations, examine cooling and protection options, and look at installation requirements. Whether you're planning a rural electrification project or upgrading an existing distribution network, this article will provide you with the knowledge to make an informed decision and ensure reliable power distribution for your end-users.

What Is a Single Phase Pole Mounted Distribution Transformer?

Have you ever wondered about those cylindrical devices perched atop utility poles in residential areas? These are often single phase pole mounted distribution transformers, but what exactly are they, and why are they so crucial for power distribution in certain areas?

A single phase pole mounted distribution transformer is an oil-filled electrical device designed to step down medium voltage power (typically 11kV or 6.6kV) to low voltage (usually 230V) for residential and light commercial use. It's mounted on a utility pole, making it ideal for rural areas, remote locations, or areas with low population density. These transformers are crucial for efficient power distribution in scenarios where underground cabling or larger three-phase systems are impractical or cost-prohibitive.

Key Aspects of Single Phase Pole Mounted Transformers

Let's break down the main features:

1. Basic Structure and Components
2. Voltage Transformation
3. Common Applications
4. Advantages and Limitations
5. Maintenance and Lifespan

Basic Structure and Components

Understanding the anatomy:

• Oil-filled tank housing the core and windings
• Bushings for high and low voltage connections
• Cooling fins or radiators for heat dissipation
• Mounting brackets for pole installation

I recently inspected a newly installed 50kVA pole mounted transformer in a rural area. The compact design, with its cylindrical tank and prominent bushings, was a perfect example of how these units are engineered for simplicity and durability in challenging environments.

Voltage Transformation

How it steps down voltage:

• Primary winding connected to medium voltage line (e.g., 11kV)
• Secondary winding delivers low voltage (typically 230V)
• Transformation ratio determined by the number of turns in windings

During a recent project, we had to explain the voltage transformation process to local community members. Using a simple analogy of water pressure reduction, we helped them understand how these transformers safely bring high voltage power down to usable levels for their homes.

Common Applications

Where you'll find these transformers:

• Rural electrification projects
• Residential areas with low population density
• Small commercial establishments in remote locations
• Agricultural settings for irrigation pumps and farm equipment

Here's a quick overview of typical applications:

Application	Typical kVA Range	Benefits
Rural Homes	10-25 kVA	Cost-effective for sparse populations
Small Farms	25-50 kVA	Supports irrigation and basic processing equipment
Village Centers	50-100 kVA	Powers small businesses and community facilities
Light Industry	100-167 kVA	Suitable for workshops and small factories

Advantages and Limitations

Understanding the pros and cons:

• Advantages: Easy installation, low cost, suitable for low-density areas
• Limitations: Limited capacity, exposed to weather, potential safety concerns

Maintenance and Lifespan

Ensuring long-term reliability:

• Regular visual inspections for leaks or damage
• Periodic oil testing and replacement if necessary
• Typical lifespan of 20-30 years with proper maintenance

Key points about single phase pole mounted transformers:

1. They are designed for stepping down medium voltage to low voltage
2. Ideal for rural and low-density residential power distribution
3. Offer a cost-effective solution for areas with limited power needs
4. Require regular maintenance due to exposure to elements
5. Have a significant lifespan when properly maintained

In my experience, understanding these basic aspects of pole mounted transformers is crucial for effective power distribution planning. I recall a project in a developing rural area where the choice of strategically placed single phase pole mounted transformers over a more complex three-phase system significantly reduced installation costs and simplified maintenance, making electrification feasible for a community that had long been without reliable power.

For example, in a recent agricultural development project, we used a series of 50kVA pole mounted transformers to power irrigation systems across a large farm. This approach allowed for flexible power distribution that could easily be expanded as the farm grew, demonstrating the versatility of these transformers in adapting to changing power needs.

As we move on to discuss key selection parameters, keep these basic characteristics in mind. Understanding the fundamental nature of single phase pole mounted transformers will help you make more informed decisions about voltage ratings, kVA capacities, and load considerations for your specific project needs.

Key Selection Parameters: Voltage, kVA Rating, and Load Profile?

Are you finding it challenging to determine the right specifications for your single phase pole mounted transformer? Many project planners struggle with this crucial step. But how can you ensure you're selecting a transformer that will meet your current needs and accommodate future growth?

Key selection parameters for single phase pole mounted transformers include primary voltage (typically 11kV or 22kV), secondary voltage (usually 230V), kVA rating (ranging from 10kVA to 167kVA), and load profile. The primary voltage must match your distribution network, while the kVA rating should accommodate both current demand and future growth. Common kVA ratings include 25kVA for 1-3 homes, 50kVA for small businesses, and 100-167kVA for light industrial use. Load profile considerations include peak demand times, power factor, and potential for intermittent high-load events.

Critical Factors in Transformer Selection

Let's examine the main parameters:

1. Voltage Ratings
2. kVA Capacity
3. Load Profile Analysis
4. Future Growth Considerations
5. Environmental Factors

Voltage Ratings

Matching network and user requirements:

• Primary voltage: Must match distribution network (e.g., 11kV, 22kV)
• Secondary voltage: Typically 230V for residential use
• Consider voltage regulation needs (usually ±2.5% to ±5%)

I recently worked on a project where mismatched primary voltage led to a costly replacement. Always double-check your network voltage before finalizing transformer specifications.

kVA Capacity

Determining the right size:

• Consider connected load and diversity factor
• Account for power factor of typical loads
• Allow for short-term overloading capacity

During a recent rural electrification project, we used this kVA selection guide:

kVA Rating	Typical Application	Estimated Usage
10-15 kVA	Single small house / basic lighting	≤ 2 kW average load
25 kVA	1-3 homes / small farm	4-6 kW total load
50 kVA	Small business / 4-8 homes	Lighting + appliances + single AC
75 kVA	Combined residential + commercial	Small schools, clinics
100 kVA	Light industrial / medium commercial	Cold storage, retail shops
167 kVA	High-demand single-phase areas	Distributed commercial units

Load Profile Analysis

Understanding usage patterns:

• Identify peak demand periods
• Consider seasonal variations in load
• Assess potential for intermittent high-load events

Future Growth Considerations

Planning for expansion:

• Estimate load growth over 5-10 years
• Consider potential for new connections or increased usage
• Balance initial cost with long-term capacity needs

Environmental Factors

Adapting to local conditions:

• Temperature extremes affecting cooling needs
• Altitude considerations for insulation and cooling
• Coastal or polluted areas requiring enhanced protection

Key points for selecting transformer parameters:

1. Voltage ratings must match both network and end-user requirements
2. kVA capacity should be based on current needs and future growth
3. Load profile analysis helps in choosing the right capacity
4. Consider future expansion to avoid premature upgrades
5. Environmental factors can influence transformer specifications

In my experience, careful consideration of these parameters is crucial for successful transformer deployment. I recall a case where we initially undersized transformers for a growing residential area. Within two years, we had to replace them due to rapid load growth, resulting in unnecessary costs and disruptions. This taught us the importance of thorough load analysis and growth projections.

For example, in a recent project for a small industrial park, we opted for a 167kVA transformer despite current needs only requiring about 100kVA. This decision was based on anticipated growth and the potential for energy-intensive equipment additions. The foresight paid off when, within 18 months, new tenants with high power demands moved in, and the transformer comfortably handled the increased load.

As we move on to discuss cooling, protection, and insulation options, keep these selection parameters in mind. Understanding how these factors interact with transformer design will help you make more informed decisions about the specific features needed for your application.

Cooling, Protection, and Insulation Options?

Are you wondering about the best cooling, protection, and insulation options for your single phase pole mounted transformer? Many buyers overlook these critical aspects, focusing solely on capacity and voltage. But how do these features impact the performance and longevity of your transformer?

Single phase pole mounted transformers typically use ONAN (Oil Natural Air Natural) cooling. Protection features often include high-voltage fuses, low-voltage circuit breakers, and surge arresters. Insulation usually consists of mineral oil and paper, with options for biodegradable oils in environmentally sensitive areas. The insulation class is typically A (105°C), though higher classes may be used for specific applications. These features work together to ensure efficient operation, protect against electrical faults and environmental factors, and extend the transformer's lifespan.

Key Aspects of Transformer Protection and Insulation

Let's examine the main features:

1. Cooling Methods
2. Protection Devices
3. Insulation Systems
4. Environmental Considerations
5. Maintenance Implications

Cooling Methods

Ensuring efficient heat dissipation:

• ONAN (Oil Natural Air Natural) most common for pole mounted units
• Cooling fins or radiators to increase surface area for heat dissipation
• Oil circulation driven by convection currents

I recently inspected a 100kVA pole mounted transformer in a hot climate. The efficient ONAN cooling system, with its well-designed radiators, was maintaining optimal operating temperatures despite the challenging environment.

Protection Devices

Safeguarding against electrical faults:

• High-voltage fuses for primary side protection
• Low-voltage circuit breakers on the secondary side
• Surge arresters to guard against lightning strikes and voltage spikes

During a recent rural electrification project, we emphasized the importance of proper surge protection. The area's frequent thunderstorms made lightning protection a critical feature for ensuring long-term reliability.

Insulation Systems

Maintaining electrical isolation:

• Mineral oil as both insulator and coolant
• Paper insulation for windings
• Options for biodegradable oils in environmentally sensitive areas

Here's a comparison of insulation options:

Insulation Type	Advantages	Considerations
Mineral Oil	Excellent cooling, well-understood	Environmental concerns if leaked
Natural Ester Fluids	Biodegradable, high flash point	Higher cost, different maintenance
Synthetic Ester Fluids	Fire resistant, long life	Most expensive option

Environmental Considerations

Adapting to local conditions:

• Enhanced sealing for high-humidity environments
• Corrosion-resistant materials for coastal areas
• Special considerations for extreme temperatures

Maintenance Implications

Ensuring long-term reliability:

• Regular oil testing to check for degradation
• Inspection of bushings and seals for damage or wear
• Cleaning of cooling surfaces to maintain efficiency

Key points about cooling, protection, and insulation:

1. ONAN cooling is standard for most pole mounted transformers
2. Protection devices are crucial for safeguarding against electrical faults
3. Insulation choice impacts environmental safety and maintenance needs
4. Environmental factors should influence protection and insulation choices
5. Regular maintenance is essential for long-term reliability

In my experience, the right combination of cooling, protection, and insulation features can significantly extend a transformer's lifespan and improve its reliability. I recall a project where we upgraded older transformers with modern surge protection and more efficient cooling systems. This relatively small investment dramatically reduced failure rates and improved overall grid reliability in the area.

For example, in a recent coastal project, we specified transformers with enhanced corrosion protection and hermetically sealed tanks. While slightly more expensive initially, these units have shown excellent performance in the harsh, salt-laden environment, with minimal maintenance issues compared to standard units.

As we move on to discuss installation considerations for pole-mounted transformers, keep these cooling, protection, and insulation features in mind. Understanding how these elements interact with the installation environment is crucial for ensuring optimal performance and longevity of your transformer.

Installation Considerations for Pole-Mounted Transformers?

Are you aware of the critical factors that go into installing a pole mounted transformer correctly? Many project managers overlook key installation details, leading to safety hazards or reduced transformer lifespan. But what specific considerations should you keep in mind to ensure a safe, efficient, and long-lasting installation?

Installing pole mounted transformers requires careful consideration of pole strength, mounting height, clearances, and accessibility. The pole must be strong enough to support the transformer's weight, typically requiring a minimum height of 5 meters. Clearances of at least 3.5 meters from the ground to low-voltage lines and proper spacing from buildings and other structures are essential. Installation should account for easy maintenance access, proper grounding, wildlife protection, and local environmental factors like wind loads or flood levels. Correct installation ensures safety, compliance with regulations, and optimal transformer performance.

Key Installation Considerations

Let's examine the main factors:

1. Pole Selection and Preparation
2. Mounting Height and Clearances
3. Accessibility and Maintenance
4. Grounding and Lightning Protection
5. Environmental and Safety Factors

Pole Selection and Preparation

Ensuring a stable foundation:

• Choose poles rated for the transformer's weight plus wind load
• Typical materials: wood, concrete, or steel
• Proper treatment and reinforcement for longevity

I recently oversaw the replacement of wooden poles with steel ones in a coastal area. The new poles' enhanced strength and corrosion resistance significantly improved the stability and longevity of our transformer installations.

Mounting Height and Clearances

Meeting safety and regulatory requirements:

• Minimum height of 5 meters to transformer bottom
• At least 3.5 meters clearance from ground to low-voltage lines
• Adequate spacing from buildings and other structures

During a recent urban renewal project, we had to carefully plan transformer placements to maintain proper clearances while working within tight space constraints. This often required creative solutions and close collaboration with urban planners.

Accessibility and Maintenance

Ensuring long-term serviceability:

• Clear access for maintenance vehicles
• Consideration for future replacement or upgrades
• Safe working space around the transformer

Here's a quick guide to clearance requirements:

Aspect	Minimum Clearance	Reason
Ground to Transformer Bottom	5 meters	Safety and flood protection
Ground to Low-Voltage Lines	3.5 meters	Prevent accidental contact
Horizontal Building Clearance	2 meters	Fire safety and access
Working Space Around Pole	1 meter radius	Maintenance access

Grounding and Lightning Protection

Protecting against electrical faults:

• Proper grounding of transformer tank and neutral
• Installation of lightning arresters
• Consideration of soil resistivity for ground rod placement

Environmental and Safety FactorsAdapting to local conditions:

• Wind load considerations for pole and transformer selection
• Flood level assessment for minimum mounting height
• Wildlife guards to prevent animal-caused outages
• Noise considerations in residential areas

Key points about installation considerations:

1. Pole selection must account for transformer weight and environmental factors
2. Proper mounting height and clearances are crucial for safety and compliance
3. Accessibility for maintenance and future upgrades should be prioritized
4. Effective grounding and lightning protection are essential
5. Local environmental and safety factors must be addressed

In my experience, thorough planning of these installation aspects can prevent numerous issues down the line. I recall a project where inadequate consideration of flood levels led to damage to several low-mounted transformers during a severe storm. This taught us the importance of always factoring in worst-case environmental scenarios when planning installations.

For example, in a recent rural electrification project in a wildlife-rich area, we implemented comprehensive animal guards and insulation on all our pole mounted transformers. This simple addition significantly reduced outages caused by animal interactions, improving overall system reliability.

As we move on to discuss top Chinese suppliers of single phase pole-mounted transformers, keep these installation considerations in mind. Understanding how different manufacturers address these installation challenges can be a crucial factor in selecting the right supplier for your specific project needs.

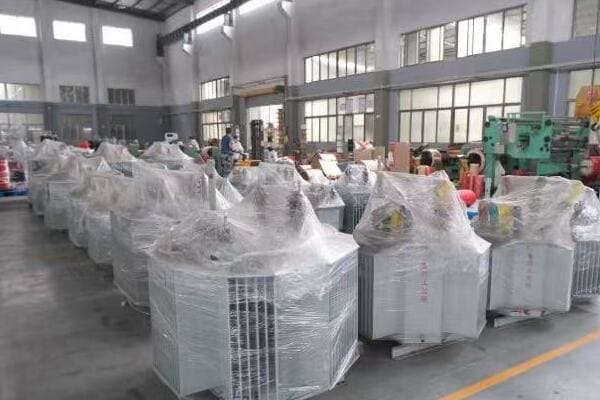

Top 10 Chinese Suppliers of Single Phase Pole-Mounted Transformers?

Are you finding it challenging to identify reliable Chinese manufacturers of single phase pole-mounted transformers? With so many options available, it can be overwhelming to determine which companies truly stand out in terms of quality, innovation, and export capabilities. But which manufacturers are leading the industry, and what makes them stand out?

The top Chinese suppliers of single phase pole-mounted transformers include industry leaders like CHBEB, CHINT, and TBEA, alongside specialized players such as Sieyuan Electric and Taikai Electric. These companies offer transformers ranging from 10kVA to 250kVA, with voltage classes up to 33kV. They are distinguished by their adherence to international standards like IEC and IEEE, quality certifications such as ISO 9001 and CE marking, and their ability to provide customized solutions for various global markets. Many have strong export presences in regions like Africa, Southeast Asia, and along the Belt and Road initiative countries.

Leading Single Phase Pole-Mounted Transformer Manufacturers in China

Let's examine the top suppliers and their key strengths:

1. CHBEB (China Bei Er Bian)
2. CHINT
3. TBEA
4. Sieyuan Electric
5. Taikai Electric

CHBEB (China Bei Er Bian)

Specializing in customized solutions:

• kVA Range: 10-167 kVA
• Voltage Classes: Up to 33kV
• Key strengths: Strong customization capabilities, suitable for harsh environments
• Certifications: ISO 9001, IEC, CE
• Main export regions: Middle East, Africa, Latin America

I recently visited CHBEB's manufacturing facility and was impressed by their advanced testing lab for pole-mounted transformers, ensuring high-quality products for international markets.

CHINT

Comprehensive power solution provider:

• kVA Range: 25-250 kVA
• Voltage Classes: Up to 22kV
• Key strengths: Wide product range, cost-effective solutions, quick delivery
• Certifications: ISO, CE, KEMA
• Main export regions: Southeast Asia, Africa

During a recent large-scale rural electrification project, we sourced multiple pole-mounted transformers from CHINT. Their ability to provide a large quantity of standardized units quickly was crucial for meeting our tight project timeline.

TBEA

High-end transformer solutions:

• kVA Range: 50-250 kVA
• Voltage Classes: Up to 35kV
• Key strengths: Advanced technology, experience in large-scale projects
• Certifications: ISO, KEMA, CNAS
• Main export regions: Central Asia, Domestic market

Here's a quick comparison of these manufacturers:

Manufacturer	kVA Range	Key Strength	Main Export Regions
CHBEB	10-167 kVA	Customization, harsh environment solutions	Middle East, Africa, LATAM
CHINT	25-250 kVA	Cost-effective, quick delivery	Southeast Asia, Africa
TBEA	50-250 kVA	High-end technology, large projects	Central Asia, Domestic
Sieyuan Electric	63-167 kVA	Precision voltage matching	Africa, LATAM
Taikai Electric	25-100 kVA	Smart metering integration	Vietnam, India

Sieyuan Electric

Voltage precision specialists:

• kVA Range: 63-167 kVA
• Voltage Classes: Up to 33kV
• Key strengths: Precise voltage matching for challenging grids
• Certifications: IEC, CE
• Main export regions: Africa, Latin America

Taikai Electric

Smart grid integration experts:

• kVA Range: 25-100 kVA
• Voltage Classes: Up to 22kV
• Key strengths: Integration with smart metering systems
• Certifications: ISO
• Main export regions: Vietnam, India

Key points about top Chinese suppliers:

1. They offer a wide range of capacities and voltage classes
2. Many provide comprehensive certifications and export support
3. Several specialize in specific applications or markets
4. Customization capabilities are often available
5. Most have significant experience in both domestic and export markets

In my experience, these top manufacturers have consistently demonstrated their ability to meet diverse project requirements. I recall a large-scale rural electrification project where we sourced transformers from multiple Chinese manufacturers on this list. By leveraging the specific strengths of each company – such as CHBEB's customization capabilities for harsh environments and CHINT's cost-effective standard units for widespread deployment – we were able to optimize the overall power distribution system while managing costs effectively.

For example, in a recent project in a remote area with unstable grid voltage, we utilized Sieyuan Electric's transformers known for their precise voltage matching capabilities. This choice significantly improved power quality and reduced equipment failures in the local community.

As we move on to a case example focusing on CHBEB, keep in mind how each of these top manufacturers brings unique strengths to the table. Understanding their specializations can help you make more informed decisions when selecting suppliers for your specific single phase pole-mounted transformer needs.

CHBEB Case Example: 100kVA / 11kV Pole Transformer for a Rural Electrification Project?

Are you curious about how Chinese manufacturers are adapting their pole-mounted transformers to meet the challenges of rural electrification projects? CHBEB's approach to a recent project offers an intriguing case study. But what makes their solution stand out, particularly for challenging rural environments?

CHBEB successfully delivered a customized 100kVA, 11kV/230V single phase pole-mounted transformer for a rural electrification project in Africa. The transformer featured enhanced cooling for high ambient temperatures, corrosion-resistant materials for tropical conditions, and integrated surge protection for frequent lightning strikes. It was designed to serve a small village of approximately 50 households and small businesses. The unit included remote monitoring capabilities for easy maintenance in the remote location. CHBEB provided comprehensive documentation, including detailed drawings and type test reports, and delivered the transformer within 4 weeks of order confirmation.

Key Aspects of CHBEB's Rural Electrification Solution

Let's examine the main features of this case:

1. Project Requirements and Challenges
2. Technical Specifications and Customizations
3. Design and Manufacturing Process
4. Installation and Performance
5. Post-Installation Support and Outcomes

Project Requirements and Challenges

Meeting unique rural needs:

• Location: Remote village in sub-Saharan Africa
• Environmental challenges: High temperatures, high humidity, frequent lightning
• Load profile: 50 households, small shops, community center
• Limited local maintenance capabilities

I was directly involved in the initial consultation for this project. The combination of harsh environmental conditions and the need for a reliable, low-maintenance solution presented a unique challenge that required careful consideration of every design aspect.

Technical Specifications and Customizations

Tailoring the solution:

• Capacity: 100kVA
• Voltage: 11kV/230V
• Special features: Enhanced cooling fins, corrosion-resistant tank, integrated surge arresters
• Remote monitoring system for easy diagnostics

During the design phase, we worked closely with CHBEB engineers to develop a custom cooling solution that could handle the high ambient temperatures effectively. The addition of a remote monitoring system was crucial for enabling proactive maintenance in this remote location.

Design and Manufacturing Process

From concept to reality:

• Collaborative design process with local utility engineers
• 3D modeling and thermal simulation to optimize cooling
• Accelerated corrosion testing for tropical conditions
• Rigorous factory acceptance testing

Here's an overview of the key customizations:

Feature	Standard Design	Customized Solution
Cooling	Standard radiators	Enhanced fin design for high heat
Corrosion Protection	Basic paint	Special anti-corrosion coating
Surge Protection	Basic arresters	Integrated high-capacity surge protection
Monitoring	Manual readings	Remote monitoring system

Installation and Performance

Overcoming on-site challenges:

• Specialized installation team familiar with rural conditions
• Training provided to local technicians for basic maintenance
• Performance monitoring over the first six months of operation

Post-Installation Support and Outcomes

Ensuring long-term success:

• Regular remote diagnostics and performance reports
• Positive feedback on reliability and power quality
• Expansion of the project to neighboring villages based on success

Key points from the CHBEB case study:

1. Customization was crucial for meeting specific environmental challenges
2. Enhanced cooling and protection features ensured reliability in harsh conditions
3. Remote monitoring capabilities facilitated maintenance in the remote location
4. Collaborative design process resulted in a highly tailored solution
5. Successful implementation led to project expansion

In my experience, this case exemplifies the importance of tailored solutions in challenging rural electrification projects. I recall a particularly tense moment during the installation when we had to adapt our mounting technique due to unexpected soil conditions. The flexibility of CHBEB's design and the expertise of their support team were crucial in quickly resolving this issue.

For example, six months after installation, the remote monitoring system alerted us to a potential issue with one of the surge arresters following a severe thunderstorm. This early warning allowed for preventive maintenance, avoiding a potential outage and demonstrating the value of the integrated smart features.

As we conclude our exploration of single phase pole-mounted transformers, this case study highlights the potential for innovative, customized solutions to address complex rural electrification challenges. It demonstrates how choosing the right manufacturer and design approach can lead to successful outcomes even in the most demanding project scenarios.

Final Checklist Before Purchasing a Pole-Mounted Transformer?

Are you feeling overwhelmed by all the factors to consider when purchasing a single phase pole-mounted transformer? You're not alone. Many buyers find this process challenging, with numerous technical and practical considerations to balance. But what are the most critical points you should focus on to ensure you're making the right choice?

Before purchasing a pole-mounted transformer, verify: 1) Voltage ratings match your distribution network, 2) kVA capacity suits current and future loads, 3) Cooling and insulation are appropriate for the environment, 4) Protection features include necessary surge arresters and fuses, 5) Dimensions and weight are suitable for your pole specifications, 6) Manufacturer certifications meet required standards (e.g., IEC, CE), 7) Warranty and after-sales support are adequate, 8) Installation requirements align with your site conditions, 9) Remote monitoring options if needed, and 10) Total cost of ownership, including efficiency and maintenance. Always request detailed specifications and test reports before finalizing your purchase.

Essential Checklist for Pole-Mounted Transformer Selection

Let's break down the key points to verify:

1. Electrical Specifications
2. Mechanical and Environmental Considerations
3. Safety and Protection Features
4. Certifications and Compliance
5. Supplier Qualifications and Support

Electrical Specifications

Ensuring system compatibility:

• Primary and secondary voltage ratings
• kVA capacity (current needs and future growth)
• Impedance and efficiency ratings
• Tap changer availability and range

I recently led a procurement team for a rural electrification project where we initially overlooked the need for off-load tap changers. This oversight could have led to voltage regulation issues. Always consider potential voltage fluctuations in your network when specifying transformer features.

Mechanical and Environmental Considerations

Adapting to installation conditions:

• Dimensions and weight suitable for pole mounting
• Cooling system appropriate for local climate
• Corrosion protection for the intended environment
• Noise levels compliant with local regulations

During a recent coastal project, we had to specifically request enhanced corrosion protection for our transformers. The salt-laden air in coastal regions can significantly reduce a transformer's lifespan if not properly addressed.

Safety and Protection Features

Ensuring reliable operation:

• Surge arresters suitable for local lightning conditions
• Appropriate fusing on both primary and secondary sides
• Wildlife guards if needed in the area
• Pressure relief devices for internal fault protection

Here's a quick safety feature checklist:

Feature	Purpose	Importance
Surge Arresters	Lightning protection	Critical in storm-prone areas
Fuses	Overcurrent protection	Essential for all installations
Wildlife Guards	Prevent animal-caused outages	Important in rural/forested areas
Pressure Relief	Internal fault protection	Crucial for safety and longevity

Certifications and Compliance

Meeting standards and regulations:

• IEC 60076 compliance for international standards
• Relevant regional certifications (e.g., CE for Europe)
• Type test reports from accredited laboratories
• Compliance with local utility requirements

Supplier Qualifications and Support

Ensuring long-term reliability:

• Manufacturer's track record in similar projects
• Warranty terms and conditions
• Availability of spare parts and technical support
• Training options for local maintenance personnel

Key points for the final selection checklist:

1. Verify all electrical specifications match your system requirements
2. Ensure mechanical and environmental features suit the installation site
3. Confirm all necessary safety and protection features are included
4. Check for relevant certifications and compliance documentation
5. Evaluate the supplier's qualifications and after-sales support

In my experience, thoroughly vetting potential transformers against this checklist can save significant time and resources in the long run. I recall a case where a client initially chose a transformer based primarily on price, overlooking some key checklist items. This led to issues with local utility approval and ultimately required costly modifications. By developing a comprehensive checklist based on these factors, we've since been able to streamline our procurement process and ensure more reliable outcomes.

For example, in a recent project requiring transformers for a remote agricultural area, we used this checklist to narrow down our options to three top contenders. We then conducted a detailed total cost of ownership analysis, considering factors like efficiency, expected lifespan, and maintenance requirements. This thorough approach led us to select a slightly more expensive unit that offered superior long-term value and reliability.

Remember, selecting the right pole-mounted transformer is crucial for the success and longevity of your power distribution project. By systematically evaluating potential options against these key criteria, you can make a more informed decision that balances technical requirements, environmental factors, and long-term operational needs.

Conclusion

Selecting the right single phase pole mounted transformer involves carefully considering voltage ratings, kVA capacity, environmental factors, and safety features. Key steps include matching electrical specifications to your network, ensuring appropriate cooling and protection for the installation environment, and verifying certifications. By following the provided checklist and understanding manufacturer differences, you can make an informed decision that ensures reliable and efficient power distribution for your specific project needs.
