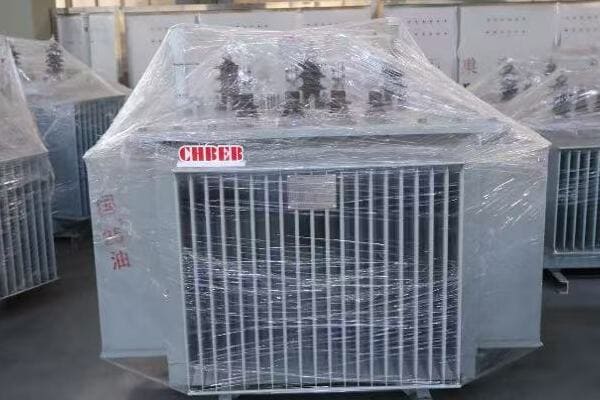

Are you struggling to decipher the technical specifications of pad mounted transformers? You're not alone. Many engineers and project managers find themselves overwhelmed by the array of parameters and ratings. But what if you had a clear, comprehensive guide to help you understand and select the right transformer for your project?

A pad mounted transformer's key specifications include voltage class (typically 11kV or 33kV), power rating in kVA, and cooling type (ONAN, ONAF). Understanding these parameters is essential for selecting the right transformer for your residential or commercial distribution project. These specifications determine the transformer's capacity, efficiency, and suitability for specific applications.

In this detailed guide, I'll walk you through the essential specifications of pad mounted transformers. We'll explore voltage classes, kVA ratings, cooling methods, and other crucial parameters. Whether you're an experienced engineer or new to transformer selection, this article will provide valuable insights to help you make informed decisions for your power distribution projects.

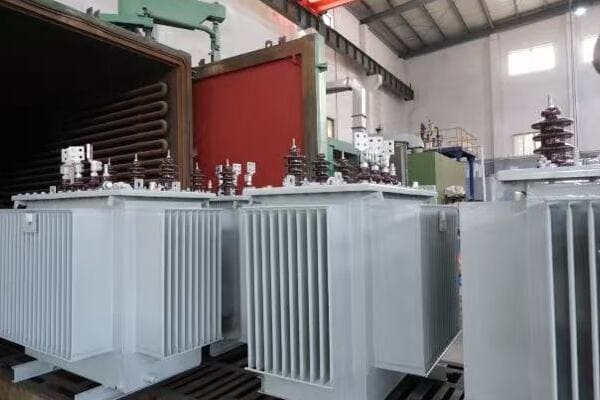

Understanding Voltage Classes in Pad Mounted Transformers?

Have you ever wondered why pad mounted transformers come in different voltage classes? Choosing the right voltage class is crucial for your project's success, but the options can be confusing. So, what do these voltage classes mean, and how do you select the appropriate one for your needs?

Voltage classes in pad mounted transformers typically include 11kV, 15kV, and 33kV. These classes define the primary voltage the transformer can handle. The choice depends on your local power distribution network and project requirements. Understanding these classes is essential for ensuring compatibility with your power system and meeting safety standards.

Exploring Voltage Classes

Let's break down the key aspects:

1. Common Voltage Classes
2. Differences Between Classes
3. Regional Standards and Compatibility
4. Selecting the Right Voltage Class
5. Future-Proofing Your Choice

Common Voltage Classes

The most frequently encountered voltage classes are:

• 11kV / 0.4kV: Common in many urban distribution networks
• 15kV / 0.4kV: Often used in North American systems
• 33kV / 0.4kV: Typically for larger distribution or small transmission applications

I recently worked on a project where understanding these classes was crucial. We had to choose between 11kV and 33kV transformers for a new residential development, considering both current needs and future expansion plans.

Differences Between Classes

Key distinctions include:

• Insulation levels and clearances
• Physical size and weight
• Typical applications and load capacities

During a factory visit, I observed how the physical construction of a 33kV transformer differed significantly from an 11kV unit, particularly in terms of insulation and bushing design.

Regional Standards and Compatibility

Voltage classes often align with regional standards:

• IEC standards prevalent in Europe and many international markets
• IEEE standards common in North America
• Specific national standards in countries like China (GB standards)

Here's a quick comparison of voltage class standards:

Region	Common Voltage Class	Applicable Standard
Europe	11kV	IEC 60076
North America	15kV	IEEE C57.12
Middle East	11kV/33kV	Often IEC with local variations
China	10kV	GB 1094

Selecting the Right Voltage Class

Factors to consider in selection:

• Local power distribution network voltage
• Load requirements and future growth
• Compatibility with existing infrastructure
• Regulatory and utility company requirements

Future-Proofing Your Choice

Consider long-term factors:

• Potential changes in local power infrastructure
• Anticipated load growth in the area
• Emerging technologies that might affect voltage requirements

Key points to remember about voltage classes:

1. Match the voltage class to your local distribution network
2. Consider regional standards and compatibility issues
3. Factor in both current needs and future expansion
4. Understand the physical and operational differences between classes
5. Consult with local utilities and regulatory bodies for guidance

In my experience, choosing the right voltage class is more than just matching numbers. I've seen projects where overlooking future expansion needs led to costly upgrades down the line. For instance, in a rapidly developing suburban area, we initially considered 11kV transformers but opted for 33kV units to accommodate the anticipated growth in power demand over the next decade.

As we move on to discuss kVA ratings, keep in mind how the voltage class interacts with power capacity. Understanding this relationship is crucial for selecting a transformer that not only meets your current needs but also provides flexibility for future changes in your power distribution requirements.

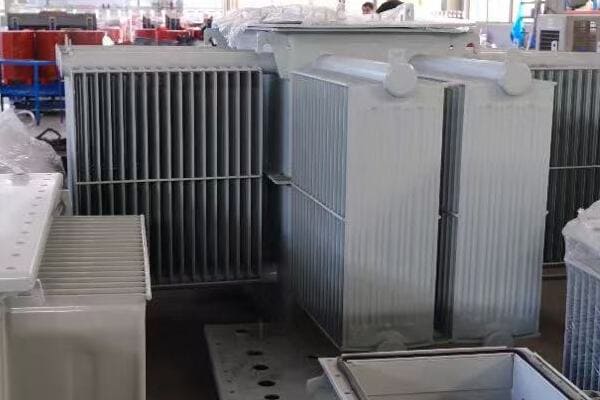

kVA Ratings: How to Match Capacity with Load?

Are you unsure about how to determine the right kVA rating for your pad mounted transformer? Matching transformer capacity to load requirements is a critical yet often confusing aspect of transformer selection. But how do you ensure you're not over or under-sizing your transformer, and what factors should you consider in this process?

kVA ratings in pad mounted transformers indicate their power capacity. Common ratings range from 100 kVA to 2500 kVA for distribution applications. Selecting the right rating involves analyzing current load requirements, anticipating future growth, and considering factors like peak demand and load diversity. Proper sizing ensures efficient operation, prevents overloading, and allows for future expansion.

Determining the Right kVA Rating

Let's explore the key considerations:

1. Understanding kVA Ratings
2. Typical Applications and Their kVA Needs
3. Load Calculation and Analysis
4. Future Growth and Expansion Considerations
5. Overload Capacity and Safety Margins

Understanding kVA Ratings

kVA (kilovolt-amperes) represents apparent power:

• Measures the transformer's capacity to handle load
• Ranges typically from 100 kVA to 2500 kVA in distribution transformers
• Directly relates to the transformer's physical size and cost

I recently worked on a project where explaining the concept of kVA to a client was crucial. We used real-world analogies, comparing it to the engine size in cars, which helped them understand the importance of proper sizing.

Typical Applications and Their kVA Needs

Different settings require different capacities:

• Residential areas: Often 100-500 kVA
• Commercial buildings: 500-1000 kVA
• Industrial applications: 1000-2500 kVA or higher

During a recent suburban development project, we used multiple 500 kVA transformers strategically placed to efficiently distribute power across the neighborhood.

Load Calculation and Analysis

Accurate load calculation is crucial:

• Sum up the connected loads
• Consider load diversity factor
• Account for power factor correction

Here's a simplified load calculation example:

Load Type	Connected Load	Diversity Factor	Calculated Load
Residential	600 kVA	0.7	420 kVA
Commercial	400 kVA	0.8	320 kVA
Street Lighting	50 kVA	1.0	50 kVA
Total	1050 kVA	-	790 kVA

Future Growth and Expansion Considerations

Plan for the future:

• Estimate load growth over 5-10 years
• Consider potential new developments in the area
• Allow for technological advancements (e.g., EV charging stations)

Overload Capacity and Safety Margins

Factor in operational flexibility:

• Most transformers can handle short-term overloads
• Consider cyclic load profiles
• Add a safety margin of 10-20% for unexpected load increases

Key points for selecting the right kVA rating:

1. Accurately calculate current load requirements
2. Consider load diversity and power factor
3. Plan for future growth and expansion
4. Understand the specific needs of your application (residential, commercial, industrial)
5. Include safety margins for operational flexibility

In my experience, the art of selecting the right kVA rating lies in balancing current needs with future possibilities. I've seen cases where under-sizing led to premature replacements, while over-sizing resulted in unnecessary costs and inefficiencies.

For example, in a recent commercial development project, we initially considered a 1000 kVA transformer based on immediate needs. However, after analyzing potential future expansions and the increasing trend of EV charging stations, we opted for a 1500 kVA unit. This decision provided headroom for growth without significant additional upfront costs.

As we move on to discuss cooling methods, remember that the kVA rating is closely tied to the transformer's cooling requirements. Understanding this relationship will help you make a more informed decision about the overall transformer specification, ensuring both capacity and cooling are optimally matched to your project needs.

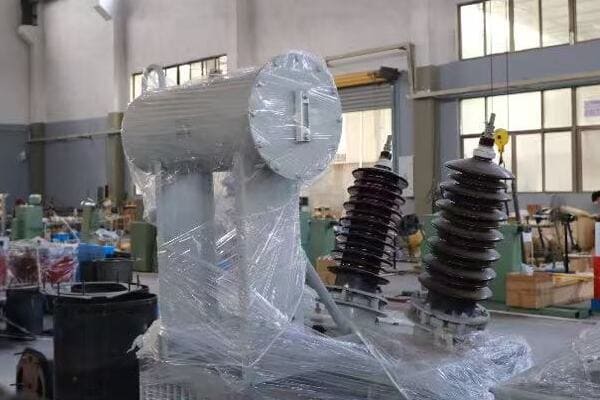

Cooling Methods: ONAN vs ONAF vs KNAN?

Are you puzzled by the alphabet soup of transformer cooling methods? ONAN, ONAF, KNAN – these acronyms can be confusing, but understanding them is crucial for selecting the right transformer for your environment. But what do these cooling methods mean, and how do they affect transformer performance and maintenance?

Cooling methods in pad mounted transformers include ONAN (Oil Natural Air Natural), ONAF (Oil Natural Air Forced), and KNAN (Natural Convection Dry-Type). ONAN is most common, using natural oil and air circulation. ONAF adds fans for enhanced cooling, while KNAN uses air only, suitable for environmentally sensitive areas. The choice impacts transformer efficiency, maintenance needs, and environmental considerations.

Understanding Transformer Cooling Methods

Let's break down these cooling types:

1. ONAN (Oil Natural Air Natural)
2. ONAF (Oil Natural Air Forced)
3. KNAN (Natural Convection Dry-Type)
4. Factors Influencing Cooling Method Selection
5. Maintenance and Environmental Considerations

ONAN (Oil Natural Air Natural)

The most common cooling method:

• Uses natural circulation of oil inside the transformer
• Heat dissipates through the tank to the surrounding air
• Suitable for most standard applications

I recently worked on a residential project where ONAN transformers were ideal due to their simplicity and low maintenance requirements.

ONAF (Oil Natural Air Forced)

Enhanced cooling for higher capacities:

• Similar to ONAN but with added cooling fans
• Fans activate when temperature rises above a certain point
• Allows for higher load capacity or operation in warmer climates

During a factory tour, I observed how ONAF transformers could handle higher loads more efficiently than ONAN units of the same size.

KNAN (Natural Convection Dry-Type)

Air-cooled option for special applications:

• Uses no oil, cooled by natural air convection
• Ideal for environmentally sensitive or indoor locations
• Often more expensive but eliminates risk of oil leaks

Here's a comparison of these cooling methods:

Cooling Method	Principle	Best For	Maintenance Needs
ONAN	Natural oil and air cooling	Standard applications	Low
ONAF	Oil cooling with forced air	Higher capacities, warmer climates	Medium
KNAN	Air cooling only	Indoor, environmentally sensitive areas	Low to Medium

Factors Influencing Cooling Method Selection

Consider these aspects when choosing:

• Ambient temperature and environmental conditions
• Load profile and peak demands
• Installation location (indoor vs outdoor)
• Environmental regulations and safety considerations

Maintenance and Environmental Considerations

Different cooling methods have varying impacts:

• ONAN and ONAF require periodic oil testing and potential replacement
• KNAN eliminates oil-related maintenance but may require more frequent inspections
• Environmental risk assessment needed for oil-filled transformers in sensitive areas

Key points about transformer cooling methods:

1. ONAN is the most common and suitable for most standard applications
2. ONAF provides enhanced cooling for higher capacities or warmer climates
3. KNAN is ideal for environmentally sensitive or indoor installations
4. Cooling method affects transformer efficiency and load capacity
5. Maintenance requirements vary significantly between methods

In my experience, selecting the right cooling method is crucial for long-term transformer performance and reliability. I've seen cases where the wrong choice led to operational issues and increased maintenance costs.

For instance, in a recent project for a data center, we opted for KNAN transformers despite their higher initial cost. This choice eliminated concerns about potential oil leaks in the sensitive server environment and aligned with the client's stringent fire safety requirements.

As we move on to discuss additional technical parameters, keep in mind how the cooling method interacts with other specifications. Understanding these relationships will help you make a more holistic decision in selecting the right transformer for your specific needs.

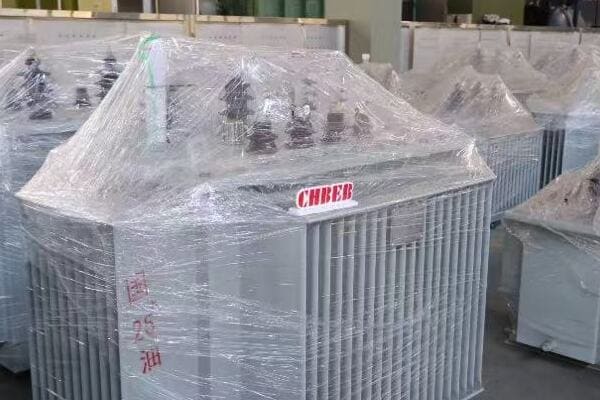

Additional Technical Parameters You Shouldn't Ignore?

Are you focusing solely on voltage and kVA ratings when selecting a pad mounted transformer? While these are crucial, overlooking other technical parameters can lead to suboptimal performance or even failure. But what are these often-ignored specifications, and why are they so important for your transformer's operation and longevity?

Key additional parameters for pad mounted transformers include short-circuit impedance, temperature rise class, insulation level, connection type (loop/radial), and IP rating. These factors affect the transformer's performance, safety, and compatibility with your power system. Understanding these parameters ensures proper integration, efficient operation, and compliance with safety standards in your specific application.

Critical Technical Parameters to Consider

Let's explore these often-overlooked specifications:

1. Short-Circuit Impedance
2. Temperature Rise Class
3. Insulation Level
4. Connection Type (Loop/Radial)
5. IP Rating (Ingress Protection)

Short-Circuit Impedance

A crucial parameter for system stability:

• Typically ranges from 4% to 6% for distribution transformers
• Affects fault current levels and system protection coordination
• Lower impedance means better voltage regulation but higher fault currents

I recently worked on a project where carefully selecting the short-circuit impedance was crucial for integrating the transformer with existing circuit breakers and protection schemes.

Temperature Rise Class

Determines the transformer's thermal performance:

• Common classes: 55°C, 65°C, 80°C (average winding rise)
• Higher class allows for more compact design but may reduce lifespan
• Must be matched with ambient temperature conditions

During a recent installation in a hot climate, choosing a higher temperature rise class was essential to ensure reliable operation without oversizing the transformer.

Insulation Level

Defines the transformer's ability to withstand voltage surges:

• Specified by Basic Impulse Level (BIL) rating
• Must match or exceed the system's insulation requirements
• Higher BIL offers better protection but increases cost

Here's a quick overview of insulation levels:

Voltage Class	Typical BIL (kV)	Application
15 kV	95	Standard distribution
25 kV	125	Medium voltage systems
35 kV	150	Sub-transmission

Connection Type (Loop/Radial)

Affects system configuration and reliability:

• Loop: Allows for power feed from multiple directions
• Radial: Single power feed, simpler but less reliable
• Choice impacts switchgear requirements and system redundancy

I recall a suburban development project where opting for a loop configuration significantly enhanced the reliability of the power distribution network.

IP Rating (Ingress Protection)

Crucial for outdoor installations:

• Defines protection against solid objects and water ingress
• Common ratings: IP54, IP55, IP65
• Higher rating necessary for harsh environments

Key points about additional technical parameters:

1. Short-circuit impedance affects system protection and stability
2. Temperature rise class must match operational environment
3. Insulation level (BIL) is crucial for surge protection
4. Connection type impacts system reliability and configuration
5. IP rating is essential for environmental protection

In my experience, these parameters are often overlooked but can significantly impact a transformer's performance and longevity. I've seen cases where neglecting these factors led to premature failures or incompatibility issues within the power system.

For example, in a coastal industrial project, selecting transformers with an appropriate IP rating and insulation level was crucial. The higher IP65 rating and enhanced insulation we chose protected against salt spray and humidity, ensuring long-term reliability in the harsh marine environment.

As we move on to discuss brand differences in handling specifications, keep these additional parameters in mind. Understanding how different manufacturers approach these specifications can provide valuable insights into the overall quality and suitability of their transformers for your specific application.

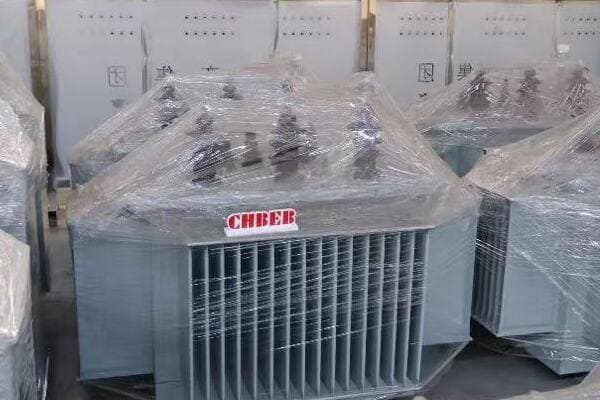

Brand Differences: How Top Manufacturers Handle Specifications?

Are you finding it challenging to differentiate between transformer brands based on their specifications? While many manufacturers offer similar basic features, their approach to certain specifications can vary significantly. But how do top brands differ in their handling of key parameters, and what does this mean for your project?

Top transformer manufacturers like ABB, SUNTEN, and CHBEB differ in their approach to specifications. ABB focuses on energy-efficient designs with optimized oil flow. SUNTEN emphasizes compact designs with enhanced cooling efficiency. CHBEB specializes in customized solutions, particularly for export projects to the Middle East. Understanding these brand-specific approaches helps in selecting the most suitable transformer for your specific project requirements.

Analyzing Brand Approaches to Specifications

Let's examine how leading brands handle key specifications:

1. ABB: Focus on Energy Efficiency
2. SUNTEN: Compact Design and Cooling Efficiency
3. CHBEB: Customization for Export Markets
4. TBEA: High-Capacity Urban Solutions
5. Siemens: Advanced Monitoring and Smart Features

ABB: Focus on Energy Efficiency

ABB's approach centers on optimizing energy performance:

• Advanced oil flow designs for improved cooling
• Early adoption of EU energy efficiency standards
• Focus on reducing no-load losses

I recently worked with an ABB transformer that showcased their innovative oil flow design. The transformer's efficiency was noticeably higher than standard models, particularly in partial load conditions common in residential areas.

SUNTEN: Compact Design and Cooling Efficiency

SUNTEN specializes in space-saving solutions:

• Emphasis on compact transformer designs
• Enhanced cooling systems for high-density urban areas
• Balance between size reduction and performance

During a project in a crowded urban setting, SUNTEN's compact design allowed for easier installation in a limited space without compromising on power capacity.

CHBEB: Customization for Export Markets

CHBEB excels in tailored solutions for international markets:

• Bilingual nameplates for Middle Eastern projects
• Dual certification (IEC/IEEE) for global compatibility
• Adaptable designs for diverse environmental conditions

Here's a comparison of these brands' approaches:

Brand	Key Focus	Notable Feature	Best Suited For
ABB	Energy Efficiency	Optimized oil flow	High-efficiency requirements
SUNTEN	Compact Design	Enhanced cooling in small footprint	Urban, space-constrained projects
CHBEB	Export Customization	Dual standard compliance	International projects
TBEA	Urban High Capacity	Advanced cooling for dense areas	Large-scale urban developments
Siemens	Smart Features	Integrated monitoring systems	Smart grid applications

TBEA: High-Capacity Urban Solutions

TBEA focuses on meeting the demands of dense urban environments:

• Specialization in high-capacity transformers for city centers
• Advanced cooling capabilities for handling large loads
• Designs optimized for high-rise and commercial complexes

Siemens: Advanced Monitoring and Smart Features

Siemens leads in integrating smart technology:

• Built-in monitoring and diagnostic systems
• Compatibility with smart grid technologies
• Focus on predictive maintenance capabilities

Key points about brand differences in specifications:

1. ABB prioritizes energy efficiency and reduced losses
2. SUNTEN excels in compact, efficient designs for urban use
3. CHBEB offers strong customization for international standards
4. TBEA specializes in high-capacity solutions for urban centers
5. Siemens focuses on smart features and advanced monitoring

In my experience, these brand-specific approaches can significantly impact project outcomes. I've seen cases where choosing the right brand based on their specialization led to optimal performance and easier integration into existing systems.

For instance, in a recent smart city project, we opted for Siemens transformers due to their advanced monitoring capabilities. This choice allowed for seamless integration with the city's smart grid infrastructure, providing real-time data and predictive maintenance features that were crucial for the project's success.

As we move on to our case study, keep these brand differences in mind. Understanding how different manufacturers approach specifications can be a key factor in selecting the right transformer for your specific project needs, especially in unique or challenging environments like the Middle East.

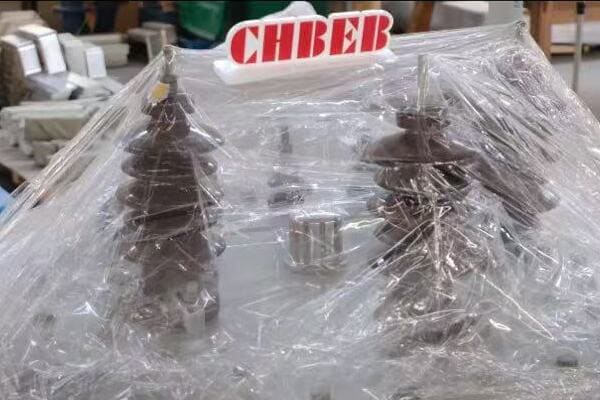

Case Study: Selecting a Pad-Mounted Unit for a Middle East Housing Project?

Have you ever wondered how theoretical knowledge about transformer specifications translates into real-world decision-making? Let's explore a practical case study that demonstrates the complexities of selecting the right pad-mounted transformer for a challenging environment. How do you navigate the myriad of specifications to find the perfect fit for a Middle Eastern housing project?

In this case study, we'll examine the selection process for a pad-mounted transformer in a Middle Eastern housing project. Key considerations included high ambient temperatures, sandy conditions, and specific voltage requirements. The chosen transformer needed to balance cooling efficiency, environmental protection, and compliance with local standards. This real-world example illustrates how various specifications come into play in practical decision-making.

Case Study: Middle East Housing Project Transformer Selection

Let's break down the selection process:

1. Project Requirements and Challenges
2. Specification Analysis
3. Brand and Model Comparison
4. Final Selection and Rationale
5. Installation and Performance Outcomes

Project Requirements and Challenges

The project presented unique demands:

• Location: Coastal area in the United Arab Emirates
• Climate: High temperatures (up to 50°C) and sandy conditions
• Voltage: 11kV/400V distribution system
• Load: Mixed residential and light commercial use

I remember visiting the site and being struck by the harsh environmental conditions. The combination of heat, humidity, and sand posed significant challenges for transformer selection.

Specification Analysis

We focused on these key specifications:

• Cooling method: ONAF preferred for enhanced cooling
• IP rating: Minimum IP55 for sand and dust protection
• Temperature rise: 55°C rise class to handle high ambient temperatures
• kVA rating: 1000 kVA to serve a cluster of residential buildings and shops

Here's a summary of our specification requirements:

Specification	Requirement	Reason
Cooling Method	ONAF	To handle high ambient temperatures
IP Rating	IP55 or higher	Protection against sand and dust
Temperature Rise	55°C class	Suitable for extreme heat
kVA Rating	1000 kVA	Matched to project load requirements
Voltage Class	11kV primary	Compatibility with local grid

Brand and Model Comparison

We evaluated options from several manufacturers:

• ABB: Offered high efficiency but at a premium price
• CHBEB: Provided customization for Middle East conditions
• SUNTEN: Proposed a compact design with enhanced cooling

Final Selection and Rationale

After careful consideration, we chose CHBEB's customized model:

• Tailored for Middle Eastern conditions
• Featured enhanced sand and dust protection (IP56 rated)
• Included special coating for corrosion resistance in coastal areas
• Offered bilingual (Arabic/English) nameplates and documentation
• Provided competitive pricing and strong local support

Installation and Performance Outcomes

The selected transformer performed exceptionally well:

• Successfully handled peak summer temperatures without issues
• Maintained efficiency despite challenging environmental conditions
• Required minimal maintenance in its first year of operation

Key lessons from this case study:

1. Environmental conditions play a crucial role in specification requirements
2. Customization can be vital for challenging environments
3. Balancing performance, protection, and cost is essential
4. Local support and documentation can be deciding factors
5. Real-world performance often validates careful specification analysis

In my experience, this case study exemplifies the importance of thorough specification analysis and brand comparison. The success of the project hinged on selecting a transformer that not only met technical requirements but also adapted to specific environmental challenges.

For instance, the decision to prioritize enhanced environmental protection and local customization over pure efficiency metrics proved crucial. The transformer's resilience to sand and heat ensured consistent performance and reduced maintenance needs, justifying the initial investment in a tailored solution.

This case study demonstrates that selecting the right pad-mounted transformer goes beyond just matching kVA ratings and voltage classes. It requires a holistic approach, considering environmental factors, long-term performance, and even cultural aspects like bilingual labeling. Such attention to detail in the selection process can significantly impact the success and longevity of power distribution projects, especially in challenging environments like the Middle East.

Conclusion

Understanding pad mounted transformer specifications is crucial for selecting the right unit for your project. From voltage classes and kVA ratings to cooling methods and brand-specific features, each aspect plays a vital role in ensuring optimal performance and longevity. By carefully considering these specifications and applying them to real-world scenarios, you can make informed decisions that lead to efficient, reliable, and cost-effective power distribution solutions.
Remember, at chbeb-ele, we're not just sharing information – we're empowering you to be part of the solution in creating a secure, clean, and efficient energy future. Let's continue this journey together.
