Are you struggling to decide between a power transformer and a distribution transformer for your project? You're not alone. Many engineers and project managers find this choice challenging, especially when dealing with complex power systems. But what if you could easily determine which transformer type is best suited for your specific needs?

Power transformers are used for high-voltage, long-distance transmission, while distribution transformers reduce voltage for local use. Choosing the right one depends on load capacity, voltage level, installation environment, and project type. This guide helps engineers and buyers select the best option for reliable power delivery.

In this comprehensive guide, I'll walk you through the key differences between power and distribution transformers, and provide you with practical insights to help you make the right choice for your project. Whether you're working on a large-scale industrial facility or a local power distribution system, this article will equip you with the knowledge to select the optimal transformer solution.

What's the Core Difference Between Power and Distribution Transformers?

Have you ever wondered why we need different types of transformers in our power systems? The answer lies in the distinct roles that power and distribution transformers play. But what exactly sets these two types apart, and why is this difference crucial for your project?

Power transformers are designed for high-voltage transmission between power plants and substations, handling large capacities over long distances. Distribution transformers, on the other hand, step down voltage for final delivery to end-users, managing smaller loads in local areas. This fundamental difference in purpose dictates their design, capacity, and application.

Key Distinctions Between Power and Distribution Transformers

Let's break down the core differences:

1. Purpose and Position in the Grid
2. Voltage and Capacity Handling
3. Design and Construction
4. Efficiency and Load Management

Purpose and Position in the Grid

• Power Transformers:

  • Connect generation plants to transmission systems
  • Link different voltage levels in transmission networks
  • Typically found in power plants and major substations

• Distribution Transformers:

  • Step down voltage for final consumer use
  • Located near end-users (pole-mounted, pad-mounted, or in buildings)
  • Form the last link in the power distribution chain

I once worked on a project where we had to explain these differences to a client who was confused about why they couldn't use a large distribution transformer instead of a power transformer for their new industrial park substation. By illustrating the grid positions and purposes, we helped them understand why a power transformer was essential for their high-voltage, high-capacity needs.

Voltage and Capacity Handling

• Power Transformers:

  • Handle voltages from 33kV up to 765kV or higher
  • Capacities typically range from 10 MVA to over 1000 MVA

• Distribution Transformers:

  • Operate at lower voltages, usually below 33kV
  • Capacities generally from 5 kVA to 2500 kVA

Design and Construction

The design differences reflect their distinct roles:

Aspect	Power Transformer	Distribution Transformer
Size	Large and heavy	Compact and lighter
Cooling	Often ONAN/ONAF	AN or ONAN
Core Design	More complex	Simpler, standardized
Insulation	Primarily oil-based	Oil or dry-type options

During a recent factory tour, I observed the stark contrast in manufacturing processes between these two types. The precision and scale involved in power transformer construction were impressive, while the more standardized assembly of distribution transformers highlighted their adaptability for various installation scenarios.

Efficiency and Load Management

• Power Transformers:

  • Optimized for high efficiency at full load
  • Designed for constant, heavy loads
  • Often equipped with advanced cooling and monitoring systems

• Distribution Transformers:

  • Designed to maintain efficiency across varying loads
  • Built to handle daily load fluctuations
  • Often simpler in design for ease of maintenance and replacement

Understanding these core differences is crucial for making the right choice for your project. In my experience, misunderstanding these distinctions can lead to significant issues in system design and performance. Whether you're planning a large-scale power transmission project or a local distribution network, keeping these fundamental differences in mind will guide you towards the right transformer choice, ensuring optimal performance and reliability in your power system.

Voltage and Capacity Range: Which One Fits Your Needs?

Are you finding it challenging to determine the right voltage and capacity range for your transformer? You're not alone. Many professionals struggle with this crucial decision, which can significantly impact the efficiency and reliability of their power systems. But how do you know which transformer type aligns with your specific voltage and capacity requirements?

Power transformers typically handle voltages from 33kV to 765kV with capacities ranging from 10 MVA to over 1000 MVA, suitable for high-voltage transmission. Distribution transformers operate at lower voltages, usually up to 33kV, with capacities from 5 kVA to 2500 kVA, ideal for local power distribution. Your choice depends on your project's specific power needs and grid position.

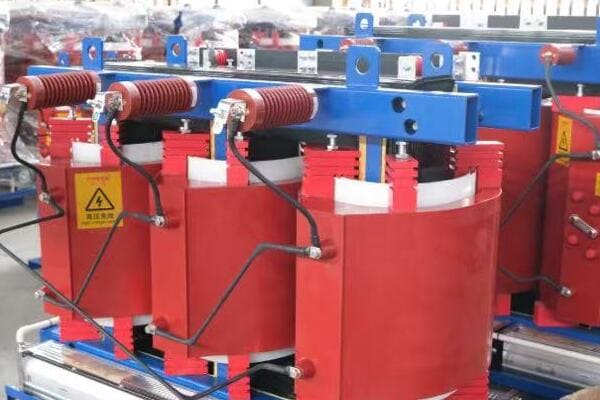

Detailed Comparison of Voltage and Capacity Ranges

Let's break down the voltage and capacity ranges for both transformer types:

Characteristic	Power Transformer	Distribution Transformer
Voltage Range	33kV - 765kV+	400V - 33kV
Typical Capacity	10 MVA - 1000+ MVA	5 kVA - 2500 kVA
Common Applications	Power plants, Substations	Residential, Commercial, Light Industrial

Power Transformer Voltage and Capacity

Power transformers are designed for high-voltage, high-capacity applications:

• Voltage Levels:

  • Primary: Often 132kV, 220kV, 400kV, or higher
  • Secondary: Typically 33kV, 66kV, or 132kV

• Capacity Range:

  • Small: 10 MVA - 50 MVA
  • Medium: 50 MVA - 200 MVA
  • Large: 200 MVA - 1000+ MVA

I once worked on a project for a major hydroelectric plant where we installed a 500 MVA, 22kV/400kV step-up transformer. The sheer size and capacity of this unit were awe-inspiring, highlighting the critical role these transformers play in our power infrastructure.

Distribution Transformer Voltage and Capacity

Distribution transformers handle the final voltage step-down for end-user consumption:

• Voltage Levels:

  • Primary: Often 11kV or 33kV
  • Secondary: Typically 400V/230V for three-phase systems

• Capacity Range:

  • Small: 5 kVA - 100 kVA (residential, small commercial)
  • Medium: 100 kVA - 1000 kVA (larger commercial, light industrial)
  • Large: 1000 kVA - 2500 kVA (industrial, large commercial complexes)

During a recent urban development project, we deployed multiple 1000 kVA, 11kV/400V distribution transformers throughout the area. These units efficiently powered everything from residential blocks to shopping centers, showcasing the versatility of distribution transformers in meeting diverse local power needs.

Choosing the Right Range for Your Project

When selecting the appropriate voltage and capacity range, consider:

1. Grid Connection Point:

   • High-voltage transmission? → Power Transformer
   • Local distribution network? → Distribution Transformer

2. Load Requirements:

   • Large, constant load (e.g., industrial plant)? → Consider Power Transformer
   • Variable, smaller loads (e.g., residential area)? → Distribution Transformer

3. Future Expansion:

   • Always factor in potential load growth
   • Easier to upgrade distribution transformers than power transformers

4. Regulatory Requirements:

   • Ensure compliance with local grid codes and standards

In my experience, the key to selecting the right voltage and capacity range lies in thoroughly understanding your current needs and future projections. I recall a project where a client initially underestimated their future power requirements. By carefully analyzing their growth plans, we were able to recommend a slightly larger capacity transformer that accommodated their expansion without needing an expensive upgrade just a few years later.

Remember, while these ranges provide a general guideline, each project has unique requirements. Always consult with experienced electrical engineers or transformer manufacturers to ensure you're making the best choice for your specific application. By carefully considering your voltage and capacity needs, you can select a transformer that not only meets your current requirements but also provides the flexibility and efficiency to support your power system well into the future.

Load Behavior and Usage Scenarios?

Are you unsure how different load behaviors impact your choice between power and distribution transformers? Understanding load patterns and usage scenarios is crucial for selecting the right transformer, but many find this aspect confusing. How do you match transformer characteristics to your specific load requirements?

Power transformers are designed for constant, high loads typical in transmission systems and large industrial applications. Distribution transformers handle variable loads common in commercial and residential settings. Your choice depends on load consistency, peak demands, and daily fluctuations. Matching transformer type to load behavior ensures optimal efficiency and longevity of your power system.

Understanding Load Behavior and Usage Scenarios

Let's explore how load behavior influences transformer selection:

1. Constant vs. Variable Loads
2. Peak Load Considerations
3. Daily Load Fluctuations
4. Specific Usage Scenarios

Constant vs. Variable Loads

• Power Transformers:

  • Designed for constant, high loads
  • Optimal efficiency at 80-90% of rated capacity
  • Typical in power plants, substations, large industrial facilities

• Distribution Transformers:

  • Built to handle variable loads efficiently
  • Maintain good efficiency across a range of load levels
  • Common in residential areas, commercial buildings, small industries

I once worked on a project for a steel mill where we installed a 100 MVA power transformer. The constant high load from the electric arc furnaces made a power transformer the ideal choice, as it could efficiently handle the steady, high-power demand.

Peak Load Considerations

Understanding peak loads is crucial for proper sizing:

Transformer Type	Peak Load Handling
Power Transformer	Designed for sustained peak loads
Distribution Transformer	Can handle short-term overloads, but less suited for constant peaks

In a recent commercial development project, we opted for multiple smaller distribution transformers instead of one large unit. This approach allowed us to better manage peak loads during business hours while maintaining efficiency during off-peak times.

Daily Load Fluctuations

• Power Transformers:

  • Less affected by daily fluctuations
  • Often operate at near-constant load

• Distribution Transformers:

  • Designed to handle daily load variations efficiently
  • Load may vary significantly from day to night

Specific Usage Scenarios

Let's look at some common scenarios and the recommended transformer type:

1. Large Industrial Facility:

   • Scenario: Constant high power demand, 24/7 operation
   • Recommendation: Power Transformer
   • Example: 50 MVA, 132kV/33kV for a chemical plant

2. Residential Neighborhood:

   • Scenario: Variable load, peak during evenings
   • Recommendation: Distribution Transformer
   • Example: 500 kVA, 11kV/400V pad-mounted unit

3. Office Complex:

   • Scenario: Moderate load, peaks during work hours
   • Recommendation: Distribution Transformer
   • Example: 2000 kVA, 33kV/400V dry-type transformer

4. Renewable Energy Plant:

   • Scenario: Variable generation, high capacity
   • Recommendation: Power Transformer for grid connection
   • Example: 100 MVA, 33kV/220kV for a large solar farm

5. Hospital:

   • Scenario: Critical loads, need for reliability
   • Recommendation: Multiple Distribution Transformers for redundancy
   • Example: 3 x 1500 kVA, 11kV/400V units

In my experience, carefully analyzing load behavior is crucial for optimal transformer selection. I recall a project where a data center initially considered a single large power transformer. After studying their load profile, which showed significant variations based on server usage, we recommended a modular approach with multiple distribution transformers. This solution provided better efficiency across varying loads and enhanced reliability through redundancy.

When considering load behavior and usage scenarios, keep these key points in mind:

1. Analyze historical load data if available
2. Consider future growth and potential load changes
3. Factor in seasonal variations in power demand
4. Evaluate the criticality of the load for reliability planning

By thoroughly understanding your load behavior and specific usage scenario, you can select a transformer that not only meets your current needs but also provides the flexibility and efficiency to support your power system as it evolves. Remember, the right choice balances immediate requirements with long-term operational efficiency and reliability.

Installation and Maintenance Considerations?

Are you grappling with the complexities of transformer installation and maintenance? Many project managers and engineers find this aspect challenging, especially when comparing power and distribution transformers. But how do these considerations differ, and why are they crucial for your project's success?

Power transformers typically require large, secure substations with specialized foundations and cooling systems. Their maintenance is complex and infrequent. Distribution transformers are more flexible, often installed on poles, pads, or in buildings, with simpler, more frequent maintenance needs. Understanding these differences is key to proper planning, budgeting, and long-term system reliability.

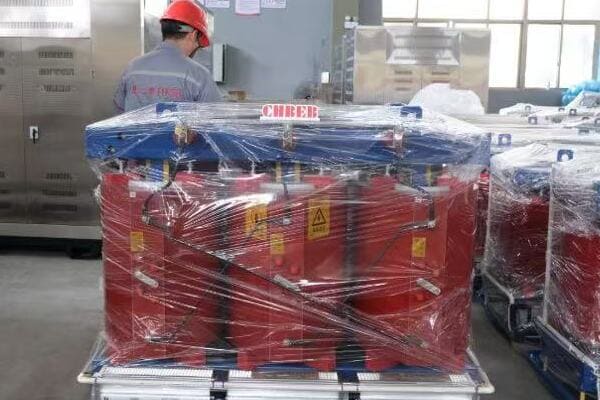

Key Installation and Maintenance Factors

Let's explore the critical aspects of installation and maintenance for both transformer types:

1. Installation Requirements
2. Space and Location Considerations
3. Cooling and Environmental Factors
4. Maintenance Frequency and Complexity
5. Lifespan and Replacement Strategies

Installation Requirements

• Power Transformers:

  • Require large, secure substations
  • Need robust foundations due to heavy weight
  • Often involve complex transportation logistics
  • Typically outdoor installations with extensive safety measures

• Distribution Transformers:

  • More flexible installation options (pole-mounted, pad-mounted, indoor)
  • Lighter weight allows for easier transportation and installation
  • Can be installed closer to end-users

I once managed a project installing a 200 MVA power transformer in a new substation. The process involved specialized heavy transport, a 500-ton crane, and extensive site preparation. In contrast, a recent urban renewal project involved installing multiple 1000 kVA distribution transformers, which we could easily position using standard equipment.

Space and Location Considerations

Aspect	Power Transformer	Distribution Transformer
Typical Location	Substations, power plants	Near end-users, urban areas
Space Required	Large area, often fenced	Compact, can fit in small spaces
Proximity to Load	Can be distant from load centers	Installed close to load points

Cooling and Environmental Factors

• Power Transformers:

  • Often use sophisticated cooling systems (ONAN, ONAF, OFAF)
  • Require consideration of oil containment for environmental protection
  • Need to account for noise levels in location planning

• Distribution Transformers:

  • Many use simpler cooling methods (AN, ONAN)
  • Dry-type options available for indoor or environmentally sensitive areas
  • Generally quieter operation, suitable for residential areas

During a recent project in a densely populated area, we opted for dry-type distribution transformers to address environmental concerns and reduce fire risks, showcasing the flexibility these units offer in challenging installation environments.

Maintenance Frequency and Complexity

• Power Transformers:

  • Require less frequent but more complex maintenance
  • Often involve specialized technicians and equipment
  • Typical maintenance includes oil testing, winding resistance measurements, and insulation tests

• Distribution Transformers:

  • Need more frequent but simpler maintenance
  • Can often be serviced by general electrical maintenance staff
  • Maintenance typically includes visual inspections, basic electrical tests, and cleaning

I recall a comprehensive maintenance operation on a large power transformer that took a team of specialists several days to complete. In contrast, the routine checks on distribution transformers in the same network were often completed in a matter of hours by local technicians.

Lifespan and Replacement Strategies

• Power Transformers:

  • Longer lifespan, typically 30-40 years or more with proper maintenance
  • Replacement is a major project, often requiring extensive planning and downtime

• Distribution Transformers:

  • Shorter lifespan, usually 20-30 years
  • Easier to replace, often with minimal disruption to the power supply

Key considerations for long-term planning:

1. Budget for regular maintenance to extend lifespan
2. Plan for eventual replacement, especially for distribution transformers
3. Consider future load growth in initial transformer selection

In my experience, the key to successful transformer installation and maintenance lies in thorough planning and understanding the specific requirements of each type. For a recent industrial park project, we developed a comprehensive maintenance schedule that balanced the needs of the main power transformer with the more numerous distribution units. This approach ensured optimal performance across the entire system while minimizing downtime and maintenance costs.

Remember, while power transformers may require more intensive installation and maintenance procedures, their longevity and capacity make them crucial for large-scale operations. Distribution transformers, with their flexibility and easier maintenance, are ideal for dynamic, growing networks closer to end-users. By carefully considering these installation and maintenance factors, you can ensure your transformer choice not only meets your immediate power needs but also aligns with your long-term operational and maintenance capabilities.

Project-Based Selection: Matching Transformer Type to Application?

Are you struggling to determine whether a power or distribution transformer is best for your specific project? This decision can be daunting, especially when considering the diverse range of applications in modern power systems. But what if you had a clear guide to help you match transformer types to common project scenarios?

Selecting the right transformer depends on your project's specific requirements. Power transformers are ideal for large-scale industrial facilities, utility-scale renewable energy projects, and high-voltage transmission systems. Distribution transformers suit commercial buildings, residential areas, and smaller industrial applications. Understanding your project's voltage needs, load profile, and location is key to making the right choice.

Project Scenarios and Transformer Recommendations

Let's explore common project types and the transformer choices that best suit them:

1. Large Industrial Facilities
2. Utility-Scale Renewable Energy Projects
3. Urban Development and Commercial Complexes
4. Residential Areas
5. Data Centers and Critical Infrastructure

Large Industrial Facilities

Scenario: Heavy manufacturing, steel mills, chemical plants
Recommendation: Power Transformers
Rationale:

• High power demands (often >10 MVA)
• Constant, heavy loads
• Often require high voltage (e.g., 132kV) stepped down to medium voltage (e.g., 33kV)

Example: For a large aluminum smelter project, we installed a 100 MVA, 220kV/33kV power transformer. This unit efficiently handled the enormous power demands of the electrolysis process, providing reliable, high-capacity power supply crucial for 24/7 operations.

Utility-Scale Renewable Energy Projects

Scenario: Large solar farms, offshore wind farms
Recommendation: Power Transformers for grid connection, Distribution Transformers for internal networks
Rationale:

• High total capacity, but variable generation
• Need to step up voltage for long-distance transmission
• Internal power distribution within the facility

Example: In a recent 500 MW solar farm project, we used a 300 MVA, 33kV/400kV power transformer for the main grid connection. Additionally, we installed multiple 2500 kVA distribution transformers throughout the site to manage the internal power collection and distribution network.

Urban Development and Commercial Complexes

Scenario: Office buildings, shopping malls, mixed-use developments
Recommendation: Distribution Transformers
Rationale:

• Moderate power needs (typically <5 MVA per building)
• Variable load profiles
• Need for compact, often indoor installations

Example: For a new urban commercial complex, we implemented a network of 2000 kVA, 11kV/400V dry-type distribution transformers. These units were strategically placed in basement electrical rooms, providing efficient power distribution while meeting strict fire safety regulations.

Residential Areas

Scenario: Suburban neighborhoods, apartment complexes
Recommendation: Distribution Transformers
Rationale:

• Lower power requirements (often <1 MVA per transformer)
• Highly variable loads
• Need for quiet operation and aesthetic considerations

Example: In a recent suburban development project, we installed multiple 500 kVA, 11kV/400V pad-mounted distribution transformers. These units were discreetly placed throughout the neighborhood, efficiently handling the varying loads typical of residential areas while blending into the landscape.

Data Centers and Critical Infrastructure

Scenario: Large data centers, hospitals, airports
Recommendation: Combination of Power and Distribution Transformers
Rationale:

• High power needs with critical reliability requirements
• Mix of constant base loads and variable peak loads
• Need for redundancy and power quality management

Example: For a major data center project, we implemented a dual approach. We installed a 50 MVA, 132kV/11kV power transformer for the main supply, complemented by multiple 2500 kVA, 11kV/400V distribution transformers throughout the facility. This configuration provided the necessary high-capacity input while allowing for flexible, redundant power distribution to server rooms and cooling systems.

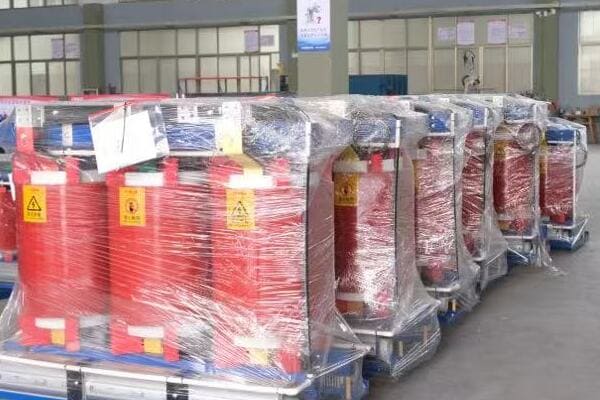

Selection Checklist

When choosing between power and distribution transformers for your project, consider these factors:

• [ ] Total power requirement (kVA/MVA)
• [ ] Input and output voltage levels
• [ ] Load profile (constant vs. variable)
• [ ] Space constraints and installation environment
• [ ] Reliability and redundancy needs
• [ ] Future expansion plans
• [ ] Environmental factors (noise, EMF, oil containment)
• [ ] Maintenance capabilities and resources
• [ ] Budget constraints (initial cost vs. long-term efficiency)
• [ ] Compliance with local regulations and grid requirements

In my experience, the key to successful project-based transformer selection lies in thoroughly understanding not just the immediate power needs, but also the long-term operational context of the project. I recall a hospital expansion project where the initial plan called for a single large power transformer. After careful analysis of their critical power needs and future growth plans, we recommended a combination of a smaller power transformer and multiple distribution units. This approach provided better redundancy, flexibility for future expansion, and improved energy efficiency across varying load conditions.

Remember, while these guidelines provide a solid starting point, each project has unique characteristics that may influence your choice. Always consult with experienced electrical engineers and transformer manufacturers to ensure your selection aligns perfectly with your specific project requirements. By carefully matching transformer types to your application, you can ensure optimal performance, reliability, and cost-effectiveness for your power system.

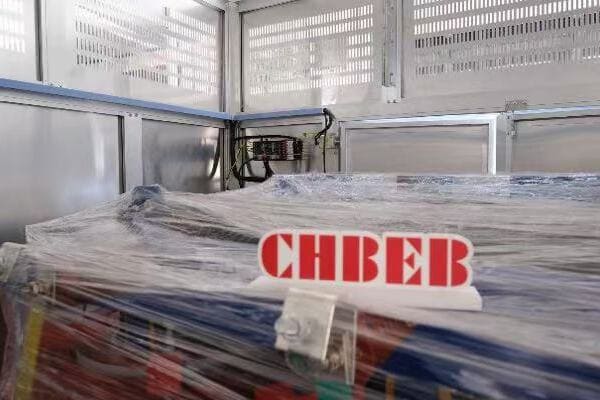

Summary Table: Power vs Distribution Transformer at a Glance?

Are you looking for a quick, comprehensive comparison between power and distribution transformers? It can be challenging to keep all the differences in mind, especially when making crucial decisions for your power system projects. But what if you had a clear, concise summary of all the key points we've discussed?

Power transformers handle high voltages (33kV-765kV) for transmission, while distribution transformers manage lower voltages (400V-33kV) for local use. They differ in capacity, load type, cooling methods, and maintenance needs. This summary table provides a quick reference for engineers and project managers to guide transformer selection based on specific project requirements.

Comprehensive Comparison Table

Let's summarize the key differences in a detailed comparison table:

Parameter	Power Transformer	Distribution Transformer
Voltage Level	33kV - 765kV	400V - 33kV
Capacity Range	10 MVA - 1000+ MVA	5 kVA - 2500 kVA
Load Type	Constant, high load	Variable load
Usage	Generation → Transmission	Local distribution
Cooling Type	ONAN, ONAF, OFAF	AN, ONAN
Installation	Large substations	Pole, Pad, Indoor
Maintenance	Complex, less frequent	Simpler, more frequent
Efficiency Focus	High at full load	Balanced across load range
Size and Weight	Large and heavy	Compact and lighter
Core Design	Complex, custom	Simpler, often standardized
Winding Material	Typically copper	Copper or aluminum
Insulation	Oil and paper (usually)	Oil, dry-type, or resin
Monitoring	Advanced, continuous	Basic, often manual checks
Lifespan	30-40+ years	20-30 years
Cost	High initial, high maintenance	Lower initial, moderate maintenance
Typical Applications	Power plants, Grid transmission	Buildings, Local industry

Key Insights from the Comparison

1. Voltage and Capacity:
   The most obvious difference lies in the voltage and capacity ranges, reflecting their distinct roles in the power system.

2. Load Handling:
   Power transformers excel in constant, high-load scenarios, while distribution transformers are designed for variable loads typical in end-user applications.

3. Installation and Maintenance:
   Power transformers require specialized installations and maintenance, whereas distribution transformers offer more flexibility and simpler maintenance routines.

4. Efficiency and Design:
   Power transformers are optimized for high efficiency at full load, with complex designs. Distribution transformers balance efficiency across varying loads with more standardized designs.

5. Cost and Lifespan:
   While power transformers have higher upfront and maintenance costs, their longer lifespan can make them more economical for high-capacity, critical installations over time.

In my experience, this summary table has been an invaluable tool in discussions with clients and team members. I recall a project meeting where we were debating the best transformer choice for a new industrial park. By referencing a similar table, we quickly identified that the park's diverse power needs and potential for future expansion were better served by a combination of a central power transformer and multiple distribution units, rather than trying to use a single transformer type for all applications.

When using this table to guide your decision-making process, consider:

1. Your project's specific voltage and capacity requirements
2. The expected load profile and variability
3. Installation constraints and environmental factors
4. Long-term maintenance capabilities and resources
5. Future expansion plans and flexibility needs

Remember, while this summary provides a quick reference, each project has unique characteristics that may require more nuanced consideration. Always consult with experienced electrical engineers or transformer manufacturers for tailored advice on your specific application.

By keeping these key differences in mind and using this table as a starting point, you'll be better equipped to make informed decisions in your power system designs, whether you're working on large-scale transmission projects or local distribution networks.

Conclusion

Choosing between power and distribution transformers depends on various factors including voltage levels, capacity needs, load profiles, and installation environments. By understanding these differences and considering project-specific requirements, engineers and project managers can select the most suitable transformer type, ensuring optimal performance, efficiency, and reliability in their power systems.
Remember, at chbeb-ele, we're not just sharing information – we're empowering you to be part of the solution in creating a secure, clean, and efficient energy future. Let's continue this journey together.
