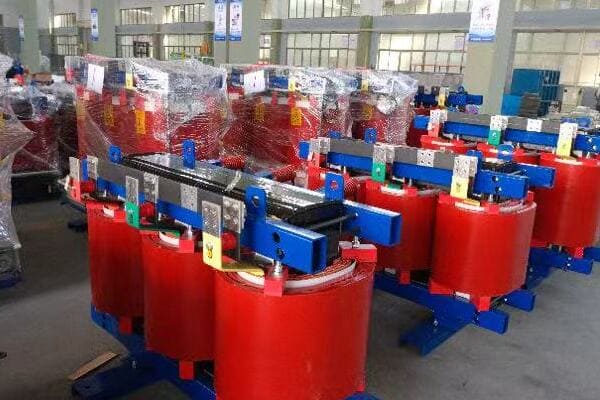

Have you ever wondered how electricity adapts to power everything from massive industrial machinery to your smartphone? The answer lies in transformers, but how do these devices serve such diverse needs across different industries?

Transformers play a crucial role in various industries by adapting voltage levels for specific applications. In power plants, large power transformers step up voltage for efficient transmission. Industrial settings use distribution transformers for machinery. Renewable energy systems employ step-up transformers for grid integration. Commercial buildings and data centers rely on high-efficiency units. Residential areas use pad-mounted or pole-mounted transformers. Smart buildings incorporate compact, low-noise transformers. Each application requires specific transformer types optimized for voltage, capacity, environment, and efficiency needs.

In this comprehensive guide, I'll walk you through the diverse applications of transformers across various industries. Whether you're an engineer planning a new project, a facility manager looking to upgrade your power systems, or simply curious about how our electrical infrastructure works, this article will provide valuable insights into the specialized use of transformers in different sectors.

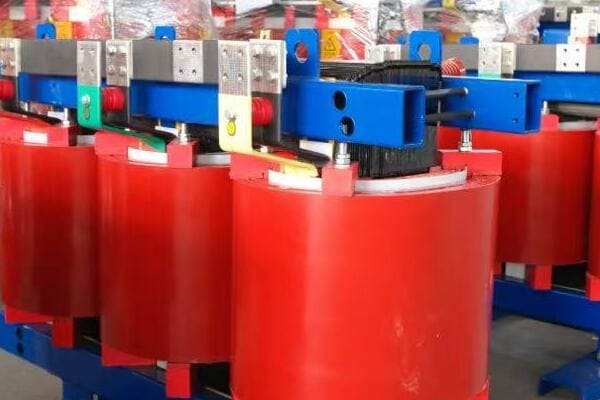

Power Generation and Substations: High-Capacity Power Transformers?

Have you ever marveled at those massive transformers in power plants and wondered about their role? These giants of the electrical world are crucial for getting power from where it's generated to where it's needed. But what makes these transformers special, and why are they so important in power generation and substations?

Power generation and substations use high-capacity power transformers to step up voltage for efficient long-distance transmission or step down voltage for distribution. These transformers typically handle voltages from 35kV to 220kV or higher, with capacities ranging from 2MVA to over 100MVA. They are usually three-phase, oil-immersed units with on-load tap changers (OLTC) for voltage regulation and ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) cooling systems. These transformers are critical for minimizing transmission losses and ensuring stable power supply across the grid.

Key Aspects of Power Transformers in Generation and Substations

Let's explore the main characteristics and applications of these transformers:

1. Voltage and Capacity Ranges
2. Design Features for High Performance
3. Cooling Systems and Efficiency
4. Monitoring and Protection
5. Installation and Maintenance Considerations

Voltage and Capacity Ranges

Meeting diverse power system needs:

• Step-up transformers at power plants: 15-20kV to 220-765kV
• Step-down transformers at substations: 220-765kV to 110-33kV
• Capacities ranging from 2MVA for smaller plants to over 1000MVA for major installations

I recently worked on a project for a 500MW combined cycle power plant. We installed a 500MVA step-up transformer to raise the generator output from 20kV to 400kV for long-distance transmission. The sheer size and complexity of this unit were awe-inspiring.

Design Features for High Performance

Engineered for reliability and efficiency:

• Robust core designs using high-grade silicon steel
• Advanced winding techniques for better short-circuit strength
• On-Load Tap Changers (OLTC) for voltage regulation under load
• Special tank designs for managing thermal and mechanical stresses

During a recent substation upgrade, we implemented a transformer with an advanced OLTC system. Its ability to make rapid, small voltage adjustments in response to grid fluctuations significantly improved power quality for downstream consumers.

Cooling Systems and Efficiency

Managing heat for optimal performance:

• ONAN (Oil Natural Air Natural) for smaller units
• ONAF (Oil Natural Air Forced) for medium-sized transformers
• OFAF (Oil Forced Air Forced) for large, high-capacity units

Here's a comparison of cooling methods:

Cooling Method	Description	Typical Application
ONAN	Natural oil and air circulation	Smaller substations
ONAF	Natural oil circulation, forced air	Medium-sized units
OFAF	Forced oil and air circulation	Large power plants
ODAF	Directed oil flow, forced air	Very high capacity units

Monitoring and Protection

Ensuring reliability and longevity:

• Online dissolved gas analysis (DGA) for early fault detection
• Fiber optic temperature sensors for hot spot monitoring
• Buchholz relays for gas accumulation detection
• Differential protection schemes for rapid fault isolation

Installation and Maintenance Considerations

Managing these critical assets:

• Specialized transportation and installation equipment required
• Regular oil testing and filtration
• Periodic inspection of bushings, tap changers, and cooling systems
• Long-term asset management strategies for optimal performance

Key points about power transformers in generation and substations:

1. They handle extremely high voltages and capacities
2. Advanced design features ensure reliability and efficiency
3. Cooling systems are crucial for managing heat in high-power applications
4. Sophisticated monitoring and protection systems are essential
5. Installation and maintenance require specialized expertise

In my experience, the selection and management of these high-capacity transformers can significantly impact the overall efficiency and reliability of power systems. I recall a project where we were upgrading an aging substation. By replacing the old transformers with modern units featuring advanced cooling and monitoring systems, we achieved a 2% increase in overall efficiency. While this may seem small, it translated to millions in energy savings over the transformer's lifetime.

For example, in a recent renewable energy integration project, we faced the challenge of connecting a large offshore wind farm to the mainland grid. The selection of the right step-up transformer was crucial. We opted for a specially designed unit with enhanced corrosion resistance and the ability to handle the variable output of wind turbines. This transformer not only efficiently stepped up the voltage from 33kV to 220kV but also incorporated advanced harmonic mitigation features to ensure power quality.

As we move on to discuss transformers in industrial manufacturing, remember that these high-capacity units form the backbone of our power transmission and distribution systems. Their performance and reliability are critical for ensuring a stable and efficient power supply across vast distances.

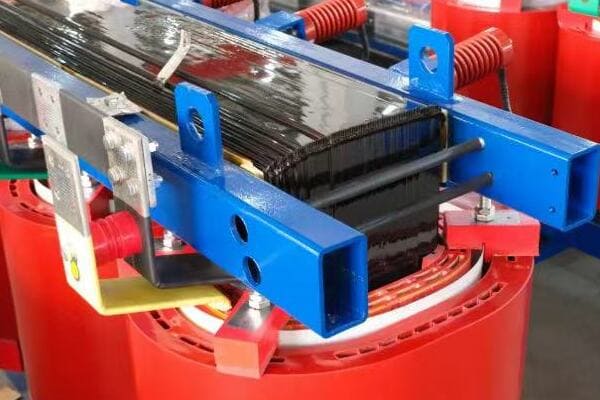

Industrial Manufacturing: Distribution Transformers for Machinery and Processes?

Have you ever wondered how factories manage to power their diverse range of machinery, from massive presses to precision robotics? The answer lies in specialized distribution transformers, but what makes these transformers unique, and how do they cater to the demanding needs of industrial manufacturing?

Industrial manufacturing relies on distribution transformers to power machinery and processes. These transformers typically range from 250 to 2500 kVA and can be either dry-type or oil-immersed. They're designed to handle stable loads, withstand electrical shocks from heavy machinery, and often feature IP54 dust protection. Key requirements include voltage regulation for sensitive equipment, overload capacity for motor starting, and integration with factory automation systems. In environments with flammable materials, dry-type transformers with epoxy resin encapsulation are preferred for their fire safety properties.

Key Aspects of Distribution Transformers in Industrial Settings

Let's explore the main characteristics and applications of these transformers:

1. Capacity and Voltage Ranges
2. Design Features for Industrial Environments
3. Safety and Protection Measures
4. Energy Efficiency Considerations
5. Integration with Factory Systems

Capacity and Voltage Ranges

Meeting diverse manufacturing needs:

• Typical capacities: 250 kVA to 2500 kVA
• Common primary voltages: 11 kV, 33 kV
• Secondary voltages: 400 V, 480 V, 690 V (for large motors)

I recently worked on a project for a large automotive manufacturing plant. We installed multiple 1600 kVA transformers to power different production lines. The ability to precisely match transformer capacity to the specific load requirements of each area was crucial for optimizing the plant's electrical system.

Design Features for Industrial Environments

Engineered for reliability in harsh conditions:

• Robust construction to withstand vibrations
• Enhanced cooling for continuous heavy loads
• Tap changers for voltage adjustment (often no-load type)
• Special designs for harmonic-rich environments (K-factor rated)

During a recent upgrade of a steel mill's electrical system, we implemented K-13 rated transformers to handle the high harmonic content from large variable frequency drives. This choice significantly reduced overheating issues and extended the transformers' lifespan.

Safety and Protection Measures

Ensuring safe operation in industrial settings:

• IP54 or higher enclosures for dust protection
• Thermal monitoring and overload protection
• Short-circuit resistant designs
• Integration with factory-wide emergency shutdown systems

Here's a comparison of common protection features:

Feature	Purpose	Benefit
IP54 Enclosure	Dust and splash protection	Suitable for most factory environments
Thermal Monitoring	Prevent overheating	Extended transformer life
Overload Protection	Prevent damage from excess current	Improved reliability
Emergency Shutdown	Rapid power cut in emergencies	Enhanced safety

Energy Efficiency Considerations

Optimizing power consumption:

• Low-loss core materials (e.g., amorphous metal cores)
• Efficient winding designs to minimize copper losses
• Consideration of load profiles for optimal sizing
• Integration with energy management systems for load balancing

Integration with Factory Systems

Seamless operation with industrial processes:

• Communication interfaces for remote monitoring (e.g., Modbus, Profibus)
• Compatibility with SCADA systems for real-time data
• Coordination with power factor correction equipment
• Support for soft-start systems in motor-heavy applications

Key points about distribution transformers in industrial manufacturing:

1. They are designed to handle the unique demands of industrial environments
2. Safety and protection features are crucial given the harsh operating conditions
3. Energy efficiency is a major consideration for reducing operational costs
4. Integration with factory systems enhances overall process control and monitoring
5. Proper selection and sizing significantly impact manufacturing efficiency and reliability

In my experience, the right choice of distribution transformer can make a significant difference in industrial operations. I recall a project for a food processing plant where we replaced standard transformers with specially designed units featuring enhanced overload capacity and advanced cooling. This upgrade allowed the plant to handle peak production periods more efficiently, reducing downtime and energy costs.

For example, in a recent project for a high-tech electronics manufacturing facility, we implemented a system of multiple smaller, highly efficient dry-type transformers instead of a few larger units. This distributed approach not only improved power quality for sensitive equipment but also provided better flexibility for future factory layout changes. The transformers were integrated with the facility's energy management system, allowing for real-time load balancing and predictive maintenance.

As we move on to discuss transformers in renewable energy systems, keep in mind the diverse and demanding applications in industrial settings. The lessons learned from industrial transformer applications often inform innovations in other sectors, showcasing the interconnected nature of power distribution technology across industries.

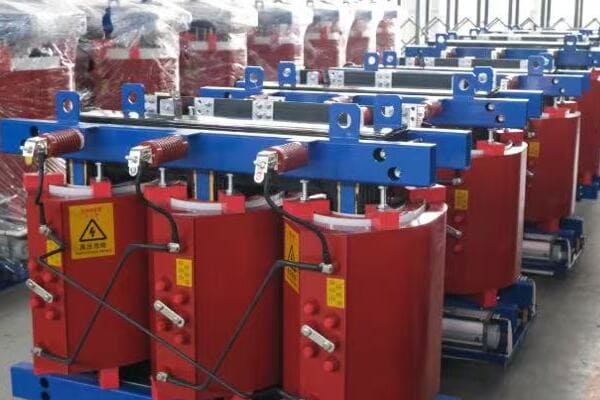

Renewable Energy Systems: Step-Up Transformers for Solar and Wind Farms?

Have you ever wondered how the electricity generated by solar panels or wind turbines makes its way into our power grid? The key lies in specialized step-up transformers, but what makes these transformers unique, and why are they so crucial for renewable energy systems?

Renewable energy systems like solar and wind farms use step-up transformers to increase voltage for grid integration. These transformers typically range from 500 to 3150 kVA and handle voltages from 0.315/11kV for solar or 0.69/33kV for wind. They're designed to manage variable inputs, withstand harsh environments (deserts, offshore), and often feature special cooling and insulation. Key requirements include high efficiency to maximize energy output, robust design for remote locations, and compatibility with smart grid technologies. These transformers play a critical role in making renewable energy economically viable and grid-compatible.

Key Aspects of Step-Up Transformers in Renewable Energy

Let's explore the main characteristics and applications of these transformers:

1. Voltage and Capacity Ranges
2. Design Features for Renewable Energy Applications
3. Environmental Adaptations
4. Grid Integration and Power Quality
5. Monitoring and Smart Features

Voltage and Capacity Ranges

Meeting diverse renewable energy needs:

• Solar farms: Typically 0.315kV to 11kV or 33kV
• Wind farms: Often 0.69kV to 33kV or higher
• Capacities ranging from 500 kVA for smaller installations to 3150 kVA or more for large farms

I recently worked on a large solar farm project where we installed multiple 2500 kVA transformers to step up voltage from 0.315kV to 33kV. The ability to efficiently handle the combined output of thousands of solar panels was crucial for the project's success.

Design Features for Renewable Energy Applications

Engineered for variable inputs and harsh conditions:

• Wide input voltage range to handle fluctuating generation
• Enhanced insulation for high-frequency harmonics from inverters
• Tap changers for output voltage regulation
• Compact designs for nacelle-mounted wind turbine transformers

During a recent offshore wind farm project, we implemented specially designed transformers with advanced corrosion protection and compact dimensions to fit within the turbine towers. These units could handle the variable output of the wind turbines while withstanding the harsh marine environment.

Environmental Adaptations

Surviving in challenging locations:

• Desert installations: Enhanced cooling and dust protection
• Offshore wind: Corrosion-resistant materials and sealed designs
• High-altitude solar farms: Adjusted insulation and cooling for thin air
• Arctic wind farms: Low-temperature-rated materials and heaters

Here's a comparison of environmental adaptations:

Environment	Key Adaptation	Benefit
Desert	Enhanced cooling, dust sealing	Reliable operation in hot, sandy conditions
Offshore	Corrosion-resistant materials	Long-term reliability in marine environments
High Altitude	Adjusted insulation	Proper operation in thin air
Arctic	Low-temp materials, heaters	Functionality in extreme cold

Grid Integration and Power Quality

Ensuring compatibility with the power grid:

• Harmonic mitigation features to meet grid codes
• Reactive power compensation capabilities
• Fault ride-through ability for grid stability
• Compatibility with grid synchronization systems

Monitoring and Smart Features

Enhancing performance and reliability:

• Real-time monitoring of oil temperature and load
• Integration with SCADA systems for remote management
• Predictive maintenance features using AI and data analytics
• Smart inverter interaction for optimized energy production

Key points about step-up transformers in renewable energy:

1. They handle variable inputs from renewable sources efficiently
2. Designs are adapted to survive in harsh and remote environments
3. Grid integration features are crucial for power quality and stability
4. Environmental adaptations vary widely based on installation location
5. Smart features enhance performance and enable remote management

In my experience, the success of renewable energy projects often hinges on the proper selection and design of these step-up transformers. I recall a project where we were integrating a large solar farm into a weak grid. By implementing transformers with advanced voltage regulation and reactive power compensation capabilities, we were able to stabilize the local grid and maximize the farm's energy export.

For example, in a recent hybrid wind-solar project, we faced the challenge of managing highly variable inputs from both sources. We designed a custom transformer solution that could handle the combined output, featuring advanced cooling systems and smart monitoring capabilities. This approach not only improved overall efficiency but also provided valuable data for optimizing the farm's operation based on weather patterns.

As we move on to discuss transformers in commercial complexes and data centers, remember that the innovations driven by renewable energy applications often find their way into other sectors, pushing the boundaries of transformer technology across the industry.

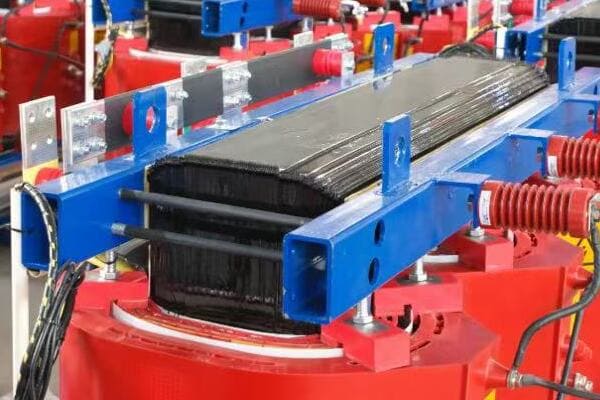

Commercial Complexes and Data Centers: Low-Loss, High-Efficiency Distribution Transformers?

Have you ever wondered how modern office buildings or massive data centers manage their enormous power needs efficiently? The secret lies in specialized low-loss, high-efficiency distribution transformers. But what makes these transformers unique, and why are they so crucial for commercial and data center applications?

Commercial complexes and data centers use low-loss, high-efficiency distribution transformers to manage their substantial and continuous power demands. These transformers typically range from 500 to 2500 kVA and are often dry-type for indoor use. Key features include very low core and copper losses, advanced cooling systems, and compatibility with building management systems. They're designed for quiet operation, high overload capacity, and excellent voltage regulation. In data centers, these transformers often incorporate K-factor ratings to handle non-linear loads from servers and IT equipment. Their efficiency is crucial for reducing operational costs and supporting green building initiatives.

Key Aspects of High-Efficiency Transformers in Commercial and Data Center Applications

Let's explore the main characteristics and benefits of these transformers:

1. Efficiency and Loss Reduction
2. Design Features for Commercial Environments
3. Data Center Specific Requirements
4. Integration with Building Management Systems
5. Environmental and Safety Considerations

Efficiency and Loss Reduction

Minimizing operational costs:

• Use of advanced core materials (e.g., amorphous metals)
• Optimized winding designs to reduce copper losses
• Compliance with high-efficiency standards (e.g., DOE 2016 levels)
• Energy savings that often pay back the higher initial cost in 2-3 years

I recently worked on a project for a large office complex where we replaced older transformers with new high-efficiency units. The energy savings were substantial, with a projected payback period of just 28 months. This showcased the significant impact of transformer efficiency in commercial settings.

Design Features for Commercial Environments

Tailored for modern building needs:

• Low noise operation for office environments (<50 dB)
• Compact designs for limited electrical room spaces
• Dry-type construction for improved fire safety
• Enhanced overload capacity for handling peak demands

During a recent hotel renovation project, we installed ultra-quiet transformers with noise levels below 45 dB. This was crucial for maintaining a peaceful environment for guests, especially in areas near electrical rooms.

Data Center Specific Requirements

Meeting the unique needs of IT infrastructure:

• K-factor ratings (K-13, K-20) for handling harmonic-rich loads
• High reliability with redundant cooling systems
• Integration with power monitoring and management systems
• Support for 415V distribution for improved server power efficiency

Here's a comparison of transformer features for different commercial applications:

Application	Key Feature	Benefit
Office Buildings	Low noise (<50 dB)	Quiet work environment
Data Centers	K-factor rating	Handles non-linear server loads
Hotels	Compact design	Fits in limited spaces
Hospitals	High reliability	Ensures continuous power for critical equipment

Integration with Building Management Systems

Enhancing overall energy efficiency:

• Real-time monitoring of load and efficiency
• Integration with SCADA systems for centralized management
• Support for demand response programs
• Data analytics for predictive maintenance and energy optimization

Environmental and Safety Considerations

Meeting modern building standards:

• Compliance with green building certifications (LEED, BREEAM)
• Use of biodegradable insulating fluids in liquid-filled units
• Fire-resistant designs for improved building safety
• Low electromagnetic emissions for sensitive environments

Key points about high-efficiency transformers in commercial and data center applications:

1. They significantly reduce operational costs through energy savings
2. Designs are optimized for quiet operation and limited spaces
3. Data center applications require special features like K-factor ratings
4. Integration with building management systems enhances overall efficiency
5. Environmental and safety considerations are crucial in modern buildings

In my experience, the selection of the right transformer can have a profound impact on a building's operational efficiency and environmental footprint. I recall a project for a new LEED Platinum-certified office building where the choice of ultra-high-efficiency transformers was a key factor in achieving the desired energy performance. By carefully matching transformer capacities to expected load profiles and incorporating advanced monitoring systems, we were able to optimize the building's power distribution, contributing significantly to its overall sustainability goals.

For example, in a recent data center project, we faced the challenge of powering high-density server racks with rapidly changing load profiles. We implemented a distributed transformer system using multiple smaller, high-efficiency units with K-20 ratings. This approach not only handled the harmonic-rich loads effectively but also provided better redundancy and flexibility for future expansions. The transformers were integrated with the data center's power management system, allowing for real-time load balancing and predictive maintenance, crucial for maintaining the 99.999% uptime required by the facility.

As we move on to discuss transformers in residential and urban applications, keep in mind how the demands of commercial and data center environments have driven innovations in transformer technology. Many of these advancements, such as improved efficiency and smart monitoring capabilities, are now finding their way into smaller-scale applications, benefiting a wider range of users.

Residential and Urban Applications: Pad-Mounted and Pole-Mounted Transformers?

Have you ever noticed those green boxes in your neighborhood or the cylindrical units atop utility poles? These are pad-mounted and pole-mounted transformers, but what makes them different from their larger industrial cousins, and why are they crucial for powering our homes and urban areas?

Residential and urban areas use pad-mounted and pole-mounted transformers to step down voltage for final distribution to homes and small businesses. Pad-mounted units, typically 100-2500 kVA, are ground-level installations often used in newer developments for aesthetic reasons. Pole-mounted transformers, usually 10-167 kVA, are mounted on utility poles and common in older neighborhoods or rural areas. Both types step down voltage from distribution levels (often 11kV or 33kV) to utilization voltages (120/240V in North America, 230/400V in many other countries). These transformers are designed for reliability, weather resistance, and public safety, often incorporating features like tamper-resistant enclosures and wildlife protection.

Key Aspects of Residential and Urban Transformers

Let's explore the main characteristics and applications of these transformers:

1. Pad-Mounted Transformers
2. Pole-Mounted Transformers
3. Safety and Aesthetic Considerations
4. Efficiency and Load Management
5. Smart Grid Integration

Pad-Mounted Transformers

Modern solution for urban and suburban areas:

• Capacities typically range from 100 to 2500 kVA
• Enclosed in tamper-resistant, weather-proof cabinets
• Often used in underground distribution systems
• Designed for easy maintenance access

I recently worked on a new residential development project where we installed pad-mounted transformers throughout the neighborhood. Their low profile and quiet operation made them ideal for maintaining the area's aesthetic appeal while providing reliable power distribution.

Pole-Mounted Transformers

Traditional solution for overhead distribution:

• Capacities usually range from 10 to 167 kVA
• Mounted on utility poles, ideal for rural and older urban areas
• Cost-effective for areas with existing overhead lines
• Designed for easy replacement and maintenance

During a recent rural electrification project, we deployed a series of pole-mounted transformers. Their ability to be quickly installed and easily accessed for maintenance made them perfect for serving scattered rural communities.

Safety and Aesthetic Considerations

Balancing functionality with community needs:

• Pad-mounted units feature locked, tamper-resistant enclosures
• Pole-mounted units incorporate wildlife guards to prevent animal-caused outages
• Both types designed to minimize electromagnetic field (EMF) emissions
• Color options for pad-mounted units to blend with surroundings

Here's a comparison of safety features:

Feature	Pad-Mounted	Pole-Mounted
Enclosure	Locked, tamper-resistant cabinet	Open-air, elevated design
Access	Ground-level, keyed entry	Requires bucket truck for maintenance
Wildlife Protection	Sealed design	Guards on bushings and arresters
Public Safety	No exposed live parts	Elevated to prevent public contact

Efficiency and Load Management

Optimizing performance for residential loads:

• Low-loss designs to reduce energy waste
• Load tap changers for voltage regulation in larger units
• Sizing based on community growth projections
• Overload capacity for handling peak demands (e.g., summer air conditioning loads)

Smart Grid Integration

Preparing for the future of power distribution:

• Integration with Advanced Metering Infrastructure (AMI)
• Remote monitoring and control capabilities
• Support for bi-directional power flow (for areas with residential solar)
• Data collection for grid optimization and predictive maintenance

Key points about residential and urban transformers:

1. Pad-mounted and pole-mounted types serve different urban layouts
2. Safety and aesthetics are major considerations in residential areas
3. Efficiency is crucial for reducing distribution losses
4. Load management features help handle varying residential demands
5. Smart grid capabilities are increasingly important for future-proofing

In my experience, choosing between pad-mounted and pole-mounted transformers often involves balancing technical, economic, and aesthetic factors. I recall a project in a historic district where we needed to upgrade the power distribution system. The community strongly preferred underground distribution with pad-mounted transformers to preserve the area's character. Although this option was more expensive initially, it resulted in improved reliability and higher property values, showcasing how transformer choices can impact community development.

For example, in a recent smart city initiative, we implemented a network of advanced pad-mounted transformers with integrated sensors and communication capabilities. These units not only provided the necessary power transformation but also served as data collection points for the city's smart grid initiative. They monitored power quality, detected faults quickly, and even helped optimize the charging schedules for electric vehicles in the neighborhood.

As we move on to discuss transformers in smart homes and buildings, remember that the innovations in residential and urban transformer applications are laying the groundwork for more advanced, interconnected power distribution systems of the future.

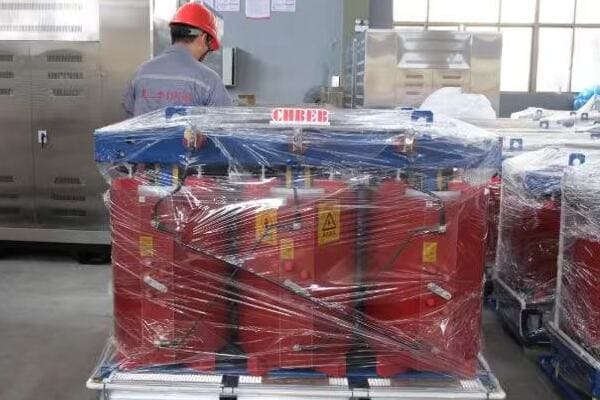

Smart Homes and Buildings: Compact Dry-Type Transformers with Low Noise?

Have you ever wondered how modern smart buildings manage to power all their advanced systems while maintaining a quiet, efficient environment? The answer often lies in specialized compact dry-type transformers. But what makes these transformers unique, and why are they becoming increasingly important in smart homes and buildings?

Smart homes and buildings utilize compact dry-type transformers to meet their specialized power needs. These transformers typically range from 10 to 250 kVA and are designed for indoor installation in electrical rooms or basements. Key features include very low noise operation (<45 dB), high efficiency to support energy conservation goals, and compact designs to fit in limited spaces. They often incorporate advanced monitoring capabilities for integration with building management systems. These transformers support the diverse power needs of smart building systems, from lighting and HVAC to security and automation, while maintaining a quiet, safe environment.

Key Aspects of Compact Dry-Type Transformers in Smart Buildings

Let's explore the main characteristics and benefits of these transformers:

1. Design and Construction Features
2. Noise Reduction and Efficiency
3. Integration with Smart Building Systems
4. Safety and Environmental Considerations
5. Scalability and Future-Proofing

Design and Construction Features

Tailored for modern building needs:

• Compact dimensions to fit in small electrical rooms or closets
• Dry-type design eliminating the need for oil, enhancing safety
• Typically rated from 10 to 250 kVA
• Often feature IP21 or higher enclosure ratings for indoor use

I recently worked on a smart office building project where we installed several 100 kVA compact dry-type transformers in dedicated electrical closets on each floor. Their small footprint allowed for efficient use of valuable building space while providing localized power distribution.

Noise Reduction and Efficiency

Ensuring a comfortable and efficient environment:

• Ultra-low noise designs (<45 dB) for installation near occupied areas
• High-efficiency cores (often using amorphous metals) to reduce energy losses
• Temperature rise classes selected to balance efficiency and size
• Optimized ventilation designs for effective cooling without excessive noise

During a recent hotel renovation project, we replaced old transformers with new ultra-quiet models. The noise reduction from over 60 dB to less than 40 dB was remarkable, significantly improving guest comfort in rooms near the electrical areas.

Integration with Smart Building Systems

Enhancing overall building intelligence:

• Built-in sensors for temperature and load monitoring
• Communication interfaces (e.g., Modbus, BACnet) for integration with Building Management Systems (BMS)
• Support for power quality monitoring and energy management
• Compatibility with demand response and smart grid initiatives

Here's a comparison of smart features in modern building transformers:

Feature	Purpose	Benefit
Temperature Monitoring	Real-time thermal management	Prevents overheating, extends life
Load Monitoring	Track power usage patterns	Enables energy optimization
BMS Integration	Centralized control and monitoring	Improves overall building efficiency
Power Quality Analysis	Detect and mitigate power issues	Ensures stable power for sensitive equipment

Safety and Environmental Considerations

Meeting modern building standards:

• Fire-resistant materials and designs
• Low electromagnetic emissions for safe installation near occupied areas
• Compliance with energy efficiency regulations (e.g., DOE 2016 standards)
• Support for green building certifications (LEED, BREEAM)

Scalability and Future-Proofing

Adapting to evolving smart building needs:

• Modular designs allowing for easy capacity upgrades
• Wide range of voltage taps to accommodate future voltage changes
• Ability to handle non-linear loads from electronic devices and LED lighting
• Preparedness for increased DC power distribution in future smart buildings

Key points about compact dry-type transformers in smart buildings:

1. They offer space-saving designs crucial for modern buildings
2. Ultra-low noise operation is essential for occupant comfort
3. Integration with building management systems enhances overall efficiency
4. Safety and environmental considerations are paramount in their design
5. Scalability and adaptability are key for future-proofing smart buildings

In my experience, the selection of appropriate transformers can significantly impact the overall performance and efficiency of smart buildings. I recall a project for a new smart office complex where we implemented a distributed power system using multiple small, high-efficiency transformers instead of a few larger units. This approach not only improved power quality and reliability but also allowed for more granular energy management. Each floor's power usage could be monitored and optimized independently, resulting in substantial energy savings.

For example, in a recent smart home development project, we faced the challenge of powering diverse systems including home automation, electric vehicle charging, and renewable energy integration. We designed a custom transformer solution that not only met the immediate power needs but also provided the flexibility to adapt to future technologies. The transformers were equipped with advanced monitoring capabilities, allowing homeowners to track and optimize their energy usage through smartphone apps.

As we conclude our exploration of transformer applications across various industries, it's clear that transformers play a crucial, often unseen role in powering our modern world. From massive power plants to the smart devices in our homes, transformers enable the efficient, safe distribution of electricity that we often take for granted.

Transformer Applications by Industry at a Glance

To summarize the diverse applications of transformers across different industries, let's take a look at this comprehensive overview:

Industry	Application	Recommended Transformer Type	kVA Range	Environment
Power Plants	Step-up for grid transmission	Power Transformer (Oil)	10MVA+	Outdoor / Substation
Manufacturing	Machine and production loads	Dry / Oil Distribution Transformer	250–2500kVA	Indoor/Outdoor
Solar & Wind	Inverter output to grid	Step-up Dry/Oil Transformer	500–3150kVA	Harsh / Coastal / Remote
Commercial Buildings	HVAC, lighting, elevators	Dry-Type Low Loss Transformer	250–1600kVA	Indoor
Residential Areas	Final step-down for homes	Pad/Pole Mounted Transformer	25–630kVA	Urban/Rural
Smart Buildings	Micro-load, space-saving	Compact Dry Transformer	10–250kVA	Basement / Shaft

This table provides a quick reference for understanding how different industries utilize specialized transformer types to meet their unique power distribution needs.

FAQs: Where Are Transformers Used in Industry?

To address some common questions about transformer applications in various industries:

1. What type of transformer is used in a power plant?
   Power plants typically use large oil-filled power transformers to step up voltage from generator output (e.g., 20kV) to transmission levels (e.g., 400kV or higher). These transformers often have capacities exceeding 100MVA and feature advanced cooling systems.

2. Which transformer is best for solar energy systems?
   Solar energy systems usually employ specialized step-up transformers designed to handle the variable DC to AC output from inverters. These are often dry-type or oil-filled, ranging from 500 to 3150 kVA, with features to manage harmonics and provide reactive power support.

3. What is the standard transformer for residential use?
   Residential areas typically use either pole-mounted transformers (10-167 kVA) or pad-mounted transformers (100-630 kVA) to step down distribution voltages to household levels (e.g., 120/240V in North America). The choice depends on whether the area has overhead or underground power distribution.

4. How are transformers used in data centers?
   Data centers use high-efficiency, low-loss transformers, often dry-type, ranging from 500 to 2500 kVA. These transformers feature K-factor ratings to handle non-linear loads from servers, advanced cooling for continuous operation, and integration with power monitoring systems for high reliability.

Conclusion

Transformers play a crucial role across diverse industries, from power generation to smart homes. Each application demands specialized designs to meet unique voltage, capacity, efficiency, and environmental needs. Understanding these varied applications is key to optimizing power distribution systems in any industry.
