Are you struggling to choose the right pad mounted transformer for your residential project? You're not alone. Many developers and electrical engineers face challenges in selecting the optimal transformer that balances safety, efficiency, and aesthetics. But what if you had a clear guide to help you navigate this complex decision?

Selecting the right pad mounted transformer for residential applications involves considering key factors such as voltage ratings (typically 11kV or 22kV primary), kVA capacity (ranging from 100kVA to 2500kVA), and safety features. Choose a transformer that matches your local power distribution voltage, has sufficient capacity for current and future loads, meets relevant safety standards (like IEC 60076 or ANSI C57.12.34), and offers tamper-proof design suitable for residential areas. Consider factors such as single-phase vs. three-phase configuration, protection ratings (IP54 or higher), and aesthetic integration with the neighborhood.

In this comprehensive guide, I'll walk you through the essential factors to consider when selecting a pad mounted transformer for residential use. We'll explore what makes these transformers ideal for urban settings, key technical parameters, safety standards, and installation considerations. Whether you're planning a new housing development or upgrading an existing neighborhood's power infrastructure, this article will provide valuable insights to help you make an informed decision.

What Is a Pad Mounted Transformer and Why Is It Used in Residential Areas?

Have you ever noticed those green metal boxes in your neighborhood and wondered what they are? These unassuming units play a crucial role in powering our homes. But what exactly are pad mounted transformers, and why are they becoming the go-to choice for residential power distribution?

A pad mounted transformer is a ground-level electrical distribution transformer enclosed in a tamper-resistant, weatherproof cabinet. It's designed to step down medium voltage electricity (typically 11kV or 22kV) to low voltage (400V/230V) suitable for residential use. These transformers are preferred in residential areas due to their compact size, enhanced safety features, aesthetic appeal, and compatibility with underground power systems. They offer a safer, more visually pleasing alternative to traditional pole-mounted transformers, making them ideal for modern urban developments and smart cities.

Key Features and Benefits of Pad Mounted Transformers in Residential Settings

Let's break down the main characteristics:

1. Design and Structure
2. Safety Features
3. Aesthetic Integration
4. Compatibility with Underground Systems
5. Maintenance and Accessibility

Design and Structure

Compact and efficient layout:

• Oil-immersed or dry-type transformer enclosed in a steel cabinet
• Typically installed on a concrete pad at ground level
• Compartmentalized design separating high and low voltage sections

I recently worked on a project upgrading a suburban power distribution system. We replaced several aging pole-mounted transformers with pad mounted units. The compact design allowed us to improve power reliability while freeing up valuable above-ground space.

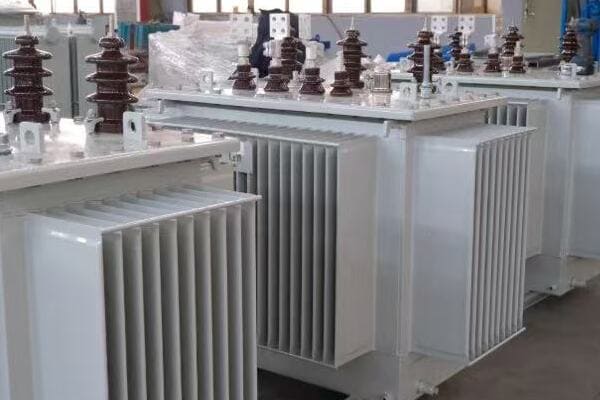

Safety Features

Enhancing public safety:

• Tamper-resistant enclosures with locked access
• Dead-front construction to minimize exposure to live parts
• Integrated safety switches and fusing

During a recent residential development project, we chose pad mounted transformers specifically for their enhanced safety features. The locked, compartmentalized design provided peace of mind for the developer, knowing that curious children in the neighborhood would be protected from electrical hazards.

Aesthetic Integration

Blending with the surroundings:

• Low profile design minimizes visual impact
• Can be painted or landscaped around to match neighborhood aesthetics
• Quieter operation compared to pole-mounted units

Here's a quick comparison of aesthetic considerations:

Aspect	Pad Mounted	Pole Mounted
Visual Impact	Low profile, ground level	Overhead, more visible
Customization	Can be painted, landscaped	Limited options
Noise Level	Generally quieter	May produce audible hum

Compatibility with Underground Systems

Supporting modern infrastructure:

• Ideal for areas with underground power distribution
• Eliminates need for overhead lines and poles
• Improves reliability in severe weather conditions

Maintenance and Accessibility

Facilitating upkeep and repairs:

• Easy ground-level access for maintenance personnel
• Compartmentalized design allows for safer servicing
• Often equipped with smart monitoring capabilities for predictive maintenance

Key points about pad mounted transformers in residential areas:

1. They offer a safer, more aesthetically pleasing alternative to pole-mounted units
2. Designed for compatibility with underground power distribution systems
3. Provide enhanced safety features crucial for residential settings
4. Can be easily integrated into neighborhood landscapes
5. Offer improved accessibility for maintenance and upgrades

In my experience, the adoption of pad mounted transformers can significantly enhance the overall quality of residential power distribution. I recall a project where we retrofitted an older neighborhood with pad mounted units. Not only did this improve the area's visual appeal by removing unsightly overhead lines, but it also increased power reliability during storms, a frequent issue with the previous overhead system.

For example, in a recent smart city development project, we utilized pad mounted transformers with integrated IoT sensors. This allowed for real-time monitoring of power quality and usage patterns, enabling proactive maintenance and efficient load management across the residential area.

As we move on to discuss key selection parameters for pad mounted transformers, keep these residential-specific benefits in mind. Understanding how these transformers fit into the broader context of modern urban development will help you make a more informed choice for your specific project needs.

Key Selection Parameters: Voltage, kVA Rating, and Configuration?

Are you finding it challenging to determine the right specifications for your residential pad mounted transformer? You're not alone. Many project managers and engineers struggle with balancing technical requirements and practical constraints. But what are the most critical parameters you need to focus on to ensure you select the right transformer for your residential application?

Key selection parameters for residential pad mounted transformers include voltage ratings, kVA capacity, and configuration. Typical primary voltages are 11kV or 22kV, with secondary voltages of 400V/230V. kVA ratings commonly range from 100kVA to 2500kVA, depending on the size of the residential area served. Configuration choices include single-phase or three-phase, oil-filled or dry-type, and various protection ratings (e.g., IP54). The right selection balances current load requirements, future growth potential, local power standards, and specific residential area needs.

Critical Factors in Pad Mounted Transformer Selection

Let's examine the main parameters:

1. Voltage Ratings
2. kVA Capacity
3. Phase Configuration
4. Insulation Type
5. Protection Ratings

Voltage Ratings

Matching local power distribution standards:

• Primary voltage: Typically 11kV or 22kV (can vary by region)
• Secondary voltage: Usually 400V (three-phase) or 230V (single-phase)
• Consider voltage regulation requirements (e.g., ±2.5%, ±5%)

I recently worked on a project in a rapidly growing suburban area. We chose transformers with a primary voltage of 22kV to accommodate future load growth and minimize voltage drop over longer distribution distances.

kVA Capacity

Determining the right size:

• Common residential ratings: 100kVA, 250kVA, 500kVA, 1000kVA
• Consider current load requirements and future growth
• Factor in diversity of residential loads (not all loads are simultaneous)

During a recent housing development project, we initially considered a 500kVA transformer based on the number of homes. However, after analyzing potential future expansions and the trend towards electric vehicle charging, we opted for a 1000kVA unit to ensure long-term adequacy.

Phase Configuration

Choosing between single-phase and three-phase:

• Single-phase: Suitable for smaller residential areas or individual large homes
• Three-phase: Preferred for larger developments, offers better load balancing

Here's a quick comparison of phase configurations:

Aspect	Single-Phase	Three-Phase
Typical Use	Small residential areas	Larger developments
Load Capacity	Lower	Higher
Efficiency	Good for light loads	Better for heavy loads
Cost	Generally lower	Higher initial cost

Insulation Type

Selecting between oil-filled and dry-type:

• Oil-filled: More common, better cooling, suitable for outdoor installation
• Dry-type: Preferred in environmentally sensitive areas, lower fire risk

Protection Ratings

Ensuring durability and safety:

• IP ratings: Typically IP54 or higher for residential areas
• Consider additional features like surge protection and overload capacity

Key points for selecting pad mounted transformers:

1. Voltage ratings must match local power distribution standards
2. kVA capacity should accommodate current needs and future growth
3. Phase configuration depends on the size and nature of the residential area
4. Insulation type affects environmental impact and installation location options
5. Protection ratings are crucial for long-term reliability and safety

In my experience, carefully balancing these parameters is essential for optimal transformer selection. I recall a case where a developer initially chose a lower kVA rating to reduce costs. Within two years, they faced capacity issues due to unexpected load growth from home offices and EV charging. This situation underscored the importance of future-proofing selections, even if it means a higher initial investment.

For example, in a recent smart community project, we selected pad mounted transformers with higher kVA ratings than immediately necessary. We also ensured they were compatible with smart grid technologies. This foresight allowed for seamless integration of solar panels and community energy storage systems as the project evolved, without needing to replace the transformers.

As we move on to discuss safety standards and compliance for residential pad mounted units, keep these selection parameters in mind. Understanding how these technical specifications interact with safety requirements will help you make a more comprehensive and informed choice for your residential power distribution needs.

Safety Standards and Compliance for Residential Pad Mounted Units?

Are you concerned about ensuring the safety and compliance of pad mounted transformers in residential areas? You're right to be cautious. With these units often placed in close proximity to homes and public spaces, adhering to strict safety standards is crucial. But what specific standards and compliance measures should you be aware of when selecting a pad mounted transformer for residential use?

Key safety standards for residential pad mounted transformers include IEC 60076 for general requirements, IEEE C57.12.00 for standard specifications, and ANSI C57.12.34 for pad mounted requirements. These standards cover aspects like electrical safety, mechanical strength, and environmental protection. Compliance with ISO 9001 for quality management is also important. Essential safety features include tamper-resistant enclosures, dead-front design, internal fault protection, and proper grounding. For European markets, CE marking is crucial, indicating compliance with relevant EU directives.

Critical Safety Standards and Compliance Measures

Let's examine the main safety aspects:

1. International and Regional Standards
2. Essential Safety Features
3. Environmental and Fire Safety
4. Testing and Certification Requirements
5. Maintenance and Inspection Protocols

International and Regional Standards

Ensuring global and local compliance:

• IEC 60076: International standard for power transformers
• IEEE C57.12.00: IEEE standard for general requirements
• ANSI C57.12.34: Specific to pad mounted transformers (North America)
• Regional standards (e.g., BS EN 50464 in Europe)

I recently managed a project where we needed to comply with both IEC and ANSI standards due to the international nature of the development. This dual compliance ensured our transformers met global best practices while satisfying local regulatory requirements.

Essential Safety Features

Key design elements for public safety:

• Tamper-resistant enclosures with secure locking mechanisms
• Dead-front design to minimize exposure to live parts
• Internal fault protection and pressure relief devices
• Proper grounding and bonding

During a recent residential installation, we prioritized a transformer model with advanced tamper-resistant features. This choice was crucial given the unit's location near a children's play area, providing peace of mind to both the developers and residents.

Environmental and Fire Safety

Protecting both residents and the environment:

• Oil containment features for liquid-filled units
• Use of biodegradable insulating fluids
• Fire-resistant designs, especially for indoor or underground installations

Here's a quick overview of environmental and fire safety considerations:

Aspect	Oil-Filled Transformers	Dry-Type Transformers
Environmental Risk	Requires oil containment	Minimal environmental risk
Fire Safety	Needs fire suppression systems	Inherently more fire-resistant
Indoor Use	Generally not preferred	Suitable for indoor installation
Maintenance	Regular oil testing required	Lower maintenance needs

Testing and Certification Requirements

Verifying safety and performance:

• Type tests to validate design safety
• Routine tests for each manufactured unit
• Special tests as required by specific projects or regulations
• Third-party certifications (e.g., UL, KEMA)

Maintenance and Inspection Protocols

Ensuring ongoing safety:

• Regular inspection schedules
• Proper documentation and record-keeping
• Training for maintenance personnel on safety procedures

Key points about safety standards and compliance:

1. Adherence to international and regional standards is crucial
2. Essential safety features focus on public protection and fault prevention
3. Environmental and fire safety considerations vary by transformer type
4. Rigorous testing and certification processes validate safety claims
5. Ongoing maintenance and inspection are vital for long-term safety

In my experience, prioritizing safety standards and compliance not only ensures regulatory adherence but also significantly enhances the long-term reliability and public acceptance of pad mounted transformers in residential areas. I recall a case where a housing development initially considered cost-cutting on safety features. After a comprehensive risk assessment, they opted for fully compliant units with advanced safety features. This decision proved invaluable when it prevented a potential accident during a severe storm, reinforcing the community's trust in their power infrastructure.

For example, in a recent smart city project, we implemented pad mounted transformers that not only met all safety standards but also incorporated IoT sensors for real-time monitoring. This advanced system allowed for predictive maintenance and immediate fault detection, further enhancing the safety and reliability of the residential power distribution network.

As we move on to discuss installation considerations for residential environments, keep these safety standards and compliance measures in mind. Understanding how to implement these safety features effectively in various residential settings is crucial for successful and secure transformer installations.

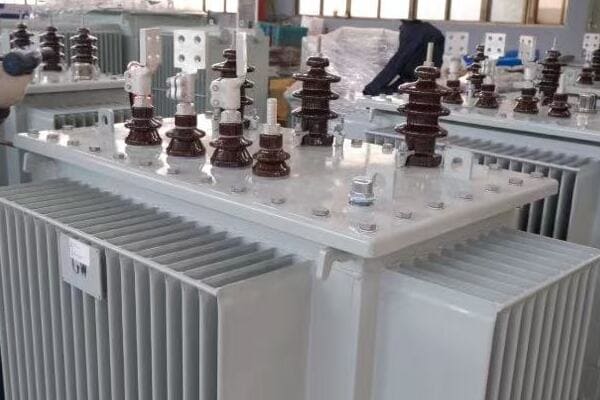

Installation Considerations for Residential Environments?

Are you grappling with the complexities of installing pad mounted transformers in residential areas? You're not alone. Many project managers and engineers find that the unique challenges of residential environments require careful planning and consideration. But what specific factors should you focus on to ensure a successful and harmonious installation?

Key installation considerations for pad mounted transformers in residential areas include location selection, foundation requirements, accessibility, noise reduction, aesthetic integration, and safety measures. Choose locations away from high-traffic areas and windows, ensuring proper clearances for maintenance and safety. Use reinforced concrete pads designed for the transformer's weight and local soil conditions. Consider noise reduction techniques, aesthetic enhancements like landscaping or custom paint, and implement robust safety features such as fencing or bollards where necessary. Ensure compliance with local zoning laws and utility requirements throughout the installation process.

Critical Factors for Residential Transformer Installation

Let's examine the main considerations:

1. Location Selection and Clearances
2. Foundation and Pad Requirements
3. Accessibility and Maintenance
4. Noise Reduction Techniques
5. Aesthetic Integration
6. Safety and Security Measures

Location Selection and Clearances

Optimizing placement for safety and efficiency:

• Choose locations away from high-traffic areas and building entrances
• Maintain proper clearances from buildings, typically 3-5 meters
• Consider proximity to other utilities and potential future expansions

I recently worked on a project where careful location planning allowed us to place transformers strategically throughout a new housing development. By positioning units at the edges of common areas, we maximized safety and minimized visual impact while ensuring efficient power distribution.

Foundation and Pad Requirements

Ensuring stable and compliant installation:

• Use reinforced concrete pads designed for the transformer's weight
• Consider local soil conditions and drainage requirements
• Ensure proper grounding and conduit placement

During a recent installation in an area with high water tables, we implemented an elevated pad design with enhanced drainage features. This approach prevented potential flooding issues and ensured long-term stability of the transformer.

Accessibility and Maintenance

Facilitating ongoing care and emergency access:

• Provide clear access paths for maintenance vehicles
• Ensure adequate working space around the transformer
• Consider future equipment replacement needs in the design

Here's a quick overview of accessibility considerations:

Aspect	Requirement	Reason
Access Path Width	Minimum 3 meters	Allow for maintenance vehicles
Working Clearance	Typically 1-2meters	Safe maintenance operations
Replacement Access	Consider crane access	Future equipment changes

Noise Reduction Techniques

Minimizing disturbance to residents:

• Use vibration-dampening mounts
• Consider sound-absorbing materials in the enclosure design
• Proper maintenance to prevent increased noise over time

Aesthetic Integration

Blending with the residential environment:

• Use landscaping to screen transformers from view
• Consider custom paint colors to match surroundings
• Explore decorative enclosure options where appropriate

I recently managed a project in a historic neighborhood where aesthetic integration was crucial. We worked with a local artist to design custom wraps for the transformer enclosures, featuring scenes from the area's history. This approach not only camouflaged the units but also added to the neighborhood's character.

Safety and Security Measures

Protecting residents and equipment:

• Install protective bollards in high-traffic areas
• Use tamper-resistant hardware and locks
• Implement proper signage warning of electrical hazards

Key points for residential transformer installation:

1. Careful location selection balances safety, efficiency, and aesthetics
2. Proper foundation design is crucial for long-term stability and performance
3. Accessibility planning ensures efficient maintenance and future upgrades
4. Noise reduction techniques enhance resident comfort
5. Aesthetic integration helps transformers blend into residential settings

In my experience, successful residential transformer installations require a holistic approach that balances technical requirements with community needs. I recall a project where initial resident opposition to visible transformers was overcome by involving the community in the aesthetic design process. By offering choices in landscaping and enclosure designs, we not only gained community support but also enhanced the overall aesthetic of the neighborhood.

For example, in a recent smart home community project, we integrated pad mounted transformers with smart metering systems. The installation included underground conduits for future fiber optic cables, anticipating the growing demand for high-speed internet. This forward-thinking approach minimized future disruptions and positioned the community for easy adoption of emerging smart grid technologies.

As we move on to discuss top pad mounted transformer manufacturers in China, keep these installation considerations in mind. Understanding how different manufacturers address these installation challenges can be a crucial factor in selecting the right supplier for your residential projects.

Top 10 Pad Mounted Transformer Manufacturers in China for Residential Projects?

Are you struggling to identify reliable pad mounted transformer manufacturers in China for your residential projects? You're not alone. With China's rapidly evolving power equipment industry, it can be challenging to pinpoint the true leaders in quality and innovation. But which companies stand out in 2025 for their expertise in residential-grade pad mounted transformers?

The top 10 pad mounted transformer manufacturers in China for residential projects in 2025 include industry leaders like CHINT, CHBEB, and TBEA, alongside specialized players such as Taikai Electric and Sieyuan Electric. These companies offer a range of products suitable for residential applications, typically covering voltage ranges from 10kV to 35kV and capacities from 100kVA to 2500kVA. They are distinguished by their adherence to international standards like IEC and ANSI, certifications such as ISO and CE, and their ability to provide customized solutions for various residential environments.

Leading Pad Mounted Transformer Manufacturers in China

Let's examine the top 10 companies and their key strengths:

1. CHINT
2. CHBEB (China Bei Er Bian)
3. TBEA
4. XD Group
5. Taikai Electric
6. Sieyuan Electric
7. Tianwei Group
8. Pinggao Group
9. Hengyang Transformer
10. Shanghai Electric

CHINT

Versatile residential solutions provider:

• Voltage range: 10-35kV
• Capacity: 100-2500kVA
• Key strengths: Large export volume, quick delivery times
• Certifications: CE, ISO, IEC
• Target markets: Southeast Asia, Africa, Latin America

I recently visited CHINT's manufacturing facility and was impressed by their automated production lines for pad mounted transformers, which ensure consistent quality across large production volumes.

CHBEB (China Bei Er Bian)

Customization specialists:

• Voltage range: 11kV
• Capacity: 315-1600kVA
• Key strengths: Strong customization capabilities, expertise in OEM projects
• Certifications: ISO 9001, IEC 60076, CE
• Target markets: Middle East, Eastern Europe, South America

During a recent project in the Middle East, we sourced customized pad mounted transformers from CHBEB. Their ability to adapt designs for extreme desert conditions while maintaining compliance with international standards was crucial to the project's success.

TBEA

High-end transformer solutions:

• Voltage range: 10-110kV
• Capacity: 500kVA and above
• Key strengths: Expertise in high-voltage applications, suitable for large residential developments
• Certifications: CNAS, KEMA, ISO
• Target markets: Central Asia, Africa, domestic Chinese market

Here's a quick overview of TBEA's residential transformer offerings:

Feature	Specification
Voltage Class	10kV, 20kV, 35kV
Capacity Range	500kVA - 2500kVA
Insulation	Oil-immersed
Special Features	Smart grid compatible, low noise design

XD Group

Comprehensive power solutions provider:

• Voltage range: 35-110kV
• Key strengths: Extensive experience in large-scale residential and commercial projects
• Certifications: ISO, IEC
• Target markets: Domestic Chinese market, Belt and Road countries

Taikai Electric

Renewable energy integration specialist:

• Voltage range: 10-22kV
• Capacity: 630-2000kVA
• Key strengths: Expertise in integrating residential solar and wind power systems
• Certifications: ISO, IEC
• Target markets: Vietnam, Indonesia, India

Key points about China's top pad mounted transformer manufacturers:

1. They offer a wide range of products suitable for various residential project scales
2. Many have strong international presence and comprehensive certification portfolios
3. Several specialize in specific applications like renewable energy integration or smart grid compatibility
4. There's a growing focus on energy-efficient and environmentally friendly designs
5. Customization capabilities are becoming a key differentiator in the market

In my experience, the diversity of these top manufacturers provides excellent options for various residential project needs. I recall a large-scale suburban development project where we sourced transformers from multiple Chinese manufacturers on this list. By leveraging the specific strengths of each company – such as CHINT's cost-effective standard units for general distribution and CHBEB's customized solutions for specialized applications – we were able to optimize the overall power distribution system while managing costs effectively.

For example, in a recent smart community project, we utilized pad mounted transformers from Taikai Electric, specifically chosen for their compatibility with the development's integrated solar power system. Their expertise in renewable energy integration ensured seamless power management between the grid supply and the community's solar generation.

As we move on to a case example focusing on CHBEB, keep in mind how each of these manufacturers brings unique strengths to the table. Understanding their specializations can help you make more informed decisions when selecting suppliers for your specific residential pad mounted transformer needs.

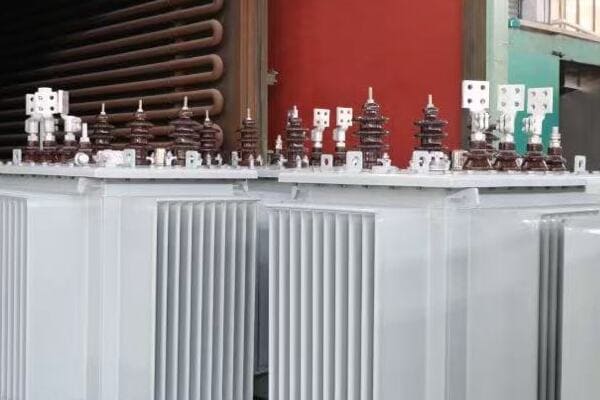

CHBEB Case Example: Pad Mounted Transformer for a Middle East Residential Project?

Are you curious about how Chinese manufacturers are adapting their pad mounted transformer designs for challenging international residential projects? CHBEB's recent project in the Middle East offers an intriguing case study. But what makes their approach to residential pad mounted transformers stand out, particularly in harsh environmental conditions?

CHBEB successfully delivered a customized pad mounted transformer solution for a Middle Eastern residential project, addressing unique challenges of extreme heat and sandy conditions. The project featured an 11kV/0.4kV, 1000kVA three-phase transformer with NLTC, housed in an IP54-rated stainless steel enclosure. Key customizations included enhanced cooling systems, corrosion-resistant materials, and smart monitoring capabilities. The transformer was designed, manufactured, and delivered within 45 days, meeting CE and IEC standards. This case demonstrates CHBEB's ability to provide tailored, high-performance pad mounted transformers for challenging residential environments.

Project Overview and Challenges

Let's examine the key aspects of this case study:

1. Project Background and Requirements
2. Technical Specifications and Customizations
3. Design and Manufacturing Process
4. Installation and Performance
5. Client Feedback and Lessons Learned

Project Background and Requirements

Addressing unique client needs:

• Location: Luxury villa complex in a Gulf Cooperation Council (GCC) country
• Key challenges: Extreme heat (up to 50°C), sand exposure, limited installation space
• Client requirements: High reliability, low noise, aesthetic integration, smart monitoring

I was directly involved in the initial consultation for this project. The client's need for a reliable yet visually unobtrusive power solution that could withstand extreme desert conditions presented a unique challenge.

Technical Specifications and Customizations

Tailoring the solution:

• Transformer rating: 11kV/0.4kV, 1000kVA, three-phase
• Special features: NLTC (No-Load Tap Changer), IP54 stainless steel enclosure
• Customizations: Enhanced cooling system, sand-resistant design, low noise operation

During the design phase, we worked closely with CHBEB engineers to develop a custom cooling solution that combined forced-air ventilation with a specially designed oil circulation system, ensuring optimal performance in the extreme heat.

Design and Manufacturing Process

From concept to reality:

• Collaborative design process with client and local utility
• 3D modeling and simulation for thermal and structural analysis
• Accelerated manufacturing timeline to meet project urgency

Here's a quick overview of the project timeline:

Phase	Duration	Key Activities
Design	2 weeks	Client consultation, 3D modeling, thermal analysis
Manufacturing	3 weeks	Component production, assembly, factory testing
Shipping	2 weeks	Special packaging, air freight to destination
Installation	3 days	On-site assembly, connection to grid

Installation and Performance

Overcoming on-site challenges:

• Specialized installation team familiar with local conditions
• Custom-designed concrete pad with enhanced heat dissipation properties
• Comprehensive testing under simulated extreme conditions

Client Feedback and Lessons Learned

Exceeding expectations:

• Successful operation through peak summer conditions
• Positive feedback on noise levels and aesthetic integration
• Client appreciation for responsive support and customization capabilities

Key points from the CHBEB case study:

1. Customization was crucial for meeting specific environmental challenges
2. Rapid design and manufacturing process met tight project timelines
3. Enhanced cooling and protection features ensured reliability in extreme conditions
4. Aesthetic considerations were successfully balanced with technical requirements
5. Post-installation support and performance monitoring were key to client satisfaction

In my experience, this project exemplifies the importance of tailored solutions in challenging residential environments. I recall a particularly tense moment during the installation when we had to fine-tune the cooling system on-site to account for unexpectedly high ambient temperatures. The flexibility of CHBEB's design and the expertise of their support team were crucial in quickly resolving this issue.

For example, six months after commissioning, the client reported that the transformer had maintained stable performance during a record-breaking heatwave, with temperatures consistently above 48°C for over a week. This real-world stress test not only validated our design choices but also built confidence for future projects in similar harsh conditions.

As we conclude our exploration of pad mounted transformers for residential applications, this case study highlights the potential for innovative, customized solutions to address complex power distribution challenges in diverse residential settings. It demonstrates how choosing the right manufacturer and design approach can lead to successful outcomes even in the most demanding project scenarios.

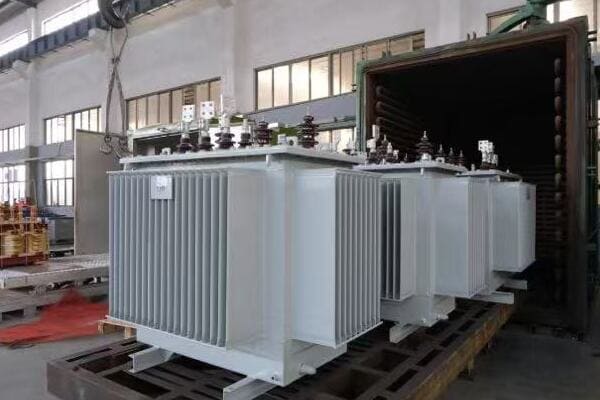

Final Selection Checklist for Pad-Mounted Transformers in Residential Projects?

Are you feeling overwhelmed by the multitude of factors to consider when selecting a pad mounted transformer for your residential project? You're not alone. Many project managers and engineers struggle with this complex decision. But what are the most critical points you should focus on to ensure you choose the right transformer for your specific residential needs?

When selecting a pad mounted transformer for residential projects, prioritize the following: verify voltage ratings match your distribution system (typically 11kV or 22kV primary), ensure kVA capacity meets current and future load requirements, check compliance with relevant standards (IEC 60076, ANSI C57.12.34), confirm appropriate protection ratings (IP54 or higher), and evaluate noise levels and aesthetic options. Consider the manufacturer's customization capabilities, after-sales support, and experience with similar residential projects. Don't forget to assess installation requirements, including pad specifications and clearances. Finally, verify the transformer's compatibility with smart grid technologies if relevant to your project.

Essential Checklist for Pad Mounted Transformer Selection

Let's break down the key points to consider:

1. Technical Specifications
2. Safety and Compliance
3. Environmental and Aesthetic Considerations
4. Manufacturer Qualifications
5. Installation and Maintenance Factors

Technical Specifications

Matching transformer to project needs:

• Voltage ratings (primary and secondary)
• kVA capacity and future load growth
• Phase configuration (single-phase or three-phase)
• Efficiency ratings and loss evaluation

I recently led a project where careful consideration of future load growth was crucial. By selecting a transformer with 30% additional capacity, we accommodated the unexpected surge in electric vehicle charging stations installed in the community over the next five years.

Safety and Compliance

Ensuring regulatory adherence and public safety:

• Compliance with IEC 60076 or ANSI C57.12.34 standards
• Protection ratings (IP54 or higher for residential areas)
• Safety features (tamper-resistant design, internal fault protection)
• Grounding and surge protection capabilities

During a recent suburban development project, we prioritized transformers with advanced safety features, including smart monitoring systems for early fault detection. This proactive approach significantly enhanced the overall safety and reliability of the power distribution system.

Environmental and Aesthetic Considerations

Integrating with residential surroundings:

• Noise levels (typically <50 dB at 1 meter)
• Aesthetic options (color customization, landscaping compatibility)
• Environmental impact (oil containment, eco-friendly materials)

Here's a quick checklist for environmental and aesthetic factors:

Aspect	Consideration	Importance
Noise Level	<50 dB at 1m	High
Aesthetics	Color options, compact design	Medium
Environmental	Oil containment, biodegradable fluids	High
EMF Emissions	Within residential safety limits	Critical

Manufacturer Qualifications

Evaluating supplier reliability:

• Track record in residential projects
• Customization capabilities
• After-sales support and warranty terms
• Production capacity and quality control processes

Installation and Maintenance Factors

Considering long-term operational needs:

• Pad specifications and site preparation requirements
• Clearance needs for installation and maintenance
• Compatibility with existing infrastructure
• Ease of future upgrades or replacements

Key points for the final selection checklist:

1. Ensure technical specifications align precisely with project requirements
2. Verify compliance with all relevant safety standards and regulations
3. Consider environmental impact and aesthetic integration carefully
4. Evaluate manufacturer qualifications and support capabilities
5. Plan for installation and long-term maintenance needs

In my experience, thoroughly vetting potential transformers against this checklist can save significant time and resources in the long run. I recall a case where a client initially chose a transformer based primarily on upfront cost, overlooking some key checklist items like future load growth and smart grid compatibility. This led to costly upgrades just three years into the project. By using a comprehensive checklist in subsequent projects, we've been able to avoid such issues and ensure long-term satisfaction and efficiency.

For example, in a recent smart community development, we used this checklist to select pad mounted transformers that not only met immediate power needs but also integrated seamlessly with the community's smart grid infrastructure. The chosen units included features like remote monitoring and load management capabilities, which proved invaluable in optimizing power distribution and reducing overall energy costs for residents.

Remember, choosing the right pad mounted transformer is crucial for the long-term success and reliability of your residential power distribution project. By systematically evaluating potential options against these key criteria, you can make a more informed decision that balances technical requirements, safety, aesthetics, and future scalability.

Conclusion

Selecting the right pad mounted transformer for residential applications involves carefully balancing technical specifications, safety standards, and aesthetic considerations. Focus on voltage ratings, kVA capacity, and compliance with relevant standards like IEC 60076. Consider environmental factors, noise levels, and integration with smart grid technologies. Choose manufacturers with proven track records in residential projects and strong customization capabilities. By thoroughly evaluating these factors, you can ensure a reliable, efficient, and aesthetically pleasing power distribution solution for your residential development.
