Are you struggling to understand the role of medium-voltage transformers in electrical systems? You're not alone. Many engineers and project managers find themselves confused by these crucial components of our power infrastructure. But what if you had a clear, comprehensive guide that breaks down everything you need to know about medium-voltage transformers?

A medium-voltage transformer is an electrical device designed to step up or step down voltages within the range of 1 kV to 35 kV, making it ideal for utility distribution systems, industrial facilities, and large commercial applications. These transformers serve as a critical link between high-voltage transmission lines and low-voltage end users by adjusting electrical energy to safe and usable levels. They play a central role in urban power grids, wind farms, hospitals, and manufacturing plants.

In this comprehensive guide, I'll walk you through the world of medium-voltage transformers. We'll explore what they are, their voltage ranges, how they work, and their common applications. Whether you're a seasoned engineer or new to the field, this article will provide valuable insights to help you make informed decisions about medium-voltage transformer selection and use.

What Is a Medium-Voltage Transformer?

Have you ever wondered about the devices that make it possible to power large facilities like factories or hospitals? Medium-voltage transformers are the unsung heroes in these scenarios. But what exactly is a medium-voltage transformer, and why is it so important in our electrical systems?

A medium-voltage transformer is a type of electrical transformer designed to operate between 1 kV and 35 kV, typically used to step down or step up voltage in utility, industrial, and commercial systems. These transformers bridge the gap between high-voltage transmission and low-voltage distribution, providing a crucial link in the power delivery chain. They are characterized by their ability to handle higher voltages than distribution transformers while being more compact and versatile than high-voltage power transformers.

Understanding Medium-Voltage Transformers

Let's break down the key aspects of medium-voltage transformers:

1. Definition and Purpose
2. Voltage Classification
3. Key Characteristics
4. Comparison with Other Transformer Types
5. Importance in Power Systems

Definition and Purpose

A medium-voltage transformer is:

• An electrical device operating in the 1 kV to 35 kV range
• Designed for voltage transformation in distribution networks
• Crucial for powering large facilities and urban infrastructure

I recently worked on a project upgrading a manufacturing plant's power system. We installed a 20 kV/400 V medium-voltage transformer to efficiently step down the incoming power for the facility's various production lines and equipment.

Voltage Classification

Understanding the voltage range:

• Lower limit: Typically 1 kV or 2.4 kV
• Upper limit: Usually 34.5 kV or 36 kV, depending on standards
• Common voltage levels: 6.6 kV, 11 kV, 20 kV, 33 kV

During a recent consultation for a wind farm project, we had to carefully consider the medium-voltage transformers needed to step up the turbine output to the local grid voltage of 33 kV.

Key Characteristics

Distinctive features:

• Higher insulation levels than low-voltage transformers
• Often oil-filled for better cooling and insulation
• Designed for both indoor and outdoor installations

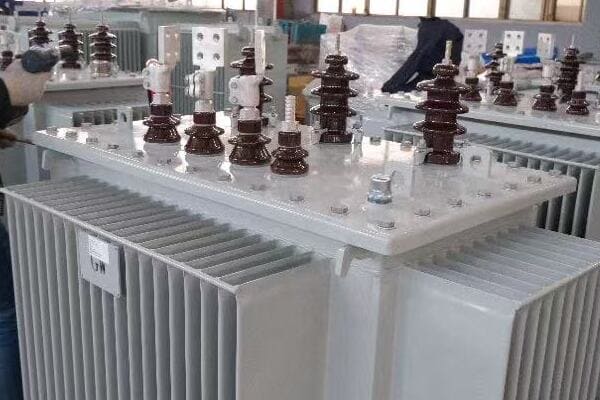

Here's a quick comparison of transformer types:

Characteristic	Low-Voltage	Medium-Voltage	High-Voltage
Voltage Range	< 1 kV	1 kV - 35 kV	> 35 kV
Typical Use	Residential, Small Commercial	Industrial, Large Commercial	Transmission, Substations
Size	Compact	Medium	Large
Insulation	Simple	More Complex	Highly Specialized

Comparison with Other Transformer Types

How they differ:

• More robust than low-voltage distribution transformers
• More versatile and easier to install than high-voltage units
• Often equipped with on-load tap changers for voltage regulation

Importance in Power Systems

Critical role in electricity distribution:

• Enable efficient power distribution to large facilities
• Provide voltage transformation for local power grids
• Support integration of renewable energy sources

Key points about medium-voltage transformers:

1. They operate in the 1 kV to 35 kV range
2. Serve as a link between transmission and distribution systems
3. Have unique design features for their voltage class
4. Offer a balance between power handling and installation flexibility
5. Play a crucial role in powering industrial and commercial facilities

In my experience, understanding the role of medium-voltage transformers is crucial for anyone involved in large-scale electrical projects. I recall a case where a client was experiencing frequent power quality issues in their data center. By upgrading their incoming power supply with a properly sized medium-voltage transformer equipped with voltage regulation capabilities, we not only resolved their power quality problems but also improved the overall efficiency of their electrical system.

As we move on to discuss the specific voltage range of medium-voltage transformers, keep in mind that these devices are fundamental to the efficient and safe distribution of electricity in our modern infrastructure. Their proper selection and application are key to ensuring reliable power supply in various industrial and commercial settings.

What Is the Voltage Range of Medium-Voltage Transformers?

Are you finding it challenging to navigate the world of medium-voltage transformer specifications? You're not alone. Many professionals struggle to understand the standardized voltage ranges and how they apply to different applications. But what exactly are these voltage ranges, and how do they impact transformer selection and use?

Medium-voltage transformers typically operate in the range of 1 kV to 35 kV, as defined by international standards like IEC 60076 and IEEE C57. Common voltage levels include 3.3 kV, 6.6 kV, 11 kV, 20 kV, and 33 kV. These ranges can vary slightly between regions, with North American systems often using 4.16 kV, 13.8 kV, and 34.5 kV. The specific voltage class chosen depends on the application, local power grid standards, and the balance between power transmission efficiency and equipment cost.

Understanding Medium-Voltage Ranges

Let's break down the key aspects of medium-voltage ranges:

1. International Standards
2. Common Voltage Levels
3. Regional Variations
4. Application-Specific Considerations
5. Future Trends in Voltage Ranges

International Standards

Defining medium voltage:

• IEC 60076: 1 kV to 35 kV
• IEEE C57: 601 V to 34.5 kV
• Some standards extend the upper limit to 36 kV or 38 kV

I recently worked on a project that required compliance with both IEC and IEEE standards. We had to carefully select transformers that met the overlapping requirements of both standards to ensure global compatibility.

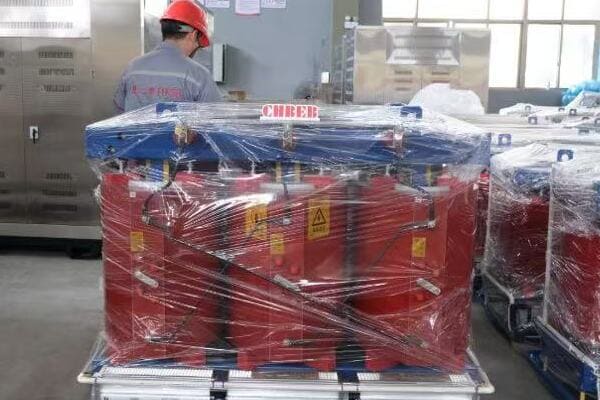

Common Voltage Levels

Typical medium-voltage ratings:

• 3.3 kV, 6.6 kV, 11 kV
• 13.8 kV, 20 kV, 22 kV
• 33 kV, 34.5 kV

During a recent industrial park development, we implemented a range of medium-voltage transformers to accommodate different tenant needs, including 6.6 kV for general distribution and 33 kV for larger facilities.

Regional Variations

Differences around the world:

• North America: 4.16 kV, 13.8 kV, 34.5 kV common
• Europe: 10 kV, 20 kV, 35 kV prevalent
• Asia: Varies by country, often following IEC standards

Here's a quick overview of regional voltage preferences:

Region	Common MV Levels	Notes
North America	4.16 kV, 13.8 kV, 34.5 kV	Based on 60 Hz systems
Europe	10 kV, 20 kV, 35 kV	Often 50 Hz systems
China	6 kV, 10 kV, 35 kV	Rapidly standardizing
India	6.6 kV, 11 kV, 33 kV	Mix of old and new standards

Application-Specific Considerations

Choosing the right voltage:

• Industrial: Often 6.6 kV or 11 kV for large motors
• Utility Distribution: 20 kV to 35 kV common
• Renewable Energy: May use 33 kV or 34.5 kV for grid connection

Future Trends in Voltage Ranges

Evolving standards and practices:

• Push towards higher distribution voltages for efficiency
• Integration of smart grid technologies affecting voltage choices
• Increased focus on standardization for global markets

Key points about medium-voltage transformer ranges:

1. International standards define the broad range as 1 kV to 35 kV
2. Common voltage levels are standardized but vary by region
3. Regional preferences significantly influence voltage choices
4. Specific applications often dictate the exact voltage required
5. Future trends may see shifts in preferred voltage levels

In my experience, understanding these voltage ranges is crucial for effective transformer selection and system design. I recall a project where we were upgrading a large manufacturing facility's power distribution. By carefully analyzing the existing infrastructure and future power needs, we chose to standardize on 11 kV distribution throughout the plant. This decision allowed for efficient power delivery to various production areas while providing flexibility for future expansions.

For example, in a recent renewable energy project involving a large solar farm, we had to navigate the challenge of connecting to the local grid. The solar inverters output at 600 V, which we stepped up to 34.5 kV using medium-voltage transformers. This voltage was chosen to match the local utility's preferred interconnection voltage, showcasing how medium-voltage transformer selections often need to bridge between generation systems and existing grid infrastructure.

As we move on to discuss how medium-voltage transformers work, keep these voltage ranges in mind. They play a crucial role in determining the design, insulation requirements, and overall performance of these transformers in various applications.

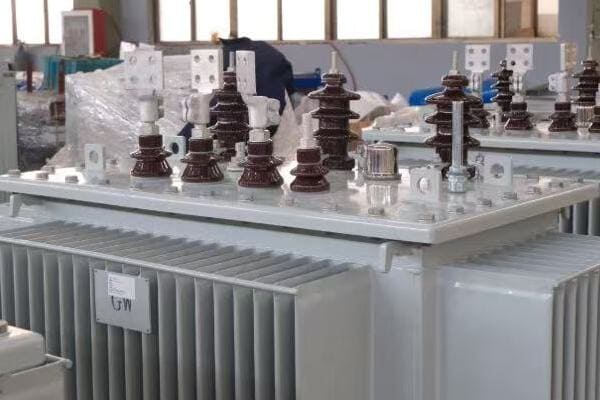

How Do Medium-Voltage Transformers Work?

Have you ever wondered about the inner workings of those large, humming boxes you see in industrial areas or near power substations? These are often medium-voltage transformers, and their operation is crucial to our power distribution systems. But how exactly do they function to manage and transform electrical energy at these higher voltages?

Medium-voltage transformers work on the principle of electromagnetic induction, similar to other transformers but designed for higher voltage levels. They consist of primary and secondary windings wrapped around a magnetic core. When alternating current flows through the primary winding, it creates a changing magnetic field in the core. This field induces a voltage in the secondary winding, with the voltage ratio determined by the number of turns in each winding. The key difference in medium-voltage transformers lies in their enhanced insulation, cooling systems, and structural design to handle higher voltages safely and efficiently.

Understanding the Operation of Medium-Voltage Transformers

Let's break down the key aspects of how these transformers function:

1. Basic Principle of Operation
2. Core and Winding Design
3. Insulation and Cooling Systems
4. Voltage Regulation Mechanisms
5. Efficiency and Loss Considerations

Basic Principle of Operation

Electromagnetic induction at work:

• Primary winding receives AC input
• Changing current creates a magnetic field in the core
• Magnetic field induces voltage in the secondary winding
• Voltage ratio determined by the turns ratio of windings

I often use a simple demonstration model in training sessions to show how changing the number of turns in the secondary winding affects the output voltage, even at medium-voltage scales.

Core and Winding Design

Specialized for medium voltage:

• Core made of high-grade silicon steel to minimize losses
• Windings typically copper, sometimes aluminum for cost-efficiency
• Special winding techniques to manage high voltage stress

During a recent factory tour, I observed the precision involved in winding medium-voltage transformers. The use of advanced winding machines ensures uniform distribution of electromagnetic forces, crucial for long-term reliability.

Insulation and Cooling Systems

Critical for safe operation:

• Enhanced insulation materials (e.g., high-grade paper, ester fluids)
• Oil-immersed designs common for better insulation and cooling
• Dry-type transformers use special resins and air cooling for certain applications

Here's a comparison of cooling methods in medium-voltage transformers:

Cooling Method	Description	Best For
ONAN	Oil Natural, Air Natural	Standard indoor/outdoor use
ONAF	Oil Natural, Air Forced	Higher capacity needs
OFAF	Oil Forced, Air Forced	Large industrial applications
Dry-Type	Air cooled with resin insulation	Indoor, environmentally sensitive areas

Voltage Regulation Mechanisms

Maintaining stable output:

• On-load tap changers for dynamic voltage adjustment
• Off-load taps for occasional voltage setting changes
• Automatic voltage regulators in some advanced models

Efficiency and Loss Considerations

Optimizing performance:

• Core losses (no-load losses) from magnetic hysteresis and eddy currents
• Copper losses (load losses) from winding resistance
• Design trade-offs between efficiency and cost

Key points about how medium-voltage transformers work:

1. They operate on the principle of electromagnetic induction
2. Core and winding designs are optimized for medium-voltage applications
3. Enhanced insulation and cooling systems are crucial for safe operation
4. Voltage regulation mechanisms allow for output adjustment
5. Efficiency considerations balance performance and economic factors

In my experience, understanding these operational principles is crucial for effective transformer management and troubleshooting. I recall a case where a manufacturing plant was experiencing unexplained voltage fluctuations. By analyzing the transformer's operation, we discovered that the on-load tap changer was malfunctioning. Understanding how this component worked within the overall system allowed us to quickly diagnose and resolve the issue, minimizing production downtime.

For example, in a recent project involving a large data center, we implemented a set of medium-voltage transformers with advanced monitoring systems. These systems continuously tracked core temperatures, oil conditions, and load patterns. This real-time data allowed for predictive maintenance and optimal load management, showcasing how modern medium-voltage transformers can integrate smart technologies to enhance their traditional operational principles.

As we move on to discuss common applications of medium-voltage transformers, keep these operational aspects in mind. Understanding how these transformers work at their core will help you appreciate their versatility and importance in various industrial and commercial settings.

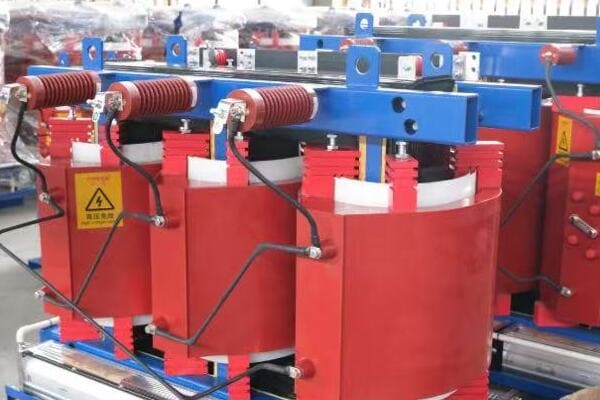

Common Applications of Medium-Voltage Transformers?

Have you ever wondered where all those medium-voltage transformers end up being used? From powering large industrial complexes to enabling our cities' electrical grids, these transformers play a crucial role in our modern infrastructure. But what are the most common applications for these versatile devices, and why are they so important in these settings?

Medium-voltage transformers find widespread use in industrial facilities, commercial buildings, utility distribution networks, and renewable energy systems. They are essential in powering manufacturing plants, data centers, hospitals, and shopping malls. In utility applications, they serve as crucial links in the power distribution chain, stepping down voltages from transmission levels to distribution levels. Medium-voltage transformers are also vital in integrating renewable energy sources like wind farms and solar plants into the grid, and in powering specialized equipment in sectors such as mining and oil & gas.

Exploring Key Applications

Let's examine the main areas where medium-voltage transformers are commonly used:

1. Industrial Facilities
2. Commercial and Institutional Buildings
3. Utility Distribution Networks
4. Renewable Energy Integration
5. Specialized Sector Applications

Industrial Facilities

Powering manufacturing and processing:

• Large motors and industrial equipment
• Process control systems
• Factory-wide power distribution

I recently worked on upgrading the electrical system of a large automotive manufacturing plant. We installed several 33 kV/400 V medium-voltage transformers to efficiently power everything from robotic assembly lines to paint shops, showcasing the versatility of these transformers in industrial settings.

Commercial and Institutional Buildings

Ensuring reliable power for large structures:

• Office complexes and shopping malls
• Hospitals and healthcare facilities
• Educational institutions and campuses

During a recent project for a new hospital complex, we implemented a network of medium-voltage transformers to handle the diverse power needs, from sensitive medical equipment to general building services.

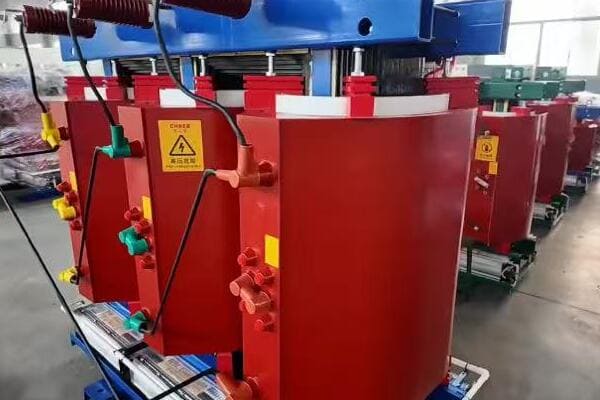

Utility Distribution Networks

Crucial for power delivery:

• Substation transformers for voltage step-down
• Distribution transformers in urban and rural areas
• Mobile substationsHere's a quick overview of medium-voltage transformer applications in utility networks:

Application	Typical Voltage	Key Feature
Primary Substation	33 kV to 11 kV	Large capacity, OLTC
Distribution Substation	11 kV to 400 V	Compact design
Rural Networks	20 kV to 400 V	Pole-mounted
Urban Networks	10 kV to 400 V	Pad-mounted, underground

Renewable Energy Integration

Supporting green power initiatives:

• Wind farm step-up transformers
• Solar plant inverter transformers
• Hydroelectric power station transformers

In a recent wind farm project, I oversaw the installation of medium-voltage transformers that stepped up the 690 V output from wind turbines to 33 kV for grid connection, highlighting their crucial role in renewable energy systems.

Specialized Sector Applications

Meeting unique industry needs:

• Mining operations (e.g., powering large excavators)
• Oil and gas facilities (e.g., offshore platforms)
• Transportation systems (e.g., railway electrification)

Key points about medium-voltage transformer applications:

1. They are vital in powering large industrial processes and equipment
2. Essential for reliable power distribution in commercial and institutional buildings
3. Form a crucial part of utility distribution networks
4. Play a key role in integrating renewable energy sources into the grid
5. Serve specialized needs in sectors like mining and oil & gas

In my experience, the versatility of medium-voltage transformers becomes particularly evident in complex, multi-faceted projects. I recall a large-scale urban development project where we had to design the power distribution for a mixed-use area including residential towers, a shopping mall, and a small industrial park. By strategically placing medium-voltage transformers throughout the development, we were able to efficiently manage the diverse power needs of each sector while maintaining flexibility for future expansions.

For example, in a recent smart city project, we implemented a network of medium-voltage transformers equipped with advanced monitoring and control systems. These transformers not only provided the necessary power transformation but also served as key nodes in the city's smart grid infrastructure, allowing for real-time load management and fault detection. This showcased how modern medium-voltage transformers can go beyond their traditional role to become integral parts of advanced power management systems.

As we move on to discuss the types of medium-voltage transformers, keep these diverse applications in mind. Understanding where and how these transformers are used helps in appreciating the different designs and features available to meet specific application needs.

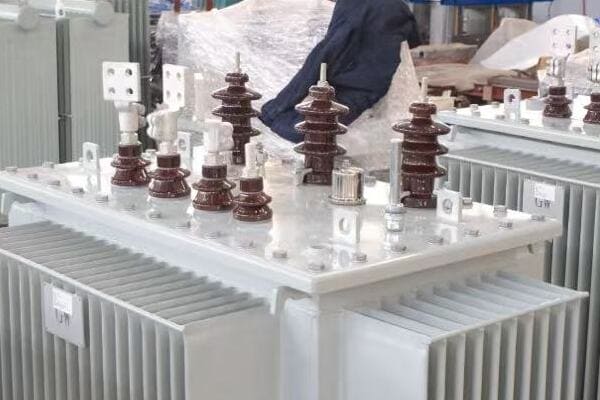

Types of Medium-Voltage Transformers?

Are you finding it challenging to navigate the various types of medium-voltage transformers available in the market? You're not alone. The diversity of designs can be overwhelming, but understanding these types is crucial for selecting the right transformer for your specific needs. So, what are the main types of medium-voltage transformers, and how do they differ?

Medium-voltage transformers come in several types, primarily categorized by their insulation and cooling methods. The main types include oil-immersed transformers (liquid-filled) and dry-type transformers. Oil-immersed transformers use mineral oil or synthetic fluids for insulation and cooling, while dry-type use air and solid insulation materials. Other classifications include pad-mounted transformers for outdoor use, pole-mounted for overhead distribution, and cast resin transformers for indoor applications where fire safety is paramount. Each type has specific advantages and is suited to different environmental conditions and application requirements.

Exploring Medium-Voltage Transformer Types

Let's break down the main types and their characteristics:

1. Oil-Immersed Transformers
2. Dry-Type Transformers
3. Pad-Mounted Transformers
4. Pole-Mounted Transformers
5. Cast Resin Transformers

Oil-Immersed Transformers

The traditional workhorse:

• Use mineral oil or synthetic fluids for insulation and cooling
• Excellent heat dissipation properties
• Suitable for both indoor and outdoor installations

I recently managed a project upgrading a large industrial facility's power system. We chose oil-immersed transformers for their high efficiency and ability to handle large loads continuously, which was crucial for the facility's 24/7 operation.

Dry-Type Transformers

Ideal for environmentally sensitive areas:

• Use air for cooling and solid materials for insulation
• Lower fire risk compared to oil-filled types
• Often used in indoor applications like office buildings and hospitals

During a recent hospital expansion project, we installed dry-type transformers near critical care areas due to their reduced fire risk and lower maintenance requirements.

Pad-Mounted Transformers

Designed for outdoor use:

• Enclosed in a tamper-resistant steel cabinet
• Often used in residential and commercial areas
• Can be oil-filled or dry-type

Here's a comparison of common medium-voltage transformer types:

Type	Insulation	Best For	Typical Applications
Oil-Immersed	Mineral Oil/Synthetic Fluid	High capacity, outdoor	Substations, Industrial
Dry-Type	Air/Solid Insulation	Indoor, fire-sensitive areas	Commercial buildings, Hospitals
Pad-Mounted	Oil or Dry	Urban distribution	Residential areas, Parks
Pole-Mounted	Usually Oil	Rural distribution	Overhead power lines
Cast Resin	Epoxy Resin	Harsh environments	Marine, Chemical plants

Pole-Mounted Transformers

Common in rural distribution:

• Mounted on utility poles
• Typically oil-filled for better cooling
• Used in overhead distribution systems

Cast Resin Transformers

Specialized for harsh environments:

• Windings encapsulated in epoxy resin
• Excellent resistance to moisture and pollutants
• Often used in marine applications or chemical plants

Key points about types of medium-voltage transformers:

1. Oil-immersed transformers offer high efficiency and capacity
2. Dry-type transformers are preferred for indoor and fire-sensitive applications
3. Pad-mounted transformers provide a compact solution for urban areas
4. Pole-mounted transformers are crucial for rural power distribution
5. Cast resin transformers excel in harsh environmental conditions

In my experience, selecting the right type of transformer can significantly impact the overall performance and safety of an electrical system. I recall a project for a coastal industrial facility where we initially considered standard oil-filled transformers. However, after assessing the corrosive sea air and strict environmental regulations, we opted for cast resin transformers. This choice not only ensured better reliability in the harsh environment but also simplified compliance with local environmental laws.

For example, in a recent smart city development project, we implemented a mix of transformer types to meet diverse needs. We used pad-mounted oil-filled transformers for main distribution points, dry-type transformers for indoor substations in high-rise buildings, and cast resin units for areas prone to flooding. This strategic selection allowed us to optimize performance, safety, and maintenance across the entire urban power network.

As we move on to discuss how to select the right medium-voltage transformer for your project, keep these different types in mind. Understanding their characteristics and ideal applications is crucial for making an informed decision that balances performance, safety, and cost-effectiveness.

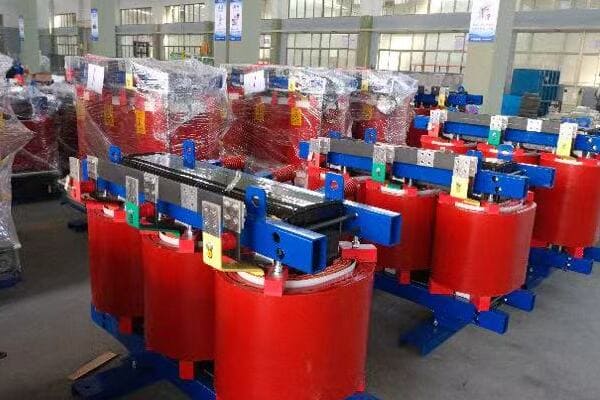

Selecting the Right Medium-Voltage Transformer for Your Project?

Are you feeling overwhelmed by the prospect of choosing the right medium-voltage transformer for your project? You're not alone. This decision can significantly impact your system's efficiency, reliability, and overall costs. But how can you ensure you're making the best choice for your specific needs?

Selecting the right medium-voltage transformer involves considering several key factors: voltage requirements, power capacity needs, environmental conditions, efficiency ratings, and specific application demands. Start by determining the exact input and output voltages required. Then, calculate the total power load the transformer needs to handle. Consider the installation environment, including temperature, humidity, and potential exposure to contaminants. Look at efficiency ratings, especially for continuous operation. Finally, factor in any special requirements like regulatory compliance or specific features needed for your application. The right choice balances performance, safety, reliability, and cost-effectiveness.

Key Factors in Transformer Selection

Let's break down the main considerations:

1. Voltage Requirements
2. Power Capacity
3. Environmental Factors
4. Efficiency and Performance
5. Special Features and Compliance

Voltage Requirements

Matching transformer to your system:

• Determine exact input voltage available
• Specify required output voltage(s)
• Consider voltage regulation needs

I recently worked on a project where the client initially requested a 33 kV to 11 kV transformer. After a thorough analysis of their future expansion plans, we opted for a unit with multiple secondary voltage taps, providing flexibility for potential voltage changes in the coming years.

Power Capacity

Ensuring adequate power supply:

• Calculate total connected load
• Factor in potential future expansion
• Consider peak load vs. continuous operation

During a recent industrial park development, we carefully assessed both current and projected power needs for various tenants. By choosing transformers with 20% extra capacity, we provided room for future growth without significant oversizing.

Environmental Factors

Adapting to installation conditions:

• Temperature range at the installation site
• Humidity and potential for condensation
• Presence of corrosive elements or pollutants

Here's a quick guide for environmental considerations:

Environment	Recommended Type	Key Feature
Indoor, Clean	Dry-Type	Fire safety
Outdoor, General	Oil-Filled, Pad-Mounted	Weather resistance
Coastal/Chemical	Cast Resin	Corrosion resistance
High Altitude	Special Design	Adjusted insulation

Efficiency and Performance

Optimizing operational costs:

• Check efficiency ratings, especially for continuous operation
• Consider no-load losses for intermittent use applications
• Evaluate temperature rise and cooling methods

Special Features and Compliance

Meeting specific project requirements:

• Regulatory compliance (e.g., IEC, IEEE standards)
• Special features (e.g., on-load tap changers, monitoring systems)
• Noise level requirements for urban installations

Key points for choosing the right medium-voltage transformer:

1. Accurately determine voltage requirements for both input and output
2. Calculate power needs carefully, including future expansion
3. Consider the environmental conditions at the installation site
4. Evaluate efficiency and performance metrics for long-term operation
5. Ensure compliance with relevant standards and any special feature needs

In my experience, the process of selecting the right transformer often involves balancing multiple factors. I recall a project for a new data center where we needed to power both IT equipment and cooling systems. The challenge was to find transformers that could handle the high continuous load efficiently while also providing the clean power necessary for sensitive computing equipment. We ended up choosing high-efficiency, low-noise dry-type transformers with advanced monitoring capabilities, meeting both the technical requirements and the facility's stringent environmental standards.

For example, in a recent renewable energy project, we faced the challenge of integrating a large solar farm with the local grid. The selection process involved finding transformers that could handle the variable output from the solar inverters, meet strict grid connection standards, and operate efficiently in a harsh desert environment. This required careful consideration of voltage regulation capabilities, efficiency across different load levels, and robust environmental protection.

Remember, choosing the right medium-voltage transformer is crucial for the safety, efficiency, and reliability of your electrical system. Take the time to thoroughly assess your needs and consult with experts if necessary. The right choice will not only meet your current requirements but also provide flexibility for future needs and contribute to the overall success of your project.

Conclusion

Medium-voltage transformers are essential components in modern power distribution systems, bridging the gap between high-voltage transmission and low-voltage end-use. They come in various types, each suited to different applications and environments. Understanding their voltage ranges, working principles, and selection criteria is crucial for engineers and project managers. Proper selection and application of medium-voltage transformers ensure efficient, reliable, and safe power distribution across industrial, commercial, and utility sectors.
Remember, at chbeb-ele, we're not just sharing information – we're empowering you to be part of the solution in creating a secure, clean, and efficient energy future. Let's continue this journey together.
