Have you ever wondered how electricity from a power plant reaches your home at a usable voltage? Or why your phone charger doesn’t fry your device? The answer lies in a crucial device called an electric transformer. But how exactly does this mysterious box work its magic?
An electric transformer works by transferring electrical energy between circuits using electromagnetic induction. It uses primary and secondary windings wrapped around a magnetic core. This step-by-step guide explains how voltage increases or decreases as electricity flows through the transformer—ideal for beginners learning how transformers work. Understanding this process is key to grasping the fundamentals of power distribution and electrical engineering.

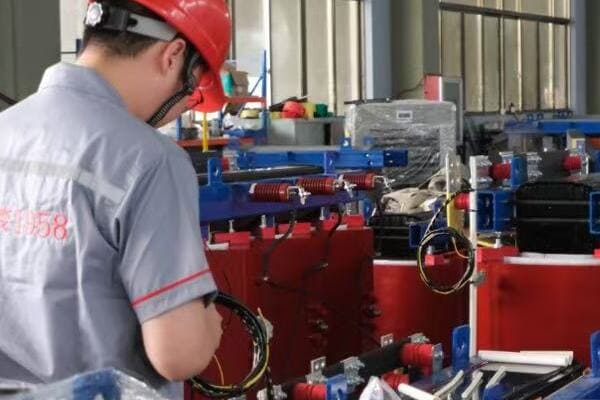

Basic Transformer Diagram
In this comprehensive guide, I’ll walk you through the inner workings of electric transformers, breaking down complex concepts into easy-to-understand steps. Whether you’re a curious student, a DIY enthusiast, or someone looking to understand the basics of power systems, this article will provide you with a clear understanding of how these essential devices function.
What Is an Electric Transformer?
Have you ever plugged in a device from another country and wondered why you need an adapter? The answer lies in the world of electric transformers. But what exactly is a transformer, and why is it so important in our daily lives?
An electric transformer is a static device that transfers electrical energy between two or more circuits through electromagnetic induction. It can increase or decrease the voltage of an alternating current (AC) while keeping the power relatively constant. Transformers are crucial in power distribution systems, allowing electricity to be efficiently transmitted over long distances and safely used in our homes and devices.

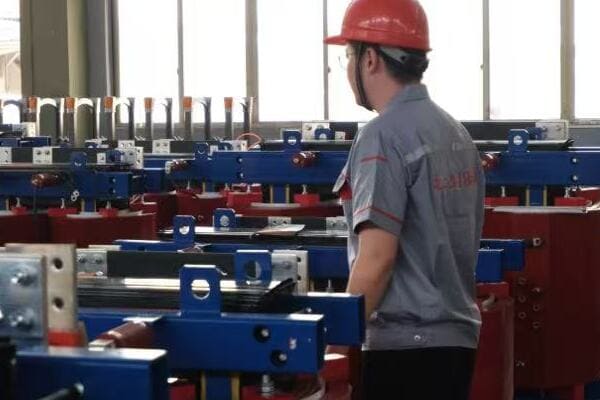

Types of Transformers
Understanding Electric Transformers
Let’s break down the key aspects of transformers:
Basic Definition and Function
Types of Transformers
Key Components
Real-World Applications
Importance in Power Systems
Basic Definition and Function
A transformer is like a voltage converter:
It changes the voltage of AC electricity
It doesn’t create or use up energy (ideally)
It works through electromagnetic induction
I often explain transformers to beginners by comparing them to gears in a bicycle. Just as gears can trade speed for power, transformers trade voltage for current.
Types of Transformers
Transformers come in various forms:
Step-up transformers (increase voltage)
Step-down transformers (decrease voltage)
Isolation transformers (maintain voltage but provide electrical isolation)
During a recent workshop, I demonstrated these types using small model transformers, helping students visualize the differences.
Key Components
Essential parts of a transformer include:
Primary winding (input coil)
Secondary winding (output coil)
Iron core (for magnetic flux)
Insulation and cooling system
Here’s a simple overview of transformer components:
Component
Function
Analogy
Primary Winding
Receives input AC
Bicycle pedal
Secondary Winding
Delivers output AC
Rear wheel
Iron Core
Transfers magnetic flux
Bicycle chain
Insulation
Prevents short circuits
Bike’s frame

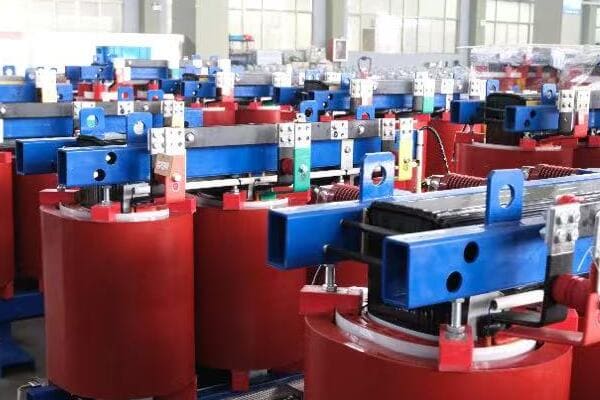

Real-World Applications
Transformers are everywhere:
Power distribution grids
Home appliances (e.g., microwave ovens)
Electronic device chargers
Industrial machinery
Importance in Power Systems
Transformers are crucial because they:
Enable efficient long-distance power transmission
Allow voltage to be adjusted for different uses
Provide electrical isolation for safety
Key points about electric transformers:
They change AC voltage levels
They work through electromagnetic induction
They’re essential for power distribution and device operation
They come in various types for different applications
They don’t create or consume power (in an ideal scenario)
In my experience, understanding transformers is a gateway to grasping broader concepts in electrical engineering. I recall a student who struggled with electrical theory until we dissected an old transformer. Seeing the physical components and how they interacted made the abstract concepts click for her.
For instance, during a recent field trip to a local substation, I showed my students how massive transformers step down high transmission voltages to levels suitable for neighborhood distribution. This real-world example helped them appreciate the scale and importance of transformer technology in our daily lives.
As we move on to discuss the basic principle of electromagnetic induction, keep in mind that this fundamental concept is what makes transformers possible. Understanding this principle will help you grasp how transformers can change voltage levels without direct electrical connections.
The Basic Principle: Electromagnetic Induction?
Have you ever been curious about the invisible force that makes transformers work? The key lies in a fascinating phenomenon called electromagnetic induction. But what exactly is this principle, and how does it enable transformers to manipulate electricity?
Electromagnetic induction is the process by which a changing magnetic field creates an electric current in a nearby conductor. In transformers, this principle allows energy to be transferred between separate coils without direct electrical contact. When alternating current flows through the primary coil, it creates a changing magnetic field. This field then induces a voltage in the secondary coil, enabling the transformer to change voltage levels efficiently.
Electromagnetic Induction in Transformers
Exploring Electromagnetic Induction
Let’s break down the key aspects of this principle:
Faraday’s Law of Induction
The Role of Changing Magnetic Fields
Importance of Alternating Current (AC)
Mutual Induction in Transformers
Factors Affecting Induction Efficiency
Faraday’s Law of Induction
The fundamental law behind transformers:
A changing magnetic field induces voltage in a conductor
The induced voltage is proportional to the rate of change of the magnetic field
This law explains how energy transfers between transformer coils
I often demonstrate Faraday’s Law using a simple hand-crank generator. As students turn the crank, they can see how mechanical motion creates electricity through changing magnetic fields.
The Role of Changing Magnetic Fields
Key to transformer operation:
A steady magnetic field doesn’t induce current
Only changes in the magnetic field create induction
The faster the change, the stronger the induced voltage
During a recent lab session, we used an oscilloscope to visualize how changing the speed of a rotating magnet affects the induced voltage in a nearby coil.
Importance of Alternating Current (AC)
Why transformers use AC:
AC naturally creates a changing magnetic field
The sinusoidal nature of AC allows for continuous induction
DC (Direct Current) doesn’t work in traditional transformers
Here’s a simple comparison of AC and DC in transformers:
Current Type
Magnetic Field
Induction
Transformer Use
AC
Constantly changing
Continuous
Ideal
DC
Static
None (in steady state)
Not suitable
Mutual Induction in Transformers
How coils interact:
Primary coil creates a changing magnetic field
This field is concentrated by the iron core
Secondary coil experiences this changing field, inducing voltage
Factors Affecting Induction Efficiency
Elements that influence transformer performance:
Number of turns in each coil
Core material and design
Frequency of the AC supply
Proximity and alignment of coils
Key points about electromagnetic induction in transformers:
It’s based on Faraday’s Law of Induction
Changing magnetic fields are crucial for operation
AC is essential for continuous transformer function
Mutual induction allows energy transfer between coils
Various factors can affect the efficiency of induction
In my experience, grasping the concept of electromagnetic induction is a eureka moment for many students. I remember a particular demonstration where we used a large electromagnet and a copper ring. When we suddenly changed the electromagnet’s field, the ring jumped into the air, visibly demonstrating the power of induced currents.
For example, in a recent workshop on renewable energy, we explored how the principle of electromagnetic induction is applied not just in transformers but also in wind turbines and hydroelectric generators. This broader context helped students appreciate the wide-ranging applications of this fundamental principle.
As we move on to discuss the core components of transformers, keep in mind how each part plays a role in facilitating or enhancing electromagnetic induction. Understanding this underlying principle will help you see how the physical structure of a transformer is designed to maximize the efficiency of this invisible yet powerful phenomenon.
Core Components and Their Roles?
Have you ever wondered what’s inside a transformer that allows it to perform its voltage-changing magic? Understanding the core components of a transformer is crucial to grasping how these devices work. But what are these components, and how does each contribute to the transformer’s function?
The core components of a transformer include the primary winding, secondary winding, magnetic core, and insulation. The primary winding receives the input AC voltage, creating a magnetic field in the core. This field induces a voltage in the secondary winding, which delivers the output. The magnetic core, usually made of laminated steel, concentrates the magnetic flux. Insulation prevents short circuits and ensures safety. Each component plays a vital role in the transformer’s efficiency and functionality.
Transformer Core Components
Examining Transformer Components
Let’s explore the key components and their roles:
Primary Winding
Secondary Winding
Magnetic Core
Insulation and Casing
Additional Features in Modern Transformers
Primary Winding
The input coil of the transformer:
Receives the incoming AC voltage
Creates the initial changing magnetic field
Number of turns affects the voltage ratio
I often use the analogy of a water pump when explaining the primary winding. Just as a pump creates water pressure, the primary winding "pumps" magnetic energy into the system.
Secondary Winding
The output coil of the transformer:
Experiences the changing magnetic field
Induces the output voltage
Number of turns determines the output voltage
During a recent lab demonstration, we used transformers with removable windings to show how changing the number of turns in the secondary affects the output voltage.
Magnetic Core
The heart of the transformer:
Concentrates and directs the magnetic flux
Usually made of laminated silicon steel
Shapes can vary (e.g., core-type, shell-type)
Here’s a comparison of common core types:
Core Type
Description
Best For
Core-type
Windings around central limb
Smaller transformers
Shell-type
Core encloses windings
Larger power transformers
Toroidal
Donut-shaped core
Efficient, low noise
Insulation and Casing
Critical for safety and efficiency:
Prevents short circuits between windings
Manages heat dissipation
Protects internal components from environment
Additional Features in Modern Transformers
Advanced components in some designs:
Tap changers for voltage adjustment
Cooling systems (oil or air)
Monitoring and protection devices
Key points about transformer components:
Primary winding initiates the electromagnetic process
Secondary winding delivers the transformed voltage
Magnetic core is crucial for efficient flux transfer
Insulation and casing ensure safety and longevity
Modern transformers may include additional features for performance and control
In my experience, hands-on exploration of these components greatly enhances understanding. I recall a workshop where we disassembled an old transformer. Seeing the layers of windings and the substantial weight of the core made a lasting impression on the participants about the physical reality behind electrical theories.
For instance, during a recent visit to a transformer manufacturing plant, we observed the precision required in winding the coils and assembling the core. This real-world context helped students appreciate the engineering challenges in creating efficient and reliable transformers.
As we move on to discuss the step-by-step working process of a transformer, keep in mind how each of these components plays a crucial role in the overall function. Understanding the physical structure will help you visualize the flow of energy and the transformation of voltage within these essential devices.
Step-by-Step Working Process?
Have you ever wondered about the exact sequence of events that occurs when electricity flows through a transformer? Understanding this process is key to grasping how transformers change voltage levels. But what are the specific steps involved, and how does each contribute to the transformer’s function?
The transformer working process involves four main steps: 1) AC input enters the primary winding, creating a changing magnetic field. 2) This field is concentrated by the magnetic core. 3) The changing field induces a voltage in the secondary winding. 4) The induced voltage in the secondary creates an AC output, with the voltage level determined by the turns ratio of the windings. This process occurs continuously, allowing for constant voltage transformation.

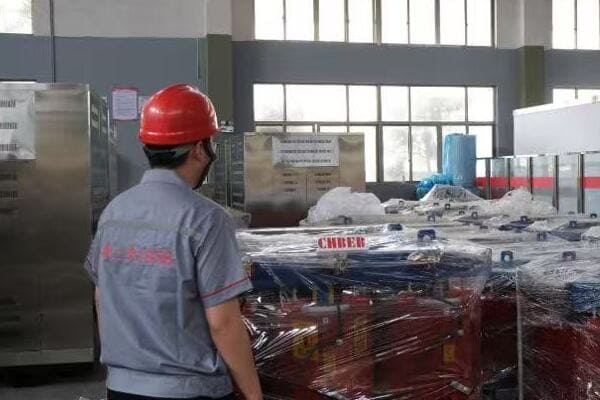

Transformer Working Process Animation
Detailed Working Process of a Transformer
Let’s break down the transformer’s operation into detailed steps:
AC Input and Primary Winding Excitation
Magnetic Field Generation in the Core
Flux Linkage with Secondary Winding
Voltage Induction in Secondary
Load Connection and Power Transfer
AC Input and Primary Winding Excitation
The process begins with AC input:
Alternating current enters the primary winding
Current flow creates a changing magnetic field around the winding
The strength of this field varies with the AC frequency
I often use a simple hand-crank generator connected to an LED to demonstrate how changing current creates a magnetic field, making the LED flicker.
Magnetic Field Generation in the Core
The core concentrates the magnetic field:
Magnetic flux is channeled through the core material
Core’s high permeability intensifies the magnetic field
Laminated design minimizes eddy current losses
During a recent lab session, we used iron filings on a plastic sheet over a transformer to visualize the magnetic field lines, showing how they concentrate in the core.
Flux Linkage with Secondary Winding
The magnetic field interacts with the secondary:
Changing magnetic flux passes through the secondary winding
This changing flux is key to inducing voltage in the secondary
The rate of change of flux determines the induced voltage magnitude
Here’s a simplified view of flux linkage:
Stage
Primary Current
Magnetic Flux
Secondary Voltage
Increasing
Rising
Expanding
Positive
Peak
Maximum
Maximum
Zero
Decreasing
Falling
Contracting
Negative
Zero
None
None
Zero
Voltage Induction in Secondary
Electromagnetic induction occurs:
Changing flux induces an electromotive force (EMF) in the secondary
The induced voltage’s magnitude depends on the turns ratio
Direction of induced current opposes the change in magnetic flux (Lenz’s Law)
Load Connection and Power Transfer
The transformer delivers power to the load:
Secondary winding connects to the load circuit
Induced voltage drives current through the load
Power is transferred from primary to secondary (minus small losses)
Key points about the transformer working process:
AC input is crucial for creating a changing magnetic field
The magnetic core plays a vital role in flux concentration
Flux linkage between windings is the key to voltage induction
The turns ratio determines the voltage transformation
Power transfer occurs with minimal energy loss in an ideal transformer
In my experience, visualizing this process can be challenging for beginners. I often use a water analogy, comparing the primary winding to a pump, the core to a pipe system, and the secondary to a water wheel. This helps students grasp the concept of energy transfer without direct contact.
For example, in a recent demonstration, we used a transparent model transformer with LED indicators in both windings. As we varied the input AC, students could see how changes in the primary immediately affected the secondary, illustrating the real-time nature of the transformation process.
As we move on to discuss the differences between step-up and step-down transformers, keep this step-by-step process in mind. Understanding how a transformer works at its core will help you appreciate the versatility of these devices in various voltage transformation scenarios.
Step-Up vs Step-Down Transformers: What’s the Difference?
Have you ever wondered why some transformers increase voltage while others decrease it? Understanding the difference between step-up and step-down transformers is crucial for grasping how our power systems work. But what exactly sets these two types apart, and how do they affect the electricity we use?
Step-up transformers increase voltage while step-down transformers decrease it. The key difference lies in the number of turns in their primary and secondary windings. Step-up transformers have more turns in the secondary, resulting in higher output voltage. Step-down transformers have fewer turns in the secondary, producing lower output voltage. This distinction is crucial for efficient power transmission and distribution, allowing electricity to be sent over long distances and then safely used in homes and businesses.

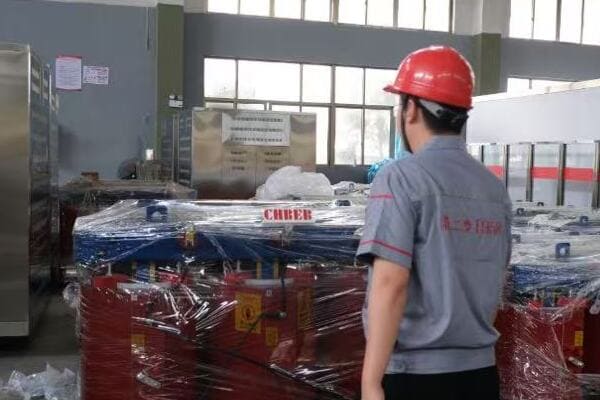

Step-Up vs Step-Down Transformer Comparison
Comparing Step-Up and Step-Down Transformers
Let’s explore the key differences and applications:
Winding Configuration
Voltage and Current Relationships
Typical Applications
Efficiency Considerations
Design and Construction Differences
Winding Configuration
The core difference lies in the windings:
Step-Up: Secondary has more turns than primary
Step-Down: Primary has more turns than secondary
I often use a gear analogy to explain this concept. Like gears in a bicycle, more turns in the secondary is like a larger gear, resulting in higher voltage but lower current.
Voltage and Current Relationships
How voltage and current change:
Step-Up: Increases voltage, decreases current
Step-Down: Decreases voltage, increases current
During a recent lab demonstration, we used small transformers to show how increasing voltage in a step-up transformer resulted in a proportional decrease in current, maintaining roughly the same power.
Typical Applications
Where each type is commonly used:
Step-Up: Power plants, long-distance transmission
Step-Down: Local distribution, household appliances
Here’s a quick overview of applications:
Transformer Type
Voltage Change
Common Applications
Step-Up
Increases
Power plants, Wind farms
Step-Down
Decreases
Homes, Offices, Electronics
Efficiency Considerations
Factors affecting efficiency:
Both types have similar efficiency principles
Losses are generally proportional to the transformation ratio
Cooling becomes more critical in larger step-up transformers
Design and Construction Differences
Physical differences:
Step-Up: Often larger due to higher voltage insulation needs
Step-Down: Can be more compact, especially for lower powers
Both types may have different core designs based on specific applications
Key points about step-up vs step-down transformers:
The turns ratio determines whether it’s step-up or step-down
Voltage and current change inversely to maintain power
Applications vary widely based on the needs of the power system
Efficiency principles are similar, but practical considerations differ
Physical design can vary significantly based on voltage levels and use case
In my experience, understanding the difference between these types is crucial for anyone working with electrical systems. I recall a project where a student mistakenly used a step-down transformer in place of a step-up in a solar power system model. The resulting low voltage output helped reinforce the importance of choosing the right transformer type.
For instance, during a recent field trip to a local power substation, we observed both types in action. The massive step-down transformers taking high transmission voltages down to distribution levels provided a stark contrast to the small step-up transformers used in the substation’s own power supply system for control equipment.
As we move on to discuss real-world applications and examples, keep in mind how the choice between step-up and step-down transformers plays a crucial role in the efficient and safe distribution of electricity from power plants all the way to our homes and devices.
Real-World Applications and Examples?
Have you ever stopped to think about how transformers impact your daily life? From the moment you wake up to when you go to sleep, transformers play a crucial role in powering our world. But where exactly do we find these devices, and how do they function in various real-world scenarios?
Transformers are ubiquitous in modern life, found in power grids, household appliances, and electronic devices. In power distribution, large transformers step up voltage for long-distance transmission and step it down for local use. In homes, small transformers in chargers and appliances convert mains voltage to suitable levels for electronics. Industrial applications use transformers for welding, induction heating, and motor control. Understanding these applications helps appreciate the vital role transformers play in our electrified world.
Real-World Transformer Applications
Exploring Transformer Applications
Let’s examine key areas where transformers are essential:
Power Generation and Transmission
Residential and Commercial Use
Industrial Applications
Transportation Systems
Renewable Energy Integration
Power Generation and Transmission
The backbone of our electrical grid:
Step-up transformers at power plants (e.g., 20kV to 400kV)
Transmission line transformers for long-distance power transfer
Substation transformers stepping down voltage for distribution (e.g., 400kV to 11kV)
I once visited a hydroelectric plant where the sheer size of the step-up transformers was awe-inspiring, highlighting their crucial role in power distribution.
Residential and Commercial Use
Transformers in our daily lives:
Distribution transformers in neighborhoods (e.g., 11kV to 240V)
Small transformers in electronic devices (e.g., phone chargers, laptops)
Isolation transformers for sensitive equipment in hospitals and labs
During a recent home energy audit, I showed homeowners how even their doorbell uses a small transformer to step down voltage from 240V to a safe 12V.
Industrial Applications
Vital for manufacturing and processing:
Arc welding transformers
Induction heating in metal processing
Variable frequency drives for motor control
Here’s a quick overview of some industrial applications:
Application
Transformer Type
Purpose
Arc Welding
Step-down
Provide high current at low voltage
Induction Furnace
Special design
Create eddy currents for heating
Motor Control
Variable voltage
Adjust motor speed and torque
Transportation Systems
Powering our mobility:
Traction transformers in electric trains
Charging stations for electric vehicles
Airport ground power units for aircraft
Renewable Energy Integration
Essential for clean energy:
Step-up transformers in wind turbines
Inverter transformers in solar farms
Grid integration transformers for renewable sources
Key points about real-world transformer applications:
Transformers are crucial in power generation and transmission
They’re found in numerous household and commercial devices
Industrial processes rely heavily on specialized transformers
Transportation systems use transformers for power conversion
Renewable energy systems require transformers for grid integration
In my experience, helping people recognize transformers in their everyday lives often leads to a greater appreciation of electrical engineering. I remember conducting a "transformer scavenger hunt" with a group of students, challenging them to identify as many transformers as possible in their homes and neighborhood. The results were eye-opening, with students finding transformers in places they’d never considered before.
For example, during a recent consultation for a smart home project, we discussed how modern home automation systems often incorporate multiple small transformers. From smart doorbells to LED lighting controllers, these devices rely on transformers to operate safely and efficiently.
As we conclude our exploration of transformers, it’s clear that these devices are fundamental to our electrified world. Their ability to change voltage levels efficiently and safely enables the complex power systems we rely on every day, from massive power grids to the smallest electronic gadgets.
Leading Transformer Brands for Educational Use
Are you looking for reliable transformer brands to use in educational settings? Choosing the right equipment is crucial for effective learning and hands-on experience. But which brands offer the best balance of quality, safety, and educational value for students and trainees?
For educational use, leading transformer brands include CHBEB, Schneider Electric, and ABB. CHBEB offers simplified learning kits popular in Southeast Asian and African technical schools. Schneider Electric provides globally trusted lab-grade models ideal for university engineering departments. ABB’s modular demonstration units are widely used in smart grid courses and professional certification programs. These brands offer a range of options suitable for various educational levels and training needs.

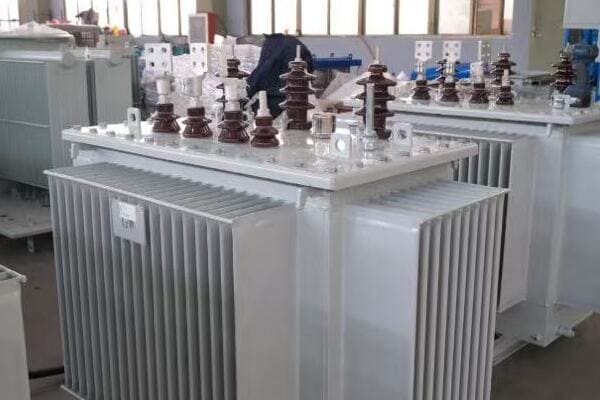

Educational Transformer Brand Comparison
Analyzing Top Brands for Educational Transformers
Let’s explore the strengths of leading brands:
CHBEB
Schneider Electric
ABB
Key Features for Educational Use
Choosing the Right Brand for Your Needs
CHBEB
Strengths in educational settings:
Simplified learning kits for emerging markets
Compact dry-type transformers with clear labeling
Popular in Southeast Asian and African technical schools
I recently observed a CHBEB demo transformer with a transparent casing being used in a Kenyan vocational school, allowing students to visualize core magnetic coupling clearly.
Schneider Electric
Notable features for education:
Miniature Distribution Transformers certified to IEC/UL standards
Used in academic labs globally
Supports both step-up and step-down scenarios
During a workshop in a Middle Eastern university, I was impressed by Schneider’s plug-and-play modules that allowed students to quickly set up various transformer configurations.
ABB
Key advantages for learning environments:
Modular demonstration units with removable covers
Strong focus on renewable energy learning modules
Popular in professional certification courses
Here’s a quick comparison of these educational transformer brands:
CHBEB excels in simplified, cost-effective learning kits
Schneider Electric offers globally recognized lab-grade models
ABB provides advanced modules for specialized courses
Clear visuals and safety features are crucial for educational use
Choice depends on specific educational needs and regional factors
In my experience, the right educational transformer can make a significant difference in students’ understanding. I recall a community college that switched to CHBEB’s transparent models, resulting in a noticeable improvement in students’ grasp of transformer principles.
For instance, during a recent training program for utility workers in Brazil, we used Schneider Electric’s mini distribution transformer kits. The ability to safely simulate various fault conditions proved invaluable in preparing technicians for real-world scenarios.
Remember, when selecting transformers for educational use, it’s not just about the brand name. Consider how well the equipment aligns with your curriculum, safety requirements, and the level of hands-on experience you want to provide to your students or trainees.
Conclusion
Electric transformers are fundamental to our power systems, enabling efficient electricity transmission and distribution. Understanding their working principle, components, and types is crucial for anyone interested in electrical engineering. From power grids to household devices, transformers play a vital role in our electrified world, highlighting their importance in both education and practical applications.
Remember, at chbeb-ele, we’re not just sharing information – we’re empowering you to be part of the solution in creating a secure, clean, and efficient energy future. Let’s continue this journey together.
Hello! 👋 Welcome to CHBEB.
We are a transformer manufacturer with 60+ years of experience.
✅ Distribution & Power Transformers (Oil & Dry Type)
✅ Customized EPC & OEM Solutions
✅ Fast Delivery & International Certifications
