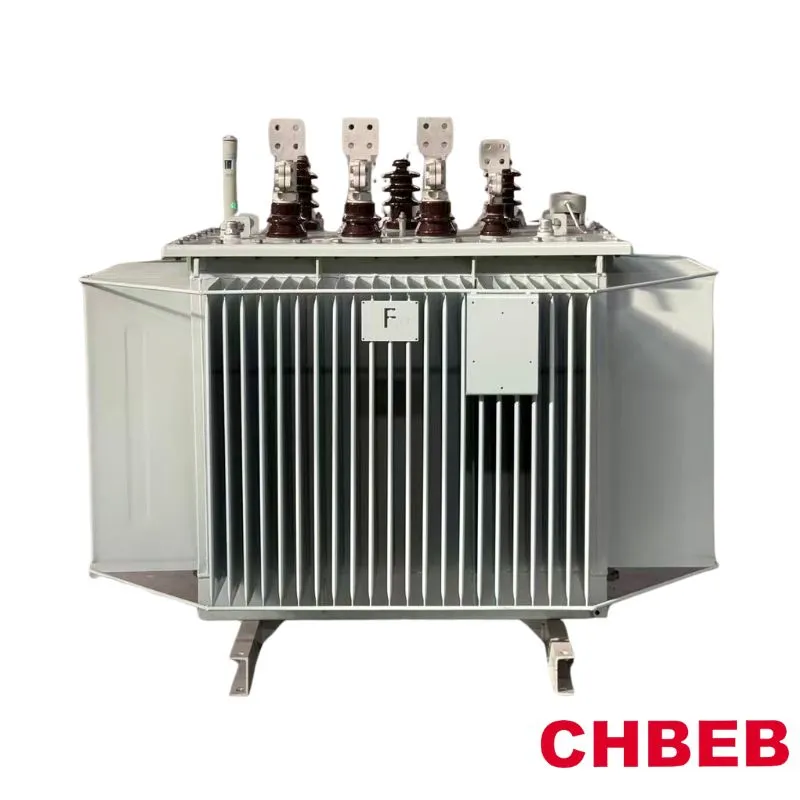

112.5 kVA Three Phase Distribution Transformer
Primary Voltage: 11KV or other voltage levels
Secondary Voltage: 0.4KV or other voltage levels
Power Rating: 112.5 KVA
Connection Group: Dyn11/Yyn0 or others
Standards: ANSI/IEEE, CSA/CAN, DOE
Certificate: CSA, SGS, CE, UL, cUL
112.5 kVA Three Phase Distribution Transformer Basic Features
Compared with dry-type transformers, oil-immersed transformers have more advantages in heat dissipation efficiency and overload capacity. Dry-type transformers rely on air convection for heat dissipation and require larger installation space; while oil-immersed transformers benefit from the much higher heat exchange efficiency of oil than air, allowing large-capacity design and a more compact size. However, 112.5 kVA Three Phase Distribution Transformer require regular maintenance of oil quality, while dry-type transformers are more suitable for indoor scenarios with high fire protection requirements because there is no oil leakage risk. Both have their own advantages. It is only a difference in technical routes, and the choice mainly depends on the actual project cost, efficiency and safety.
CHBEB also produces high-quality dry-type transformers. Click to learn more and support your project.
112.5 kVA Three Phase Distribution Transformer Application
Global grid voltage standards vary, which brings serious challenges to equipment export and cross-border operation.
There are obvious differences in voltage levels and power frequency standards among power grids in different countries. CHBEB has been deeply engaged in transformer production for many years, and our distribution transformers can meet the voltage demands of mainstream global markets: from 480V to 380V American standard transformers, to 660V/690V to 380V/400V photovoltaic power generation applications, and then to 415V to 380V export solutions for Australia and parts of Southeast Asia. All of these reflect CHBEB’s engineering wisdom of “providing solutions for complex global power grids.” The 112.5 kVA Distribution Transformer is especially suitable for the upgrading and renovation needs of internal distribution systems in some industrial plants and large commercial facilities in North America.
Core Structure and Optional Accessories of 112.5 kVA Three Phase Distribution Transformer
You can select the following accessories as needed to customize the 11 kV / 0.4 kV, 112.5 kVA oil-immersed distribution transformer and improve equipment performance and adaptability:
Core Material
- Silicon steel sheet core: high energy efficiency and low iron loss. Stable energy efficiency and mature technology, it is the mainstream choice for conventional distribution scenarios.
- Amorphous alloy core: extremely low iron loss and excellent energy-saving effect. Suitable for distribution scenarios with long annual operating time and low load rate, with outstanding full life-cycle economic benefits.
Oil Tank and Tank Cover
- Stainless steel oil tank and tank cover: stronger durability and excellent anti-corrosion capability.
Extended Creepage Distance Bushing
- Large creepage distance bushing: suitable for heavily polluted areas and coastal areas, improving insulation performance.
Arrester Bracket
- Arrester mounting bracket: protects against lightning impulse and operating overvoltage.
CSP Integrated Protection Component
- High-voltage fuse, secondary-side circuit breaker, indicator light, external surge suppressor: comprehensive protection against surge current, short circuit and overload faults.
Cooling System Upgrade
- Forced air cooling (ONAF): improves heat dissipation capacity and overall transformer operating efficiency.
- Oil pump + fan combination: forces insulating oil circulation through the oil pump and works with fans to strengthen the cooling effect, meeting the needs of heavy-load working conditions.
Voltage Regulation and Other Accessories
- Tap changer: on-load tap changer / no-load tap changer — realizes voltage regulation and adapts to load fluctuation scenarios.
- Breather: equipped with color-changing silica gel desiccant to prevent moisture from entering the equipment, avoid moisture deterioration of insulating oil, and extend the service life of oil quality.
- Lockable operating switch: improves operation safety and prevents misoperation by non-professional personnel.
- Moving rollers: convenient for equipment transportation and on-site installation.
In addition to the above standard options, we provide full-specification customization services. Product parameters and structures can be adjusted according to users’ special usage requirements, and targeted distribution solutions can be provided. Contact us to get a customized solution.
112.5 kVA Three Phase Distribution Transformer Specifications
| Item | Technical Parameters |
| Rated Capacity | 112.5 kVA |
| Phase / Frequency | Three Phase / 60 Hz |
| Common Primary Voltage | 480V / 600V / 4160V |
| Common Secondary Voltage | 208Y/120V / 480Y/277V |
| Insulation Class | Class F / Class H (optional) |
| Temperature Rise Class | 150°C (ANSI standard) |
| Enclosure Protection Rating | NEMA 1 / NEMA 3R / NEMA 12 |
| Energy Efficiency Standard | DOE 2016 High Efficiency Standard |
| Operating Noise | ≤52 dB |
| Cooling Method | Natural Air Cooling (AN) |
Factory Tests and Quality Assurance
CHBEB’s 112.5 kVA Distribution Transformer will undergo strict quality inspection before leaving the factory, including routine tests, type tests and special tests, to ensure that product performance meets design requirements and relevant standards.
Routine Tests
Ratio test, winding DC resistance test, insulation resistance test, leakage test, etc.
Type Tests
Temperature rise test, impulse voltage test, short-circuit test, etc.
Special Tests
Carried out according to customer requirements, including noise test, partial discharge test, dissolved gas analysis in oil and other items.
